Tense XJ3-G Phase Sequence Relay Pakistan
Protect your three-phase motors from wiring mistakes and bad grid conditions with the Tense XJ3-G phase sequence relay.  Simple design makes setup quick for electricians and panel builders in Pakistan today.

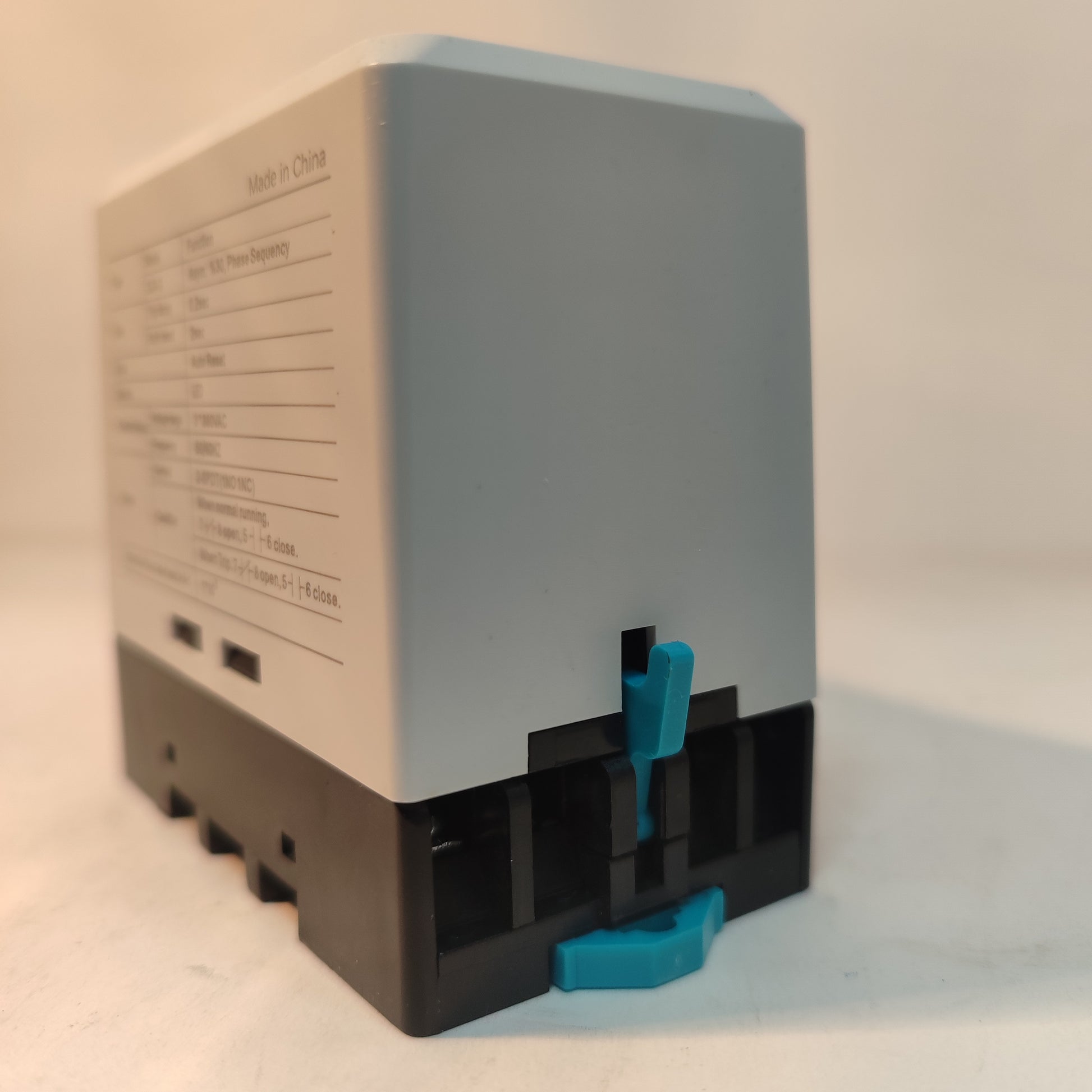

XJ3-G is self-powered from the measured lines and fits standard 35 mm DIN rail. An adjustable delay filters brief dips at startup. Clear LEDs show status and faults at a glance. A robust SPDT output contact interlocks your control circuit for pumps, compressors, fans, and conveyors.

Features of Tense XJ3-G Phase Sequence Relay Pakistan:

• Detects phase sequence, loss, reversal and unbalance
• Adjustable trip/restart delay to prevent nuisance tripping
• SPDT relay output for easy control interlocking

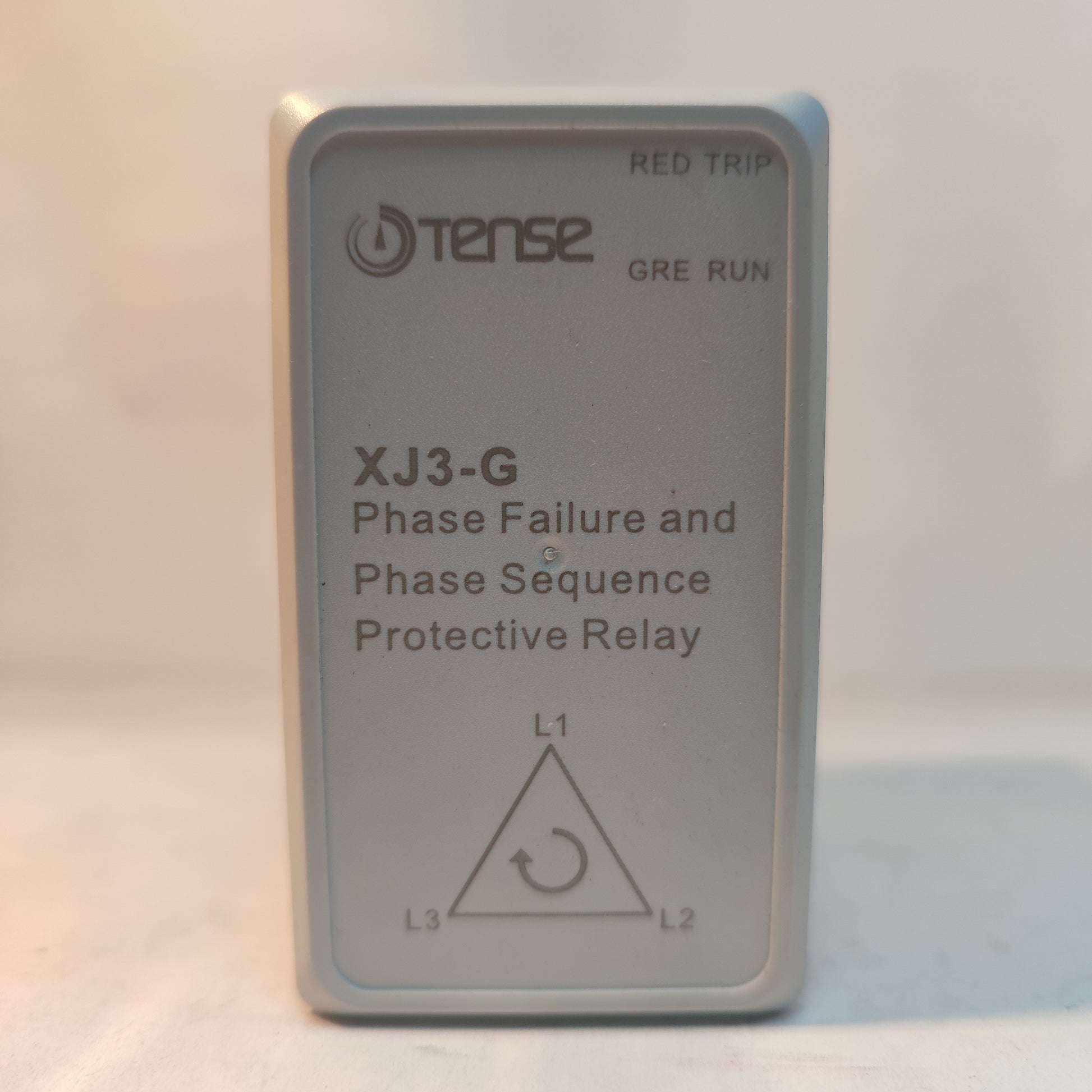

• LED status indicators; quick fault diagnosis

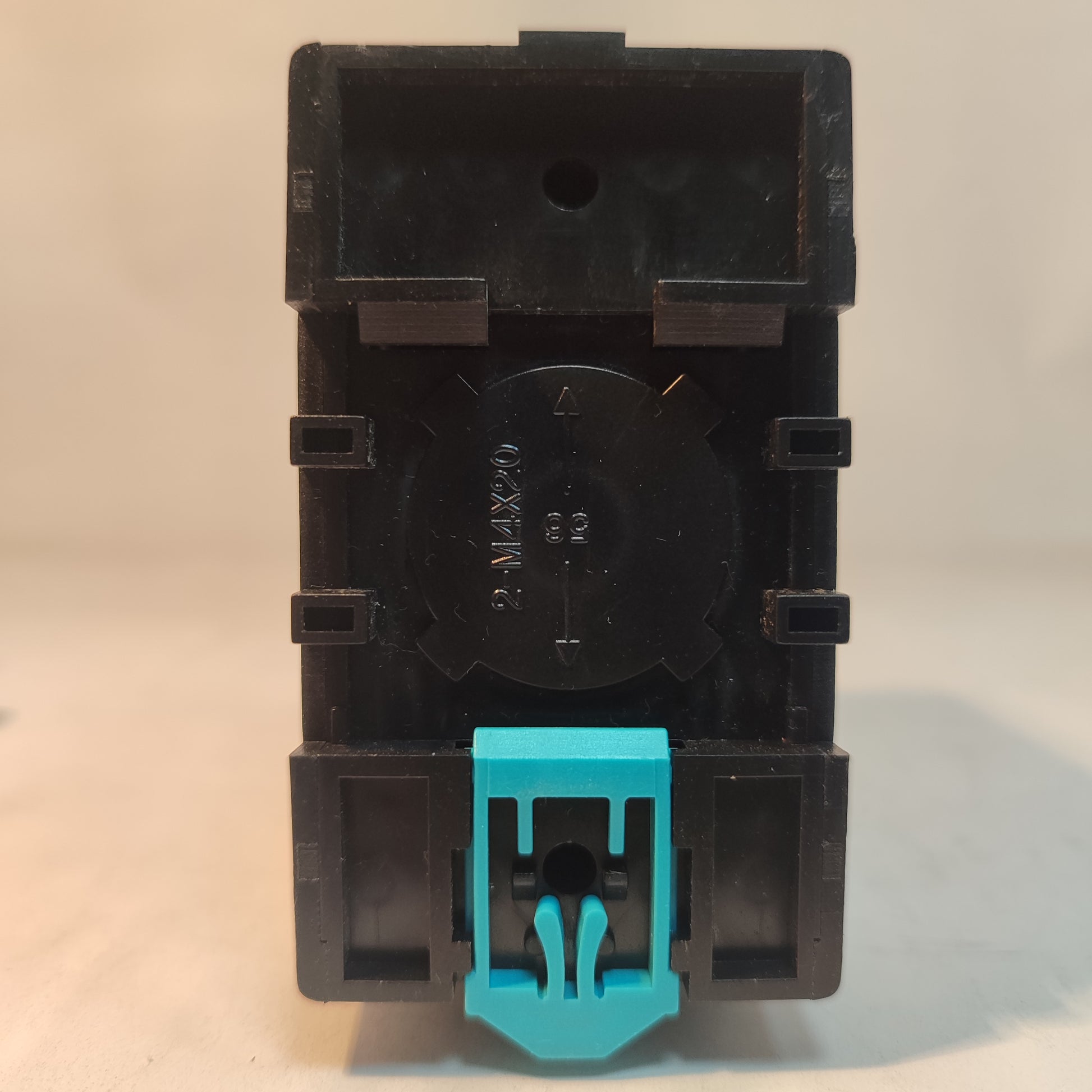

• Compact 35 mm DIN‑rail mounting

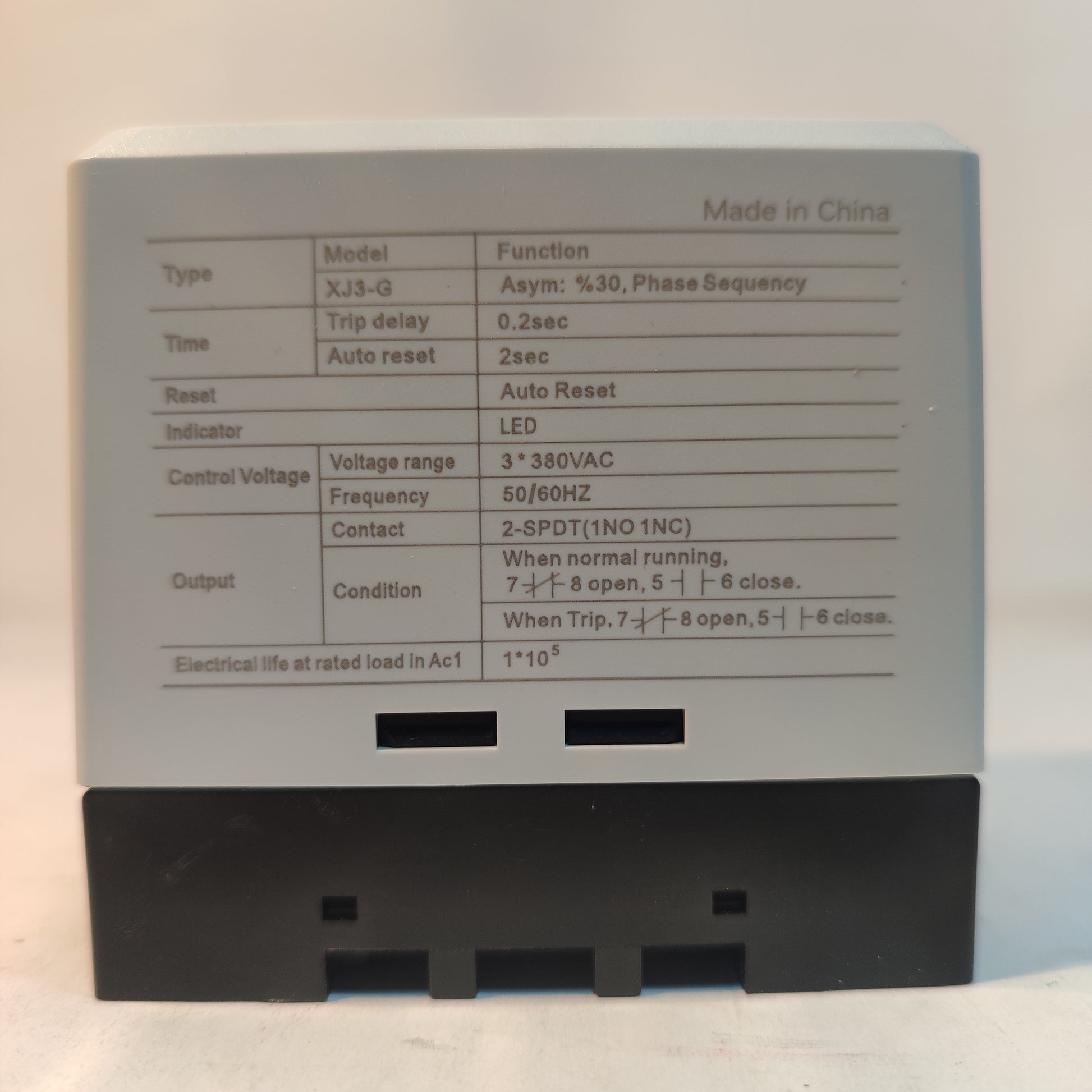

Specifications:

• Model: Tense XJ3‑G (Phase Monitoring Relay)
• Supply/Measure: 3×380–415 V AC, 50/60 Hz (self‑powered)
• Output Contact: 1× SPDT relay, 5A at 250 V AC (typ.)
• Settings: adjustable delay and unbalance sensitivity
• Mounting/Terminals: DIN‑rail 35 mm, screw terminals, LED status

Uses:

• Protecting pumps, fans and blowers
• Compressors and HVAC chillers
• Elevators/hoists and conveyors
• CNC/industrial control panels
• General three‑phase motor protection
