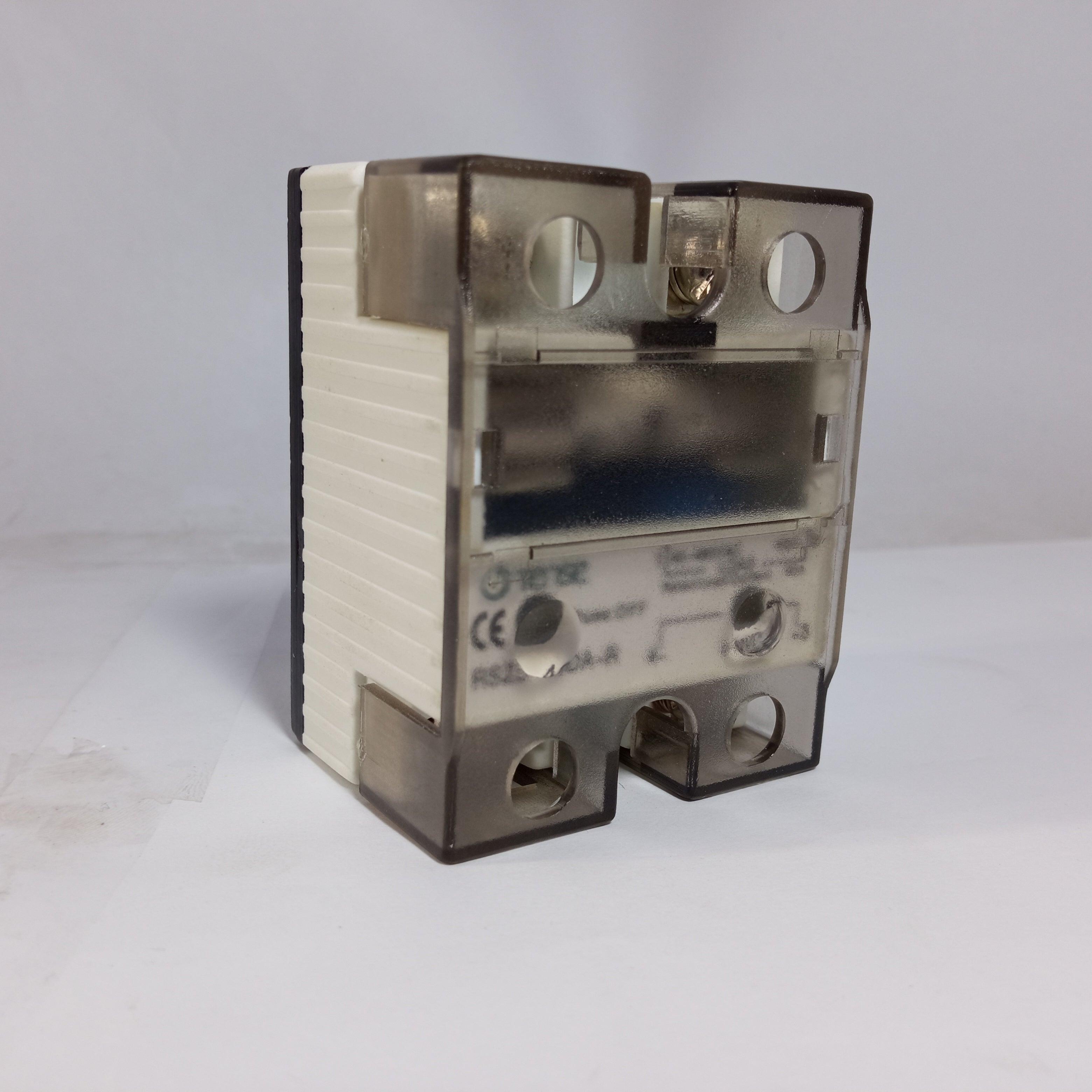

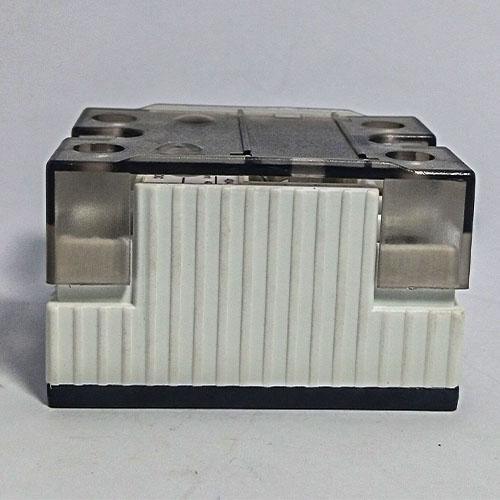

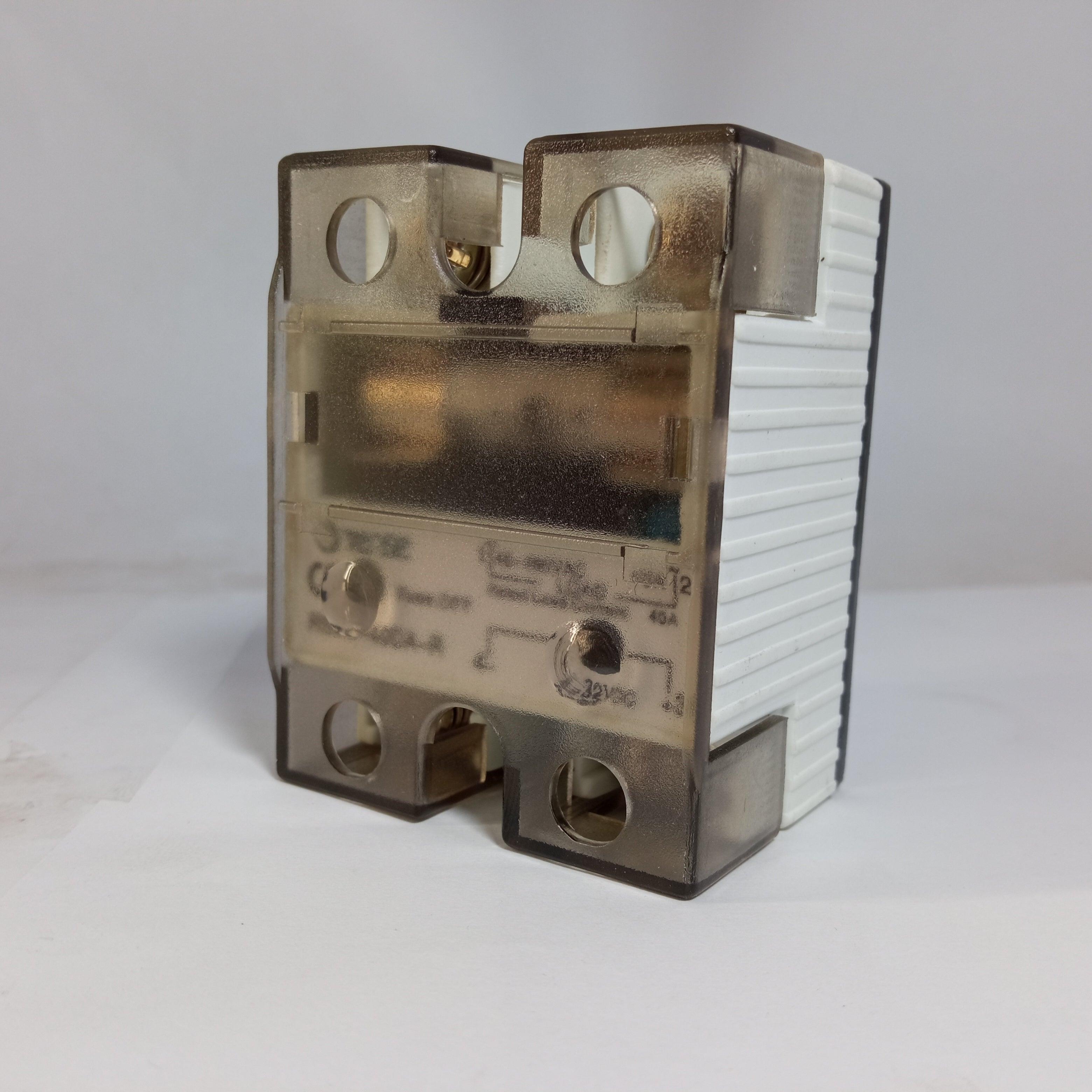

Tense Solid State Relay RSZS-40DA-R in Pakistan

2 total reviews

Regular price Rs 2,520
Regular price Rs 3,000 Sale price Rs 2,520
Sale Sold out
BR4637

SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation, and screw terminal connection. This series of solid-state relays has high structural strength, impact resistance, and strong resistance to viability. The low input drives current makes it convenient to connect with a computer terminal and various digital programmable interface circuits.

Features:

  1. Reliable SMT technology
  2. High ultra insulation resistance over 50M?/500V DC
  3. High dielectric over 2.5KV
  4. Low EMI/EFI & surge by zero cross trigger method
  5. High surge current over 410A/one cycle (60Hz)
  6. High surge voltage duration by the snubber circuit

Specification:

  • Model: RSZS-40DA-R
  • Control Mode: DC-AC
  • Load Voltage: 24-380VAC
  • Load Current: 40A
  • Control Voltage: 3-32VDC
  • Control Current: DC3-25mA
  • Working voltage: 250V
  • On voltage: ?1V
  • One-off Time: ?10ms
  • Off leakage Current: ?2mA
  • Installation Method: Bolt Fixed
  • Working Indication: LED
  • Solid State Relay Fotek RSZS-40DA-R

Industryparts.pk Best Online Shopping website for Tense Solid State Relay RSZS-40DA-R. Here you get Tense Solid State Relay RSZS-40DA-R at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:

        1 x Tense Solid State Relay RSZS-40DA-R
Tense Solid State Relay RSZS-40DA-R in PakistanTense Solid State Relay RSZS-40DA-R in PakistanTense Solid State Relay RSZS-40DA-R in PakistanTense Solid State Relay RSZS-40DA-R in Pakistan

Description

SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation, and screw terminal connection. This series of solid-state relays has high structural strength, impact resistance, and strong resistance to viability. The low input drives current makes it convenient to connect with a computer terminal and various digital programmable interface circuits.

Features:

  1. Reliable SMT technology
  2. High ultra insulation resistance over 50M?/500V DC
  3. High dielectric over 2.5KV
  4. Low EMI/EFI & surge by zero cross trigger method
  5. High surge current over 410A/one cycle (60Hz)
  6. High surge voltage duration by the snubber circuit

Specification:

  • Model: RSZS-40DA-R
  • Control Mode: DC-AC
  • Load Voltage: 24-380VAC
  • Load Current: 40A
  • Control Voltage: 3-32VDC
  • Control Current: DC3-25mA
  • Working voltage: 250V
  • On voltage: ?1V
  • One-off Time: ?10ms
  • Off leakage Current: ?2mA
  • Installation Method: Bolt Fixed
  • Working Indication: LED
  • Solid State Relay Fotek RSZS-40DA-R

Industryparts.pk Best Online Shopping website for Tense Solid State Relay RSZS-40DA-R. Here you get Tense Solid State Relay RSZS-40DA-R at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:

        1 x Tense Solid State Relay RSZS-40DA-R
Tense Solid State Relay RSZS-40DA-R in PakistanTense Solid State Relay RSZS-40DA-R in PakistanTense Solid State Relay RSZS-40DA-R in PakistanTense Solid State Relay RSZS-40DA-R in Pakistan
