Tense Multifunction Electric Energy Meter with 6 in 1 LCD Display D69 2058 in Pakistan

4 total reviews

Regular price Rs 2,500
Regular price Rs 2,800 Sale price Rs 2,500
Sale Sold out
BR4785-B217

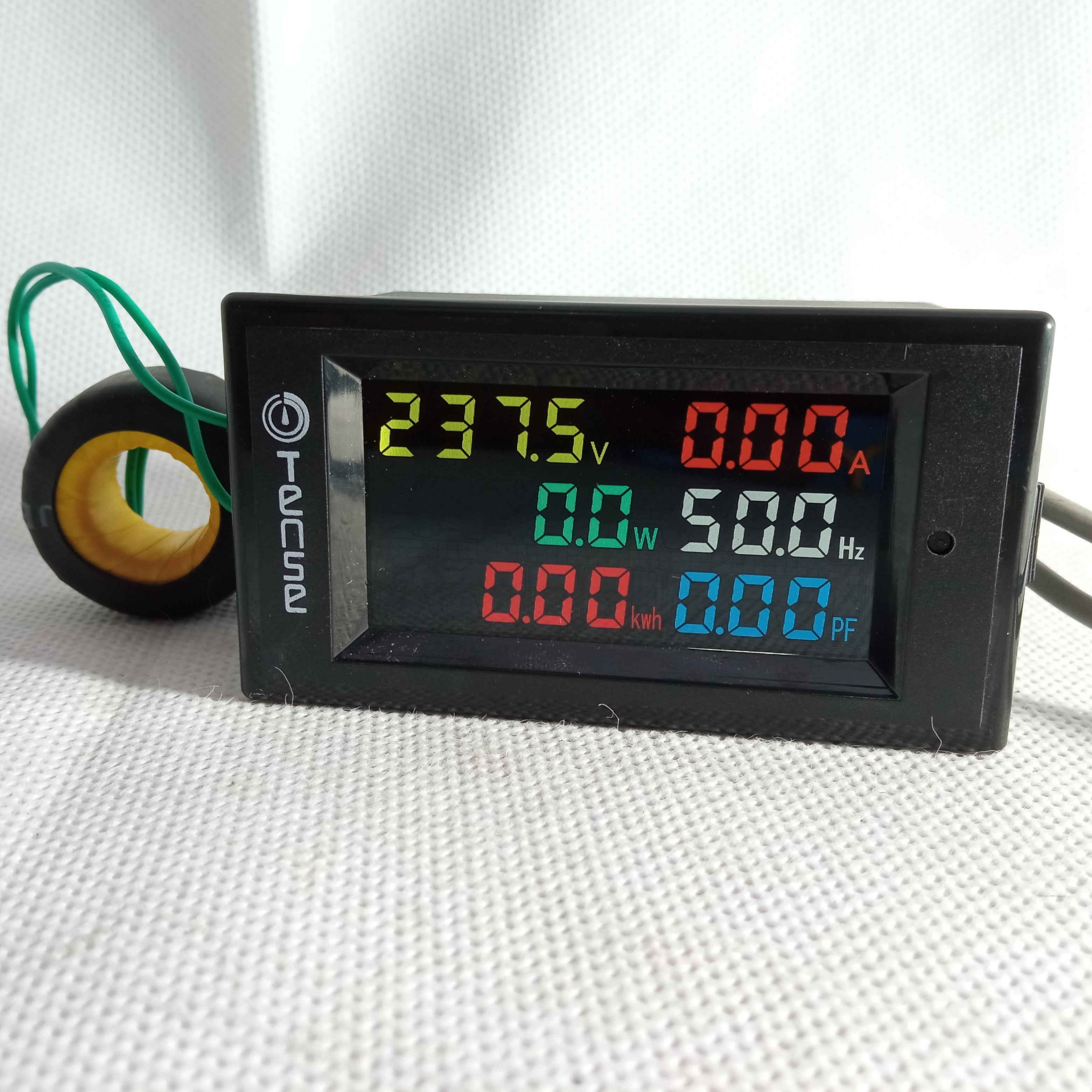

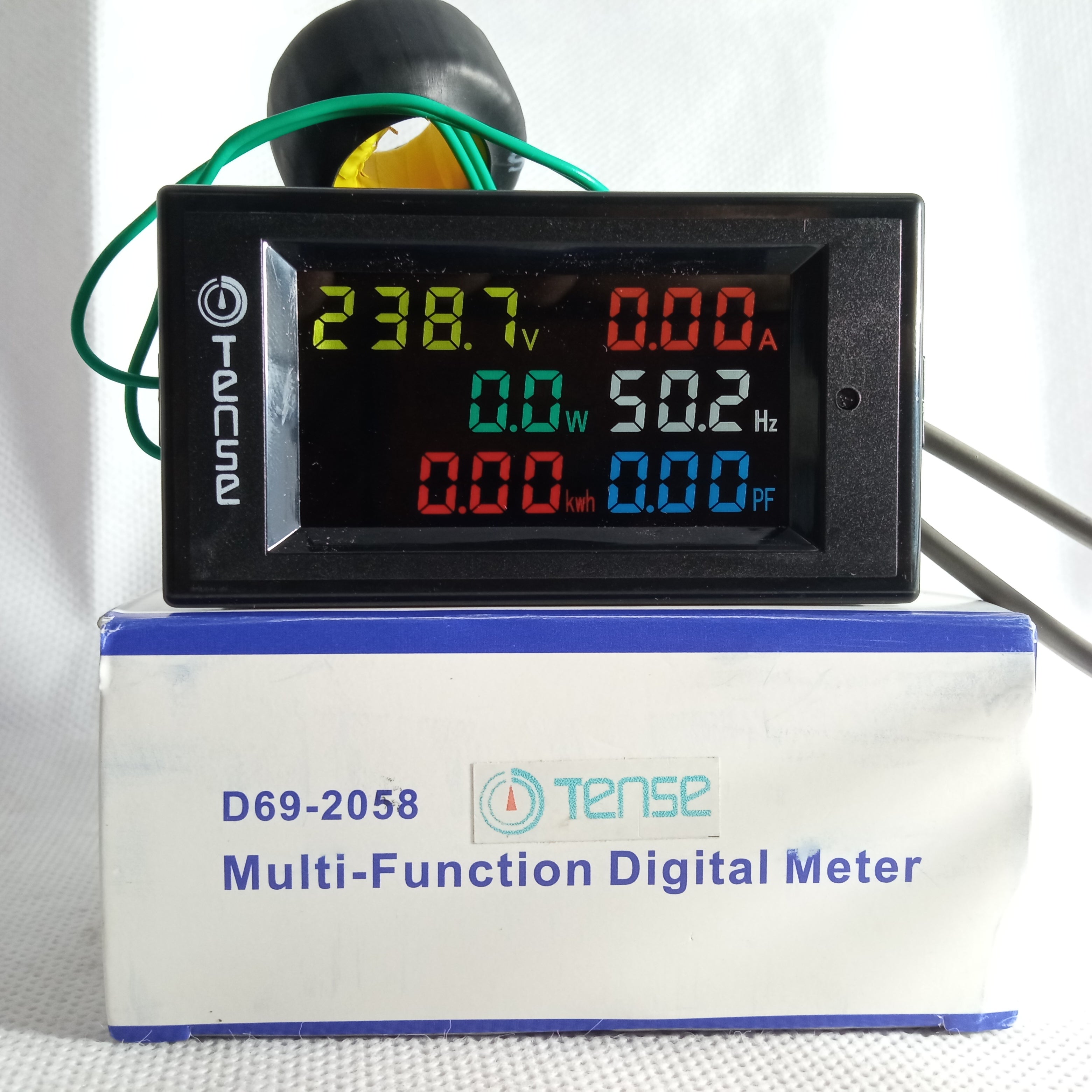

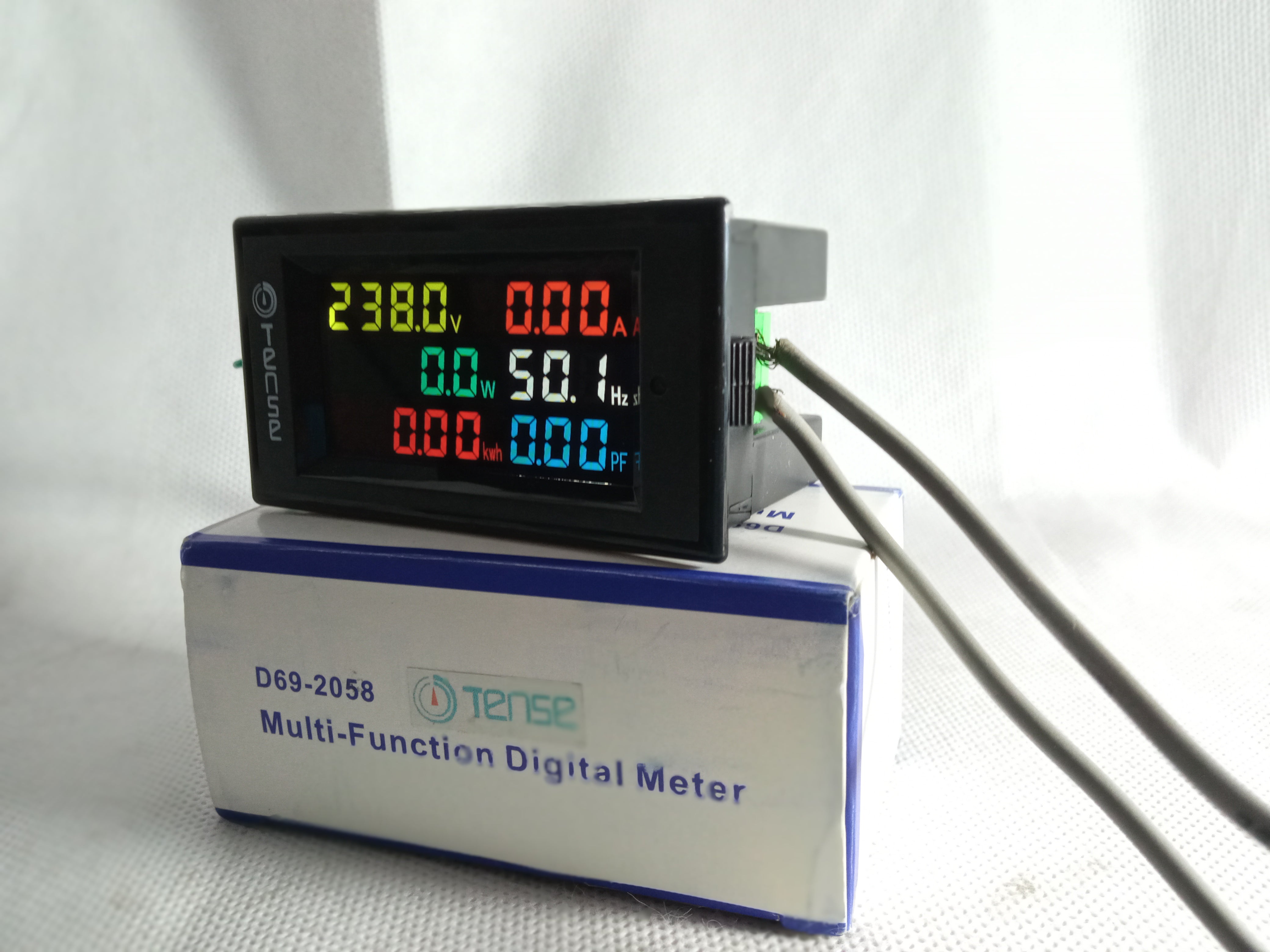

The meter which is used for measuring the energy utilized by the electric load is known as the energy meter. The energy is the total power consumed and utilized by the load at a particular interval of time. It is used in domestic and industrial AC circuits for measuring power consumption. D69 2058 is such a meter that displays Voltage, Current, Power Factor, Active power, Electric energy (KWH), and Frequency

Specifications:

  1. Accuracy: 1% 2 words
  2. AC voltage:    AC 80.0-300.0V/200.0-450.0V (You should select the suitable type of meter when you're making an order)
  3. AC current:    AC 0-99.99A, minimum resolution is 0.01A
  4. AC current:    AC 0-40.00A, minimum resolution is 0.01A
  5. power frequency:  45.0Hz-65.0Hz
  6. power factor :     0.00-1.00PF
  7. active power:     0-45000W when the active power is between 0 and 9999.9W, the display accuracy is 0.1W
  8. Electric energy:   0-9 99999kwh, when the electric power is between 0 and 999.99kwh, the display accuracy is 0.01kwh when between 10000.0-9999.9kwh, the display accuracy is  0.1kwh when between 10000.0 and 999999kwh, the display accuracy is 1kwh.
  9. Speed: 2 times per second
  10. Size: 79*43*48mm
  11. Installation Size: 76*39mm
  12. Auto-saving: when power is off, the electric energy will be saved. The saved electric energy will Be accumulated continue when the meter power-on next time.

Application Method:

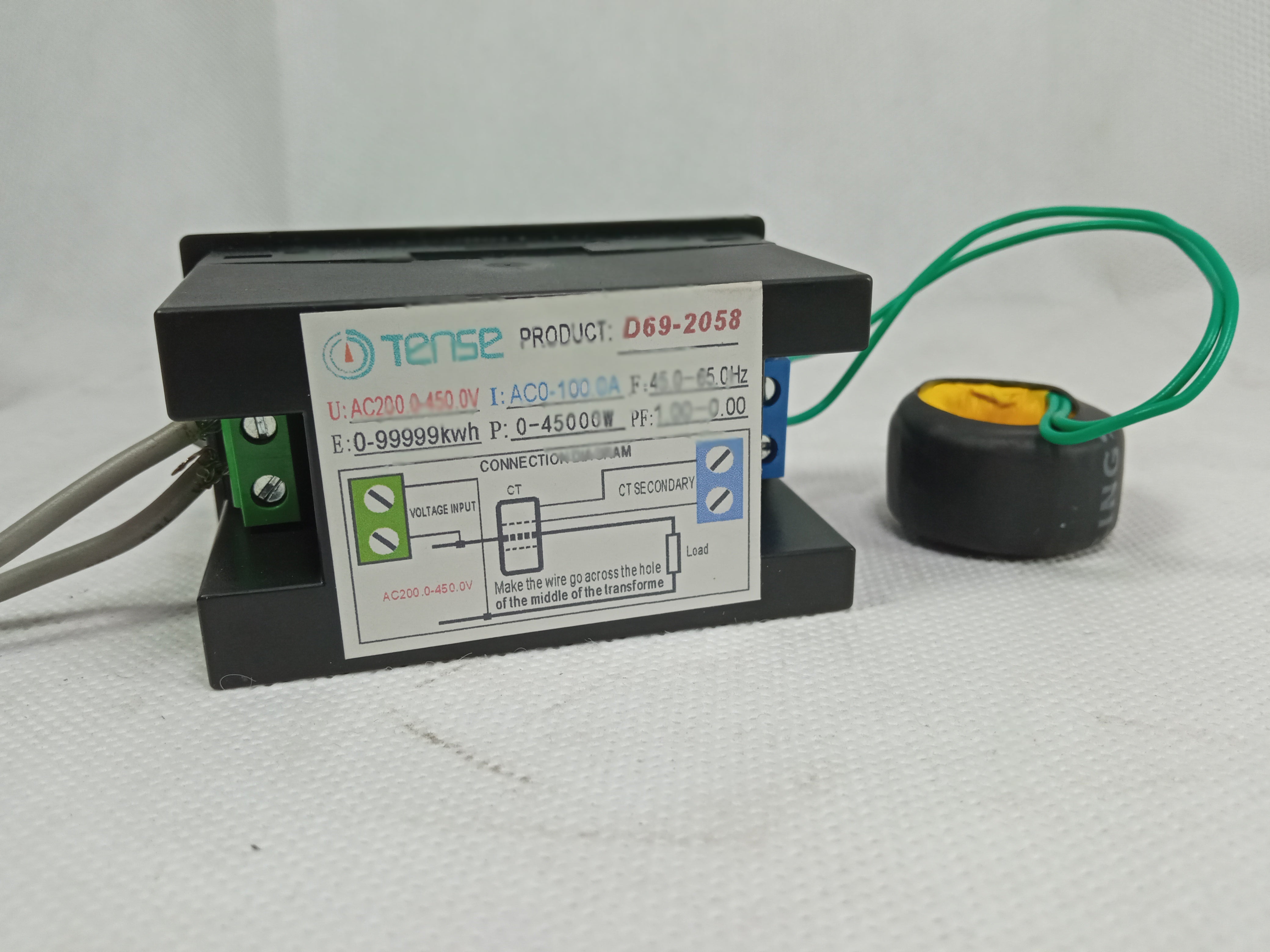

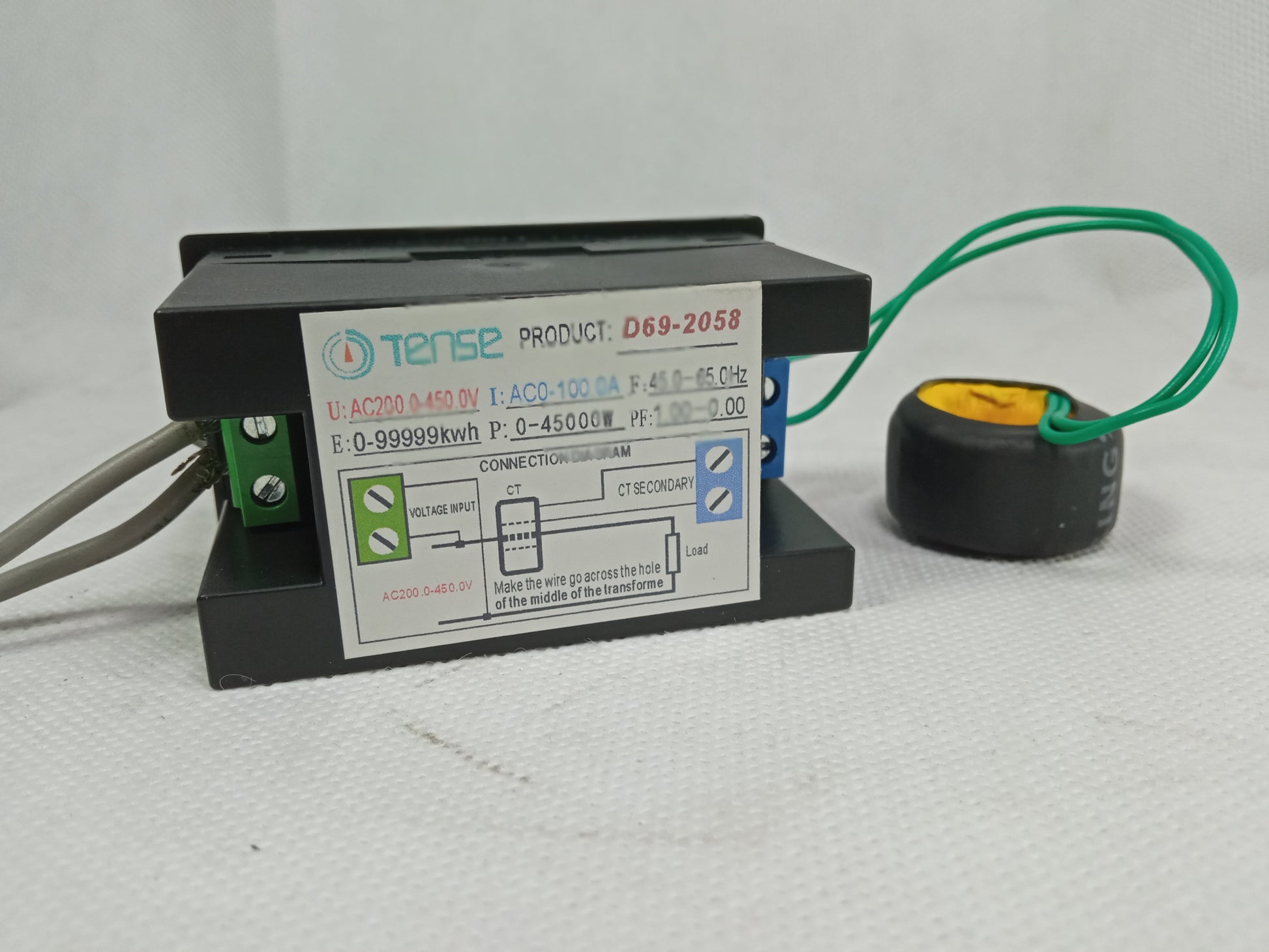

  1. According to a connection graph, connect the green wire of the secondary current transformer to the blue terminal of the meter and make the wire of measurement circuit through the hole in the current transformer.
  2. Supply power and start to measure and display the result.
  3. Press down the button last for 5 seconds, the electric energy will be zero.

Industryparts.pk Best Online Shopping website for Tense Multifunction Electric Energy Meter with 6 in 1 LCD Display D69 2058 in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Tense Multifunction Electric Energy Meter with 6 in 1 LCD Display D69 2058
