Murata Power Solutions ACM3P Three-Phase AC Ammeters measure and display the true-RMS values of 2- or 3-phase AC mains current. These low-profile ammeters have three built-in current transformers. The devices display true-RMS values of triangle, square, and other irregularly shaped waveforms.

Features:

• 100mA – 5.5A
• 5/5A…..5000/5A

Specifications:

• Operating Voltage(Un): 140V - 270V AC
• Made :          china
• Operating Frequency: 50/60 Hz
• Operating Power: <4VA
• Operating Temperature: -20°C.....+55°C
• Voltage Measuring Range: 1V - 500V AC
• Measurement Range: 100mA-5.5A AC
• C.T. Ratio: 5/5A..... .5000/5A
• Measurement Precision: ±%1
• Display: (3 digits) 6x Displays + 9 LEDs
• Connection Type: 3*4 digit 14mm display plug-in terminal
• Cable Diameter: 1,5mm²
• Weight: Max. 300gr.
• Panel Hole Sizes: 91x91mm
• Mounting: Panel front-mounted
• Operating Altitude: <2000meter

Industryparts.pk is the Best Online Shopping website for TENSE DJ-V96T Three Phase AC Ammeter in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

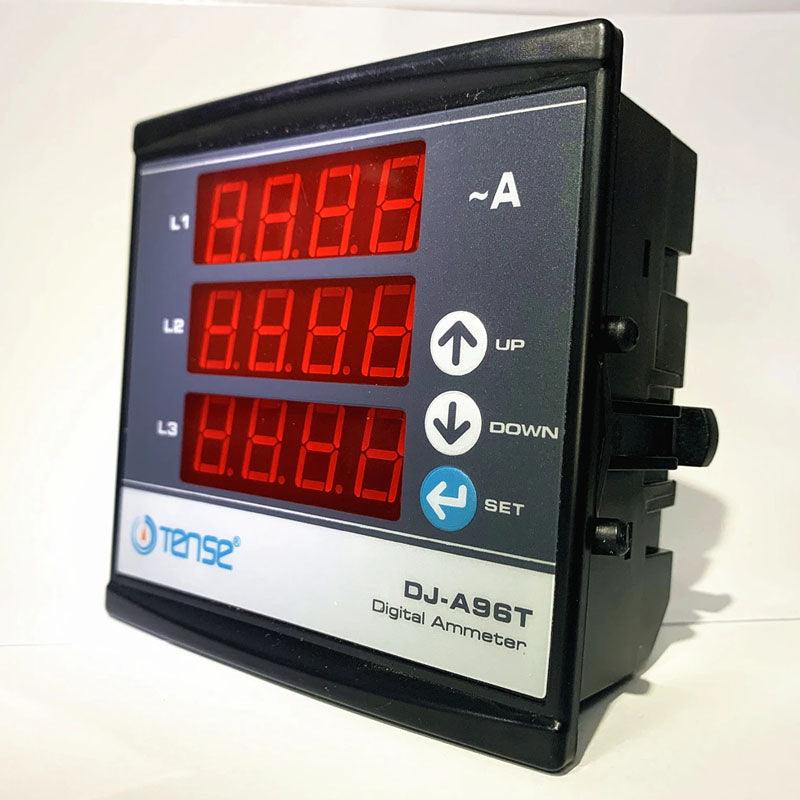

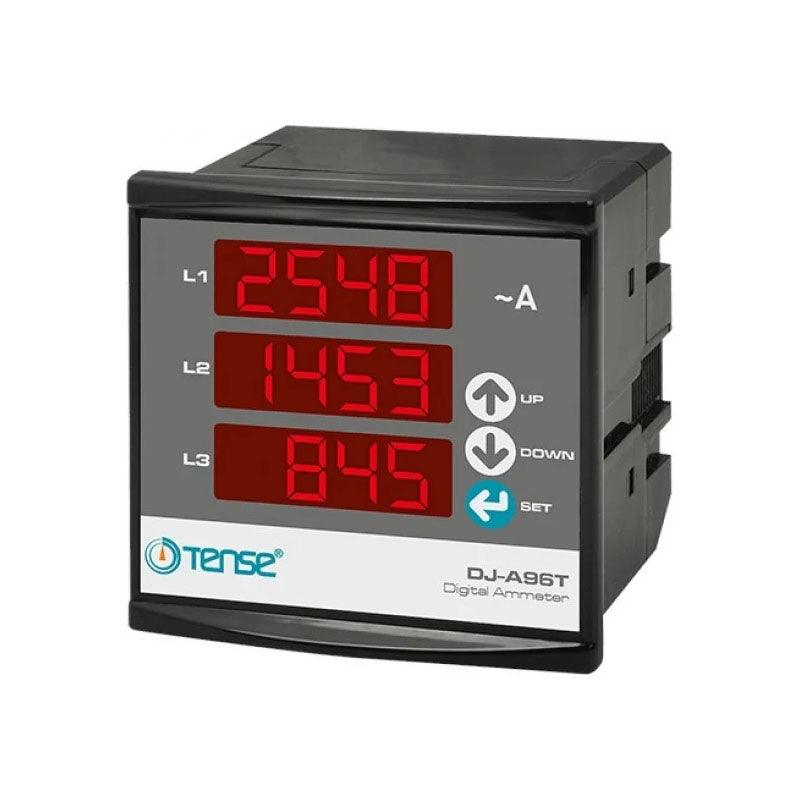

    1 x TENSE DJ-A96T Three Phase AC Ammeter
