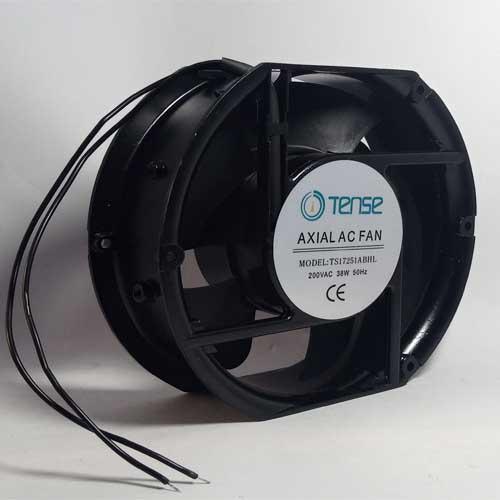

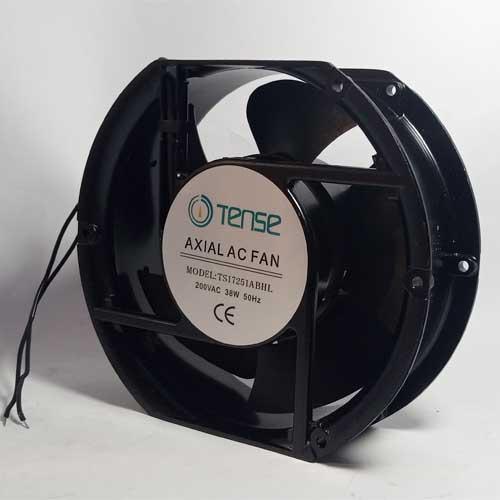

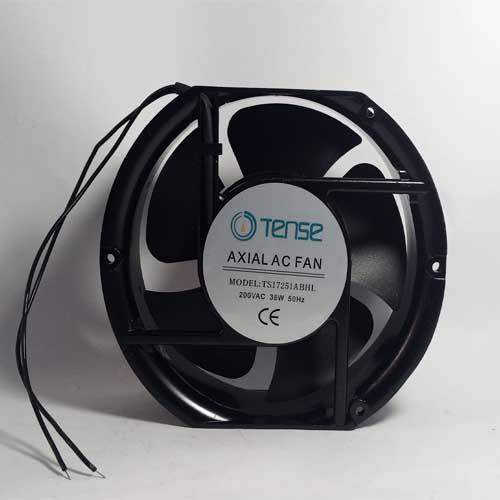

TENSE Axial Fan TS17251ABHL 38W 200VAC 2 Wires in Pakistan

SKU:BR5173

Regular price Rs 2,100
Regular price Rs 2,250 Sale price Rs 2,100
Sale Sold out

TENSE Axial Fan TS17251ABHL 38W 200VAC 2 Wires is a type of fan that causes the gas to flow through it in an axial direction, parallel to the shaft about which the blades rotate. ... The fan is designed to produce a pressure difference, and hence force, to cause a flow through the fan.

Features:

  1. Durable die-cast aluminum frame (ADC12) for perfect durability
  2. PBT UL 94V-0 Self Extinguishing Thermoplastic Wheels
  3. Slide bearing
  4. Impedance protection
  5. 20,000 hours Life expectancy according to DIN622.
  6. Compact dimensions for any installation situation
  7. Efficient operating conditions
  8. For more information, see the datasheet. You will receive this on request.
  9. Rated voltage/nominal voltage: 230 V AC.
  10. Frequency/joy range: 50/60 Hz.

Specifications:

  • Input power/recording power: 17 / 15 W.
  • Rated current/nominal current: 0.14/0.11 A.
  • Locked current/blocking current: 0.17 / 0.15 A.
  • Speed: 2,700 / 3,100 RPM
  • Maximum air flow/air flow quantity: max. : 2.60 / 3.00 m3/min
  • Maximum pressure / maximum pressure build-up. : 8.00 / 8.00 mm H2O
  • Noise/noise level: 42/46 dB (A).
  • Weight: 530 g

Industryparts.pk Best Online Shopping website for TENSE Axial Fan TS17251ABHL 38W 200VAC 2 Wires in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

      1 x TENSE Axial Fan TS17251ABHL 38W 200VAC 2 Wires
