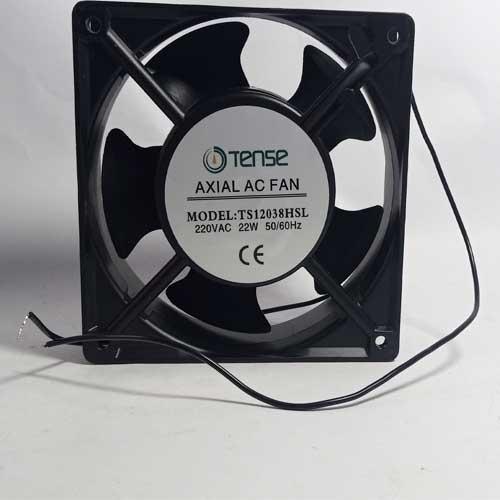

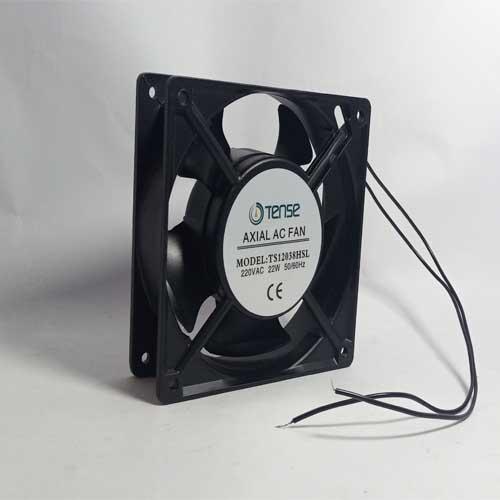

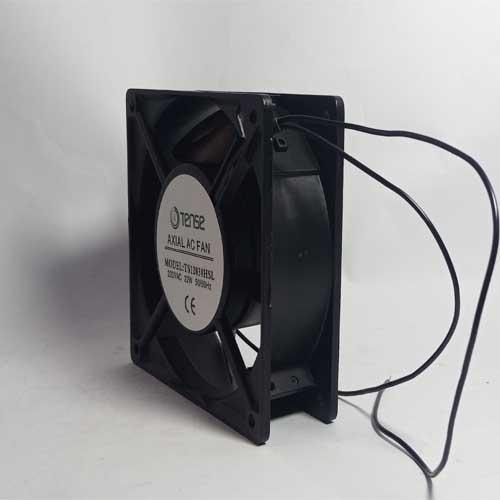

TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires in Pakistan

6 total reviews

Regular price Rs 800
Regular price Rs 900 Sale price Rs 800
Sale Sold out
BR5174

TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires with sliding bearings are designed for direct installation in panels or other devices. In principle, these are all areas where cooling and ventilation of components or machines are essential.  Axial fans pull out the surrounding air to create a reduced room climate (e.g. in a control cabinet as a roof fan), or transport cool, fresh air to the object to be cooled (e.g. for targeted cooling of a single heat source, which is difficult to achieve by a usual air circulation).

Features:

  1.  Self Extinguishing Thermoplastic Wheels
  2. Slide bearing
  3. Impedance protection
  4. 20,000 hours Life expectancy according to DIN622.
  5. Compact dimensions for any installation situation
  6. Efficient operating conditions

Specifications:

  1. Rated voltage/nominal voltage: 220 V AC.
  2. Frequency/joy range: 50/60 Hz.
  3. Input power/recording power: 22 W.
  4. Rated current/nominal current: 0.14/0.11 A.
  5. Locked current/blocking current: 0.17 / 0.15 A.
  6. Speed: 2,700 / 3,100 RPM
  7. Maximum air flow/air flow quantity: max. : 2.60 / 3.00 m3/min
  8. Maximum pressure / maximum pressure build-up. : 8.00 / 8.00 mm H2O
  9. Noise/noise level: 42/46 dB (A).
  10. Weight: 530 g.
  11. Flat plug connection

Package Includes:

1 x TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires

Industryparts.pk is the Best Online Shopping website for TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires. Here you get TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Description

TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires with sliding bearings are designed for direct installation in panels or other devices. In principle, these are all areas where cooling and ventilation of components or machines are essential.  Axial fans pull out the surrounding air to create a reduced room climate (e.g. in a control cabinet as a roof fan), or transport cool, fresh air to the object to be cooled (e.g. for targeted cooling of a single heat source, which is difficult to achieve by a usual air circulation).

Features:

  1.  Self Extinguishing Thermoplastic Wheels
  2. Slide bearing
  3. Impedance protection
  4. 20,000 hours Life expectancy according to DIN622.
  5. Compact dimensions for any installation situation
  6. Efficient operating conditions

Specifications:

  1. Rated voltage/nominal voltage: 220 V AC.
  2. Frequency/joy range: 50/60 Hz.
  3. Input power/recording power: 22 W.
  4. Rated current/nominal current: 0.14/0.11 A.
  5. Locked current/blocking current: 0.17 / 0.15 A.
  6. Speed: 2,700 / 3,100 RPM
  7. Maximum air flow/air flow quantity: max. : 2.60 / 3.00 m3/min
  8. Maximum pressure / maximum pressure build-up. : 8.00 / 8.00 mm H2O
  9. Noise/noise level: 42/46 dB (A).
  10. Weight: 530 g.
  11. Flat plug connection

Package Includes:

1 x TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires

Industryparts.pk is the Best Online Shopping website for TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires. Here you get TENSE 4 Inch Axial Fan TS12038HSL 22W 200VAC 2 Wires at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
