A Temperature Controller is a device that is used to control a heater or other equipment by comparing a sensor signal with a set point and performing calculations according to the deviation between those values.

https://youtu.be/xEOtetpdpTI

Specification:

• Product number: ANC 607
• Input signal: K, J, PT, R
• Temperature range: 0~99.9, 0~199, 0~399, 0~799, 0~999,  (ANC 607A: 0~1200, 0~1600)
• control Mode: ON/OFF, P, PD Proportional
• Belt: 2.5 % of full scale
• Proportional period: Relay (about 10 seconds), SSR (about 3 seconds)
• Output mode: Relay (250V/5A), SSR (24V/DC)
• Control accuracy : 1% (Full Scale)
• Alarm Mode: Upper/Lower Limit Selectable
• Operating Voltage: 110V/220V/380V/440V Selectable
• Power Consumption: About 5 W
• Ambient Temperature: -10~50℃
• Insulation Resistance: 20M ohm / 500V DC
• Appearance Dimensions: 96mm x 96mm

Package includes:

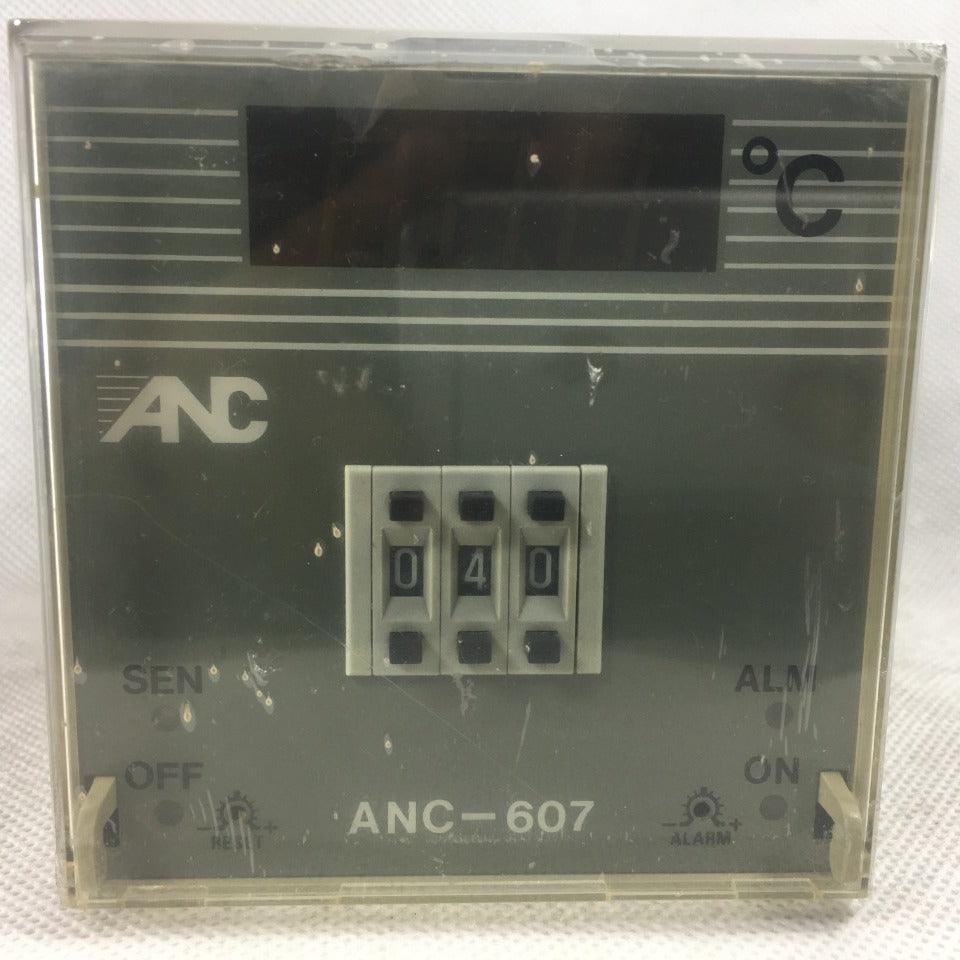

          1 x Temperature Controller ANC-607

Industryparts.pk is the Online Shopping website for Temperature Controller ANC-607. Here you get Temperature Controller ANC-607 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
