Time Protective Relays and Overcurrent Protection: Time protective relays are devices used to detect abnormal current conditions in electrical systems and initiate appropriate protective actions. Overcurrent protection is one of the primary functions provided by these relays, aimed at preventing damage to equipment and ensuring the safety and reliability of the power system.

Features :

1. IDMT Overcurrent Protection: The TECO EOL-70 is specifically designed to provide IDMT overcurrent protection, allowing it to accurately detect and respond to overcurrent conditions in electrical systems.

2. Adjustable Settings: The relay typically offers adjustable settings such as pickup current, time multiplier, and curve characteristics to customize the protection scheme according to the specific requirements of the system.

3. Time-Current Characteristics: The TECO EOL-70 incorporates specific time-current characteristics (curves) based on the selected IDMT scheme, ensuring appropriate tripping times for different fault current magnitudes.

4. Coordination Capabilities: The relay allows for coordination with other protective devices in the system, enabling selective tripping and minimizing disruptions to the power supply.

5. Fault Indication: The relay may provide fault indication features such as LED indicators or fault recording capabilities to facilitate fault diagnosis and maintenance.

6. Compact Design: The TECO EOL-70 is typically designed with a compact form factor, allowing for easy installation and integration into control panels or switchgear.

Specifications :

• Overcurrent Protection: The relay is designed to detect excessive current flow in electrical circuits and initiate trip signals when predetermined thresholds are exceeded.
• Inverse Definite Minimum Time (IDMT): IDMT relays respond to overcurrent conditions with a tripping time that decreases as the magnitude of the fault current increases, allowing for selective and coordinated protection.
• Adjustable Settings: The relay typically offers adjustable settings such as pickup current, time delay, and curve characteristics to customize the protection scheme based on specific system requirements.
• Time-Current Characteristics: The relay incorporates time-current characteristics or curves to define the relationship between fault current magnitude and tripping time.
• Coordination Capabilities: The relay allows for coordination with other protective devices in the system to achieve selective and coordinated tripping, ensuring that the closest fault is cleared first while minimizing system disruptions.
• Fault Indication: Some relays may provide fault indication features, such as LED indicators or fault recording capabilities, to aid in fault diagnosis and maintenance.
• Compact Design: Time protective relays are typically designed with a compact form factor, allowing for easy installation and integration into control panels or switchgear.
• Specifications: Specific specifications can vary depending on the manufacturer and model but may include parameters such as rated voltage, current rating, fault current detection range, trip time accuracy, and communication capabilities.

Package Includes:

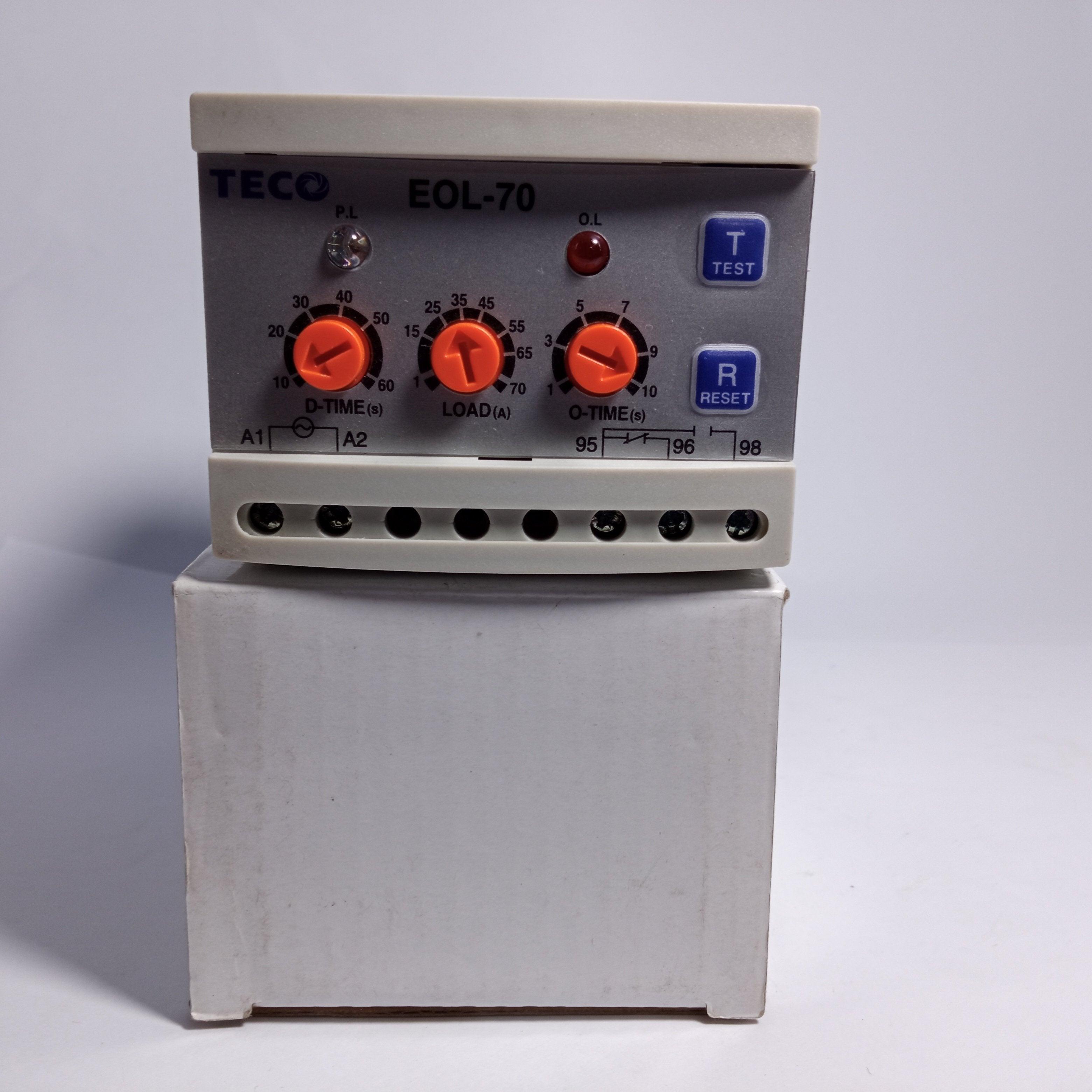

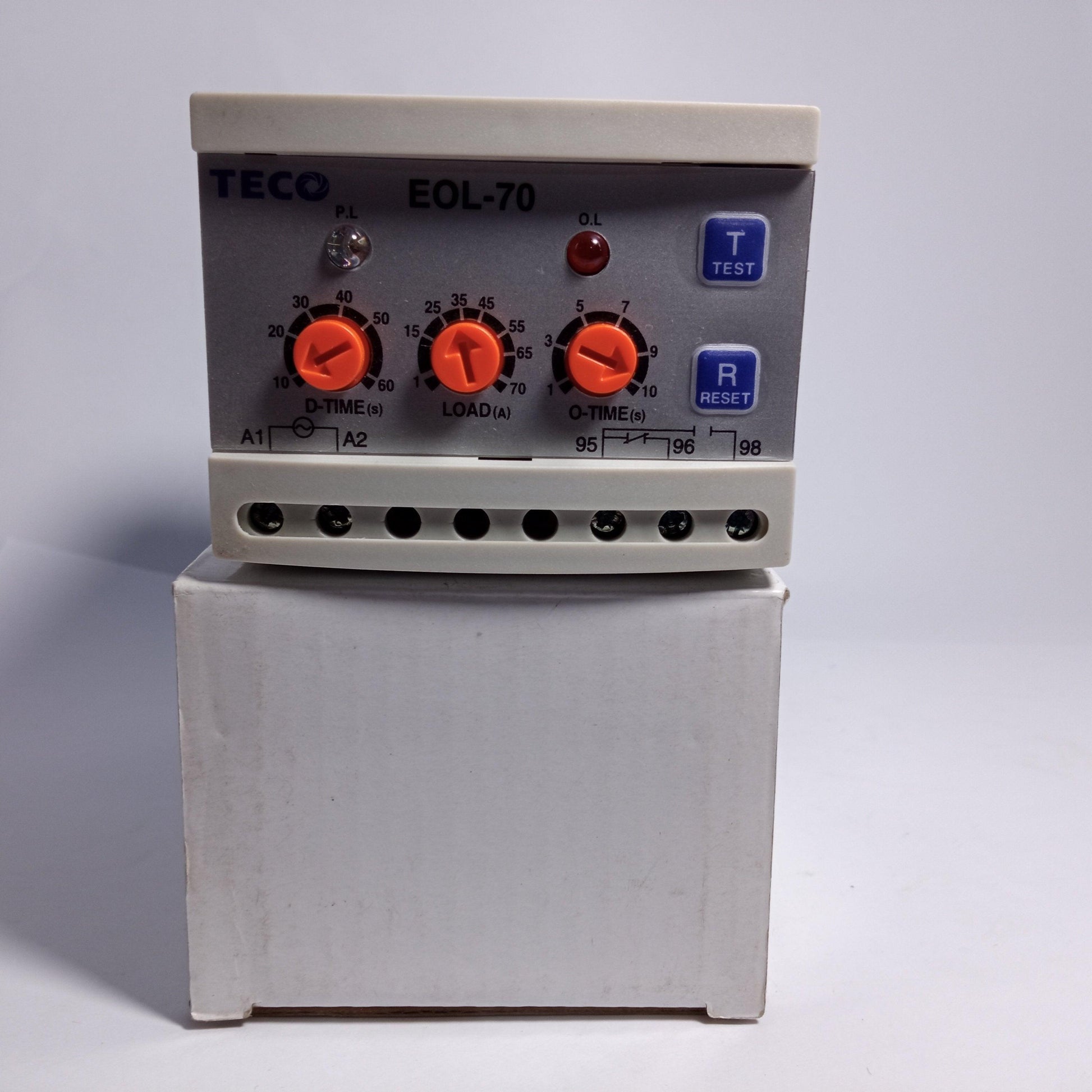

1 x TECO EOL-70 Time Protective Relays IDMT Overcurrent Protection
