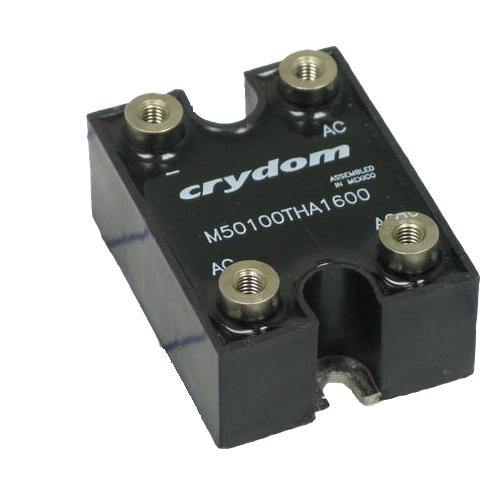

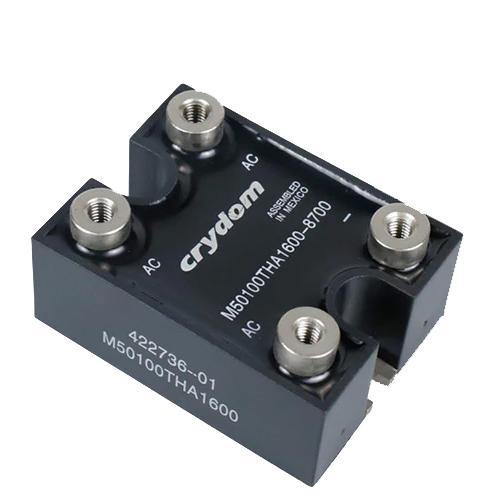

Crydom Standard Diode Power Modules
SKU:BR4660
Couldn't load pickup availability
Crydom Standard Diode Power Modules, in Pakistan BR4660
Description
The M50 series modules utilize highly efficient thermal management to provide high surge capability, long life, and reliable performance. These industry-standard packaged power modules are designed to control AC or DC variable voltage output up to 40KW. All modules come with standard .250" quick‑connect terminals for easy installation. Eight standard circuits provide a wide range of diode, SCR, and hybrid configurations for single-phase operations. Suitable for line applications up to 480 volts RMS.
- External Suppressor Optional
- UL Recognized E72445
Features:
- Eight Standard Circuits
- 120 Vac ~ 480 Vac Input
- 50 or 100 DC Amps Output
- 2500 Vrms Isolation
- Optional Free Wheeling Diode
Specifications
- Item Number: M50100THA1600
- UPC: ERR: 32111702
- Brand: Crydom
- Item Category: Power Modules
- Subcategory: Standard Diode
- Series: M50
- It (avg): 100 Amps
- Vrrm: 1,600 Volts
- Circuit: 3PH Common Anode Diodes
- Aux. Cathode(s): No

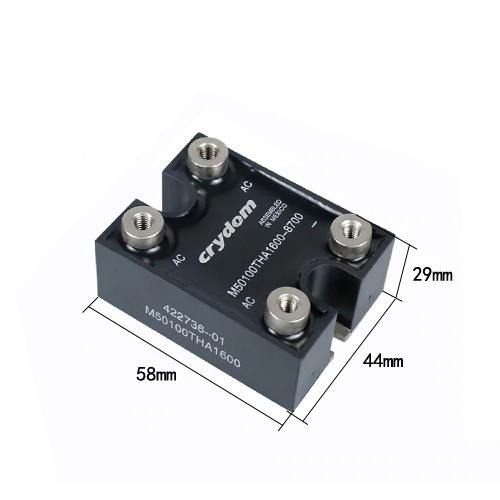

- H x W x D: 1.37 in x 1.75 in x 2.27 in
- Net Weight: 3.68 OZ
- Gross Weight: 4.4 OZ
Best Online Shopping website for Crydom Standard Diode Power Modules. Here you get Crydom Standard Diode Power Modules at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x Crydom Standard Diode Power Modules
