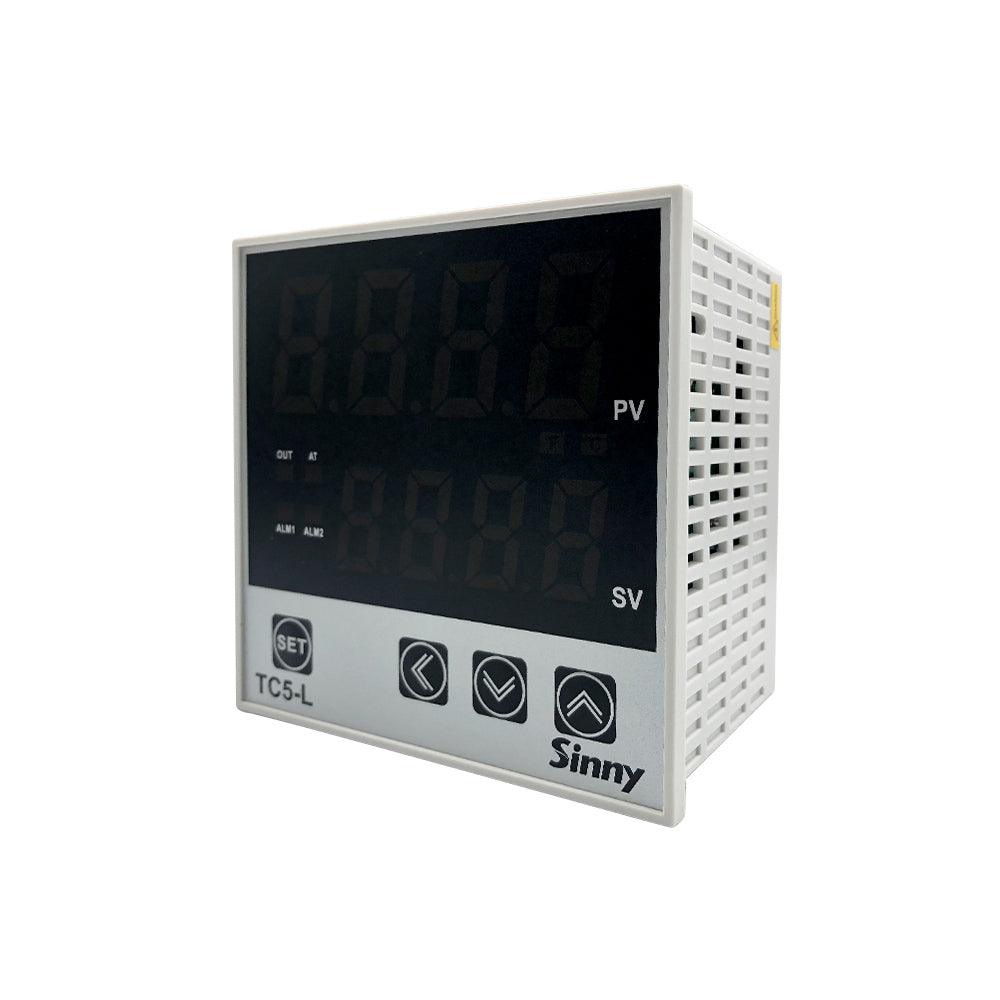

A digital PID controller reads the sensor signal, normally from a thermocouple or RTD, and connects the measurement to engineering units, such as degrees Fahrenheit or Celsius, that are then displayed in a digital format.
Features:
- 4-digit displays (0.5s response)
- Drip-proof / Dust-proof IP66 (front panel only)
- Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR), and 4 to 20 mA DC outputs available
- Each unit needs just 75 mm depth panel space
Specifications:
- Fastron Part Number TC5-M-1A-2-T/R-2
- Control Output 4-20mA
- Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V
- Option 1 2 3 Amp Relay Alarms standard (Excludes 72x72mm with SSR/Relay output)
- Mounting Style 72x72mm Panel Mount
- Supply Voltage 100 - 240VAC +/-10%
- Termination Style Screw
- Sampling Time 100ms
- Weight 150-270g
Package Includes:
1 x TC5-L digital PID temperature controller
