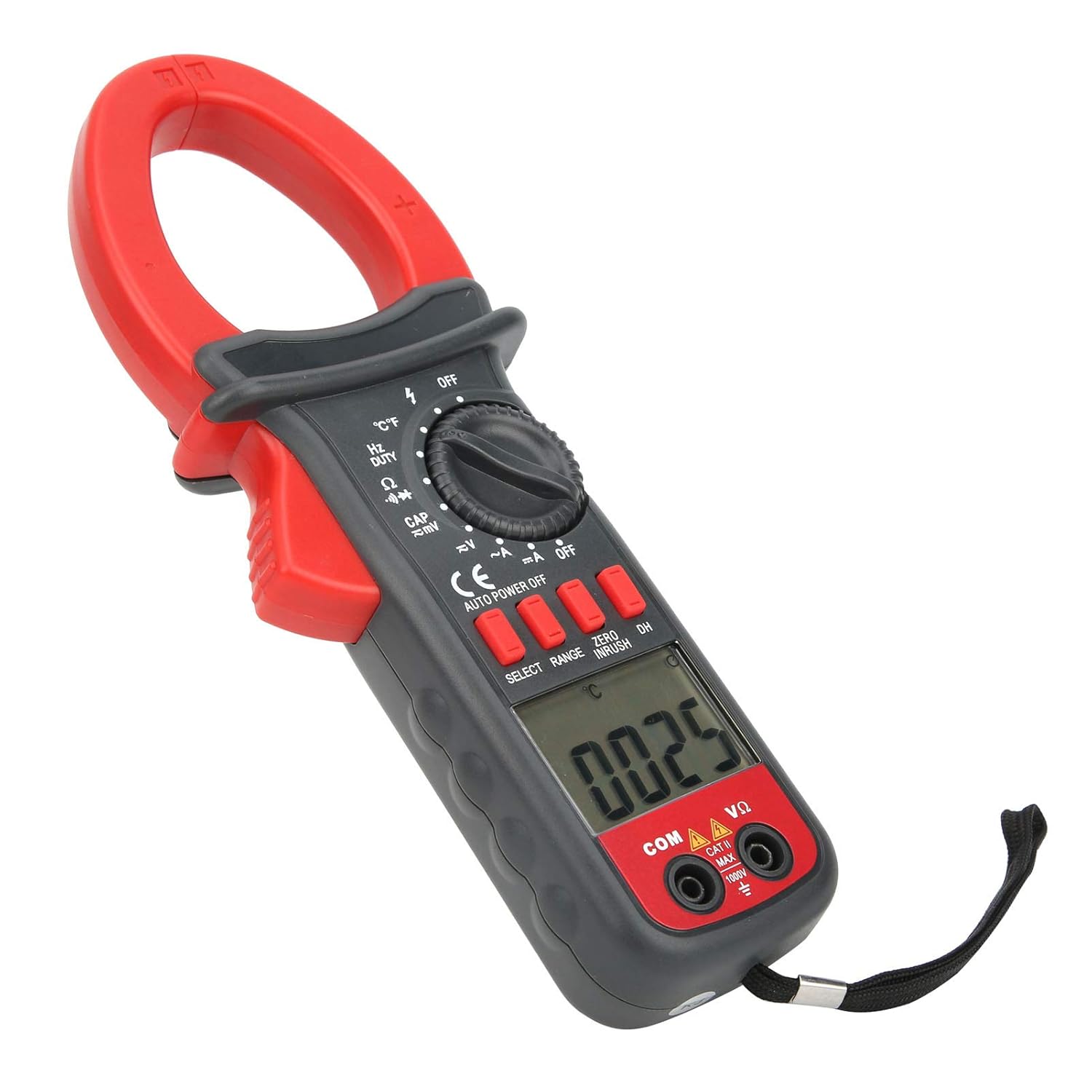

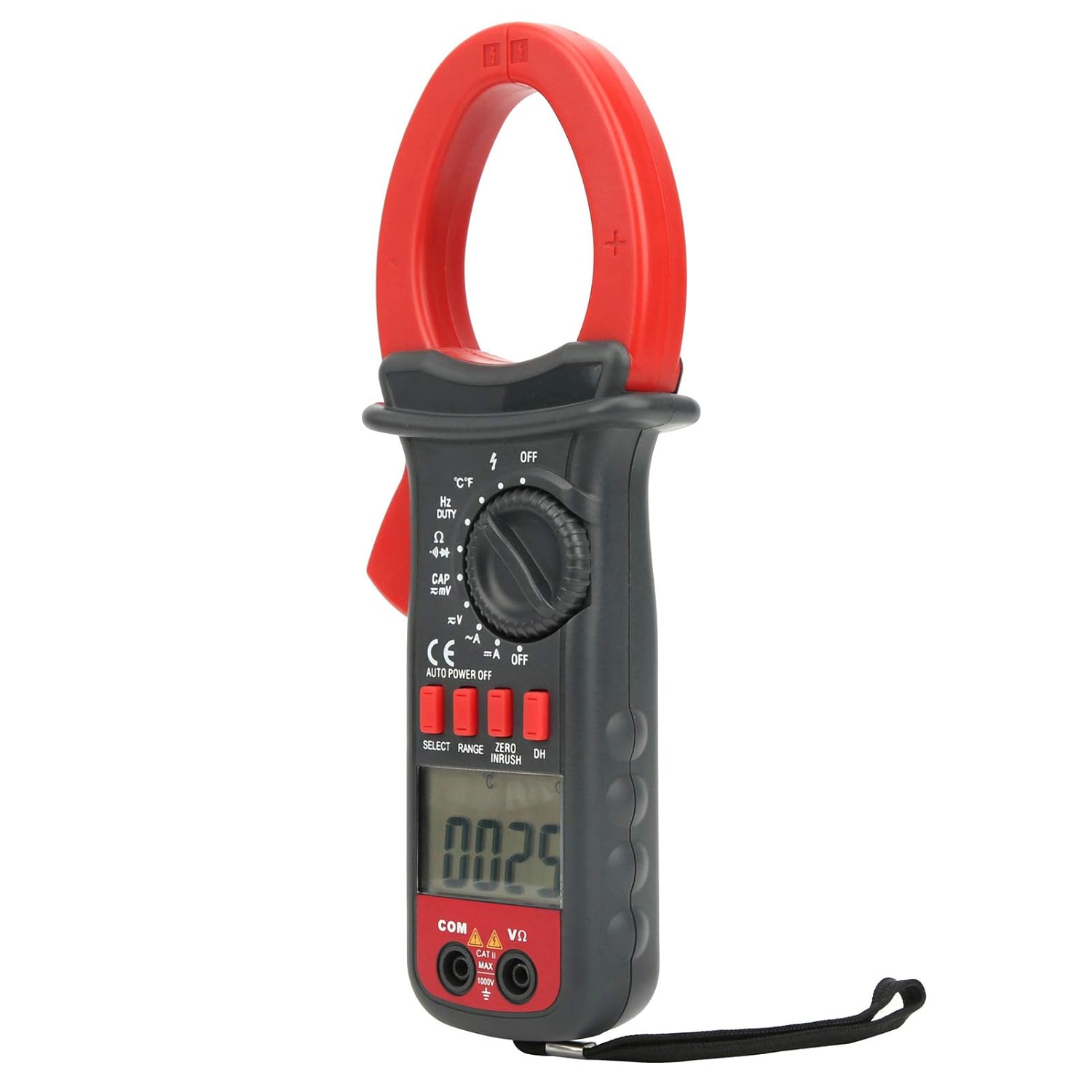

SZBJ BM803A Digital Clamp Meter in Pakistan

The SZBJ BM803A Digital Clamp Meter is a versatile handheld electrical testing tool designed for both professionals and DIY enthusiasts. It combines the functions of a multimeter with a current clamp, allowing users to safely measure various electrical parameters without directly breaking the circuit. This meter can accurately measure AC/DC voltage and current, resistance, capacitance, frequency, and temperature, featuring a large LCD display, True RMS functionality for accurate readings, and non-contact voltage (NCV) detection for enhanced safety.

Features of the SZBJ BM803A Digital Clamp Meter:

• Comprehensive Measurements: Accurately measures AC/DC voltage/current (up to 1000A), resistance, capacitance, frequency, temperature, duty cycle, diode, and continuity.
• True RMS: Ensures accurate readings for complex, non-sinusoidal waveforms.

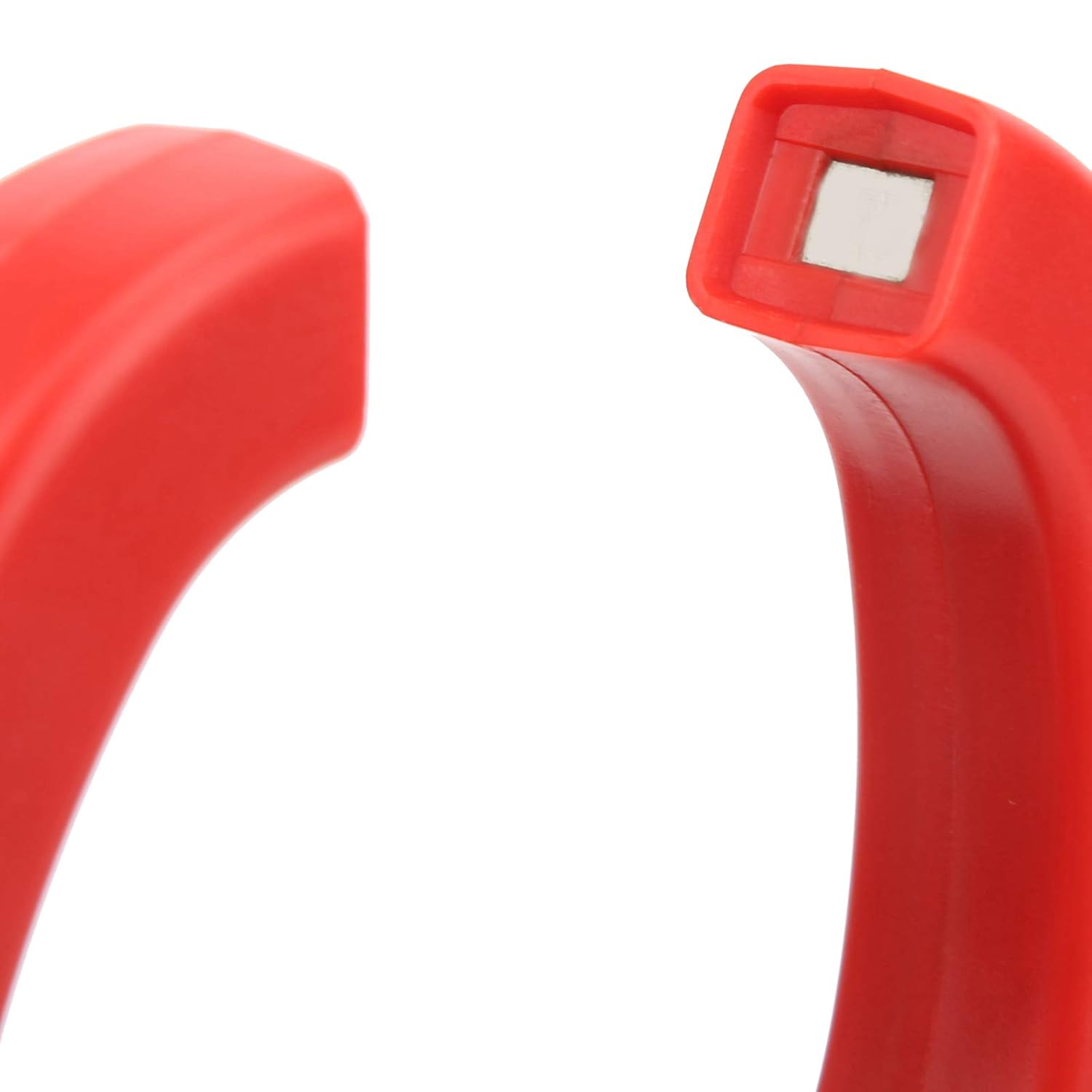

• Large 52mm Jaw & NCV: Allows safe clamping around large cables and non-contact voltage detection.

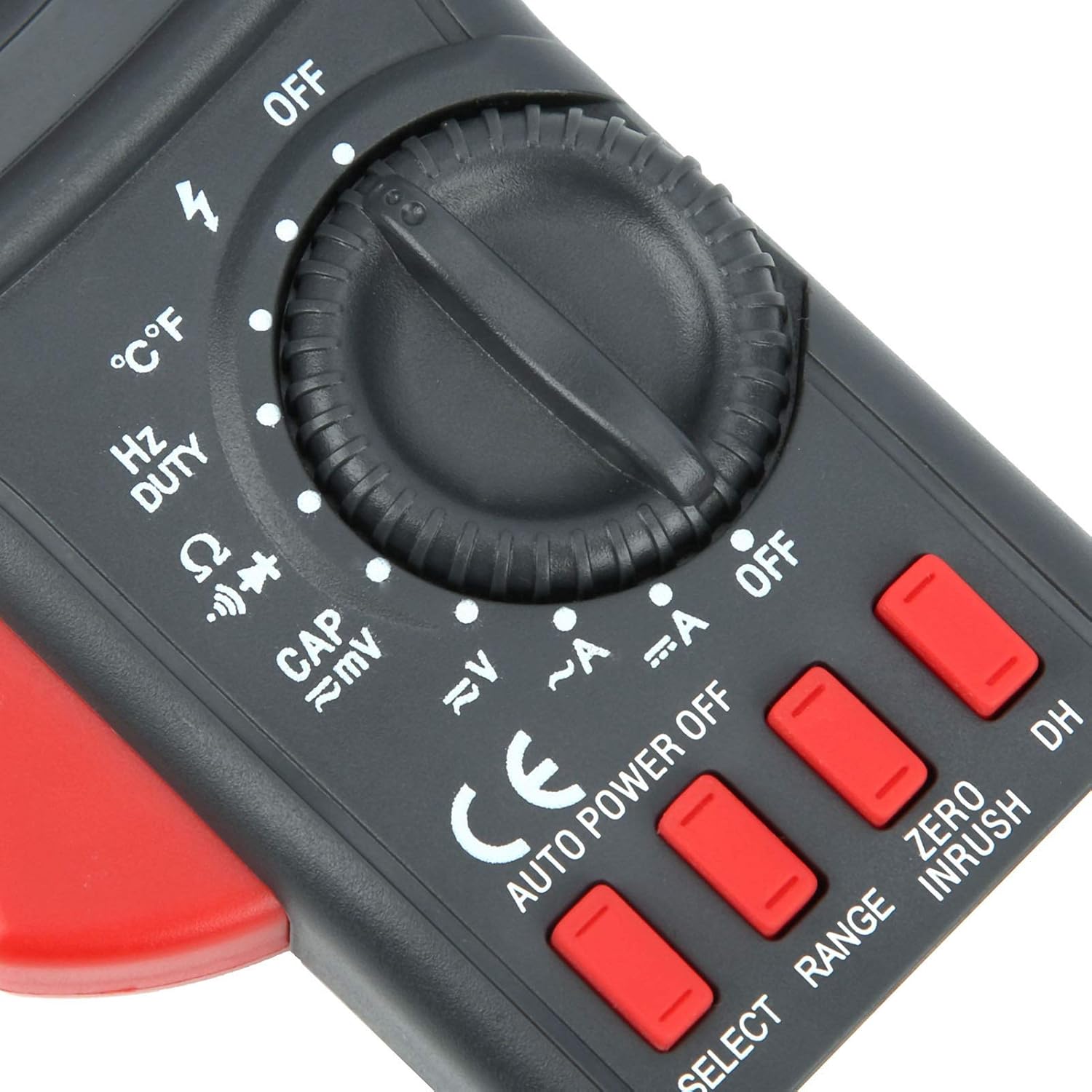

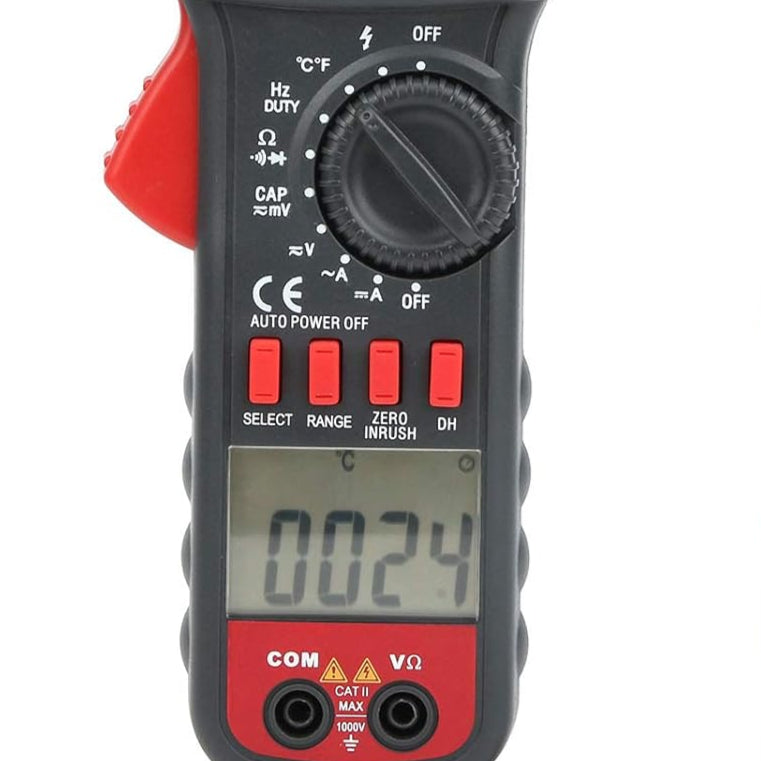

• User-Friendly Design: Features auto/manual ranging, a large LCD, data hold, auto power-off (10 min), low voltage indicator, diode test (for LEDs <3V), continuity buzzer, and voltage frequency measurement.

Specification of the SZBJ BM803A Digital Clamp Meter:

• Model: SZBJ BM803A
• Display: Digital (Max display 3999)
• Jaw Size: 52mm / 2.05in
• DC Voltage:
  • 400mV: 0.1mV, $\pm (0.8\%+2d)$

  • 4V: 1mV, $\pm (0.8\%+2d)$

  • 40V: 10mV, $\pm (0.8\%+2d)$

  • 400V: 100mV, $\pm (0.8\%+2d)$

  • 1000V: 1V, $\pm (1\%+3d)$

• AC Voltage:
  • 400mV: 0.1mV, $\pm (1.2\%+5d)$

  • 4V: 1mV, $\pm (1.2\%+5d)$

  • 40V: 10mV, $\pm (1.2\%+5d)$

  • 400V: 100mV, $\pm (1.2\%+5d)$

  • 700V: 1V, $\pm (1.5\%+5d)$

• DC Current:
  • 40A: 10mA, $\pm (2\%+10d)$

  • 400A: 100mA, $\pm (2\%+5d)$

  • 1000A: 1A, $\pm (2\%+5d)$

• AC Current:
  • 40A: 10mA, $\pm (2\%+10d)$

  • 400A: 100mA, $\pm (2\%+5d)$

  • 600A: 1A, $\pm (2\%+5d)$

• Resistance ($\Omega$):
  • 400$\Omega$: 0.1$\Omega$, $\pm (1\%+5d)$

  • 4K$\Omega$: 1$\Omega$, $\pm (1\%+5d)$

  • 40K$\Omega$: 10$\Omega$, $\pm (1\%+5d)$

  • 400K$\Omega$: 100$\Omega$, $\pm (1\%+5d)$

  • 4M$\Omega$: 1K$\Omega$, $\pm (1\%+5d)$

  • 40M$\Omega$: 10K$\Omega$, $\pm (1.5\%+5d)$

• Capacitance:
  • 10nF: 0.001nF, $\pm (3\%+5d)$

  • 100nF: 0.01nF, $\pm (3\%+5d)$

  • 1uF: 0.1nF, $\pm (3\%+5d)$

  • 10uF: 1nF, $\pm (3\%+5d)$

  • 100uF: 10nF, $\pm (3\%+5d)$

  • 1000uF: 100nF, $\pm (3\%+5d)$

  • 10mF: 1uF, $\pm (5\%+5d)$

• Frequency:
  • 10HZ: 0.001HZ, $\pm (0.5\%+3d)$

  • 100HZ: 0.01HZ, $\pm (0.5\%+3d)$

  • 1KHZ: 0.1HZ, $\pm (0.5\%+3d)$

  • 10KHZ: 1HZ, $\pm (0.5\%+3d)$

  • 100KHZ: 10HZ, $\pm (0.5\%+3d)$

  • 1MHZ: 100HZ, $\pm (0.5\%+3d)$

  • 10MHZ: 1KHZ, $\pm (0.5\%+3d)$

• Duty Cycle: $1\%\sim 99\%$ ($0.001$ resolution), $\pm (0.5\%+3d)$

• Temperature:
  • −50∘C−300∘C: 1∘C, $\pm (1\%+4d)$

  • 301∘C−1000∘C: 1∘C, $\pm (1.9\%+5d)$

  • −58∘F−600∘F: 1∘F, $\pm (1.2\%+6d)$

  • 601∘F−1832∘F: 1∘F, $\pm (1.9\%+6d)$

• Input Impedance: About 10M$\Omega$
• Power Supply: 1 x 6F22 9V dry battery

Uses:

• Electrical Troubleshooting: Diagnosing issues in electrical circuits, appliances, and industrial machinery.
• HVAC Systems: Measuring current and voltage in heating, ventilation, and air conditioning units.
• Automotive Electrical: Testing car batteries, alternators, and other electrical components.
• Industrial Maintenance: Performing routine checks and repairs on motors, pumps, and control panels.
• DIY & Home Electrical: Safely testing home wiring, outlets, and electrical devices.
• Solar Power Systems: Measuring DC current in solar panels and related setups.

Benefits:

• Enhanced Safety: NCV detection and non-intrusive current measurement significantly reduce the risk of electric shock and damage to circuits.
• Versatility: Combines multiple measurement functions in one device, eliminating the need for separate tools.
• High Accuracy: True RMS and comprehensive measurement ranges ensure precise and reliable readings even in complex electrical environments.
• User-Friendly: Auto-ranging, data hold, and a clear LCD make it easy for both beginners and experienced users to operate.
• Portability & Durability: Its lightweight, handheld design and robust construction make it ideal for on-site work and demanding conditions.
• Cost-Effective: A multi-functional tool that helps save on equipment costs and reduces potential damage during testing.

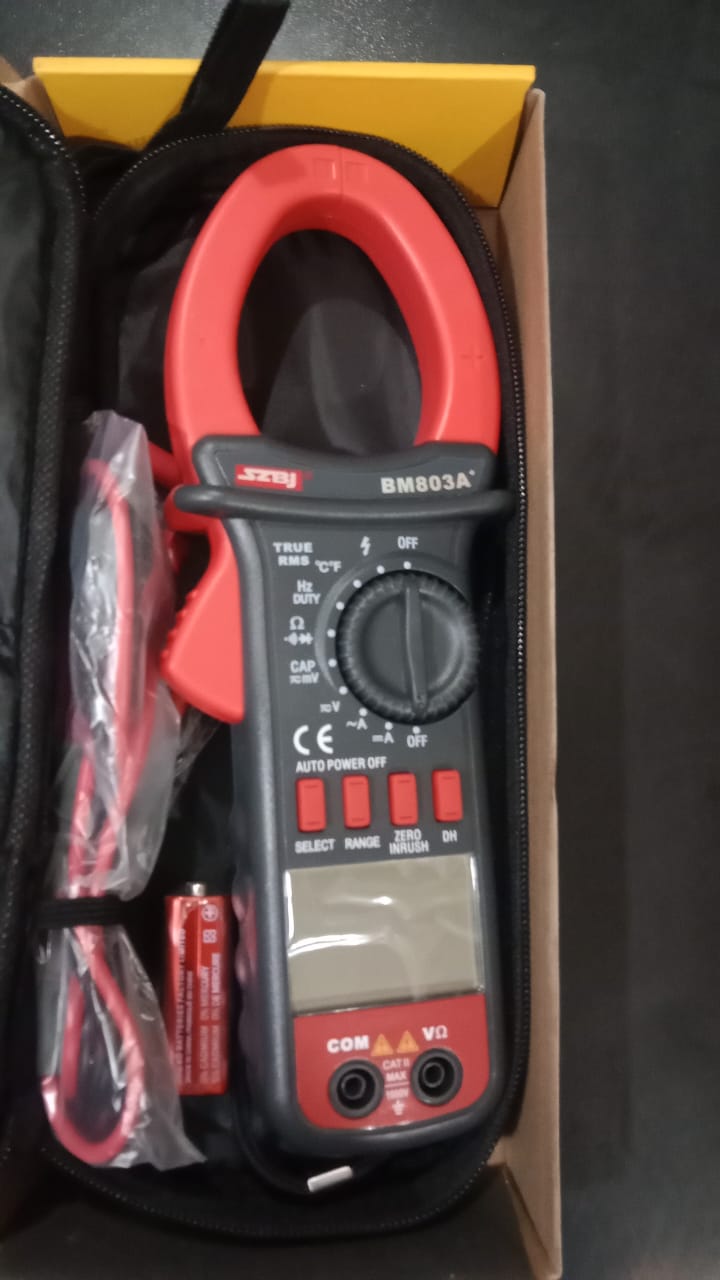

Package includes:

• 1x SZBJ BM803A Digital Clamp Meter

Industryparts.pk is the Best Online Shopping website for the SZBJ BM803A Digital Clamp Meter. Here you get the SZBJ BM803A Digital Clamp Meter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
