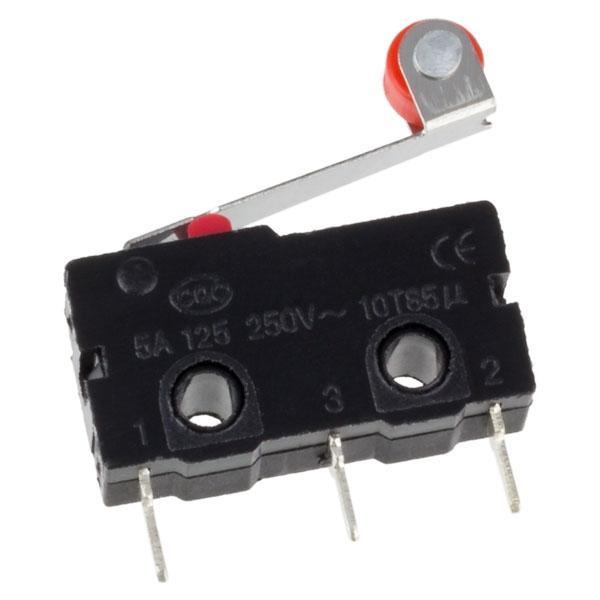

Switch/Roller Limit Switch in  Pakistan BR2903

Specifications:

• 3 Terminals:
  • Pin 1: Common
  • Pin 2: Normally Closed
  • Pin 3: Normally Closed
• Action Type: ..............................Momentary snap action
• Rated Work Current: ...................5A @ 125VAC, 3A @ 250VAC, 0.8A @ VDC
• Roller Lever Arm Length: ............18mm (0.709")
• Roller Diameter: .........................4.5mm (0.177")
• Mounting Hole Diameter: .............2.5mm (0.098")
• Mountin Hole Spacing: ................9.5mm (0.374")
• Dimensions (excluding pins): .......20mm (0.79") length x 15.5mm (0.61") width x 9.5mm (0.37") height
• Weight: ......................................2.12g (0.075oz)

Package Include:

1 x Switch/Roller Limit Switch in  Pakistan
