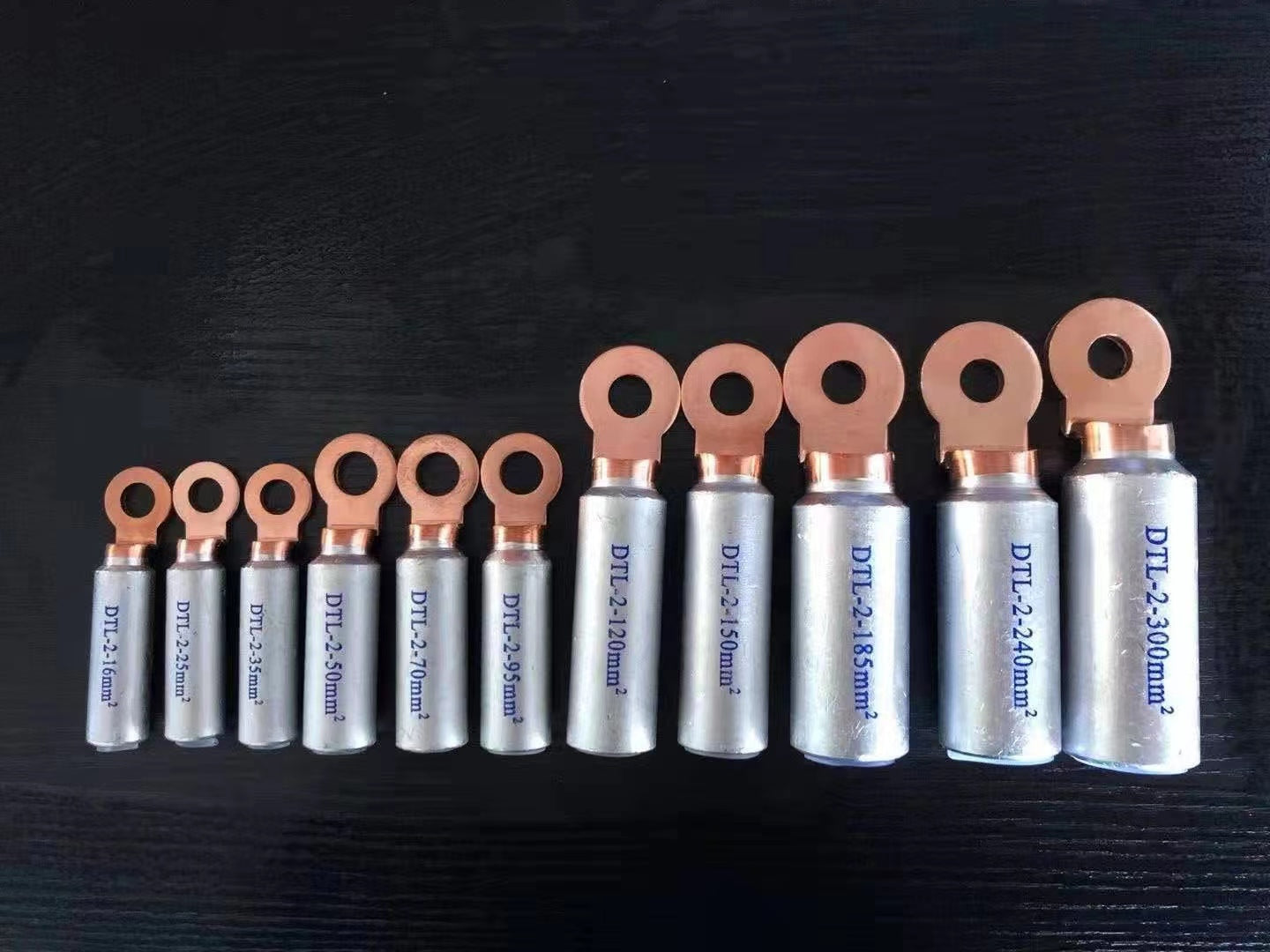

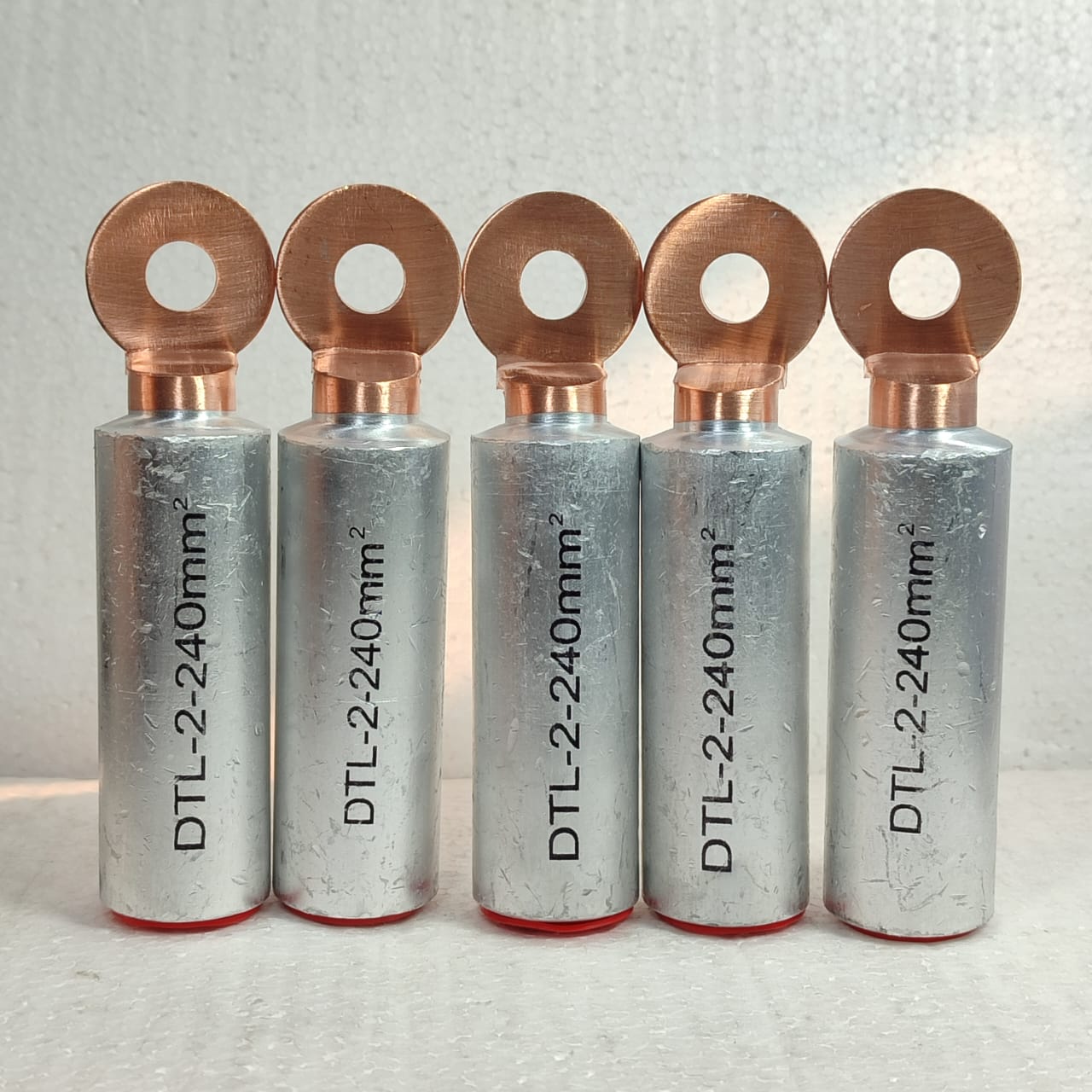

DTL bimetal cable lugs are engineered for reliable terminations where aluminum cables connect to copper busbars, breakers, or switchgear. The friction‑welded aluminum barrel and copper palm create a solid, low‑resistance joint that prevents galvanic corrosion—perfect for DBs, APFC panels, solar combiners/inverters, UPS, and industrial MCCs.
Features of DTL Bimetallic Lugs in Pakistan:
- Friction‑welded Al barrel to Cu palm (Al‑Cu bimetal)
- Tin‑plated copper palm; low contact resistance
- DIN/Germany‑style dimensions; smooth bell mouth
- High crimp strength and pull‑out performance
- Wide size range; clean, corrosion‑resistant finish
Specifications:
- Materials: Aluminum barrel + ETP copper palm (tin‑plated)
- Cross‑Section: approx. 16–240 mm² (select variant)
- Stud Hole: ~8–13 mm; single‑palm design (variant dependent)
- Temperature: continuous up to 90°C (cable class dependent)
- Standards: DIN/EN style; IEC 61238‑1 class (model dependent)
Uses:
- Aluminum cable to copper busbar terminations
- LV switchgear, DBs, capacitor/APFC banks
- Solar PV combiner, inverter, UPS connections
- Industrial MCCs, panels, and machinery wiring
- Retrofit upgrades to reduce joint heating
-
Industryparts.pk is the Best Online Shopping website for Super quality DTL bimetal cable termination bimetallic lugs connecting terminals in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
-
Package Includes:
1 x Super quality DTL bimetal cable termination bimetallic lugs connecting terminals
Customer Reviews
5.0 Based on 2 Reviews
Write a Review
Filter Reviews:
K
10/01/2021
Kamran Super quality DTL bimetal cable termination bimetallic lugs connecting terminals
Thank you very much, seller! I hope that not only the first time will work as it should! And in the rest everything is great! There was no communication with the seller, in fact, as usual, when everything comes without complaints.
| Size |
16mm, 25mm, 35mm, 70mm, 95mm, 120mm, 185mm, 240mm, 300mm |
|---|
