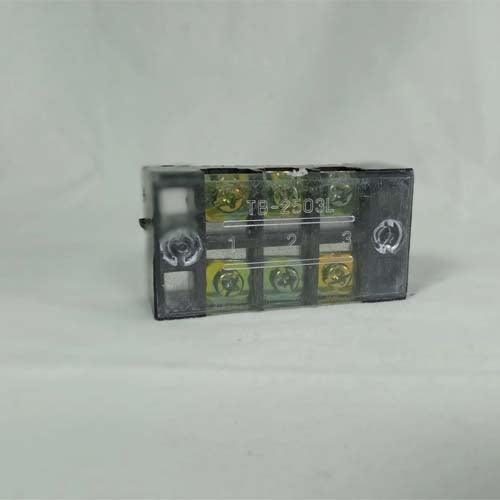

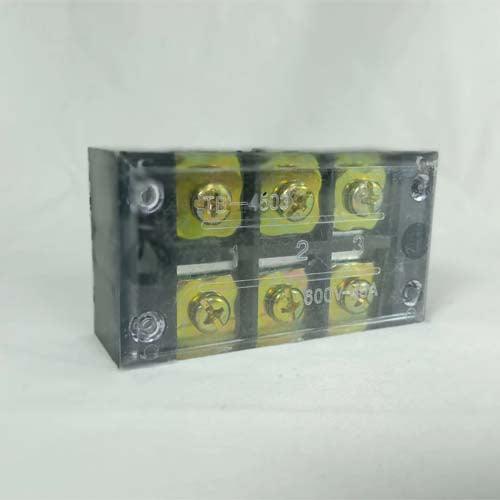

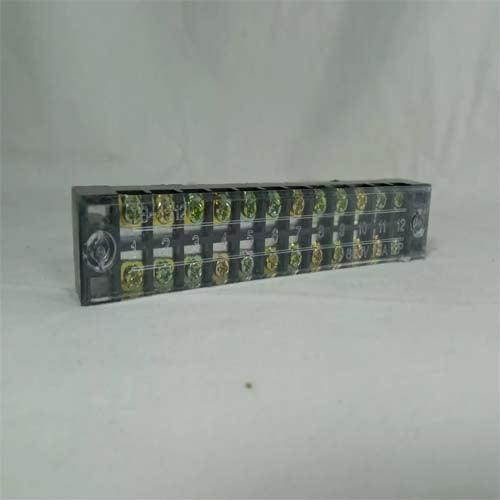

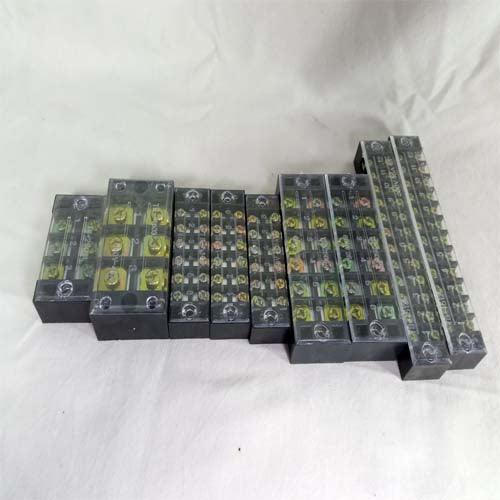

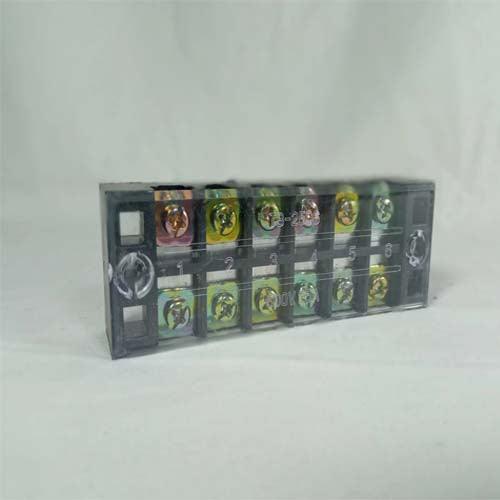

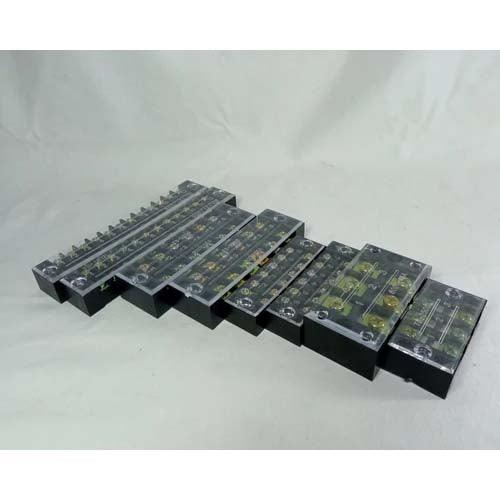

Strip Connector Terminal Block Variable Size in Pakistan

Regular price Rs 40
Regular price Sale price Rs 40
Sale Sold out
BR4576A
Ampare
Pole

Modular terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.

Specification:

  • Model NO. LUKK5
  • Character  Insulation
  • Production Process  Injection Molding
  • Interface Type  AC/DC
  • Connection Type  Screw Connection
  • Stranded Cross-Section  0.2~4mm2
  • Size T6.2, H61.2, W56.5mm
  • Insulating Material  PA66
  • IEC  IEC 60947-7-2
  • Zack Strip  (Zb6)
  • End Clamp  E/Luk
  • Rated Current 32A
  • Voltage  500V
  • Trademark  INKWELL
  • Transport Package  Standard Export Packing

Features and Benefits:

  1. Non-fused terminal block
  2. Lightweight polyamide body
  3. Easy wiring installation
  4. Nickel-plated brass contacts
  5. M3.5, steel nickel-plated screws
  6. 0.8Nm maximum torque
  7. Operating temperature of -40 to +105 °C


Industryparts.pk Best Online Shopping website for Strip Connector Terminal Block variable size. Here you get Strip Connector Terminal Block variable size at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

1 x Strip Connector Terminal Block variable size
