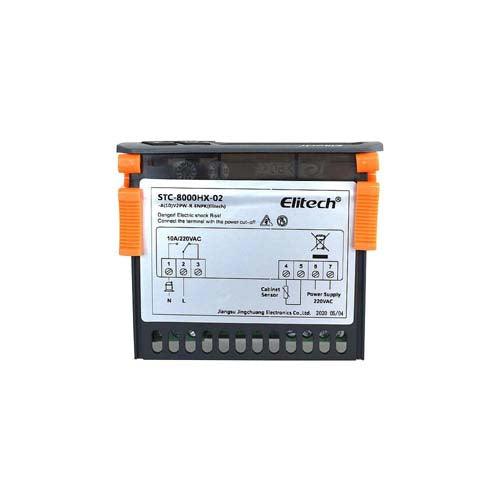

STC-8000HX-02 Cool Digital Refrigeration Controller Sensor Elitech in Pakistan

1 total reviews

Regular price Rs 4,410
Regular price Rs 4,900 Sale price Rs 4,410
Sale Sold out
BR5056

In the standard version, a refrigeration controller is always equipped with a control sensor. When used in a normal cold store, this sensor measures the room temperature. For this reason, it is normally located in such a way that it records the temperature of the return airflow to the evaporator.

Features:

  • 10A Compressor relay (0,5HP single phase)
  • Panel cut-out size 71x29 mm
  • measuring range -50 ... + 99 °C
  • accuracy of 1 °C
  • adjustable hysteresis
  • temperature sensor included
  • exceed temperature sound alarm
  • settings memory after a power failure

Specifications:

  • refrigerators, freezers, cooling counters, fans, coolers
  • Input: NTC 10kOhm temperature sensor at 25 °C
  • Measuring range: -50 ... + 99 °C
  • Measurement accuracy: +/- 1 °C in the range -40 °C ... 50 °C, in the remaining 2 °C
  • Sampling period: 330 ms
  • Display resolution: 1 °C
  • Setting resolution: 1 °C
  • Display: LED, 2 digits 11mm high with graphic icons
  • Control method: ON-OFF with adjustable hysteresis
  • Regulation accuracy: adjustable 1 ... 20 °C
  • Control output: 10A relay, durability 100,000 cycles
  • Additional functions: High/Low-temperature alarm
  • Mounting panel cut-out dimensions: 71 x 29mm
  • Degree and class of protection: IP65 / II
  • Power supply: 230VAC +/- 15%
  • Power consumption: max. 3 VA
  • Operating conditions: -5 ... 60 °C; 0 ... 85% RH (non-condensing)
  • Storage conditions: -40 ... 85 °C; 0 ... 85% RH (non-condensing)

Package Includes:

1 x STC-8000HX-02 Cool Digital Refrigeration Controller Sensor Elitech

Industryparts.pk is the Best Online Shopping website for STC-8000HX-02 Cool Digital Refrigeration Controller Sensor Elitech. Here you get STC-8000HX-02 Cool Digital Refrigeration Controller Sensor Elitech at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.


Description

In the standard version, a refrigeration controller is always equipped with a control sensor. When used in a normal cold store, this sensor measures the room temperature. For this reason, it is normally located in such a way that it records the temperature of the return airflow to the evaporator.

Features:

  • 10A Compressor relay (0,5HP single phase)
  • Panel cut-out size 71x29 mm
  • measuring range -50 ... + 99 °C
  • accuracy of 1 °C
  • adjustable hysteresis
  • temperature sensor included
  • exceed temperature sound alarm
  • settings memory after a power failure

Specifications:

  • refrigerators, freezers, cooling counters, fans, coolers
  • Input: NTC 10kOhm temperature sensor at 25 °C
  • Measuring range: -50 ... + 99 °C
  • Measurement accuracy: +/- 1 °C in the range -40 °C ... 50 °C, in the remaining 2 °C
  • Sampling period: 330 ms
  • Display resolution: 1 °C
  • Setting resolution: 1 °C
  • Display: LED, 2 digits 11mm high with graphic icons
  • Control method: ON-OFF with adjustable hysteresis
  • Regulation accuracy: adjustable 1 ... 20 °C
  • Control output: 10A relay, durability 100,000 cycles
  • Additional functions: High/Low-temperature alarm
  • Mounting panel cut-out dimensions: 71 x 29mm
  • Degree and class of protection: IP65 / II
  • Power supply: 230VAC +/- 15%
  • Power consumption: max. 3 VA
  • Operating conditions: -5 ... 60 °C; 0 ... 85% RH (non-condensing)
  • Storage conditions: -40 ... 85 °C; 0 ... 85% RH (non-condensing)

Package Includes:

1 x STC-8000HX-02 Cool Digital Refrigeration Controller Sensor Elitech

Industryparts.pk is the Best Online Shopping website for STC-8000HX-02 Cool Digital Refrigeration Controller Sensor Elitech. Here you get STC-8000HX-02 Cool Digital Refrigeration Controller Sensor Elitech at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
