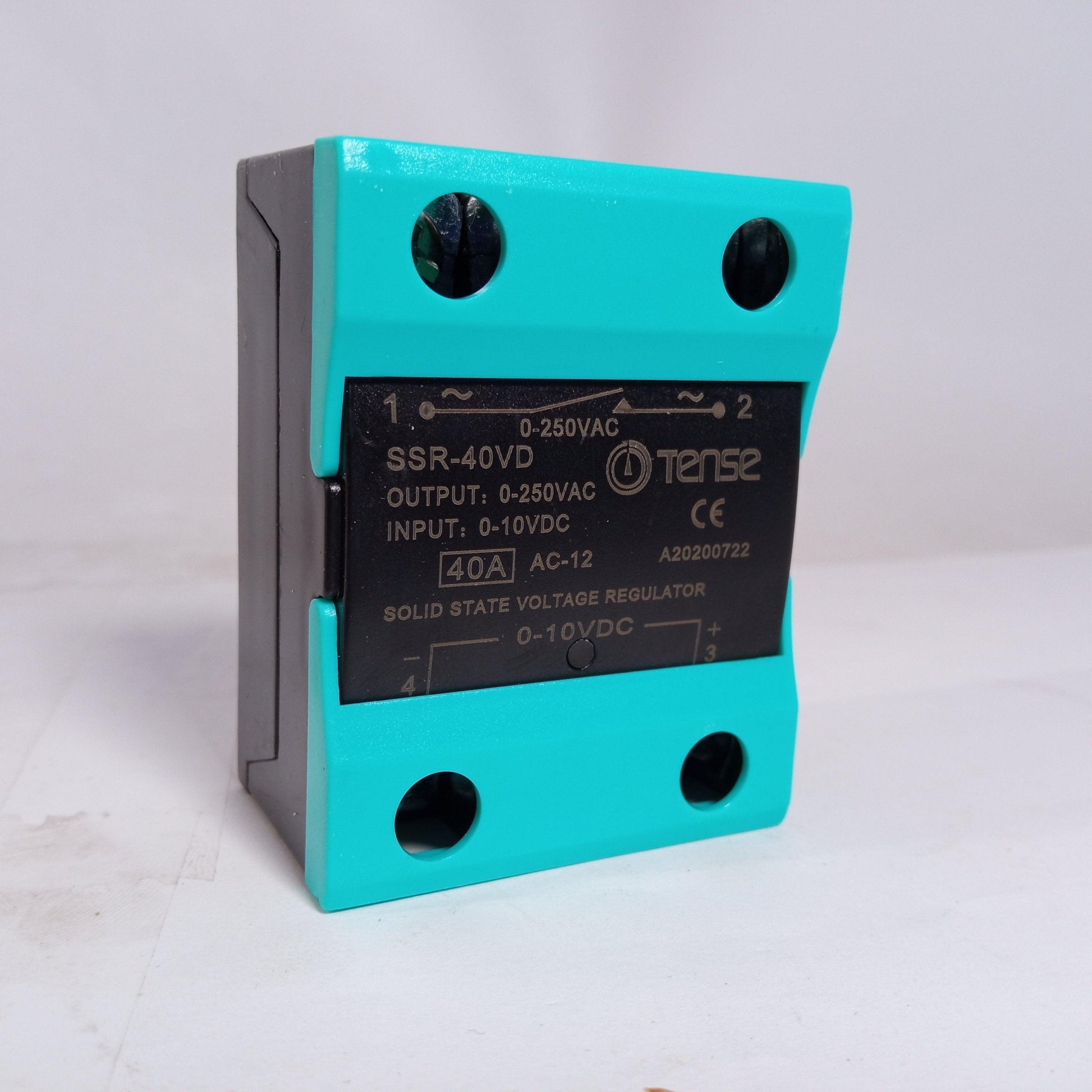

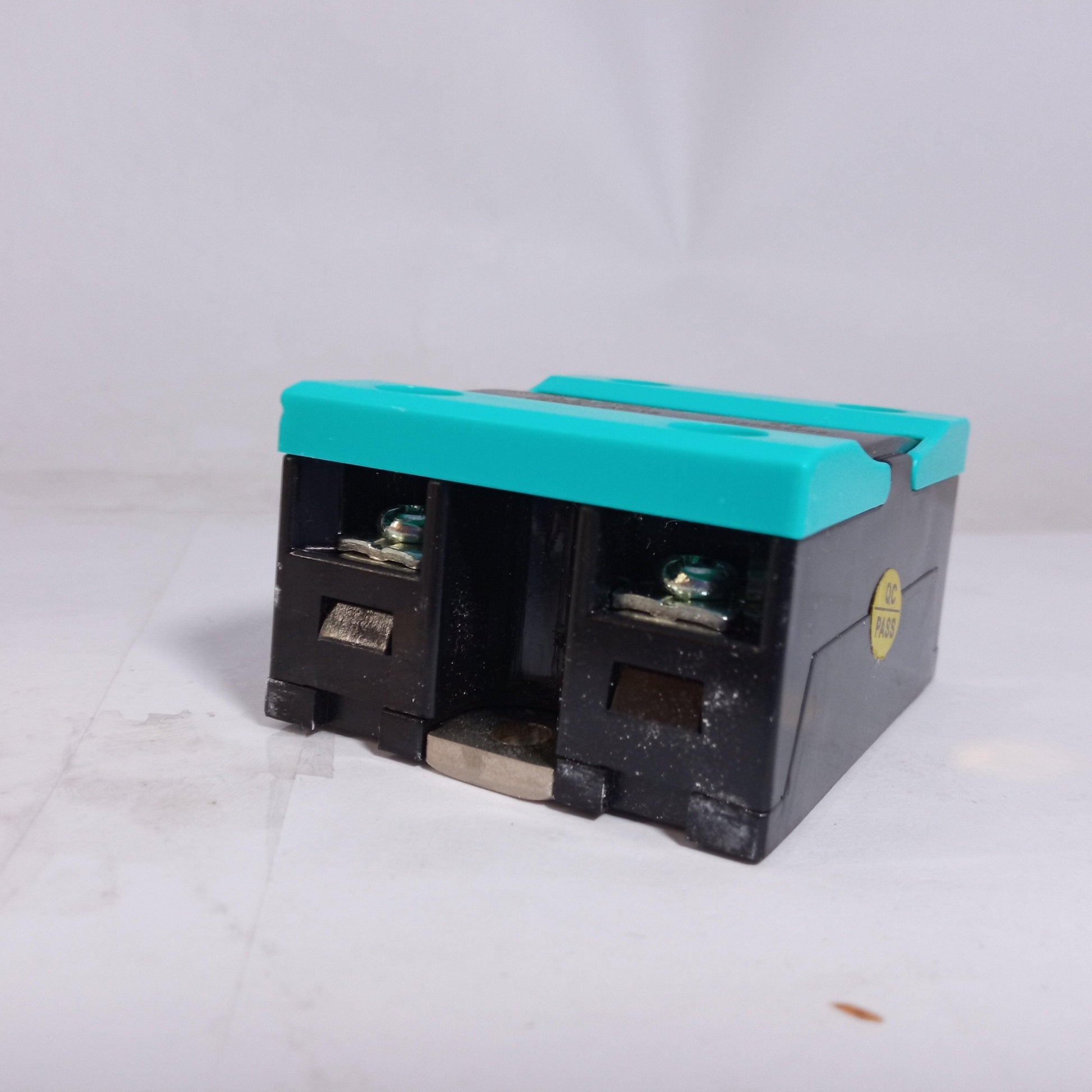

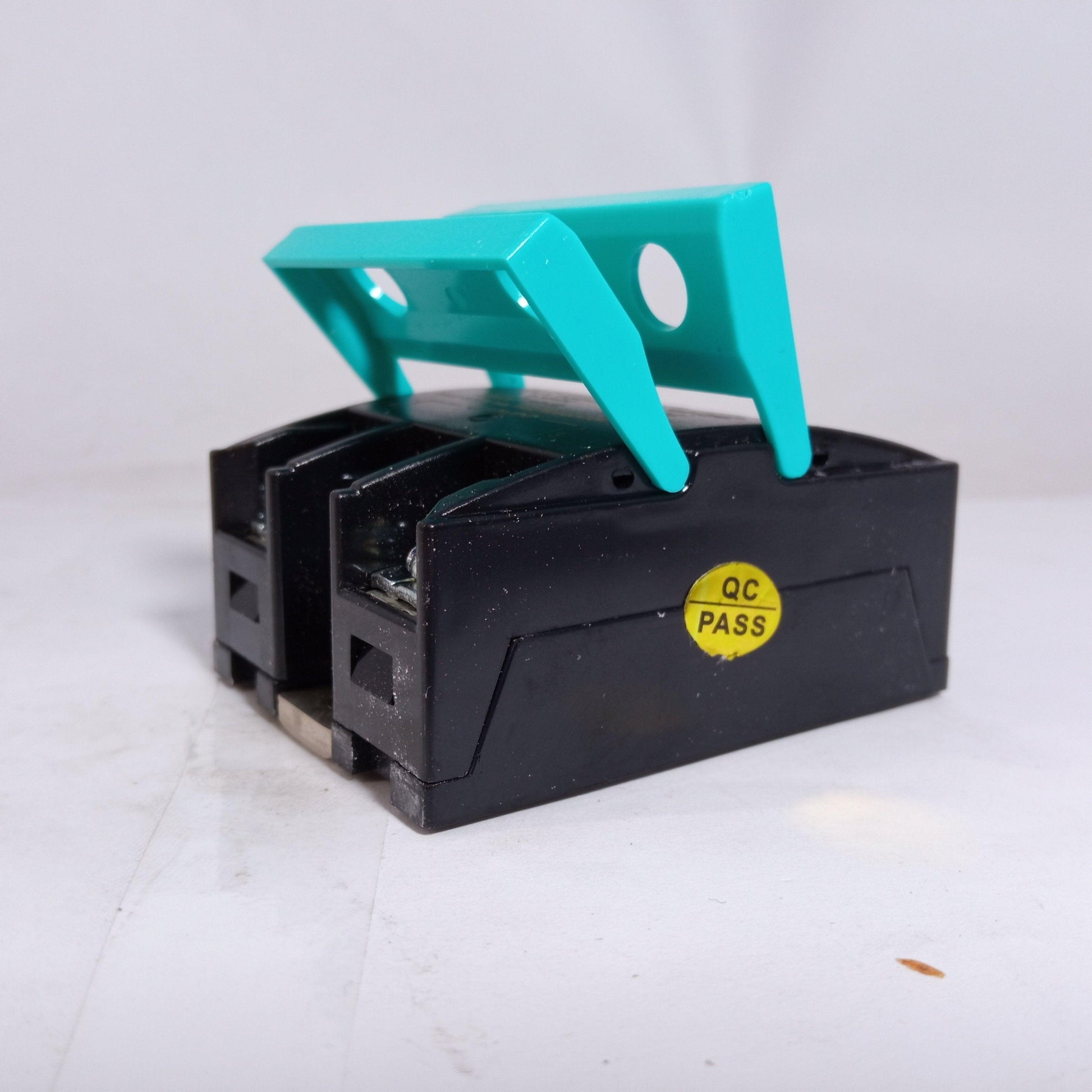

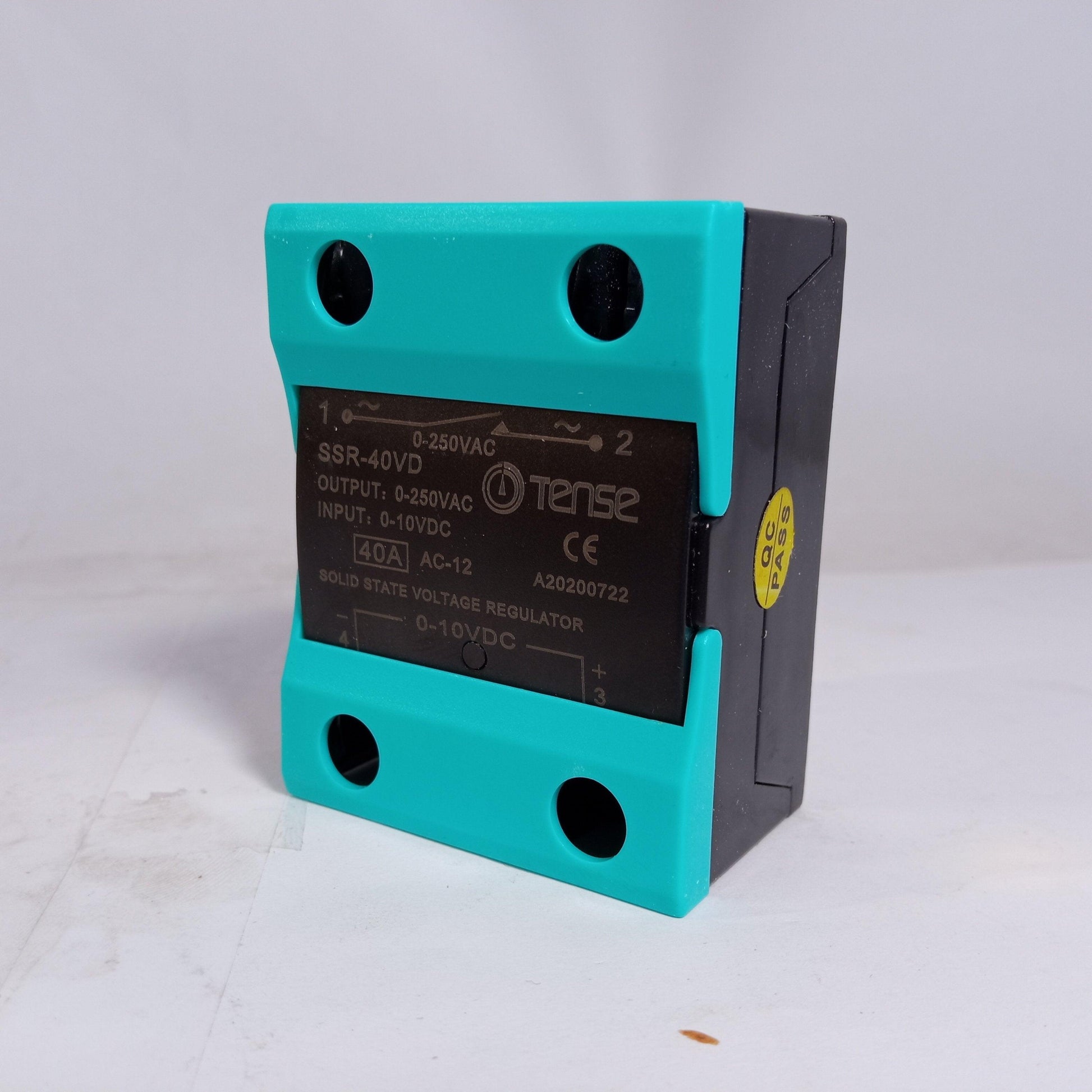

SSR-40VD Solid State Voltage Regulator Tense in Pakistan

SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation, and screw terminal connection. This series of solid-state relays have high structural strength, impact resistance, and strong resistance to viability. The low input drives current makes it convenient to connect with a computer terminal and various digital programmable interface circuits.

Features:

• Solid state design with no mechanical parts
• Fast and stable voltage regulation
• Silent operation with low maintenance
• Compact and panel-mountable design
• Long service life and high reliability

Specifications:

• Item Type: Solid State Relay
• Brand: TENSE
• Input Voltage: 0-10VDC
• Load Voltage: 0-250VAC
• Rated Current: 40A
• Leakage Current: <10mA
• Shutdown Voltage: 1Vmin
• On/Off Time: <11ms
• Turn-On Current: 5mA
• Control Current: <25mA
• Output Voltage Drop: <1.8V
• Surge Current: 10ms 700%

Uses:

• Voltage regulation in industrial machines
• Automation and control panels
• Electrical equipment protection
• Manufacturing and processing units
• Power control applications

Package Include

1 x SSR-40VD Solid State Voltage Regulator
