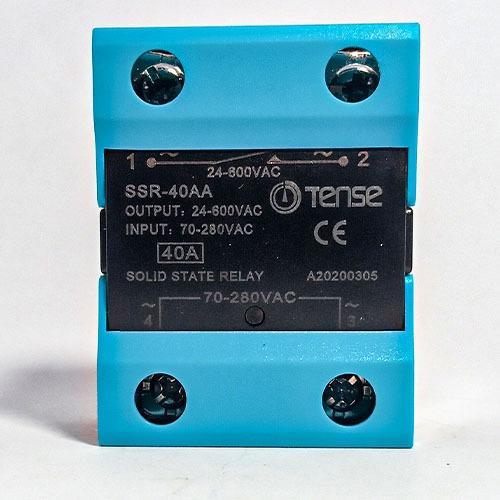

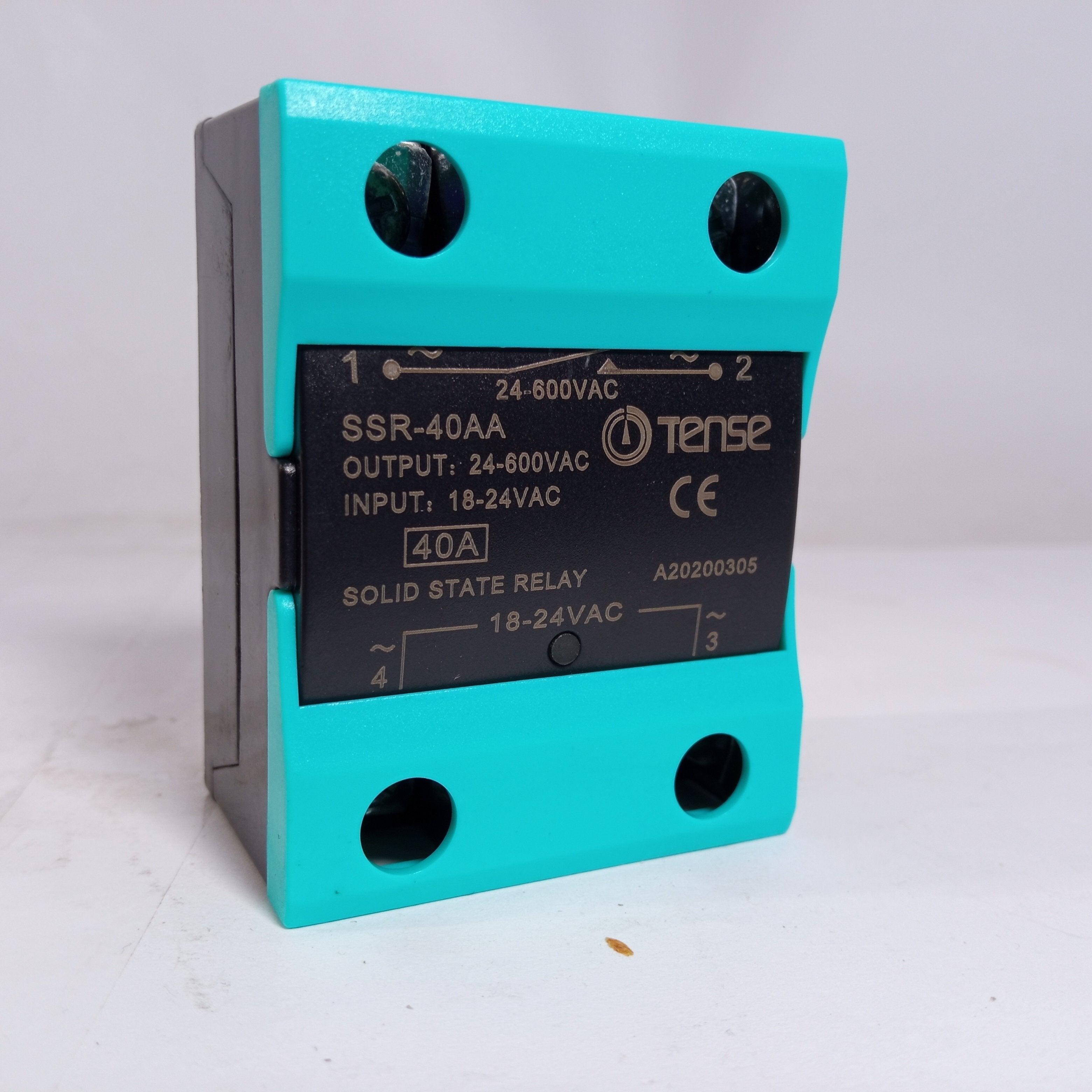

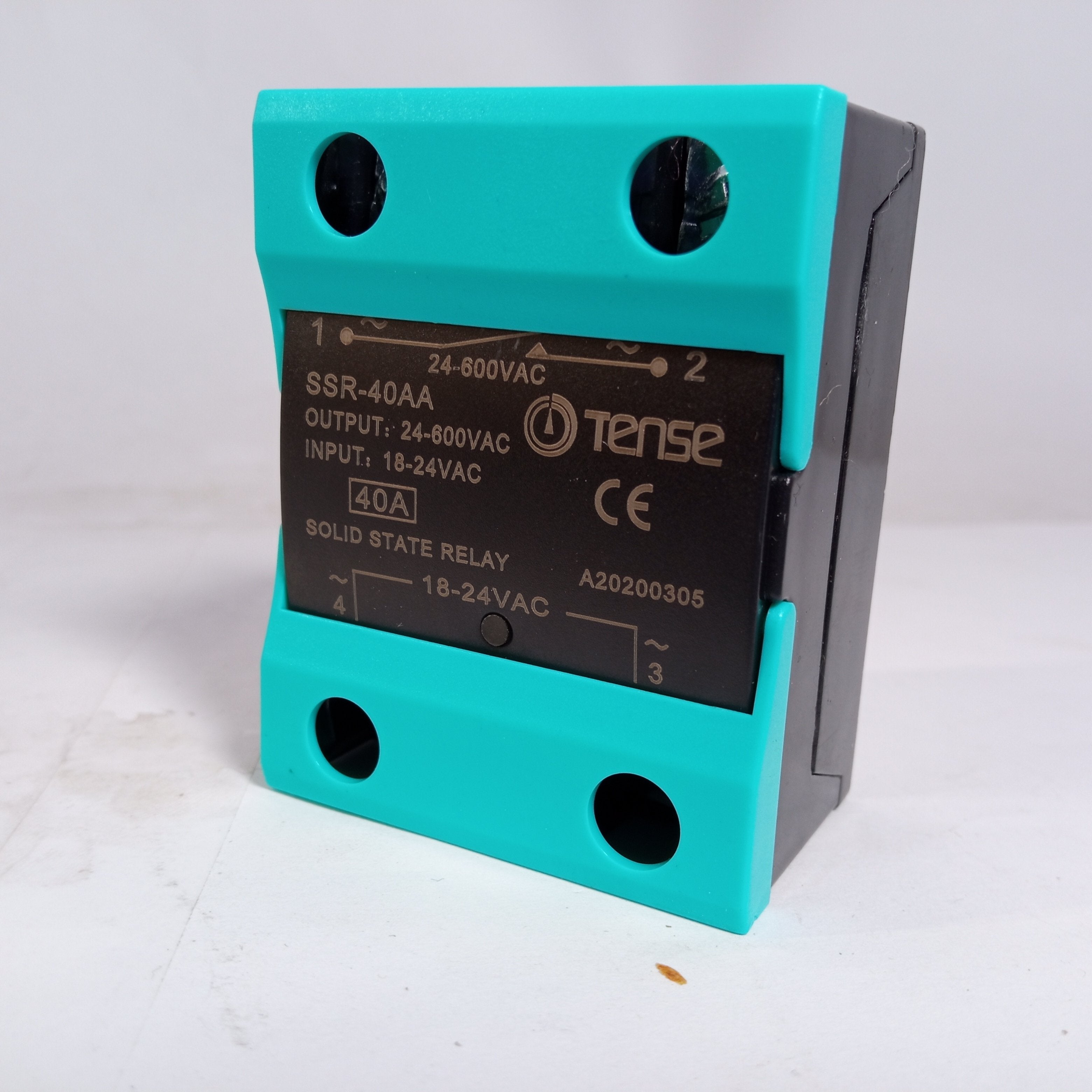

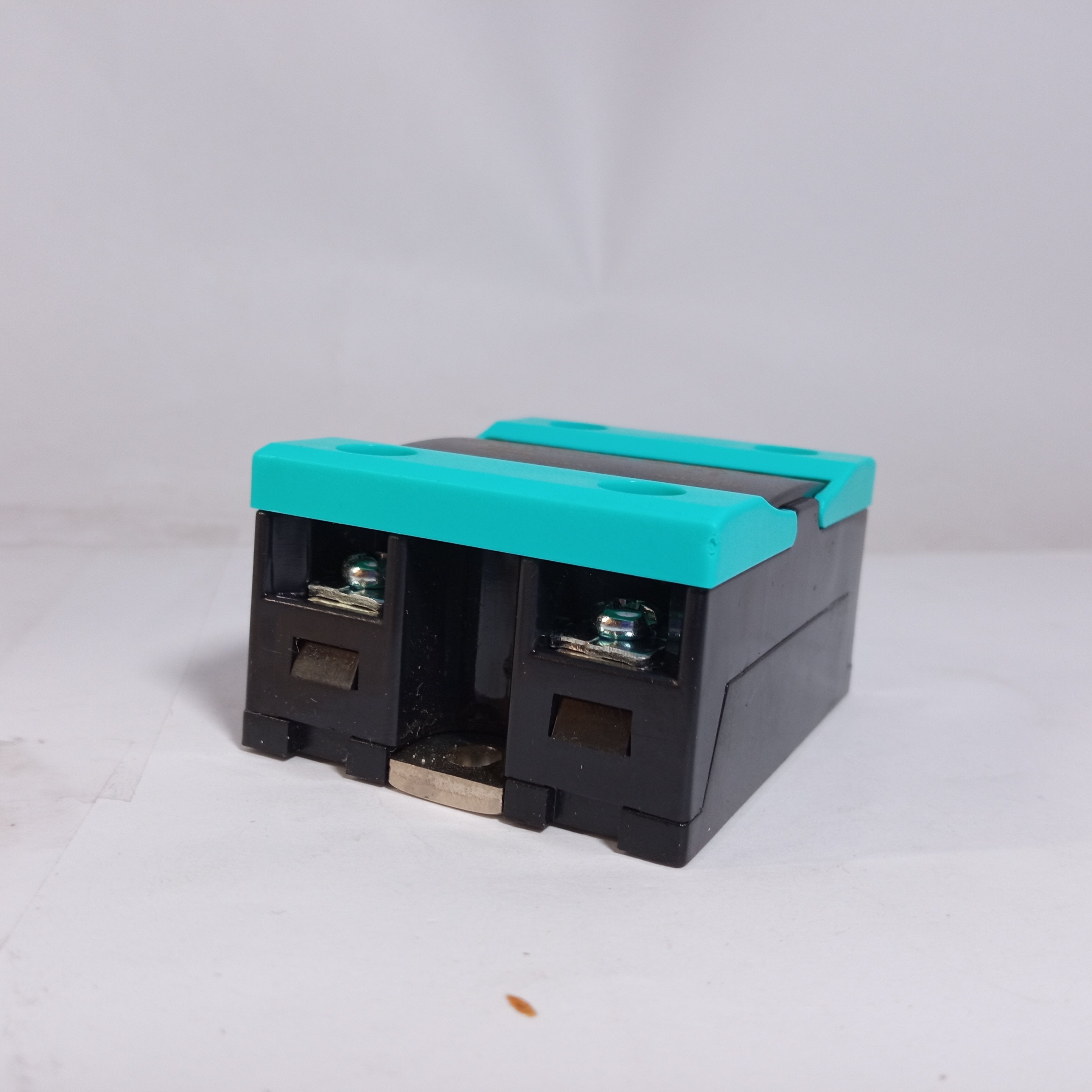

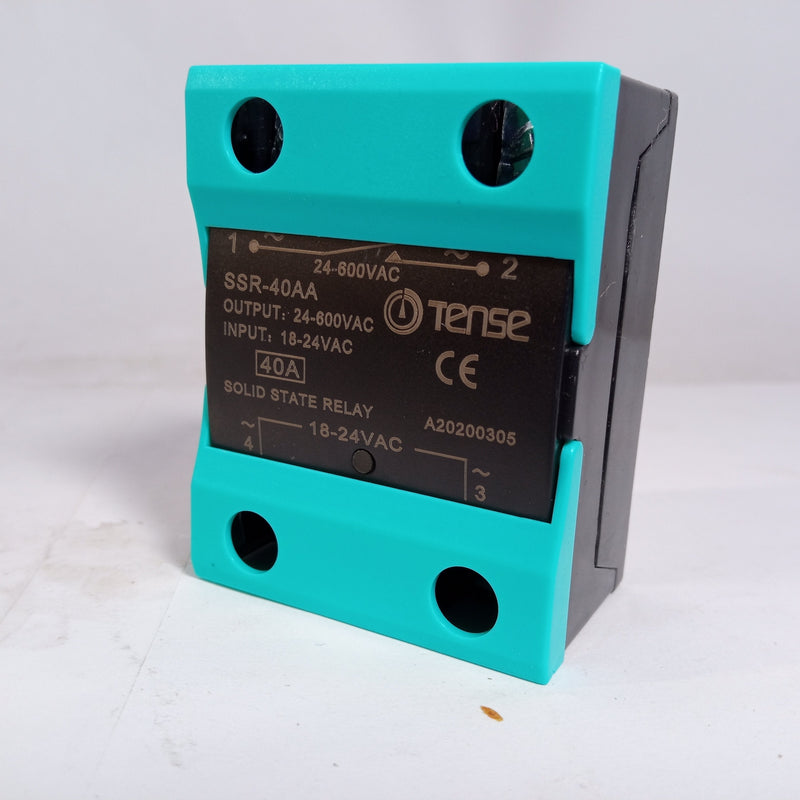

Solid State Relay SSR-40AA AC in AC out Tense in Pakistan

SKU:BR4638-b109-st6.

Regular price Rs 1,900
Regular price Rs 1,950 Sale price Rs 1,900
Sale Sold out
Size

40A solid state relay (SSR) with 18 to 24VAC input features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching of the commercial and industrial loads, such as computer peripheral interface devices, printing machines, molding machines, food machines, packaging machines, and so on.

Features:

  • Built-in RC absorption
  • Photoelectric isolation
  • SCR output
  • LED indicator for operation status

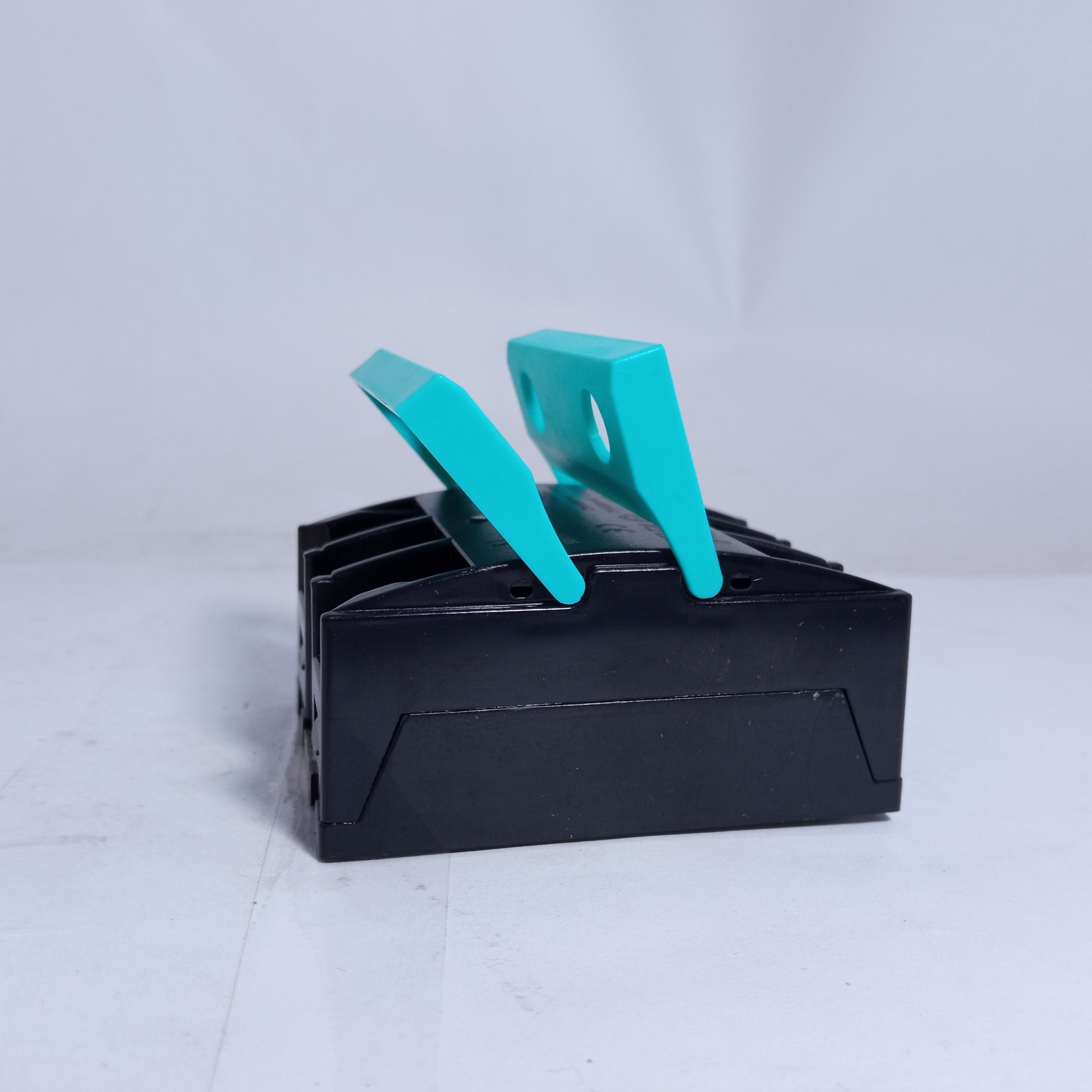

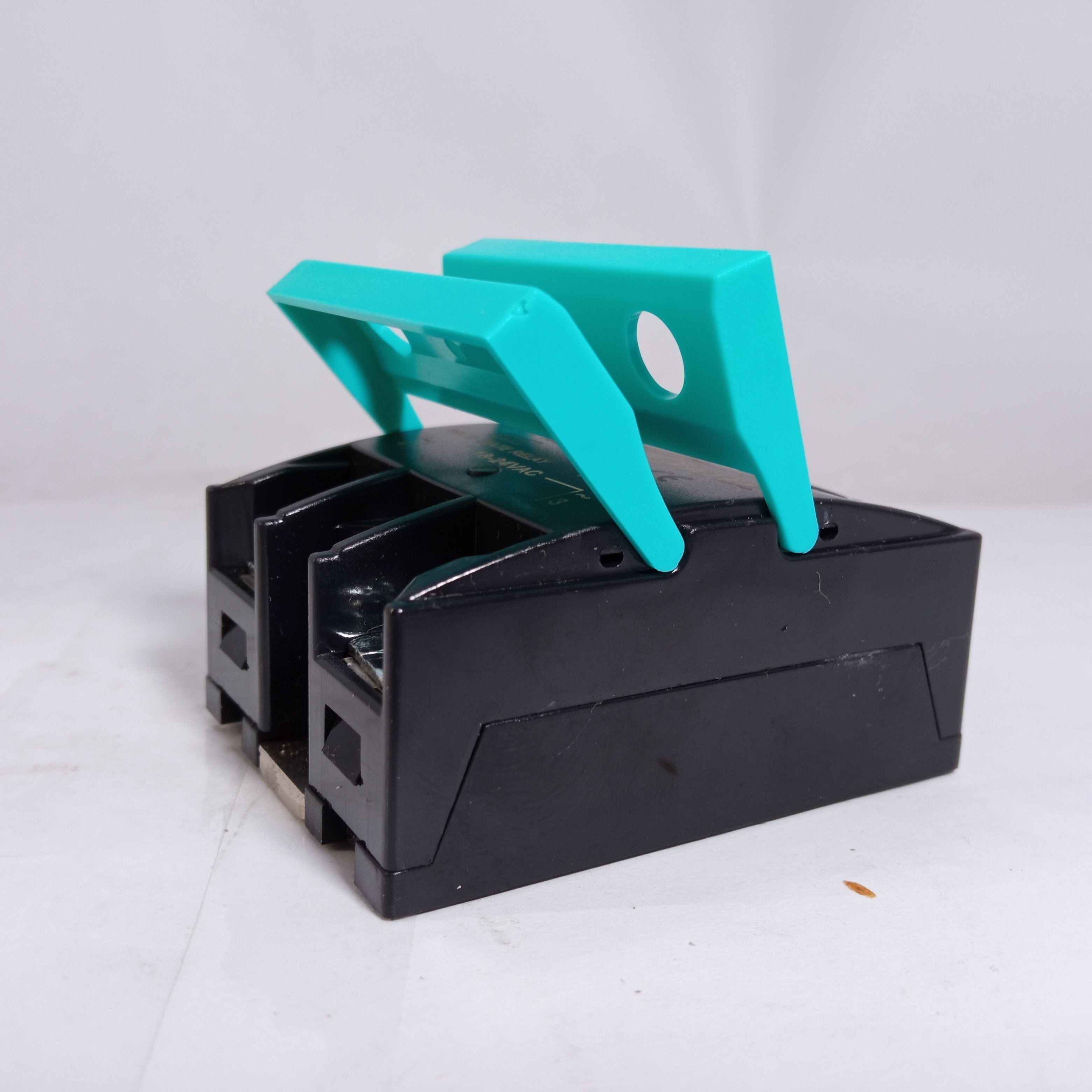

  • Removable protective cover for safety
  • Panel mount
  • Zero-crossing switch type

Specification:

  • Input Control voltage range 18 to 24VAC
  • Max. input current 15mA
  • Must operate voltage 70V AC
  • Must release voltage 50V AC
  • Output Load voltage range 24-800V AC
  • Peak voltage 800V AC
  • Load current 40A to 150A
  • Maximum off-state leakage current 2mA
  • Maximum off-state time 10mS
  • Maximum on-state voltage drop 1.5V
  • General Type AC to AC, single phase
  • Dimension L – W – H (mm) 57.4х44.8х28
  • Weight 135g
  • Dielectric strength (input to output) 4000V
  • Dielectric strength (input, output to the base) 2500V
  • Operating temperature -20℃~ 80℃
  • Mount Panel
  • Certification CE

Industryparts.pk Best Online Shopping website for Solid State Relay SSR-40AA 18 to 24VAC (Tense). Here you get Solid State Relay SSR-40AA 18 to 24VAC (Tense) at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Solid State Relay SSR-40AA 18 to 24VAC (Tense)
