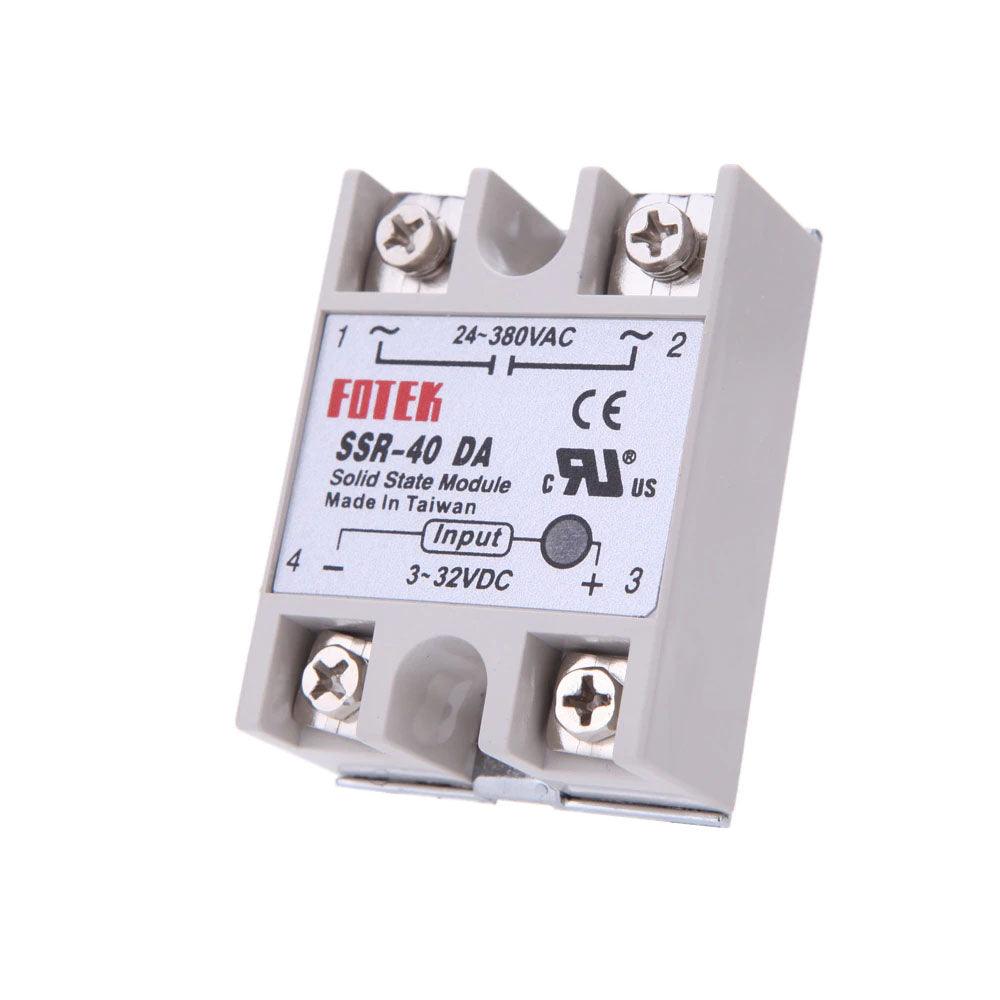

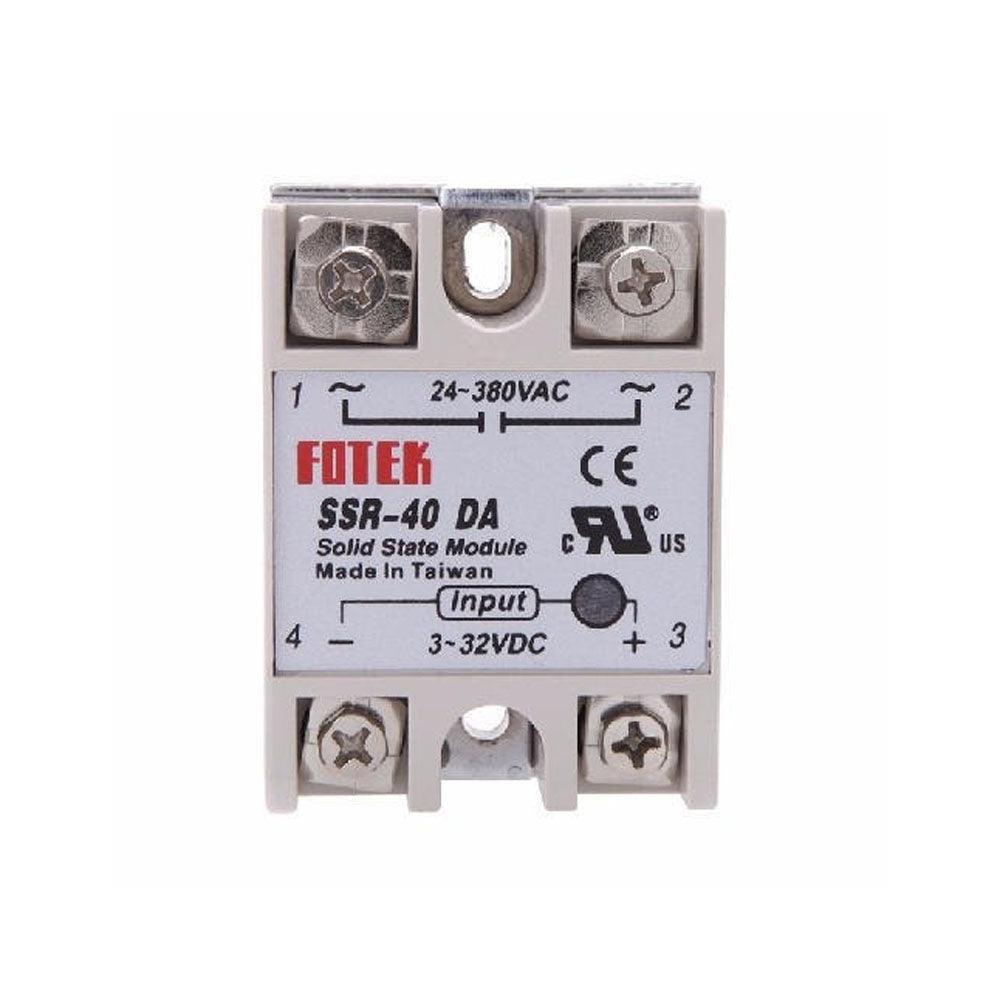

Solid State Relay Fotek SSR-40 DA in Pakistan

2 total reviews

Regular price Rs 650
Regular price Rs 800 Sale price Rs 650
Sale Sold out
BR1196-B209-HL-

SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation, and screw terminal connection. This series solid state relay has high structural strength, impact resistance, and strong resistance to viability. The low input drives current makes it convenient to connect with the computer terminal and various digital programmable interface circuits.

Specifications:

  •  Model: SSR-40 DA
  •  Control Mode: DC-AC
  •  Load Voltage: 24-380VAC
  • Load Current: 40A
  •  Control Voltage: 3-32VDC
  •  Control Current: DC3-25mA
  •  Working voltage: 250V
  •  On voltage: ?1V
  • One-off Time: ?10ms
  • Off leakage Current: ?2mA
  • Installation Method: Bolt Fixed
  • Working Indication: LED
  • Solid State Relay Fotek SSR-40 DA

Industryparts.pk is the Best Online Shopping website for Solid State Relay Fotek  SSR-40 DA in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

      1 x Solid State Relay Fotek  SSR-40 DA

Solid State Relay Fotek  SSR-40 DA in Pakistan
Solid State Relay Fotek  SSR-40 DA in Pakistan

Description

SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation, and screw terminal connection. This series solid state relay has high structural strength, impact resistance, and strong resistance to viability. The low input drives current makes it convenient to connect with the computer terminal and various digital programmable interface circuits.

Specifications:

  •  Model: SSR-40 DA
  •  Control Mode: DC-AC
  •  Load Voltage: 24-380VAC
  • Load Current: 40A
  •  Control Voltage: 3-32VDC
  •  Control Current: DC3-25mA
  •  Working voltage: 250V
  •  On voltage: ?1V
  • One-off Time: ?10ms
  • Off leakage Current: ?2mA
  • Installation Method: Bolt Fixed
  • Working Indication: LED
  • Solid State Relay Fotek SSR-40 DA

Industryparts.pk is the Best Online Shopping website for Solid State Relay Fotek  SSR-40 DA in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

      1 x Solid State Relay Fotek  SSR-40 DA

Solid State Relay Fotek  SSR-40 DA in Pakistan
Solid State Relay Fotek  SSR-40 DA in Pakistan
