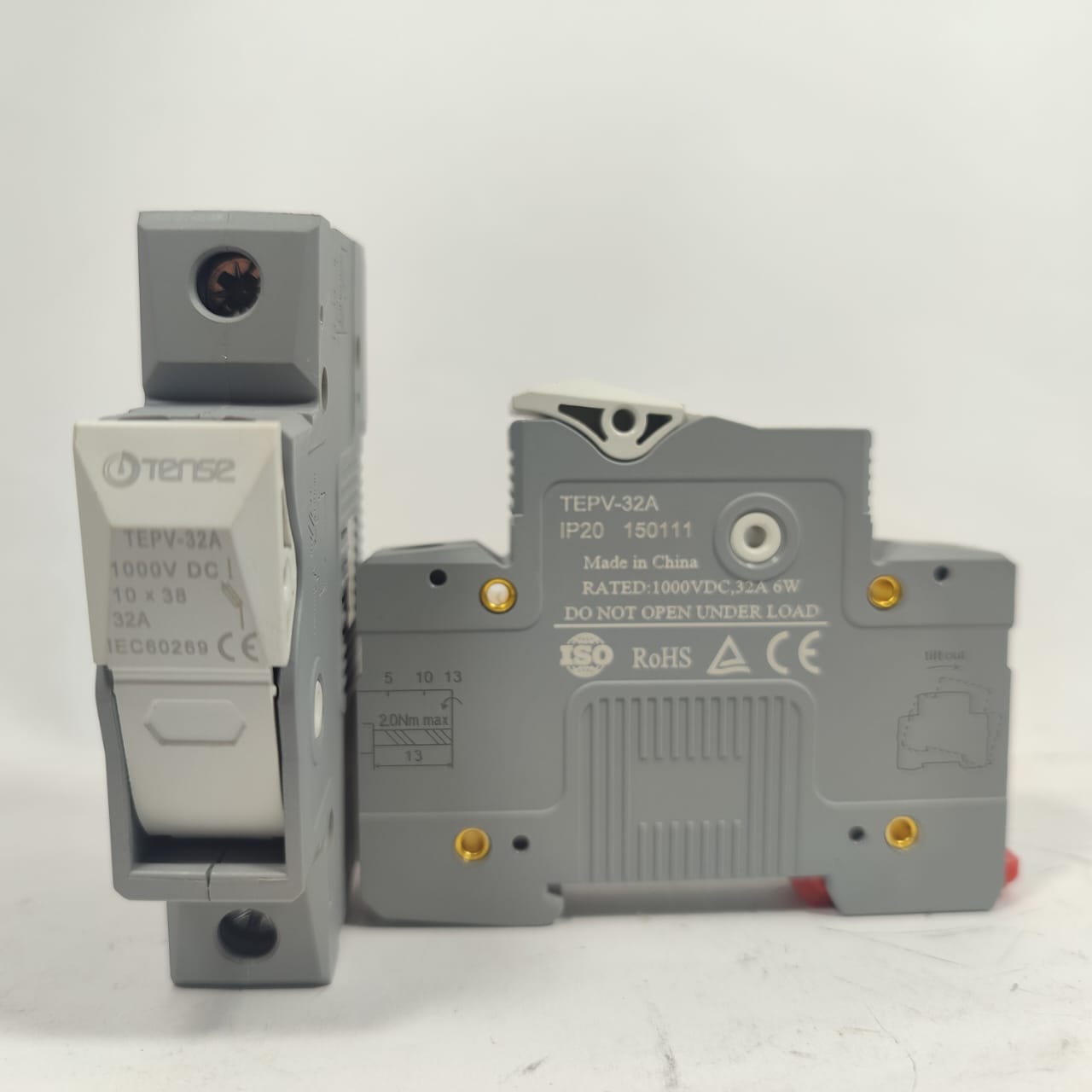

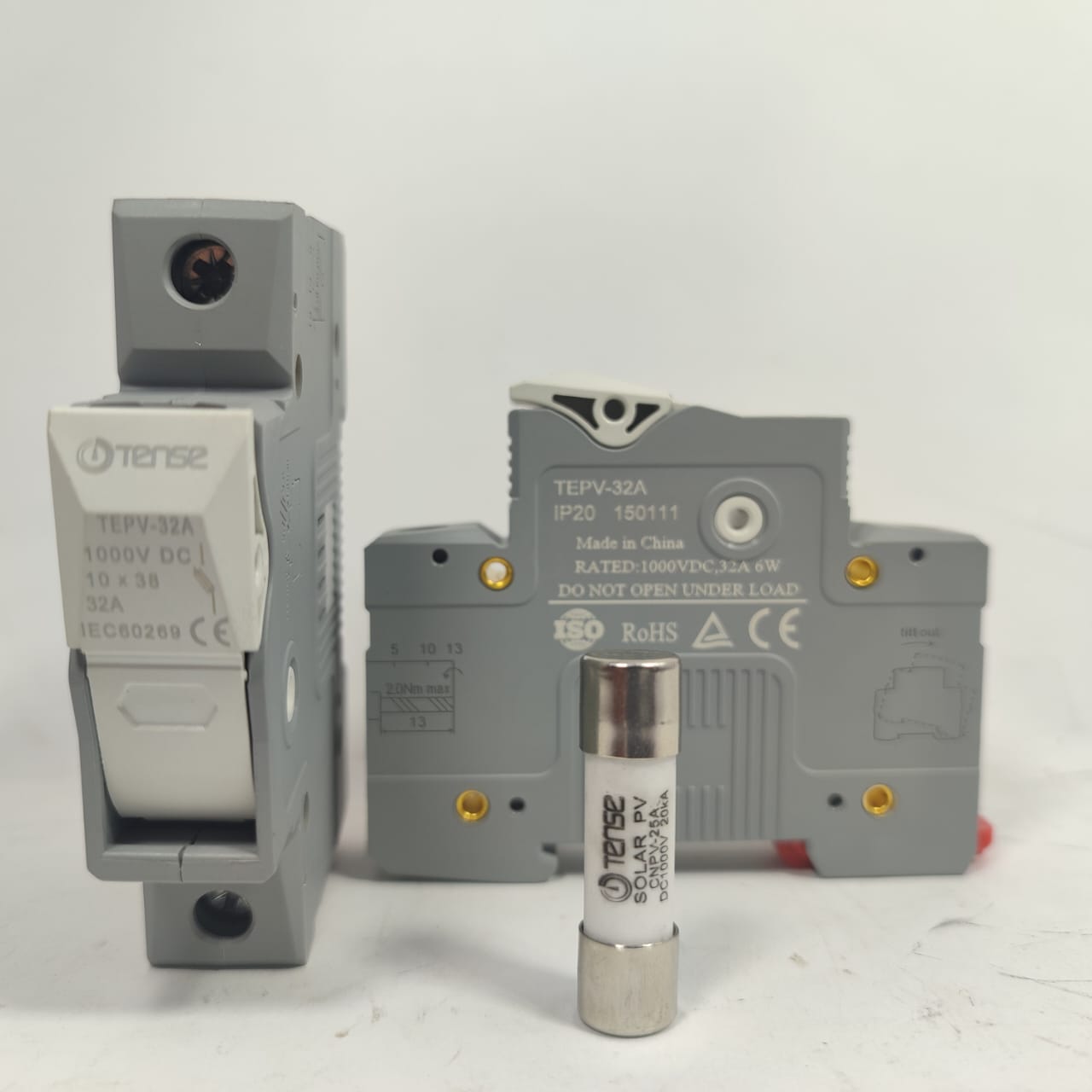

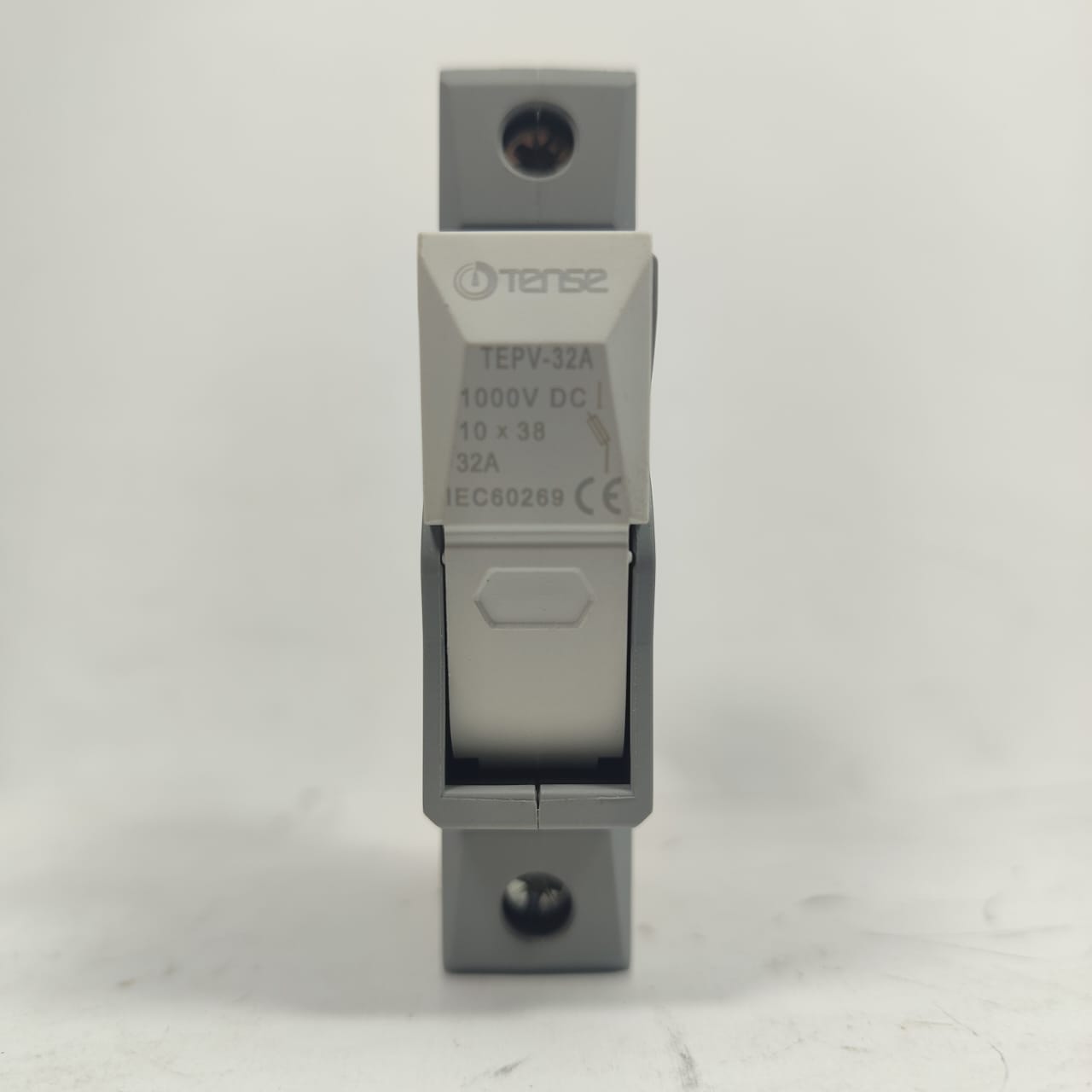

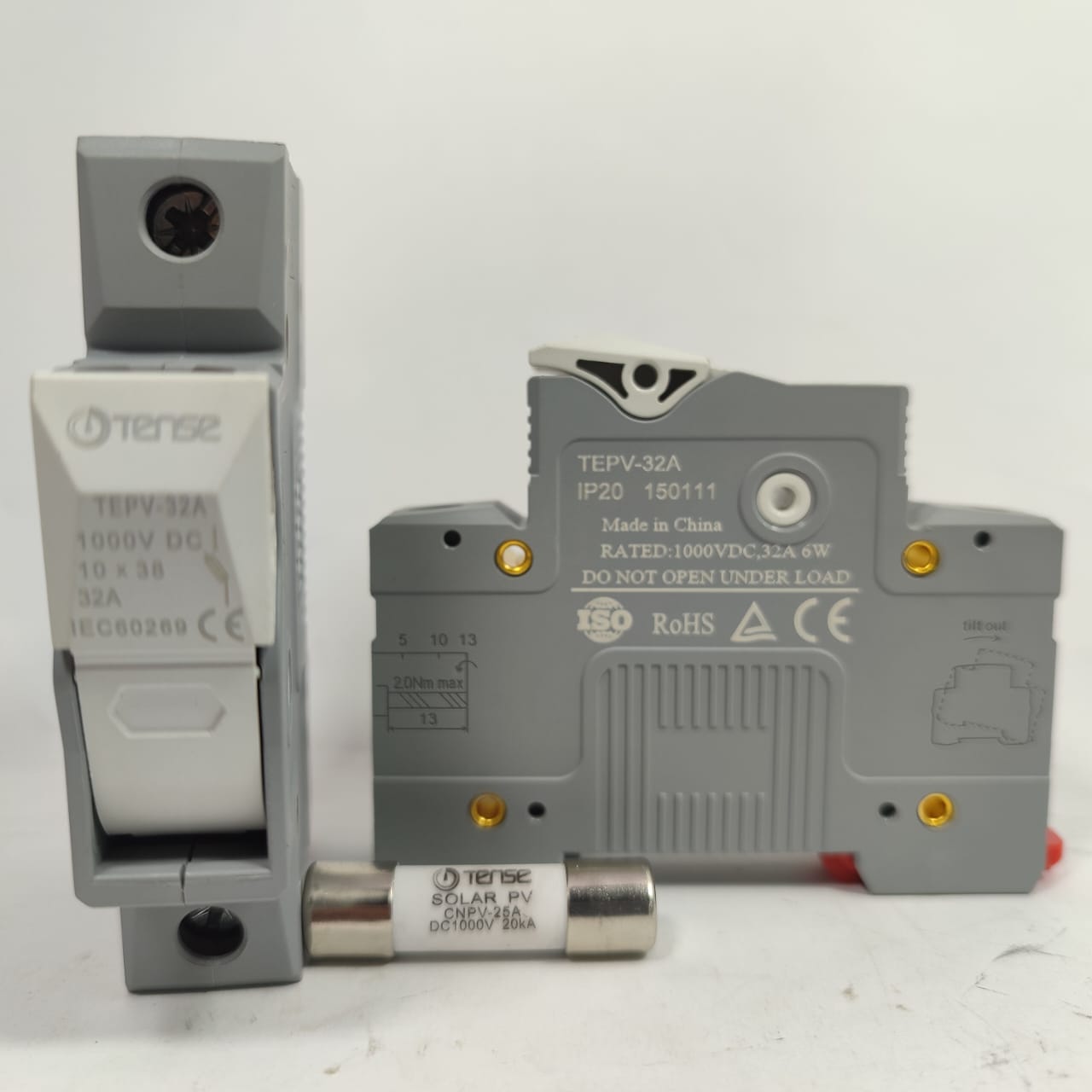

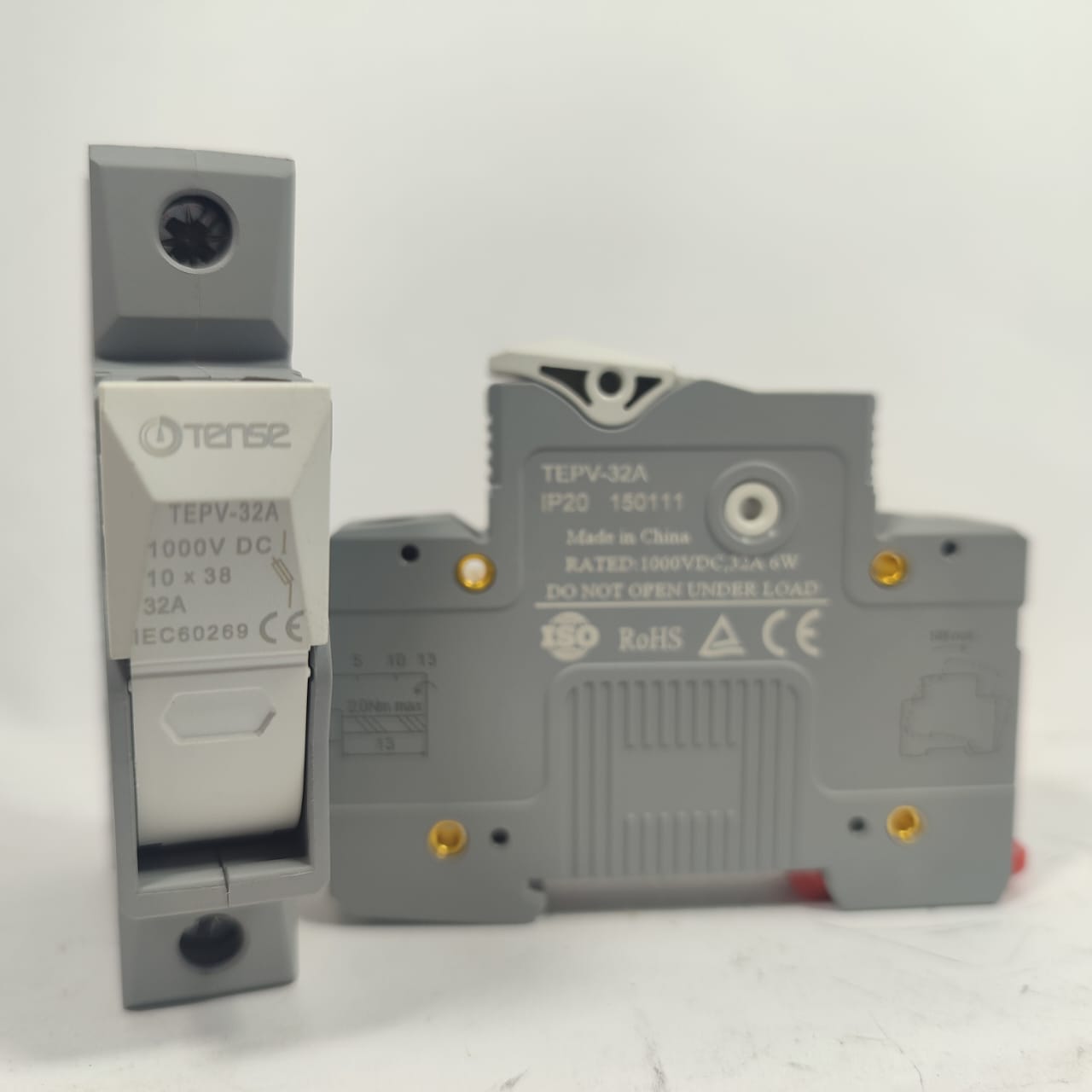

Solar Fuse/PV Fuse/DC Fuse Holder DC1000V 32A with 15A Fuse Tense in Pakistan

2 total reviews

Regular price Rs 550
Regular price Rs 680 Sale price Rs 550
Sale Sold out
BR4527

A range of 10x38mm fuse links specifically designed for protecting
Photovoltaic strings. These fuse links are capable of interrupting
Low overcurrents associated with faulted photovoltaic string arrays
(reverse current, multi-array fault).

Specifications:

  • Brand:Tense
  • pole:1P
  •  Rated voltage Ue(V DC):1000
  • Biggest block ability(KA):20
  • The highest power consumption(W):3.5
  •  Connection(mm²):2.5~10
  • Working Temperature:75°CU Wire Only
  • Wire Range:8-18AWG
  • Wire Range:1-10mm2
  • Rated:1000vdc 32A
  • Torque:18......22Ib.in
  • Torque:1........2.5Nm
  • Resistance and damp hot : class 2
  • Altitude(m):≤2000
  • Relative humidity:≤95%
  • Protection class/degree:IP20
  • Pullotion:30%~90%
  • Installation environment :obvious shock and vibration
  • Indication class :3
  • Indication :typeDIN rail
  • weight :0.07(kg)
  • IEC :60269-6

Package Includes:

1 x Solar Fuse / PV Fuse / DC Fuse DC1000V 32A

Online Shopping website for Solar Fuse / PV Fuse / DC Fuse DC1000V 32A  . Here you get Solar Fuse / PV Fuse / DC Fuse DC1000V 32A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.



Description

A range of 10x38mm fuse links specifically designed for protecting
Photovoltaic strings. These fuse links are capable of interrupting
Low overcurrents associated with faulted photovoltaic string arrays
(reverse current, multi-array fault).

Specifications:

  • Brand:Tense
  • pole:1P
  •  Rated voltage Ue(V DC):1000
  • Biggest block ability(KA):20
  • The highest power consumption(W):3.5
  •  Connection(mm²):2.5~10
  • Working Temperature:75°CU Wire Only
  • Wire Range:8-18AWG
  • Wire Range:1-10mm2
  • Rated:1000vdc 32A
  • Torque:18......22Ib.in
  • Torque:1........2.5Nm
  • Resistance and damp hot : class 2
  • Altitude(m):≤2000
  • Relative humidity:≤95%
  • Protection class/degree:IP20
  • Pullotion:30%~90%
  • Installation environment :obvious shock and vibration
  • Indication class :3
  • Indication :typeDIN rail
  • weight :0.07(kg)
  • IEC :60269-6

Package Includes:

1 x Solar Fuse / PV Fuse / DC Fuse DC1000V 32A

Online Shopping website for Solar Fuse / PV Fuse / DC Fuse DC1000V 32A  . Here you get Solar Fuse / PV Fuse / DC Fuse DC1000V 32A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
