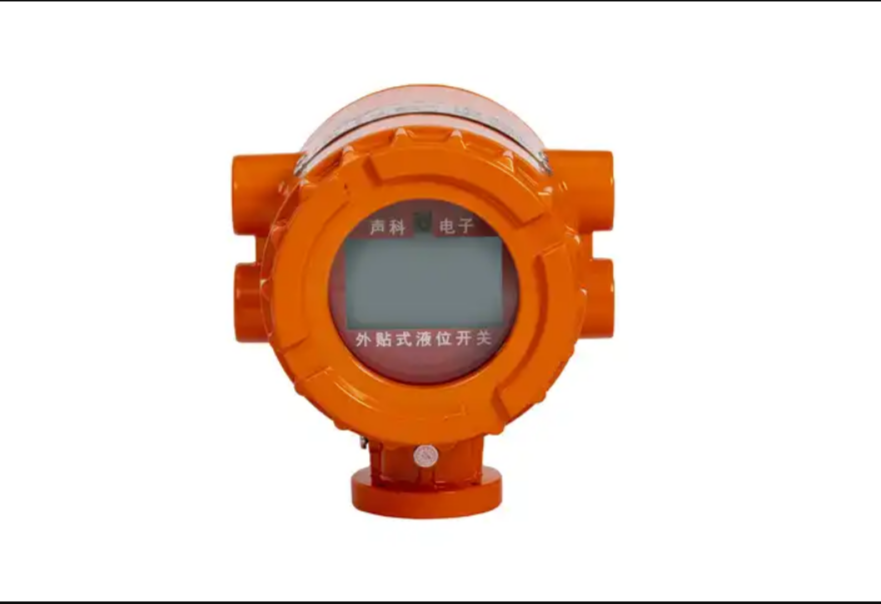

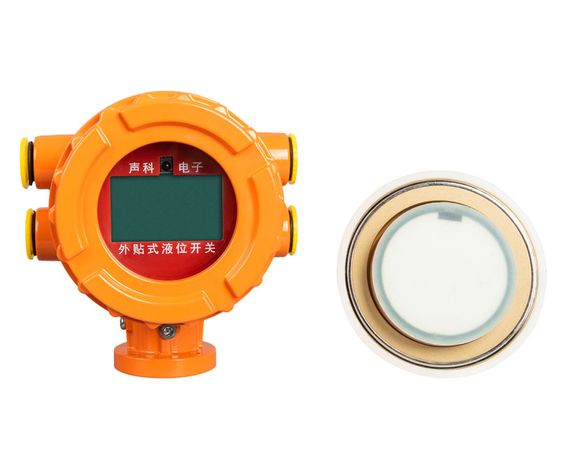

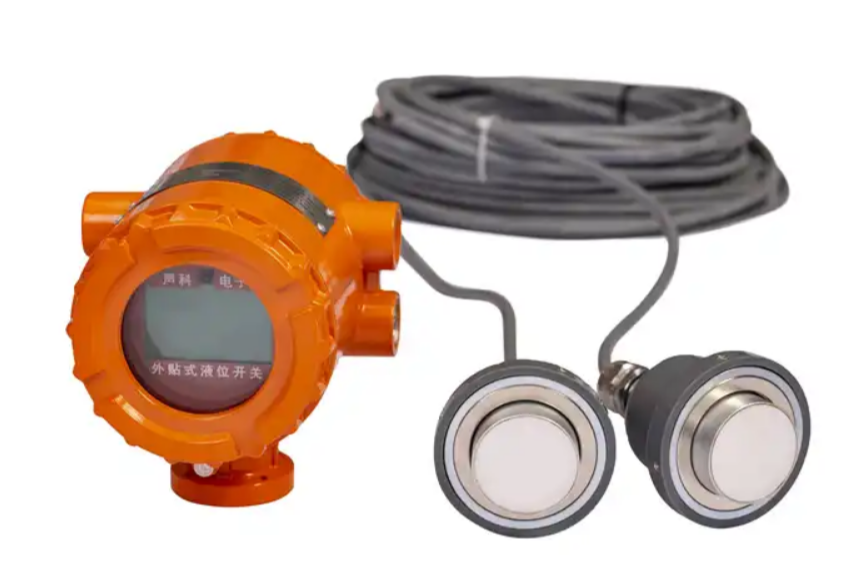

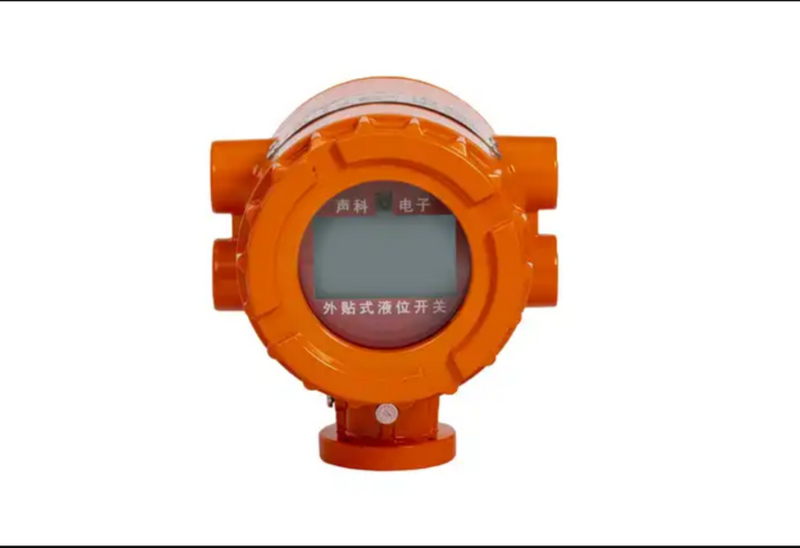

The SK-WK Non-invasive 4-20mA WaterTank Ultrasonic Level Switch Sensor Level Transmitter With LCD to display liquid levels is a device that uses ultrasonic waves to measure the level of liquids in tanks and other containers without having to break into the tank. It is a non-contact sensor that emits a pulse of ultrasonic sound and then measures the time it takes for the sound to return after it reflects off the surface of the liquid. The distance to the liquid surface is calculated based on the time of flight of the sound pulse. The sensor also has an LCD display that shows the current liquid level.

Features of SK-WK Non-invasive Water-tank Ultrasonic Level Switch :

• Non-invasive measurement
• High precision (±2mm)
• Wide measurement range (0 to 10m)
• Suitable for a variety of liquids
• Easy to install and use
• LCD display for real-time level monitoring

Specification of SK-WK Non-invasive Water-tank Ultrasonic Level Switch :

• Measurement principle: Ultrasonic
• Measurement range: 0 to 10m
• Accuracy: ±2mm
• Output signal: 4-20mA, RS-485
• Power supply: 24V DC
• Operating temperature: -(-40~80)°C
• Protection class: IP 67
• LCD display: 2.4 inches
• Signal output:Relay output(passive node)
• Enclosure: Cast aluminum

Dimensions:

• Diameter: 76mm
• Length: 225mm

Uses:

• Measuring the level of liquids in tanks, reservoirs, and other vessels
• Monitoring inventory levels
• Controlling pumps and valves
• Preventing overfill and underfill conditions
• Real-time level monitoring with LCD display

Industryparts.pk is the Online Shopping website for SK-WK Non-invasive Water-tank Ultrasonic Level Switch. Here you get SK-WK Non-invasive Water-tank Ultrasonic Level Switch at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

• SK-WK Non-invasive 4-20mA WaterTank Ultrasonic Level Switch
• User manual
