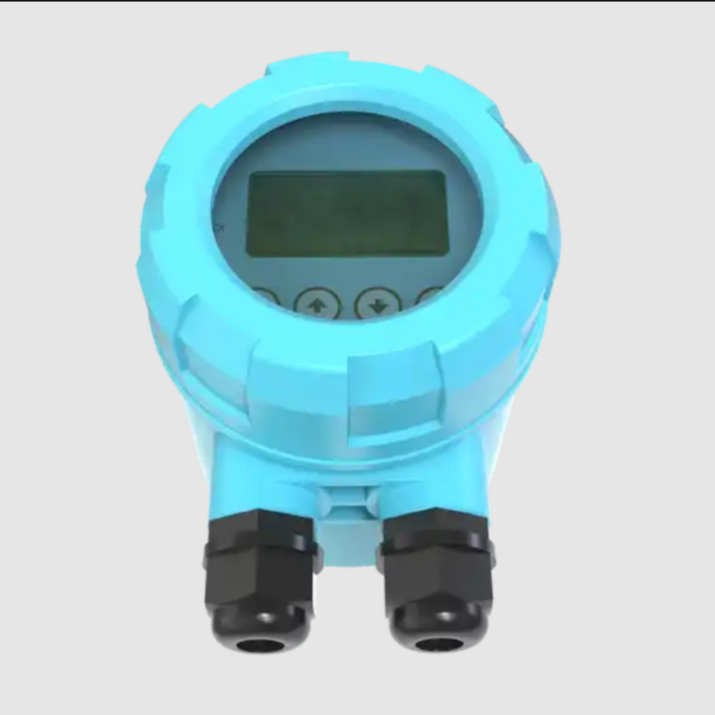

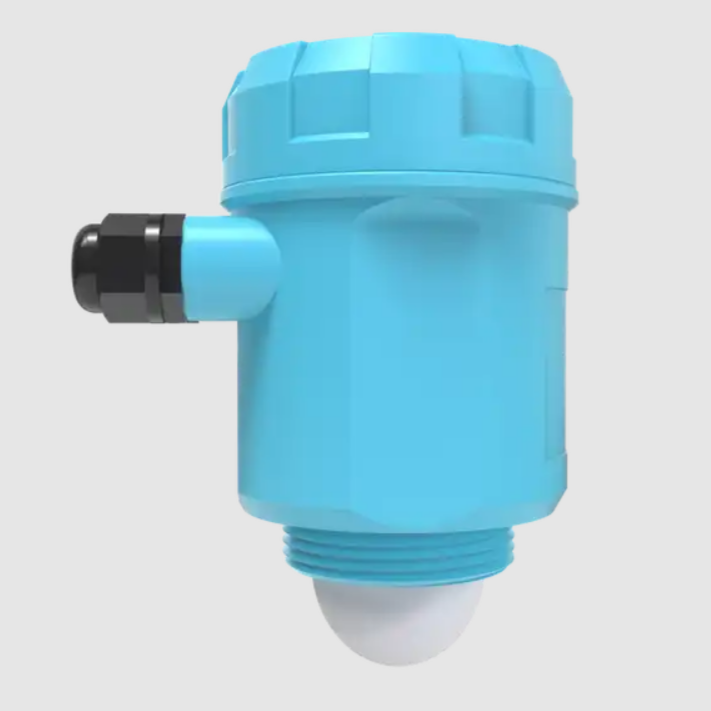

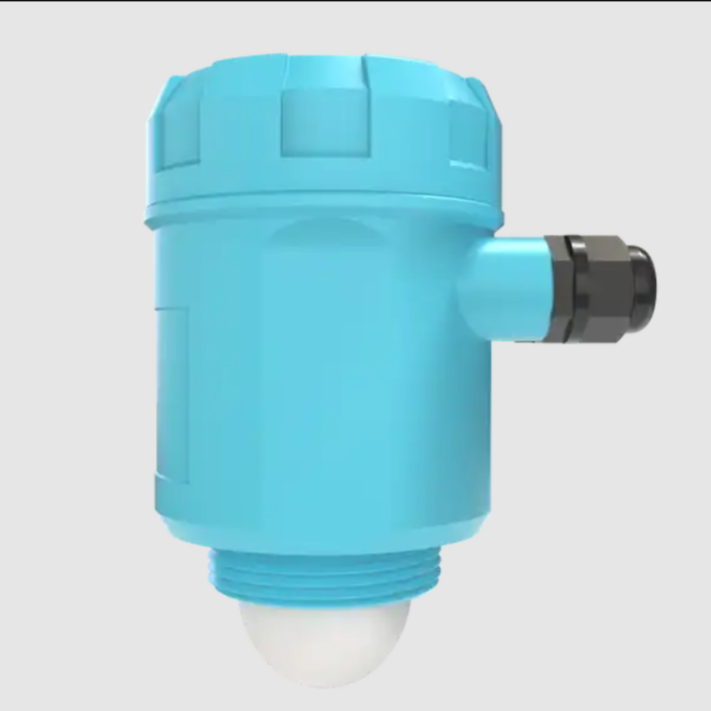

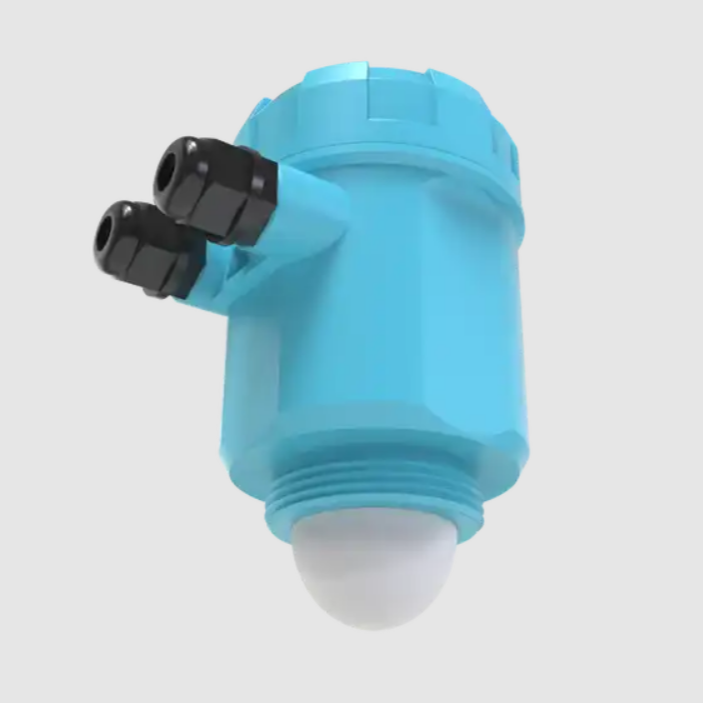

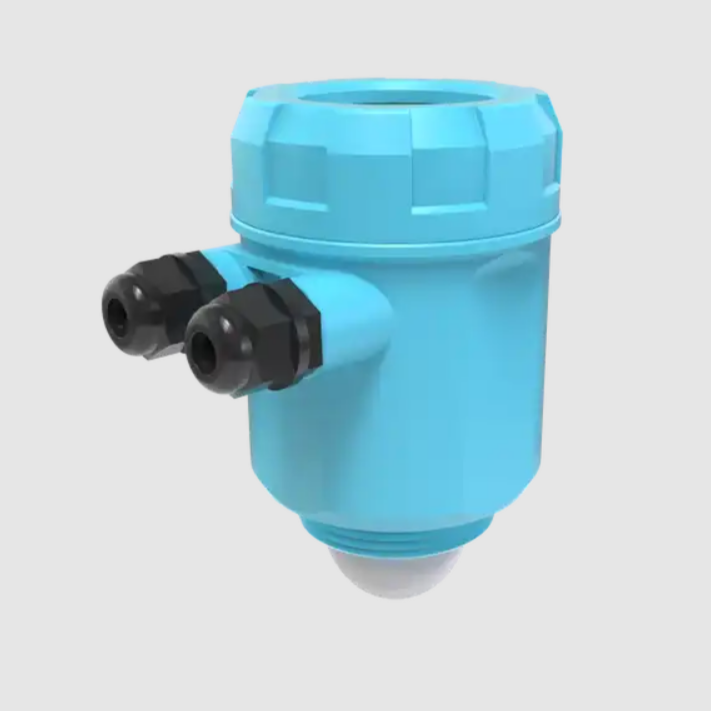

The SK-R800L 80Ghz Radar Level Sensor non-contact radar water level sensor for tank liquids with display is a high-precision, non-contact radar level sensor that is designed to measure the level of liquids in a variety of applications. It uses a narrow beam of 80GHz radar to measure the distance to the surface of the liquid, and it can be used to measure levels in tanks, reservoirs, and other vessels up to 100 meters deep.

Features of SK-R800L 80Ghz Radar Level Sensor:

• High precision (±1mm)
• Non-contact measurement
• Wide measurement range (0 to 100m)
• Suitable for a variety of liquids
• Built-in display for easy reading
• Easy to install and use

Specification of SK-R800L 80Ghz Radar Level Sensor:

• Measurement principle: 80GHz radar
• Measurement range: 0 to 100m
• Accuracy: ±1mm
• Output signal: 4-20mA, RS-485
• Power supply: 24V DC
• Operating temperature: -20°C to +80°C
• Protection class: IP67
• (8-36)V DC FourWire
• Modbus+HART
• Enclosure: Plastic, display
• Connection: Thread G1.5"
• Cable entry: M12*1.5

Dimensions:

• Diameter: 76mm
• Length: 225mm

Uses:

• Measuring the level of liquids in tanks, reservoirs, and other vessels
• Monitoring inventory levels
• Controlling pumps and valves
• Preventing overfill and underfill conditions

Industryparts.pk is the Online Shopping website for SK-R800L 80Ghz Radar Level Sensor. Here you get SK-R800L 80Ghz Radar Level Sensor at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

• SK-R800L 80Ghz Radar Level Sensor
• User manual
