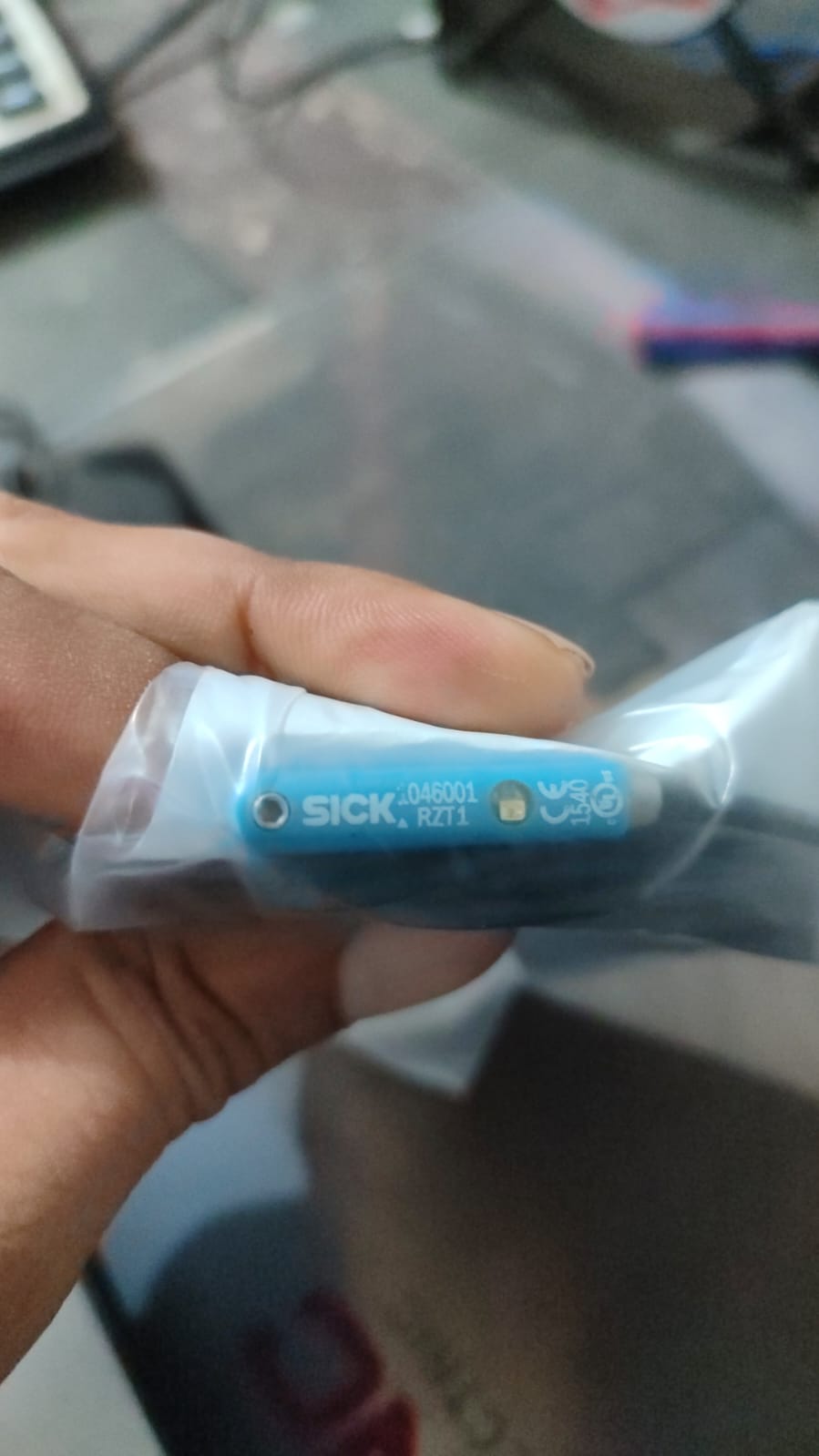

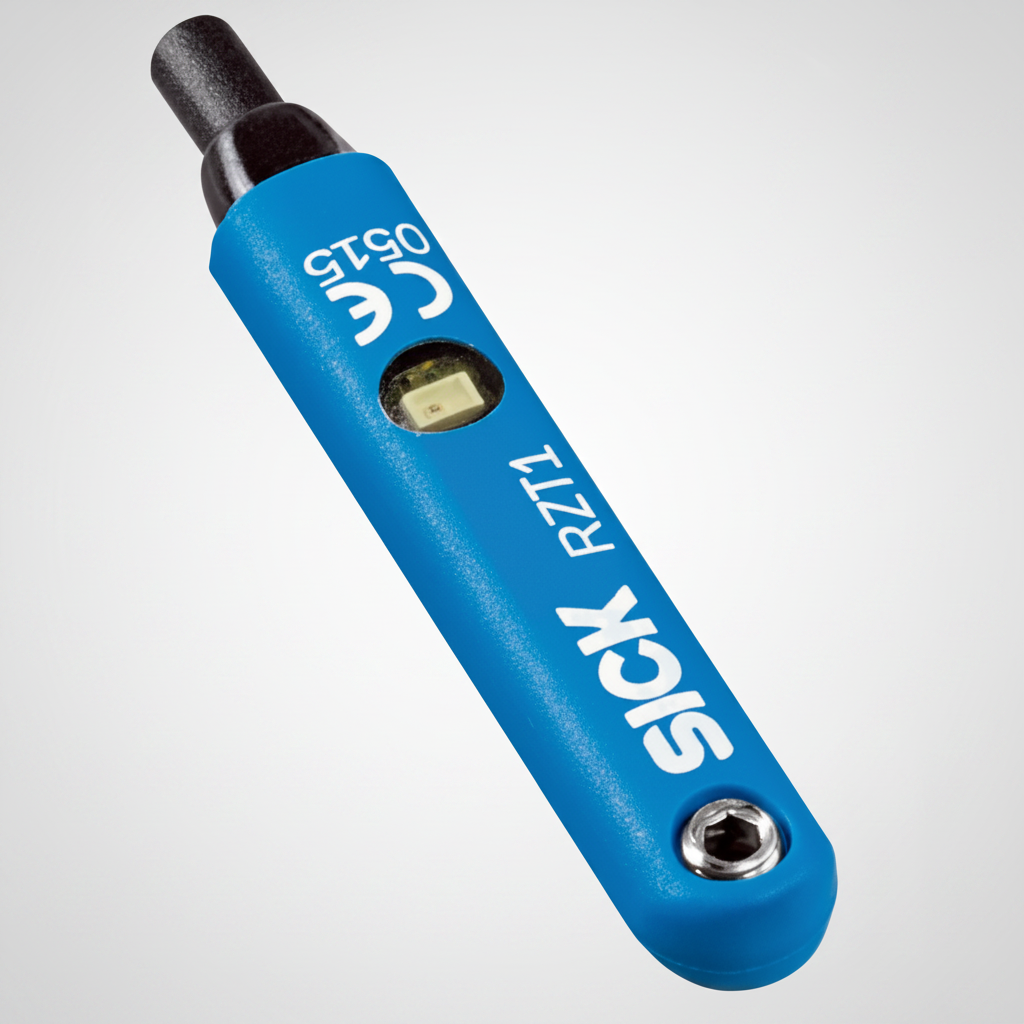

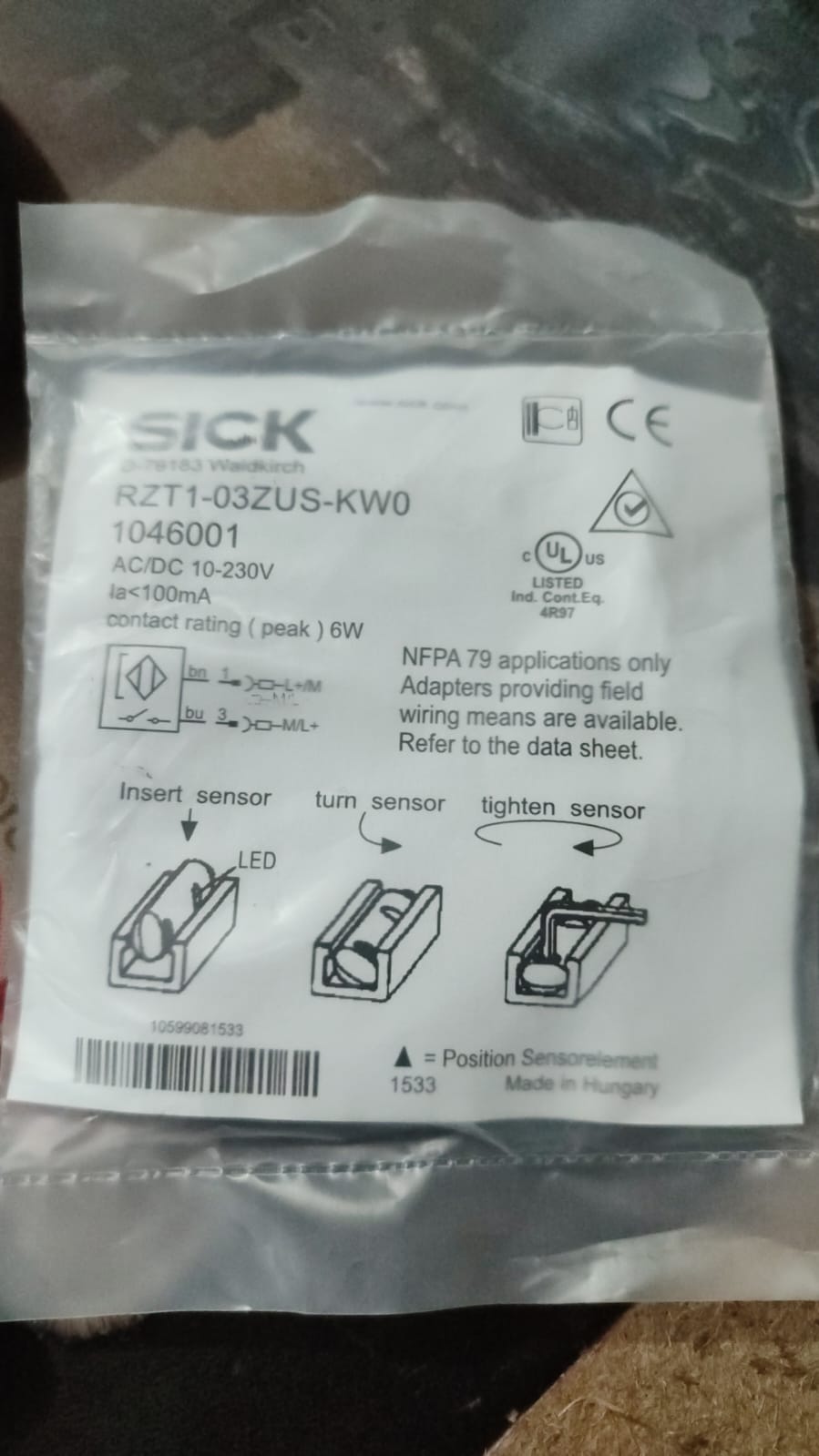

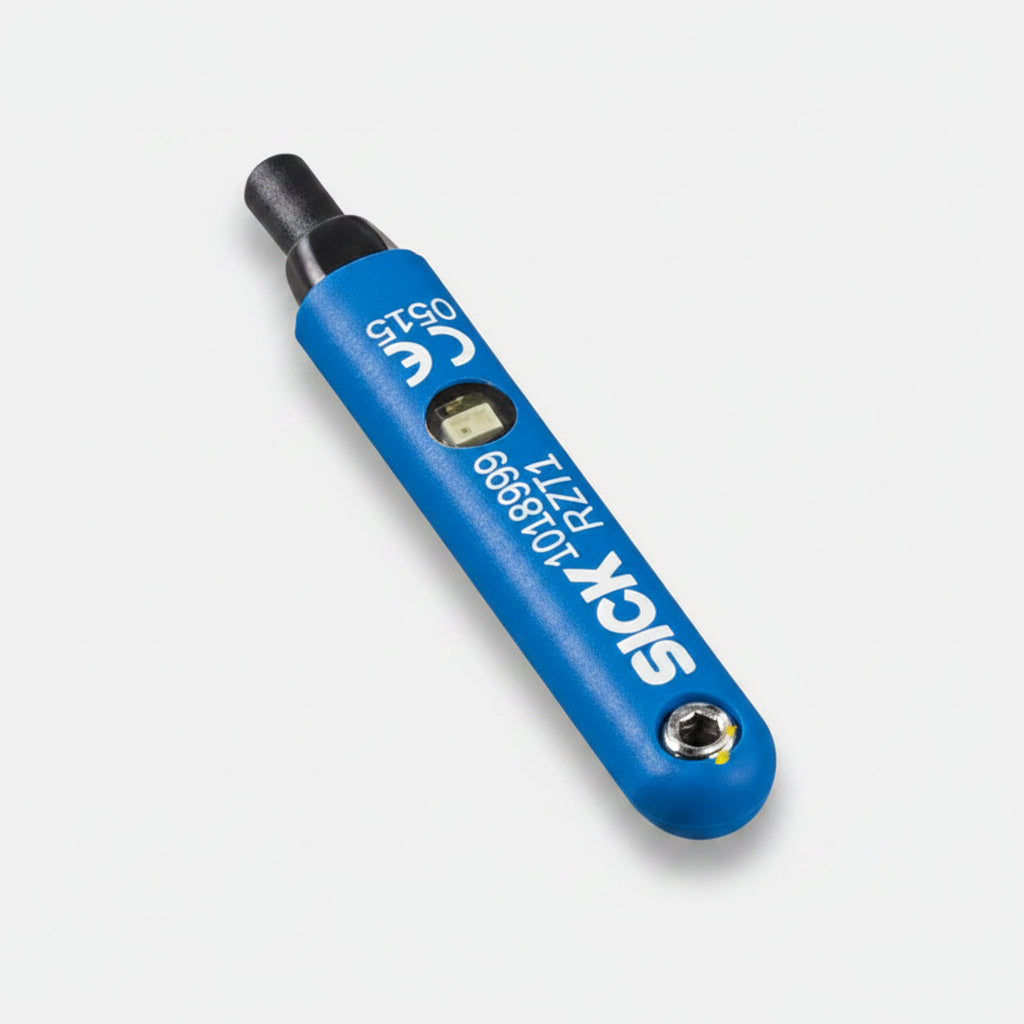

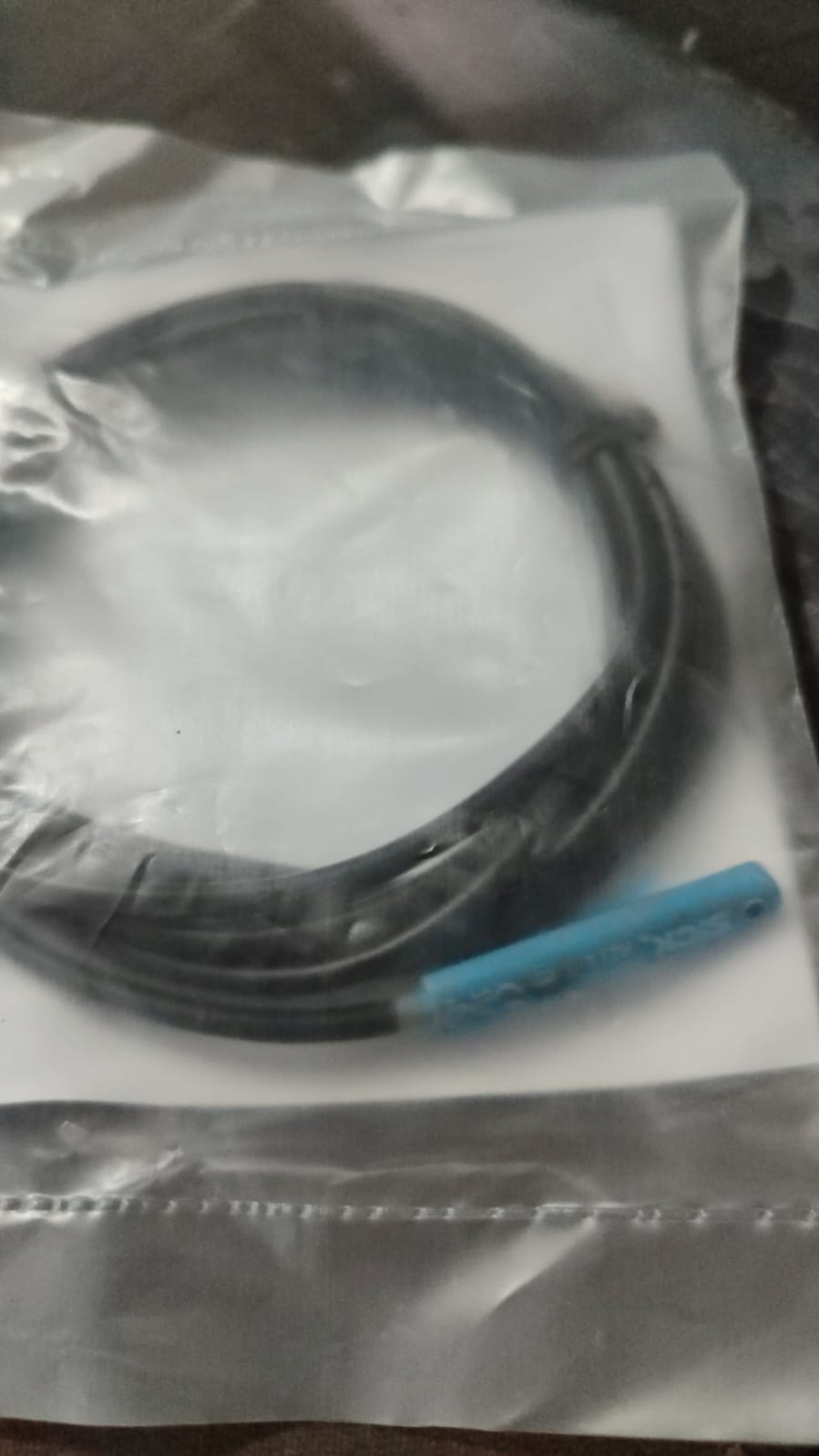

SICK RZT1-03ZUS-KW0 1046001 Magnetic cylinder sensors in Pakistan

The SICK RZT1-03ZUS-KW0 (Part No. 1046001) is a high-performance magnetic cylinder sensor designed for accurate piston position detection in pneumatic cylinders. It features a reed switching output, NO (Normally Open) output function, and operates with a wide 10V AC/DC to 230V AC/DC supply voltage. With an IP67 protection rating, durable plastic housing, and a 2-meter PVC cable, this sensor provides reliable performance even in harsh industrial environments. It is compatible with T-slot cylinders and, with adapters, can be used on profile, round body, tie rod, dovetail slot, and selected SMC cylinders. The sensor is ideal for factory automation, pneumatic systems, and industrial machinery.

Features

• High-quality magnetic cylinder sensor from SICK.
• Reliable reed switching technology.
• Normally Open (NO) output function.
• Wide operating voltage of 10V AC/DC to 230V AC/DC.
• Compact design with durable plastic housing.
• Bright output indicator for status monitoring.
• IP67-rated for dust and water resistance.
• Suitable for T-slot and various cylinder types with adapters.
• Fast switching frequency up to 400 Hz.
• Ideal for industrial automation and pneumatic applications.

Specifications

• Brand: SICK
• Model: RZT1-03ZUS-KW0
• Part Number: 1046001
• Sensor Type: Magnetic Cylinder Sensor
• Switching Output: Reed, AC/DC 2-wire
• Output Function: Normally Open (NO)
• Supply Voltage: 10V AC/DC to 230V AC/DC
• Maximum Output Current: ≤ 100 mA
• Switching Power: 6 W
• Switching Frequency: Approx. 400 Hz
• Protection Rating: IP67
• Operating Temperature: -25°C to +75°C
• Housing Material: Plastic
• Connection Type: 2-wire PVC Cable, 2 m
• Housing Length: 30.5 mm

Uses

• Detects piston position in pneumatic cylinders.
• Used in factory automation and machine control systems.
• Suitable for packaging and assembly equipment.
• Monitors cylinder movement in industrial machinery.
• Ideal for pneumatic control, positioning, and automation applications.

Package includes:

1x SICK RZT1-03ZUS-KW0 1046001 Magnetic cylinder sensors
