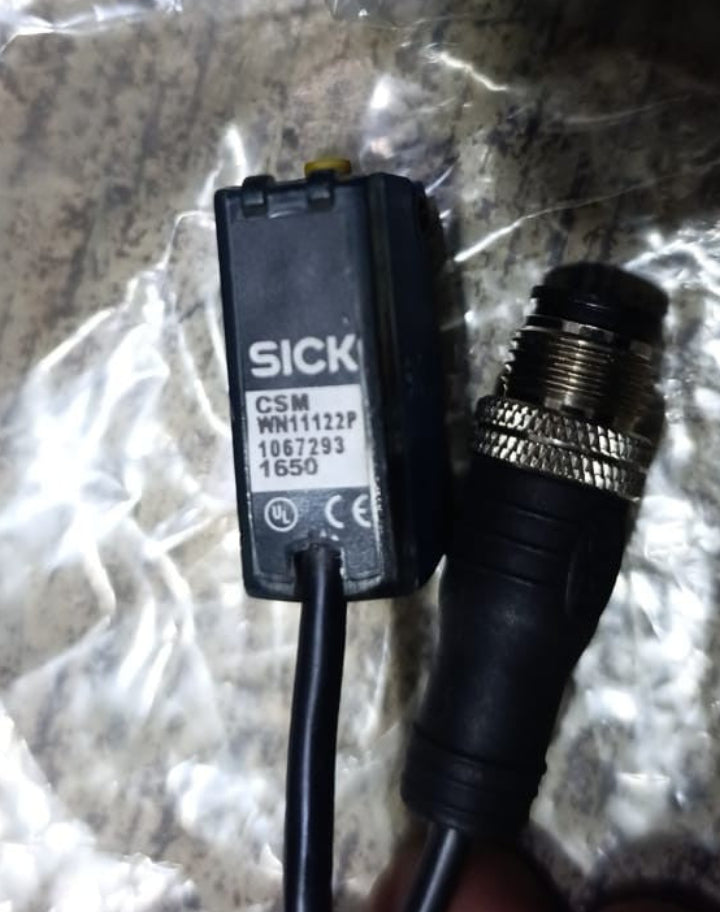

SICK CSM-WN11122P 1067293 Color sensor in Pakistan

The SICK CSM-WN11122P Color Sensor (Part No. 1067293) is a compact and high-precision color detection sensor designed for industrial automation and quality inspection applications. It uses blue (470nm), green (525nm), and red (640nm) LED light sources to accurately detect and distinguish colors. With a 12.5mm sensing distance, 300µs response time, and 1.7kHz switching frequency, it delivers fast and reliable performance on high-speed production lines. The sensor features an NPN switching output, 1-point teach-in function, IP67 protection, and a durable ABS housing, making it suitable for packaging, printing, sorting, labeling, and assembly applications in demanding industrial environments.

Features

• High-precision color detection for industrial automation.
• Uses blue, green, and red LED light sources.
• Fast 300µs response time for high-speed applications.
• High switching frequency of 1.7kHz.
• 1-point teach-in function for simple setup.
• Reliable NPN switching output.
• Compact rectangular housing for easy installation.
• IP67 protection for harsh industrial environments.
• Reverse polarity, short-circuit, and interference protection.
• Ideal for packaging, printing, labeling, and quality inspection.

Specifications

• Brand: SICK
• Model: CSM-WN11122P
• Part Number: 1067293
• Product Type: Color Sensor
• Light Source: LED
• Light Colors: Blue (470nm), Green (525nm), Red (640nm)
• Sensing Distance: 12.5mm
• Sensing Distance Tolerance: ±3mm
• Response Time: 300µs
• Switching Frequency: 1.7kHz
• Output Type: NPN
• Maximum Output Current: <100mA
• Supply Voltage: 12–24V DC
• Power Consumption: <50mA
• Protection Rating: IP67
• Housing Material: ABS Plastic
• Dimensions (W × H × D): 12 × 32 × 22mm
• Connection Type: M12 4-Pin Connector Cable (200mm)
• Operating Temperature: -10°C to +55°C
• Weight: Approximately 20g

Uses

• Detects and identifies colors on production lines.
• Used in packaging, printing, and labeling machines.
• Suitable for quality inspection and product sorting.
• Ideal for assembly automation and material identification.
• Widely used in industrial automation and manufacturing systems.

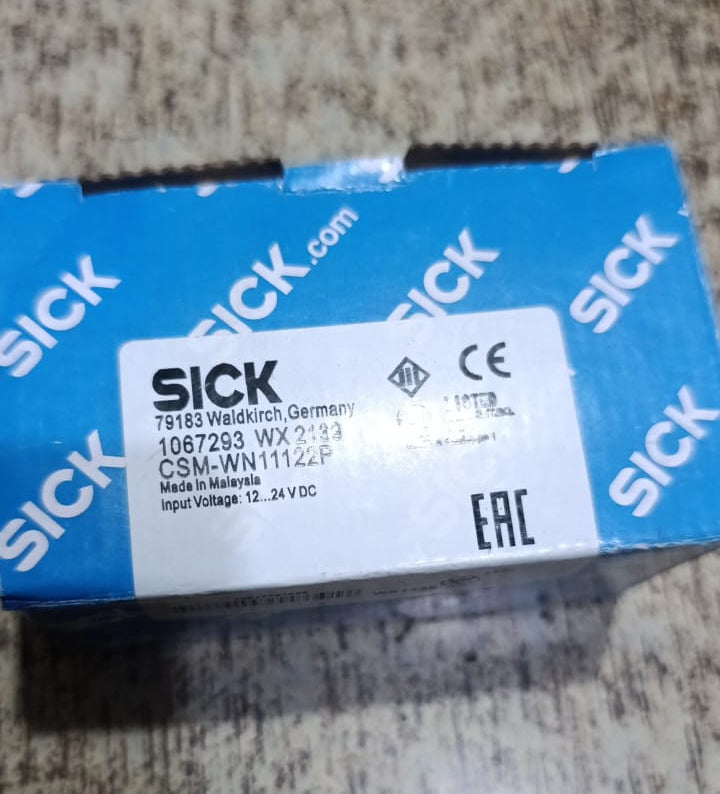

Package includes:

1x  SICK CSM-WN11122P 1067293 Color sensor
