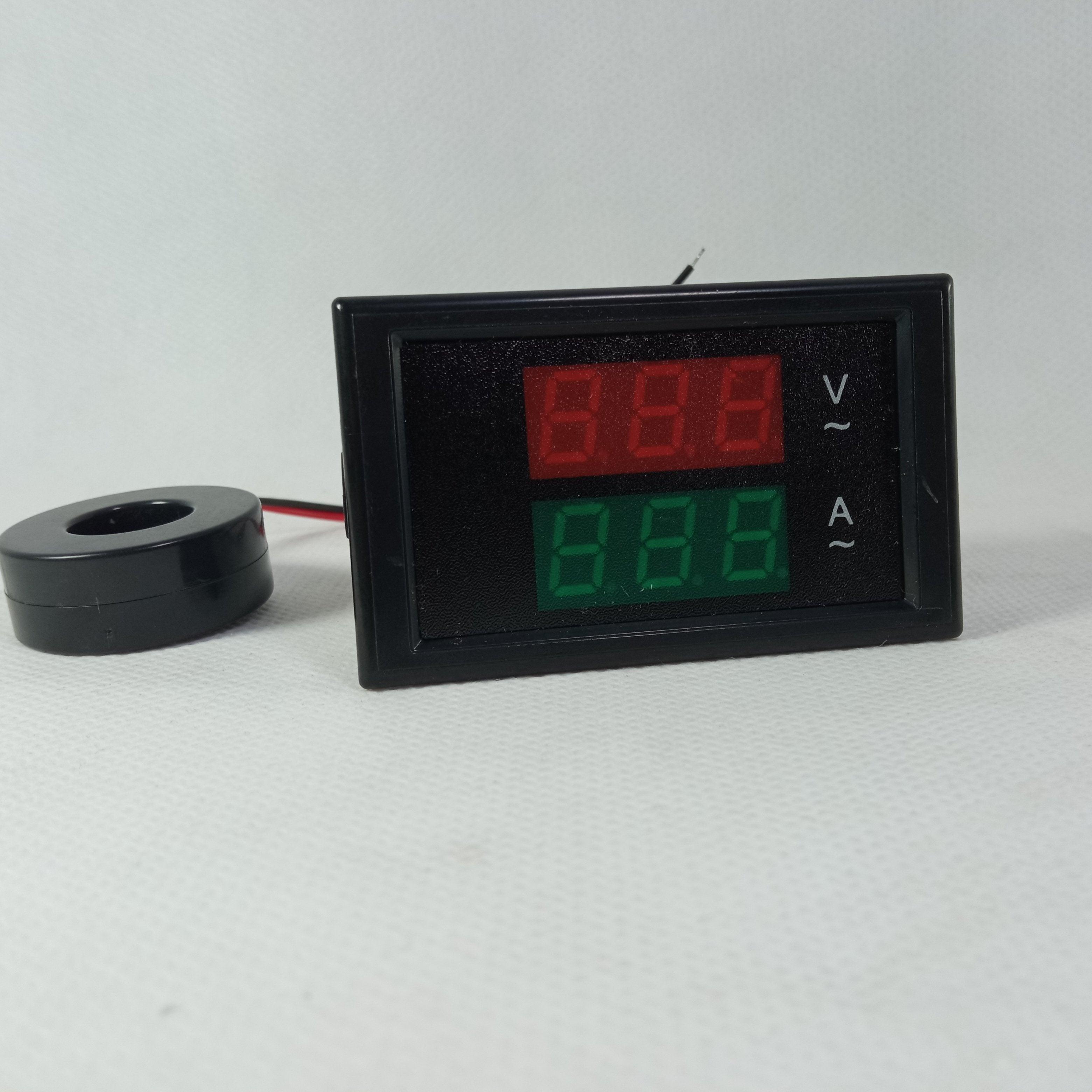

SETCO D85-5035 Digital AC Ammeter A+V 100A in Pakistan

2 total reviews

Regular price Rs 1,100
Regular price Rs 1,180 Sale price Rs 1,100
Sale Sold out
BR4187

SETCO D85-5035 Digital AC Ammeter A+V 100A in Pakistan BR4187

Description

Digital ammeters can measure levels of alternating current (AC) and direct current (DC). ... Different types of digital ammeters can measure different ranges of AC current, DC current, and AC current frequency.

Specifications:

  • Place of Origin: China
  • Brand Name: Setco
  • Model Number: D85-5035VA
  • Display Type:  Digital Only
  • Measuring Range: 0-100A
  • Accuracy Class:  +/-0.5%
  • Supply Voltage: 100-300V ACAC60-500V
  • Operating Temperature:  -
  • Dimensions: 70x40x26mm
  • resolution ratio: 0.01A
  • Display colors:  red
  • Working temperature:  -10°C ~ 65 °C
  • Type:  ampere meter

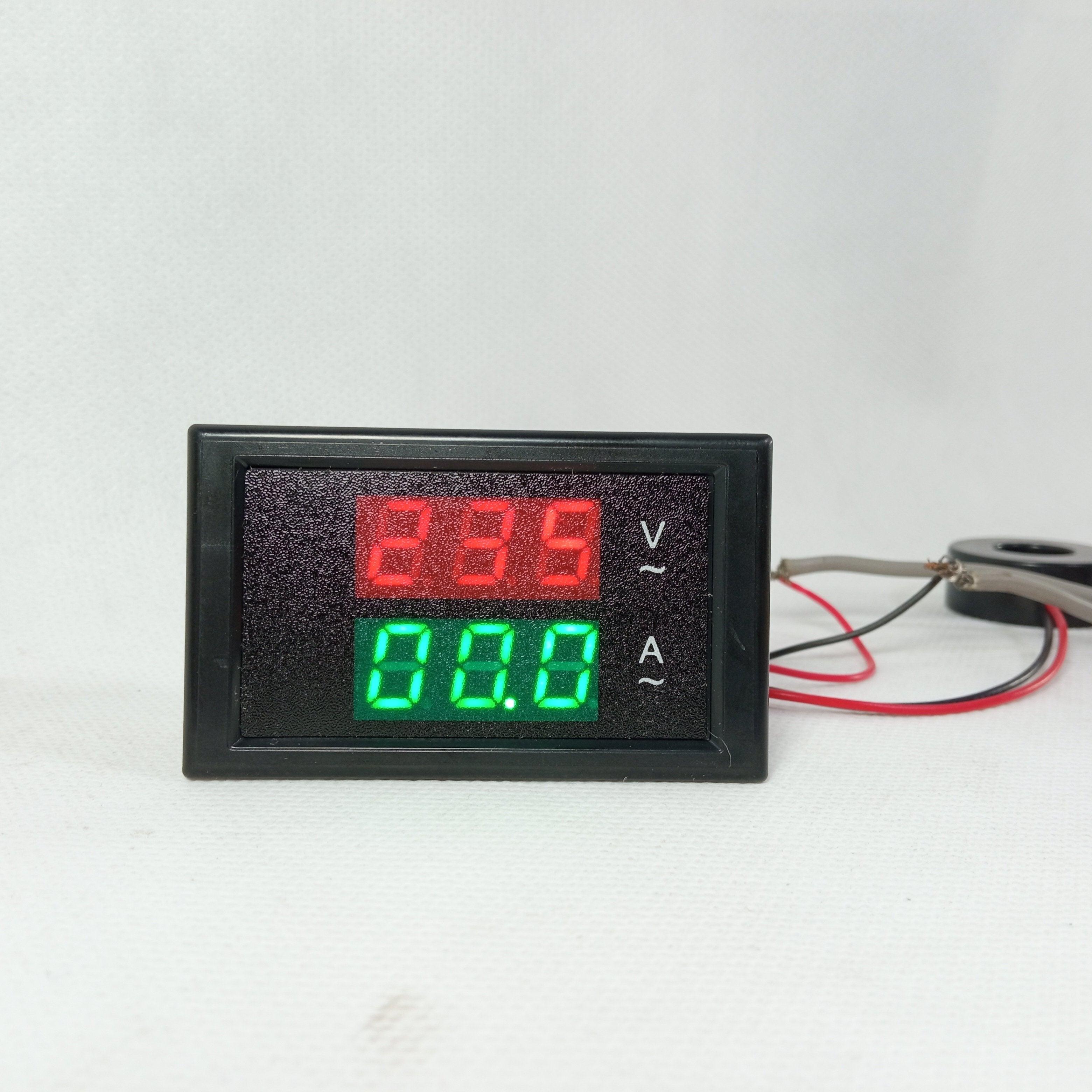

AC voltage and current meter can display AC voltage and current at the same time.

Technical Indicators
1. Accuracy: 1%+-2Words
2. Display mode: AC voltage and current with 4- digital 0.31- inches LED,
Range: AC Voltage: 200-450V
AC Current: 0-100.0A   Please don't exceed the range, or will damage the meter!!

The resolution ratio will change by itself when the input current is lower than 10A, the resolution ratio is 0.01A When the input current is higher than 10A the resolution ratio is 0.1A

  • Power supply:<0.2VA
  • Speed: 2 per second
  • Size: 70*39*40
  • Installing Size: 68mm*38mm

Application method

  1. Connect the wires ( Blue wire) of the secondary transformer to the blue terminal on the meter, the measuring line must cross the hole in the current transformer.
  2. Connect the measure voltage wire to the green terminal.

aeProduct.getSubject()

Brandrethroad. pk is the Online Shopping website for D85 model A+V 100A. Here you get D85 model A+V 100A  at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include

1 x SETCO D85-5035 Digital AC Ammeter A+V 100A

Description

SETCO D85-5035 Digital AC Ammeter A+V 100A in Pakistan BR4187

Description

Digital ammeters can measure levels of alternating current (AC) and direct current (DC). ... Different types of digital ammeters can measure different ranges of AC current, DC current, and AC current frequency.

Specifications:

  • Place of Origin: China
  • Brand Name: Setco
  • Model Number: D85-5035VA
  • Display Type:  Digital Only
  • Measuring Range: 0-100A
  • Accuracy Class:  +/-0.5%
  • Supply Voltage: 100-300V ACAC60-500V
  • Operating Temperature:  -
  • Dimensions: 70x40x26mm
  • resolution ratio: 0.01A
  • Display colors:  red
  • Working temperature:  -10°C ~ 65 °C
  • Type:  ampere meter

AC voltage and current meter can display AC voltage and current at the same time.

Technical Indicators
1. Accuracy: 1%+-2Words
2. Display mode: AC voltage and current with 4- digital 0.31- inches LED,
Range: AC Voltage: 200-450V
AC Current: 0-100.0A   Please don't exceed the range, or will damage the meter!!

The resolution ratio will change by itself when the input current is lower than 10A, the resolution ratio is 0.01A When the input current is higher than 10A the resolution ratio is 0.1A

  • Power supply:<0.2VA
  • Speed: 2 per second
  • Size: 70*39*40
  • Installing Size: 68mm*38mm

Application method

  1. Connect the wires ( Blue wire) of the secondary transformer to the blue terminal on the meter, the measuring line must cross the hole in the current transformer.
  2. Connect the measure voltage wire to the green terminal.

aeProduct.getSubject()

Brandrethroad. pk is the Online Shopping website for D85 model A+V 100A. Here you get D85 model A+V 100A  at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include

1 x SETCO D85-5035 Digital AC Ammeter A+V 100A
