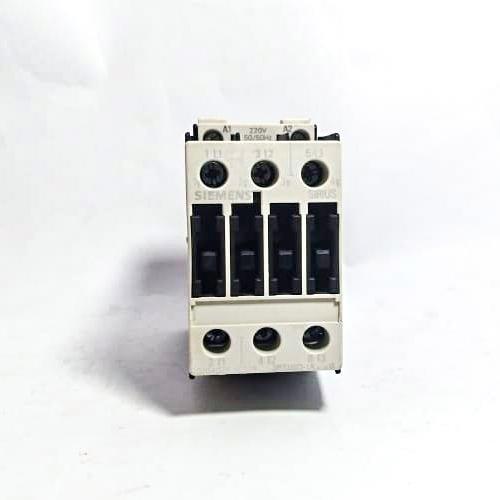

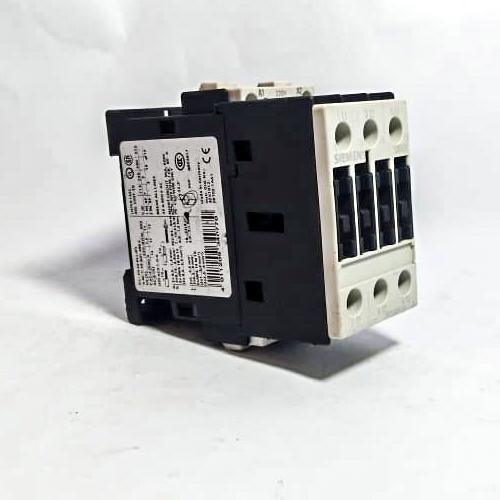

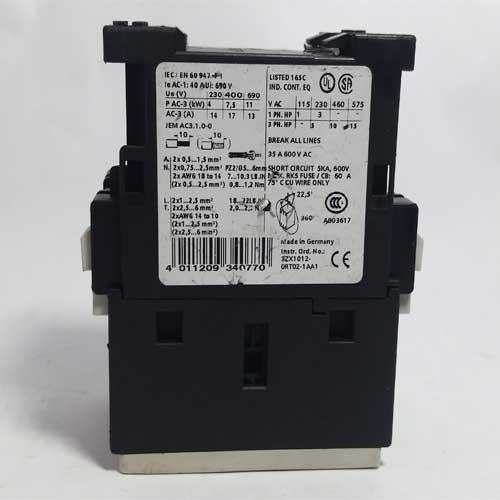

Semience Magnetic Contactor 3RT1023-1A

SKU:BR4653-b116-st1.

Regular price Rs 2,940
Regular price Sale price Rs 2,940
Sale Sold out

Semience Magnetic Contactor 3RT1023-1A in Pakistan BR4653

Description:

The Siemens Sirius line of 3RT1023-1A contactors is suitable for use wherever a 3 pole, IEC, UL, and CSA rated contractor is appropriate. This size S0 contactor is used in applications up to 15 horsepower at 460v for three-phase applications. Additional auxiliary contacts, up to four poles, can be added on the top or side of the contactor. In addition to auxiliary contact blocks, thermal magnetic or solid-state overload relays can be added to these Siemens contractors to provide full motor starter protection in the case of an over amperage situation. For mounting purposes, the contactors can either be mounted directly on a standard 35mm DIN rail or screwed directly onto the back of the panel or mounting plate.

Features:

  • Siemens Size S0 contactor

  • Can be fitted with any 1-, 2- or 4-pole 3RH1921 auxiliary contactor for up to 4 additional contacts
  • For motor protection, a 3RU1126 thermal overload or 3RB2026 Solid State overload relay can be directly mounted

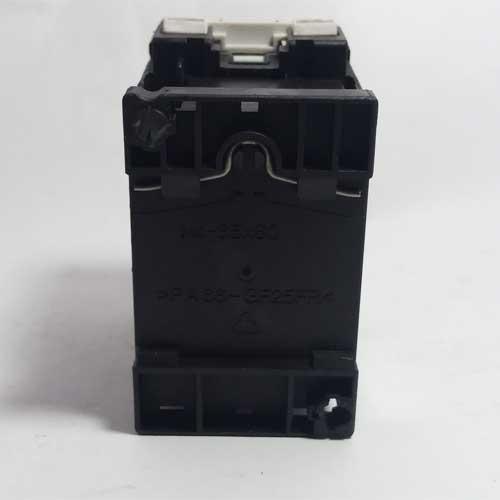

  • Mounts on standard 35mm DIN rail or can be screw-mounted
  • This contactor comes with screw termination - please call for spring/cage clamp terminals
  • The Sirius line can be fitted with optional varistors, surge suppressors or RC elements

Specifications:

Part Number 3RT1023-1A
Manufacturers Siemens
Sub-Category Contactor
Family Sirius
Type 3RT10
Phase 3
Poles 3
Voltage 600
Amperage 9
Coil Voltage Max 120

Semience Magnetic Contactor 3RT1023-1A

Best Online Shopping website for Semiense Magnetic Contactor 3RT1023-1A. Here you get Semience Magnetic Contactor 3RT1023-1A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Semience Magnetic Contactor 3RT1023-1A
