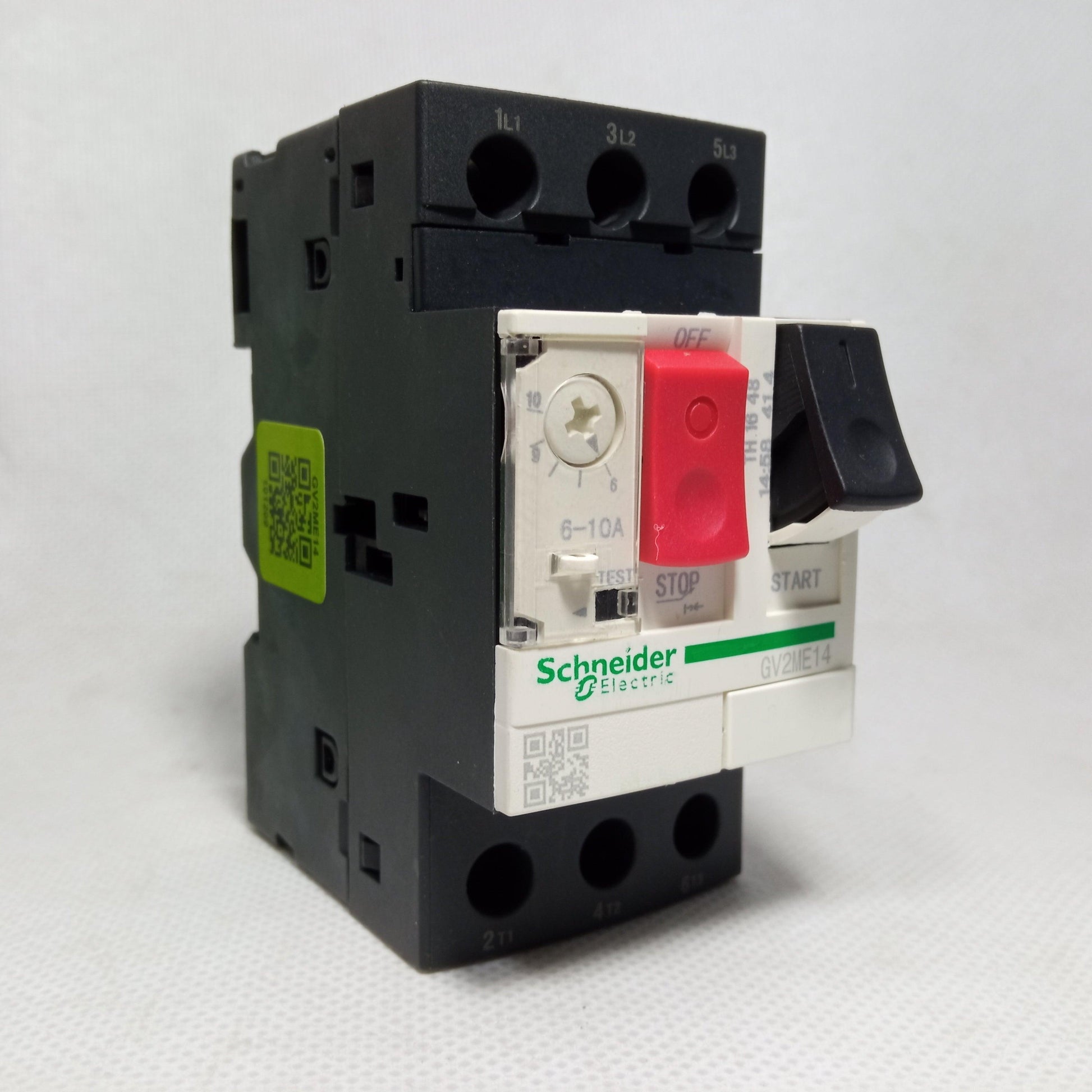

Schneider Motor circuit breaker GV2ME14 China in Pakistan

SKU:BR8107

Regular price Rs 3,200
Regular price Rs 5,000 Sale price Rs 3,200
Sale Sold out

The GV2ME14 is an enclosed Motor Circuit Breaker with thermal-magnetic trip unit technology. It is DIN rail mountable with vertical and horizontal mounting positions. The addition of an under-voltage trip enables the motor circuit-breaker to be tripped if the voltage is lost. The addition of a shunt trip enables remote control of tripping. The control for the enclosed motor circuit-breaker can be locked in the "N/C" position using 3 padlocks.

Features:

  • K04 and IP20 (conforming to IEC 60529) Protection rating
  • Screw clamp terminals
  • 15kA at 440VAC Breaking capacity (50/60Hz, conforming to IEC 60947-2)
  • 6 to 10A Thermal protection adjustment range
  • 138A Magnetic tripping current
  • 2.5W Power dissipation per pole
  • Pushbutton control
  • 25 cycles/h Operating rate
  • -20 to 60°C Ambient air temperature range for operation

Specifications:

  • : GV2M Series
  • : 10A
  • : 3 Pole
  • : -
  • : 690VAC
  • : DIN Rail

Industryparts.pk is the Best Online Shopping website for Schneider Motor circuit breaker GV2ME14 China. Here you get Schneider Motor circuit breaker GV2ME14 China at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Schneider Motor circuit breaker GV2ME14 China

View full details

Description

The GV2ME14 is an enclosed Motor Circuit Breaker with thermal-magnetic trip unit technology. It is DIN rail mountable with vertical and horizontal mounting positions. The addition of an under-voltage trip enables the motor circuit-breaker to be tripped if the voltage is lost. The addition of a shunt trip enables remote control of tripping. The control for the enclosed motor circuit-breaker can be locked in the "N/C" position using 3 padlocks.

Features:

  • K04 and IP20 (conforming to IEC 60529) Protection rating
  • Screw clamp terminals
  • 15kA at 440VAC Breaking capacity (50/60Hz, conforming to IEC 60947-2)
  • 6 to 10A Thermal protection adjustment range
  • 138A Magnetic tripping current
  • 2.5W Power dissipation per pole
  • Pushbutton control
  • 25 cycles/h Operating rate
  • -20 to 60°C Ambient air temperature range for operation

Specifications:

  • : GV2M Series
  • : 10A
  • : 3 Pole
  • : -
  • : 690VAC
  • : DIN Rail

Industryparts.pk is the Best Online Shopping website for Schneider Motor circuit breaker GV2ME14 China. Here you get Schneider Motor circuit breaker GV2ME14 China at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Schneider Motor circuit breaker GV2ME14 China
