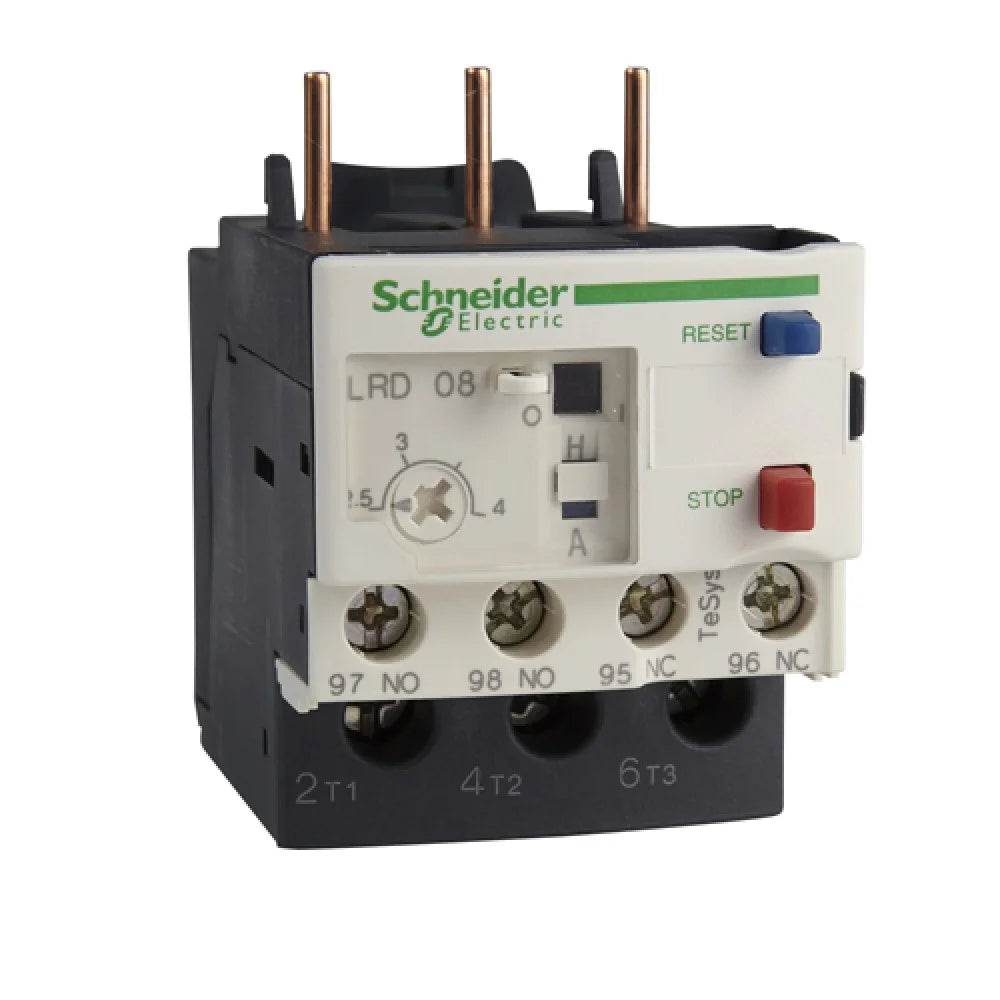

The SCHNEIDER LRD-08 TeSys Overload Relay is a vital electrical protection device designed to safeguard motors and circuits from damage caused by overload currents, phase failure, and load unbalance. Part of Schneider Electric's reputable TeSys LRD series, this thermal overload relay operates by monitoring current flow and tripping the circuit if it exceeds safe limits. It features an adjustable current setting, manual/auto reset options, and robust construction, making it a reliable solution for various industrial and commercial motor control applications.
Features of SCHNEIDER LRD-08 TESYS OVERLOAD RELAYS:
- Overload & Phase Protection: Protects AC circuits/motors from excessive current and phase loss.
- Adjustable Setting: Thermal dial customizes tripping current (e.g., 2.5-4A).
- Reset Options: Manual or automatic reset.
- Test & Signaling: Allows function testing and provides fault indication via auxiliary contacts (1NO+1NC).
- Temperature Compensation: Accurate tripping from -20 to 60 °C.
- Direct Mounting: Seamlessly integrates with TeSys D contactors.
Specification of SCHNEIDER LRD-08 TESYS OVERLOAD RELAYS:
- Model/Series: LRD-08 / TeSys LRD (Deca range)
- Application: Motor protection
- Compatibility: AC, DC networks
- Class: Class 10A (fast tripping: 2-10s at 7.2x current)
- Adjustment Range: 2.5 - 4 A
- Rated Voltage (Ue): Up to 690V AC
- Impulse Voltage (Uimp): 6 kV
- Mounting: Under contactor, on plate, or DIN rail.
- Protection: IP20
- Weight/Dimensions: 0.124 kg; 66x45x70mm.
Uses:
- Motor Control: Protects motors in industrial machinery (pumps, fans, conveyors).
- HVAC Systems: Safeguards motors in heating/cooling units.
- Automated Systems: Ensures safe operation in production lines.
- Water Treatment: Prevents overload damage to pumps/mixers.
Benefits:
- Extends Motor Lifespan: Prevents overheating/damage.
- Increases Reliability: Reduces shutdowns and equipment failure.
- Enhances Safety: Minimizes fire/hazard risks.
- Easy Integration: Simple installation, saves panel space.
- Flexible: Adaptable protection via adjustable settings.
- Cost-Effective: Prevents expensive repairs.
Package includes:
- 1x SCHNEIDER LRD-08 TESYS OVERLOAD RELAYS
