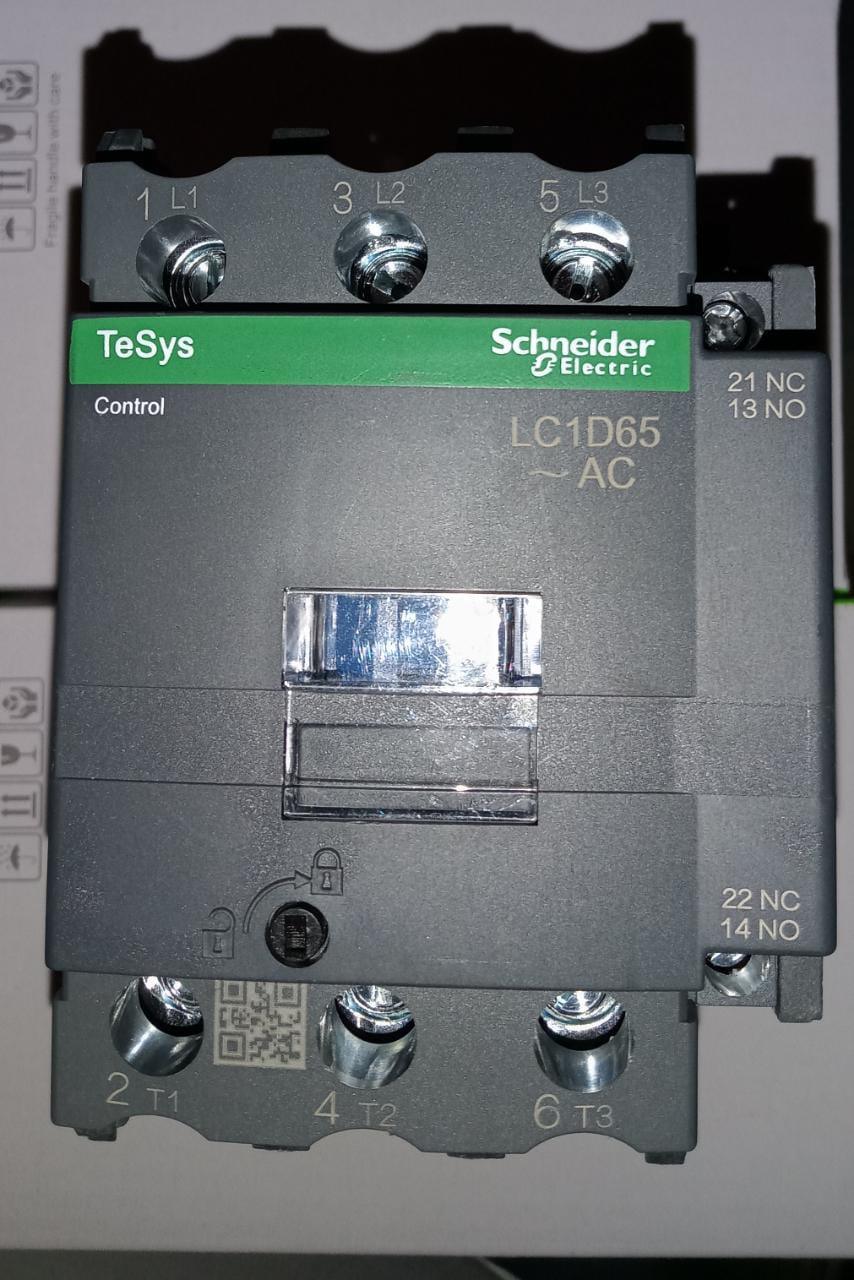

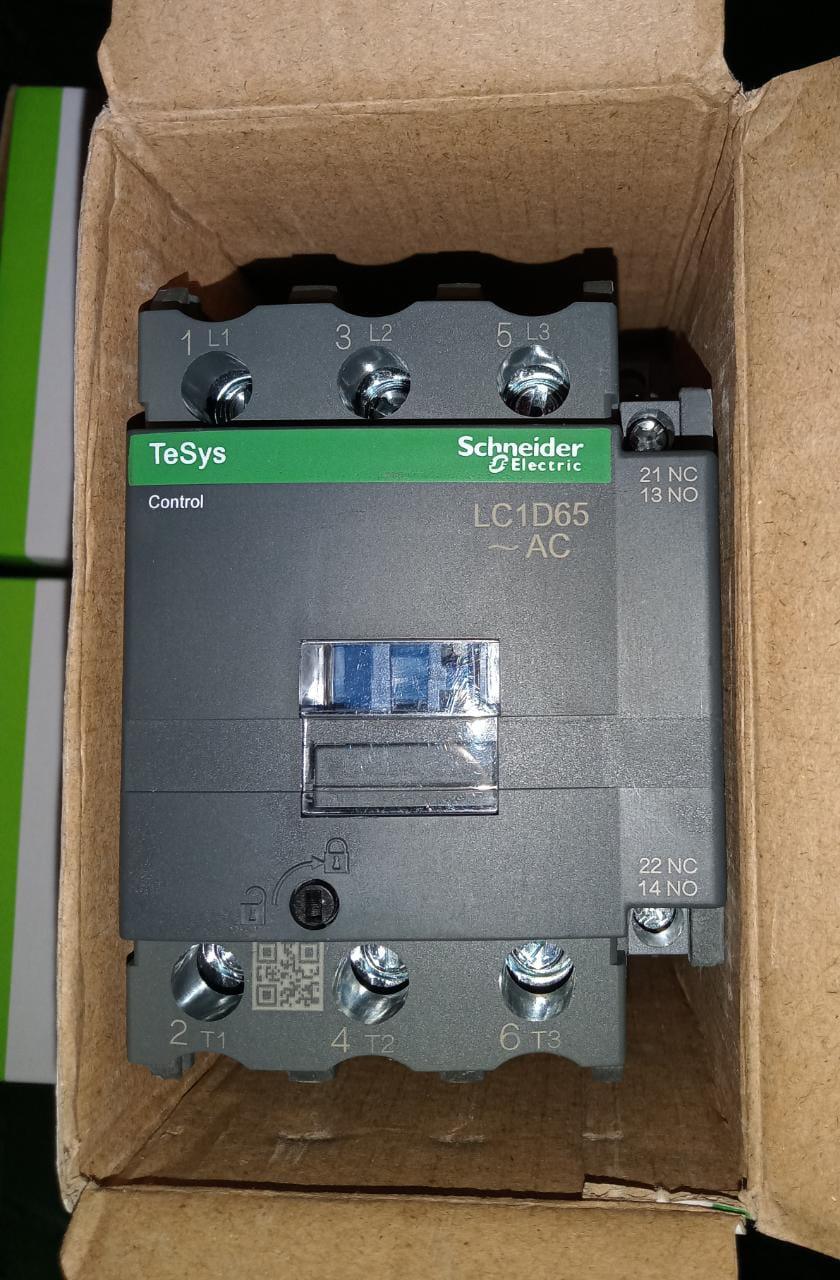

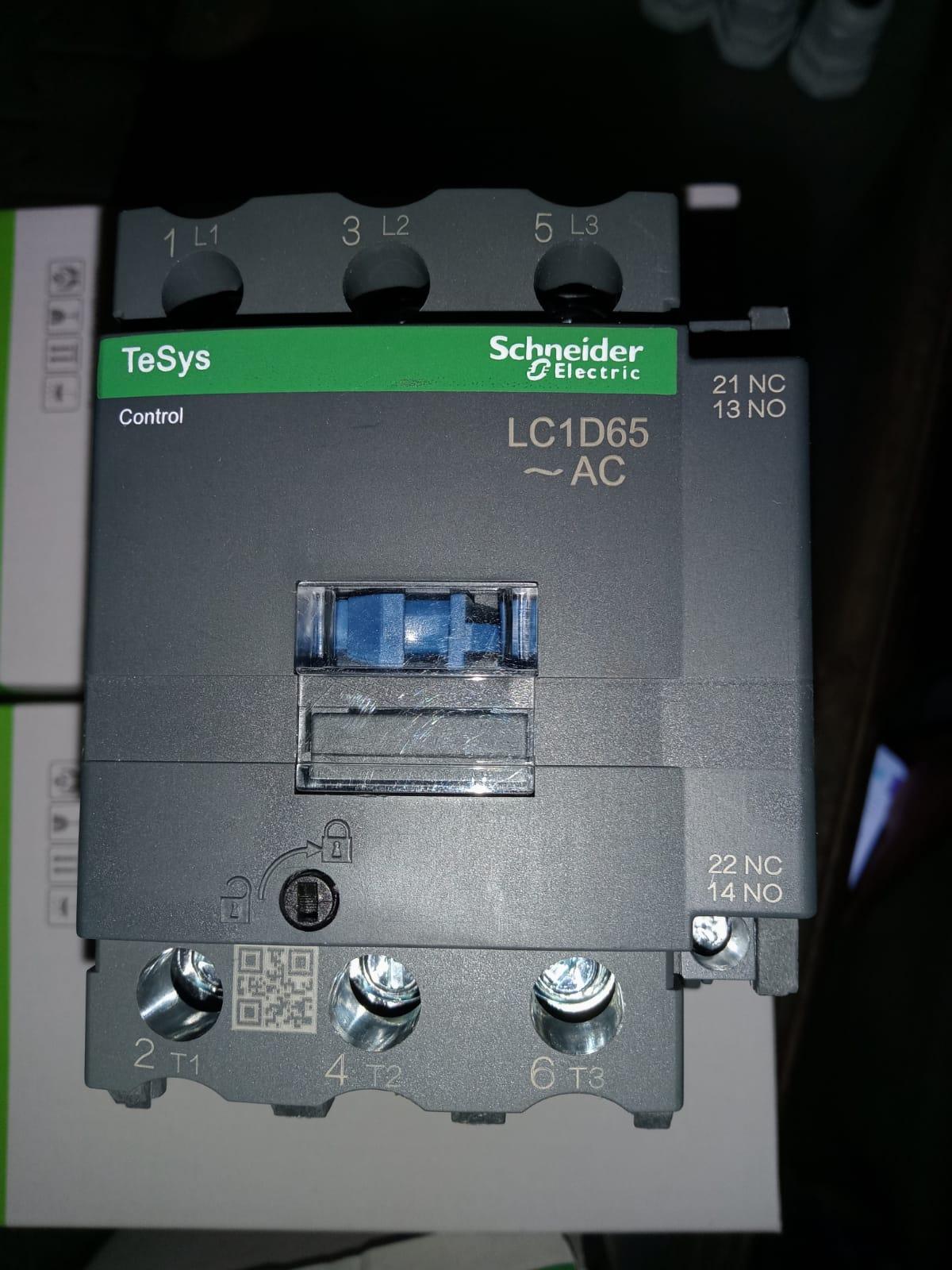

LC1D65 Schneider Electric 65 AMP, 3 pole contactor with an AC rated coil (must specify voltage below). Rated 50 H.P. @ 460 volts 3-Phase and has 1 N.O. and 1 N.C. base mounted auxiliary contact - LRD 3 phase overload relays can be added along with top and side mounted auxiliaries for up to 6 additional poles.

Specifications:

• Range: TeSys
• Range of product: TeSys Deca
• Product or component type: Contactor
• Device short name: LC1D
• Contactor application: Motor control, Resistive load
• utilization category: AC-1, AC-2, AC-4, AC-3e, AC-1
• Poles description: 3P
• [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
• [Ie] rated operational current:
• 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• 65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
• 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
• 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• [Uc] control circuit voltage: 48 V AC 50/60 Hz

• Mechanical durability: 6000000 cycles

• Control circuit type: AC at 50/60 Hz

• Height: 127 mm

• Width: 75 mm

• :Depth: 119 mm

Package Includes:

      1 x Schneider Electric Magnetic Contactor LC1D65.
