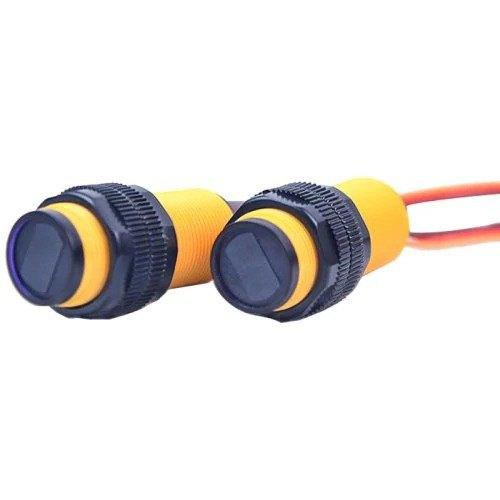

Retro Reflective Photoelectric Sensor S18 Series 50m Range in Pakistan

Retro Reflective Photoelectric Sensor S18 Series 50m Range in Pakistan BR1421

Retro reflective photoelectric sensor / cylindrical / laser / waterproof - S18 SERIES (50m range) in Pakistan

Specification:

• Angle, Mechanical:3

• Body Style: Cylindrical

• Brand/Series: EZ-BEAM S18 Series

• Connection Type: QD Integral

• Current, Switching:150 mA

• Diameter, Body:18

• Dimensions:3.07" L

• Humidity:90% @ 50 C

• Indicator: LEDs

• Input-Output: Discrete

• IP Rating: IP69K

• Light Source: Yellow LED

• Mounting Type: M18 Threaded

• NEMA Rating: NEMA 6P

• Number of Pins:4

• Operating Temperature, Maximum:70 C

• Operating Temperature, Minimum:-40 C

• Operation: Dark-ON/Light-ON

• Output: PNP

• Range, Measurement:2 m

• Response Time:3 ms

• Sensing Mode: Retro reflective

• Sensing Range:2000

• Standards: UL Listed, CSA Certified, CE Approved

• Supply Voltage:10-30 VDC

• Technology: Photoelectric

• Time, Turn-On Delay:100 ms

• Type: Retro reflective Sensors
