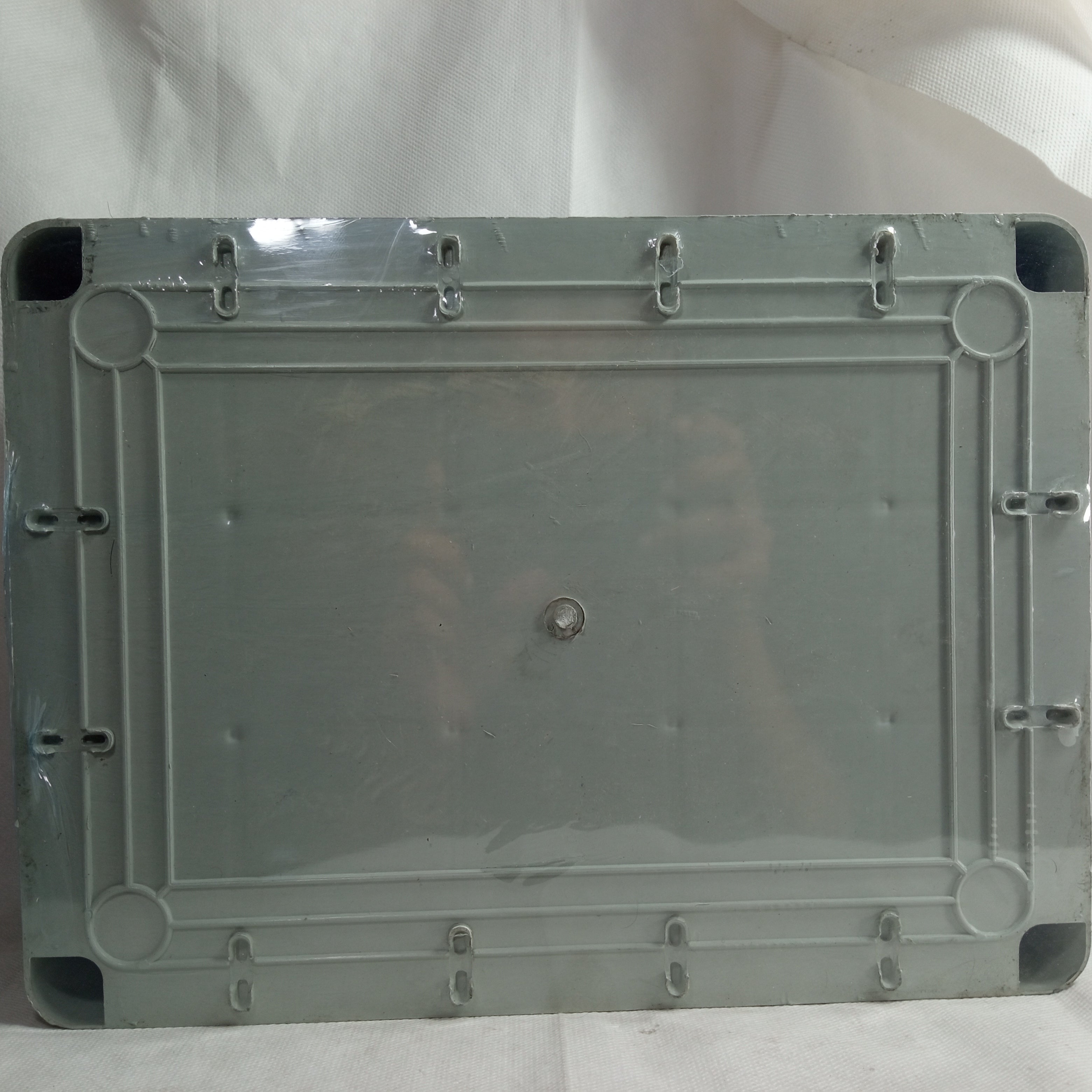

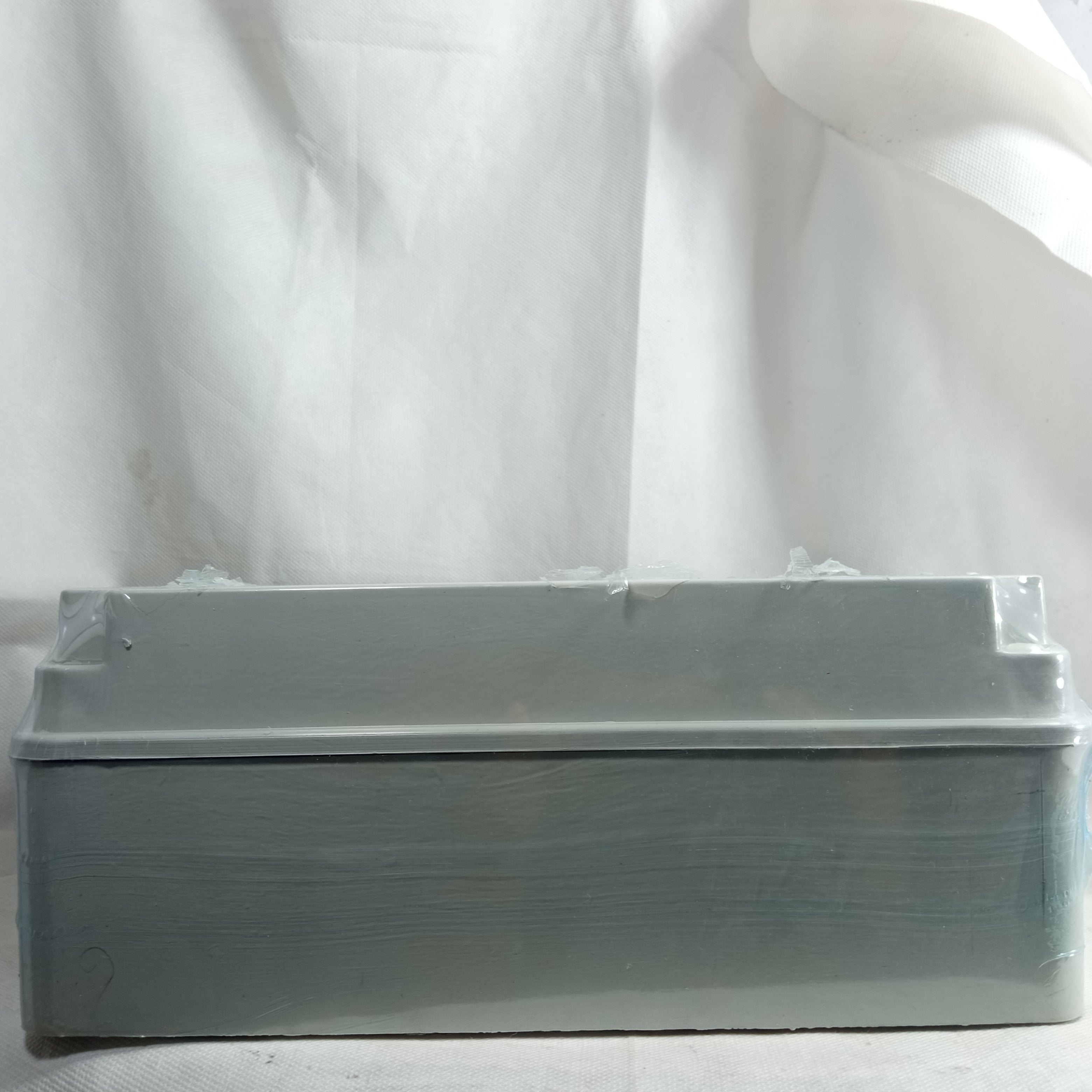

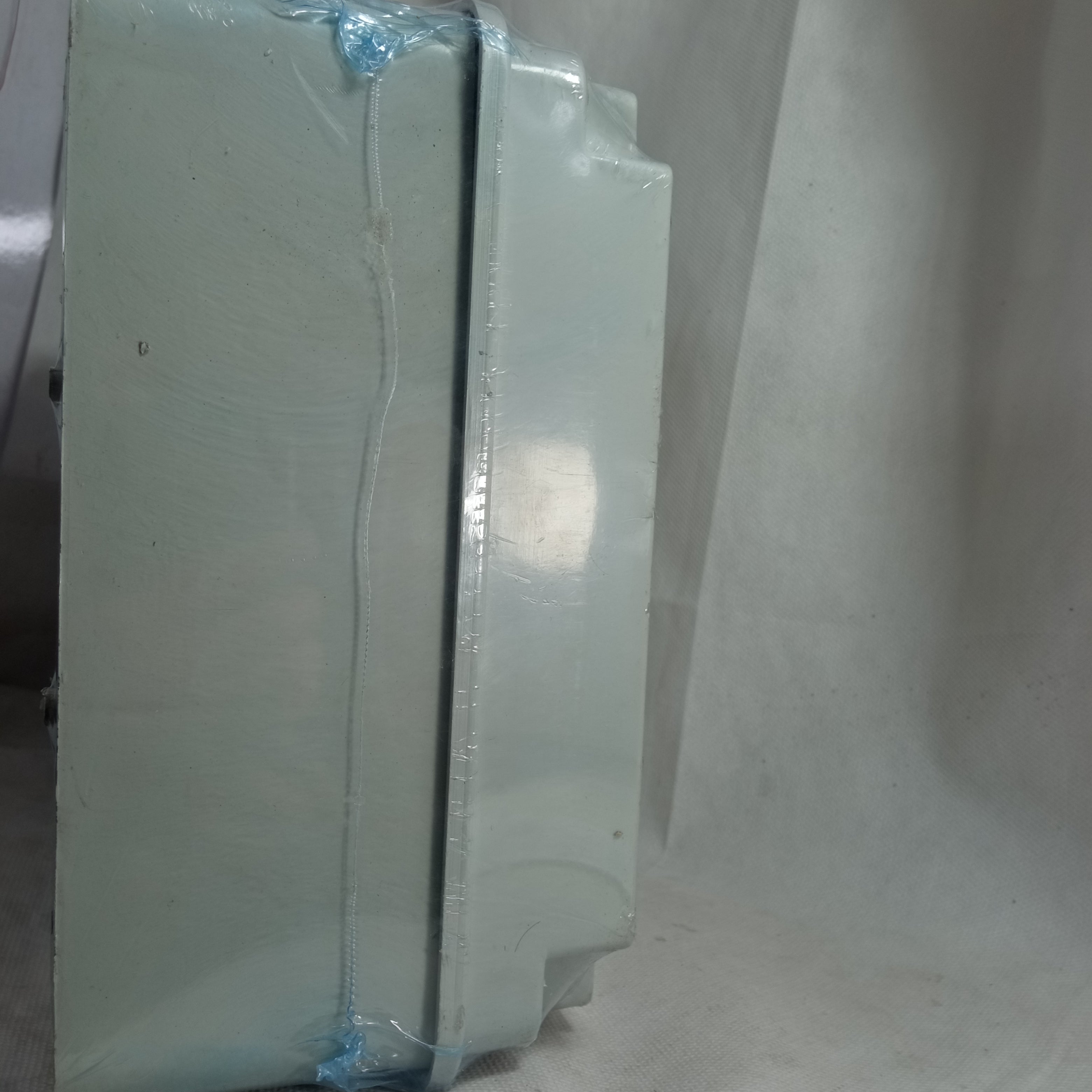

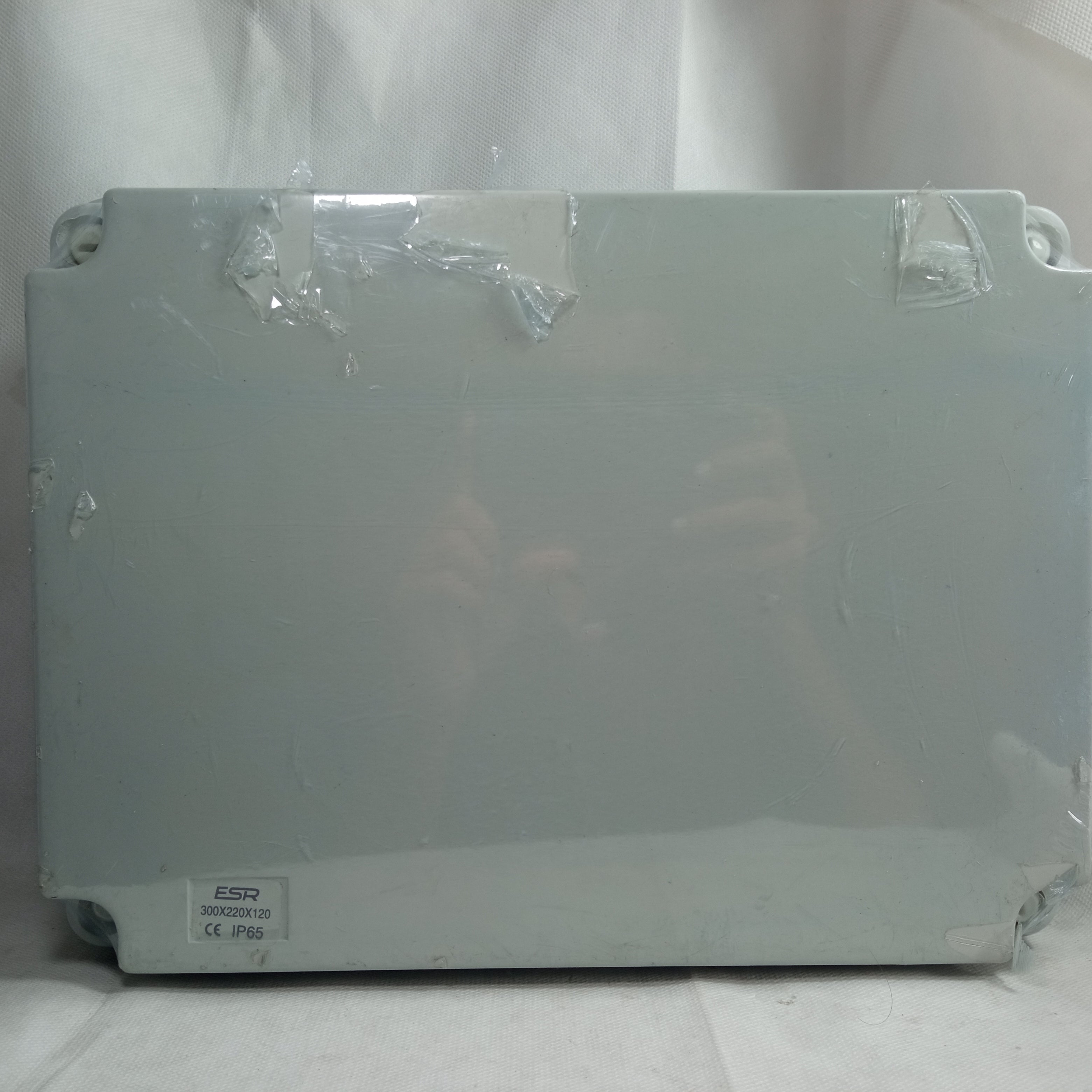

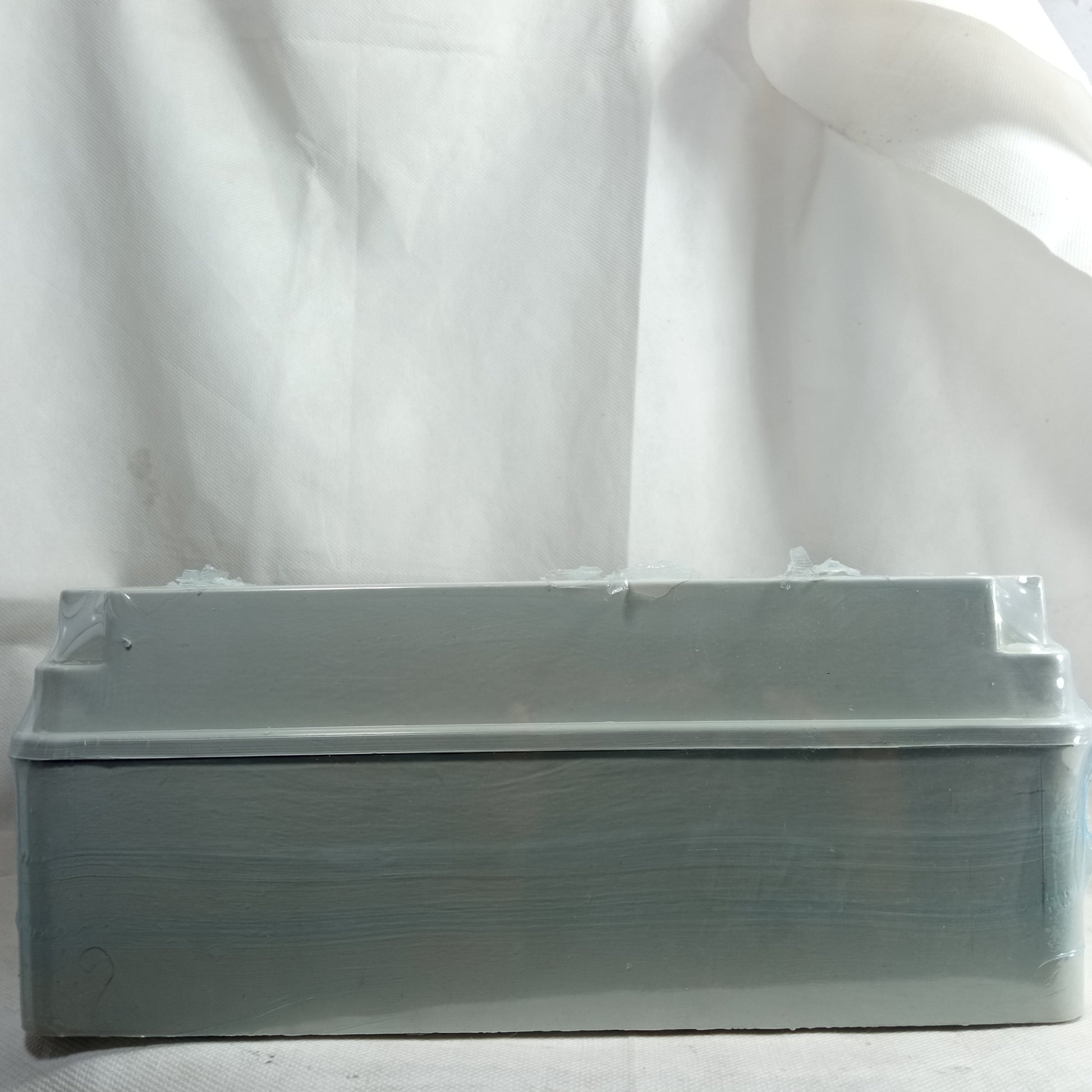

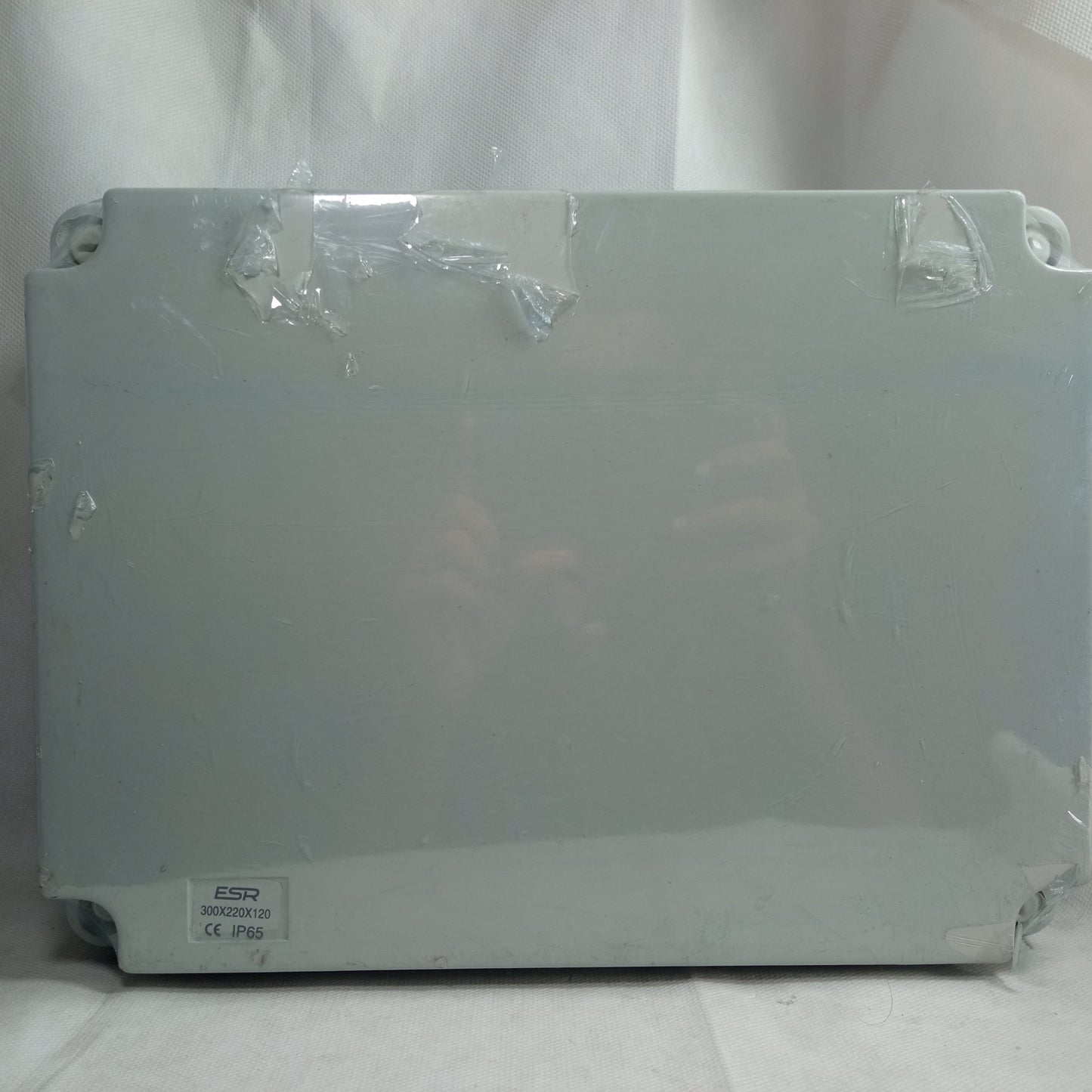

The PVC Molded Screw Cover Junction Box, measuring 12 inches (or 300x220x120mm), is a durable and typically weather-resistant enclosure used to safely house and protect electrical wiring connections. Made from PVC, a strong and non-conductive plastic, it features a cover secured by screws to provide easy access for installation and maintenance while keeping the internal components protected from dust, moisture, and accidental contact. It's commonly used in residential, commercial, and light industrial settings for organizing electrical splices and protecting sensitive connections.
Features of the PVC Molded Screw Cover Junction Box:
- Durable PVC Construction: Made from polyvinyl chloride (PVC) material, providing excellent resistance to corrosion, UV rays, impact, and various environmental stresses. This ensures long-lasting performance.
- Molded Design: Manufactured through a molding process, which often results in a seamless and robust enclosure.
- Screw Cover: The cover is secured by self-tapping screws (often zinc-plated steel or plastic), providing a secure and tight seal.
- Water-tight Gasket: Includes a foam-in-place or neoprene gasket to create a watertight seal, protecting internal electrical components from moisture and dust.
- Non-Conductive: PVC is a non-conductive material, which adds an extra layer of safety by reducing the risk of electrical shock.
- Corrosion Resistant: Inherently resistant to rust and corrosion, making it suitable for both indoor and outdoor use, including corrosive environments.
- UV Resistant: Can withstand prolonged exposure to sunlight without significant degradation.
- Flame Retardant: Often designed with flame-retardant properties to minimize fire hazards.
- Easy Access: The screw-on cover allows for convenient access for installation, inspection, maintenance, and future modifications.
- Versatile Mounting: Can be surface mounted or, for some models with specific ratings, suitable for direct burial applications. Some designs include molded mounting feet for easy installation.
Specification of the PVC Molded Screw Cover Junction Box:

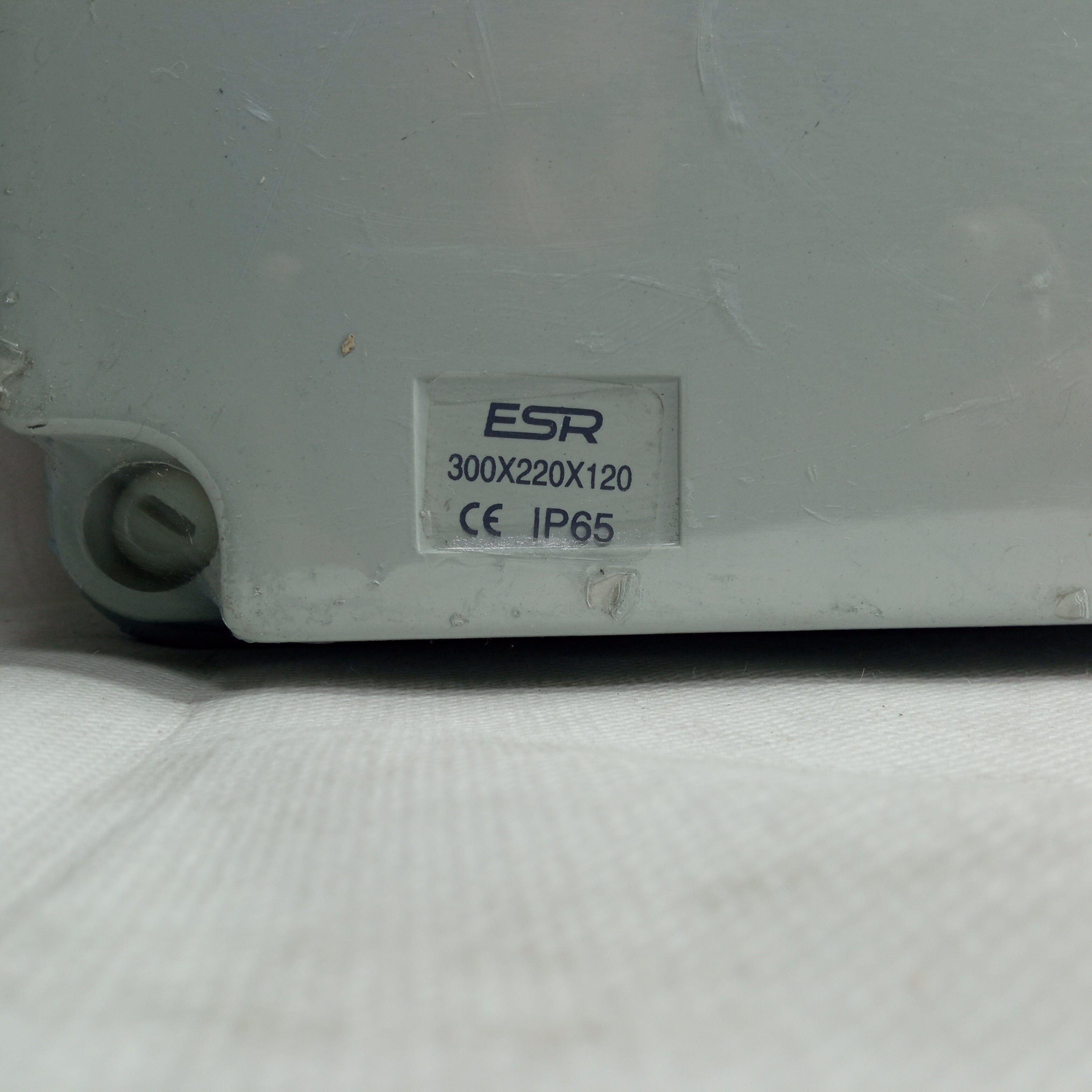

- Size: 12 Inch x 12 Inch x 6 Inch (or 300mm x 220mm x 120mm, depending on the specific model)
- Material: Polyvinyl Chloride (PVC) or Glass-reinforced Polycarbonate (for some molded versions)
- Cover Type: Screw Cover (with zinc-plated steel or plastic screws)
- Gasket Material: Neoprene or Foam-in-place
- Ingress Protection (IP Rating): Typically IP55 or IP56 (Protected against dust and water spray/jets) or NEMA 4/4X/6P for higher protection levels, indicating suitability for outdoor and demanding environments.
- Flammability Rating: Often self-extinguishing (e.g., UL94V-0)
- Temperature Rating: Generally -25°C to 90°C (or up to 50°C ambient for some PVC compounds).
- Impact Protection Rating: (Often IK08 for robust models)
- Color: Typically Gray
Uses:
- Housing Electrical Connections: Serves as a safe enclosure for splicing, joining, and terminating electrical wires and cables.
- Wire Organization and Management: Provides a centralized location to neatly arrange and secure wires, simplifying maintenance and troubleshooting.
- Protection of Electrical Components: Safeguards sensitive electrical components, terminals, and devices from dust, dirt, moisture, splashes, and accidental contact.
- Conduit Termination: Acts as a transition point for electrical conduits, allowing wires to be pulled in different directions.
- Indoor and Outdoor Applications: Suitable for a wide range of environments, including residential, commercial, and light industrial settings.
- Wet or Dusty Environments: Ideal for locations where electrical connections need protection from water or airborne particles.
- Direct Burial Applications: Some NEMA 6P-rated models are specifically designed for underground installation.
Benefits:
- Enhanced Safety: Prevents accidental contact with live wires, reduces the risk of electrical shocks, and helps in preventing short circuits and fires by properly enclosing connections.
- Equipment Protection: Shields electrical components from environmental factors (dust, moisture, UV, chemicals) and physical damage, extending their lifespan.
- Improved Reliability: Ensures consistent and dependable performance of electrical systems by maintaining the integrity of connections.
- Ease of Installation and Maintenance: The screw-on cover provides straightforward access, making wiring, inspection, and future modifications simpler and more efficient.
- Cost-Effective: Often more economical and easier to install than metal enclosures, offering a durable solution with good value.
- Corrosion-Free: PVC material eliminates concerns about rust and corrosion, leading to less maintenance and a longer service life, especially in humid or chemically aggressive environments.
Package includes:
- 1x PVC Molded Screw Cover Junction Box
