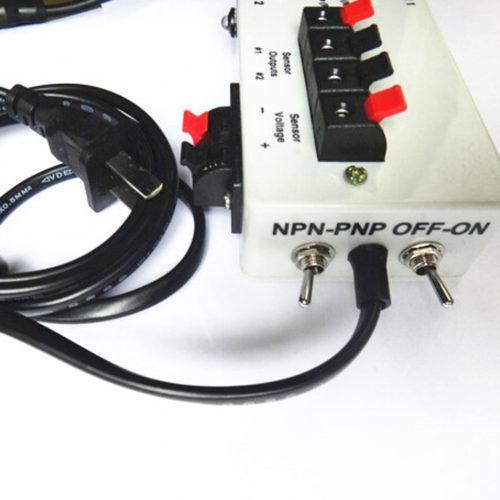

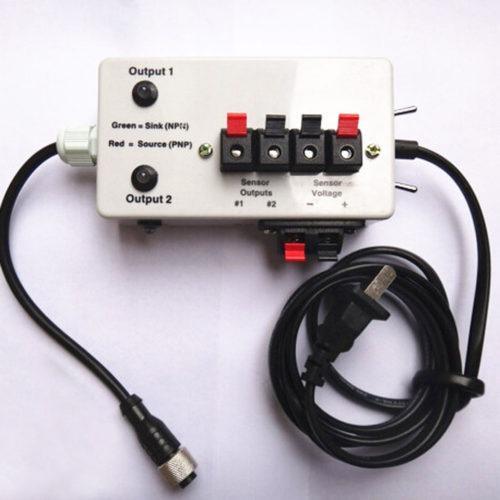

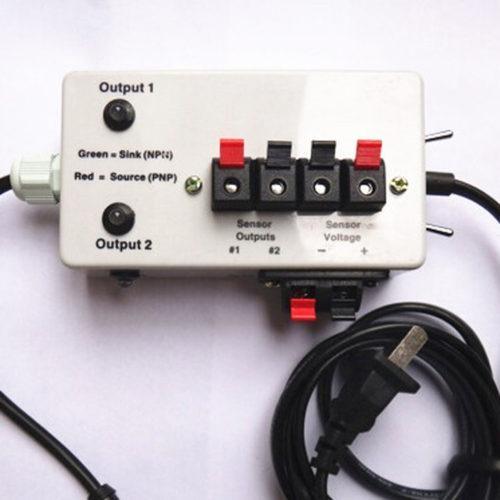

Proximity switch sensor / photoelectric switch tester in Pakitan BR1568



Description:

 Detecting the working state of the sensor, identify whether the sensor has faults, detection distance, sensitivity and other technical indicators,    This is a small, practical and convenient sensor testing instrument.

Features:




1. Can be switched freely, whether it is AC or DC / PNP or NPN / NO or NC sensor can be used.

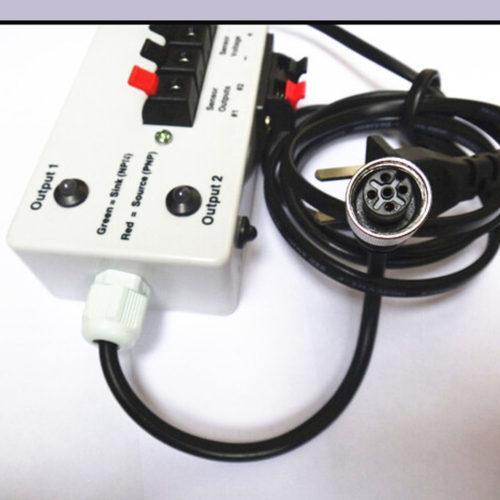

2. This tester has a special M12 connector for use with connector type sensor and Photoelectric switch.

3. LED indicators: can Identify/distinguish the working state of the sensor NPN or PNP / NO or NC.




DC type:




• Sensor Voltage:+ Brown

• -  Blue

• Sensor Outputs:#1 Black

• #2 White

• DC connector type/ Photoelectric switch: M12 connector terminal




AC type:




• Red terminal-Brown

• Black terminal-Blue




Packages Include:

 1 x Proximity switch sensor / photoelectric switch tester
