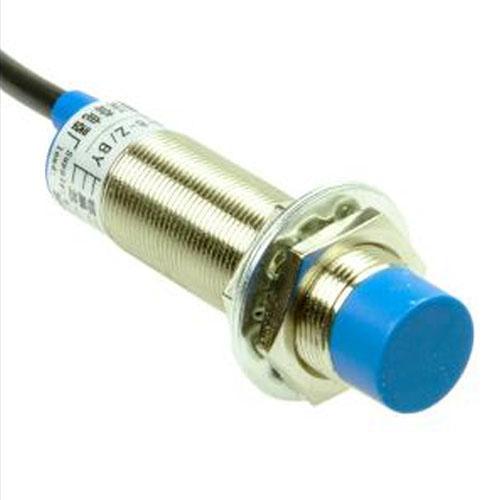

Proximity sensor 18mm Dia sensing capacity 5mm

1 total reviews

Regular price Rs 1,207
Regular price Rs 1,250 Sale price Rs 1,207
Sale Sold out
BR1567-b184-HL-

Proximity sensor 18mm Dia,sense capacity 5mm in pakistan BR1567



Proximity sensor that detects nearby metal, including aluminum foil; a great solution for heated bed calibration.


   Proximity sensor that detects nearby metal, including aluminum foil; a great solution for heated bed calibration.The LJ18A3 is a PNP Normally Open (NO) type of proximity sensor.    Most modern 3D printer firmware have some sort of auto bed leveling procedure available, but you will need to enable it. You can use this sensor as the z_min_end stop for example, replacing your current end stop. Most firmware will also use the min end stop as a probe, but some allow a separate probe to be defined.    This sensor operates at 6-36V, so as the signal voltage is the same as the input voltage, also the signal will be 6-36V. You will need to down-convert the voltage to acceptable level for your electronics. Please see the linked schematic on how to connect this sensor to the end stop pins of your electronics board.

Specifications:





   Dimensions
Length70 mm
Outer diameter18 mm
Wire length100 cm



Operating voltage6-36 V
Current0.3 A



Description

Proximity sensor 18mm Dia,sense capacity 5mm in pakistan BR1567



Proximity sensor that detects nearby metal, including aluminum foil; a great solution for heated bed calibration.


   Proximity sensor that detects nearby metal, including aluminum foil; a great solution for heated bed calibration.The LJ18A3 is a PNP Normally Open (NO) type of proximity sensor.    Most modern 3D printer firmware have some sort of auto bed leveling procedure available, but you will need to enable it. You can use this sensor as the z_min_end stop for example, replacing your current end stop. Most firmware will also use the min end stop as a probe, but some allow a separate probe to be defined.    This sensor operates at 6-36V, so as the signal voltage is the same as the input voltage, also the signal will be 6-36V. You will need to down-convert the voltage to acceptable level for your electronics. Please see the linked schematic on how to connect this sensor to the end stop pins of your electronics board.

Specifications:





   Dimensions
Length70 mm
Outer diameter18 mm
Wire length100 cm



Operating voltage6-36 V
Current0.3 A
