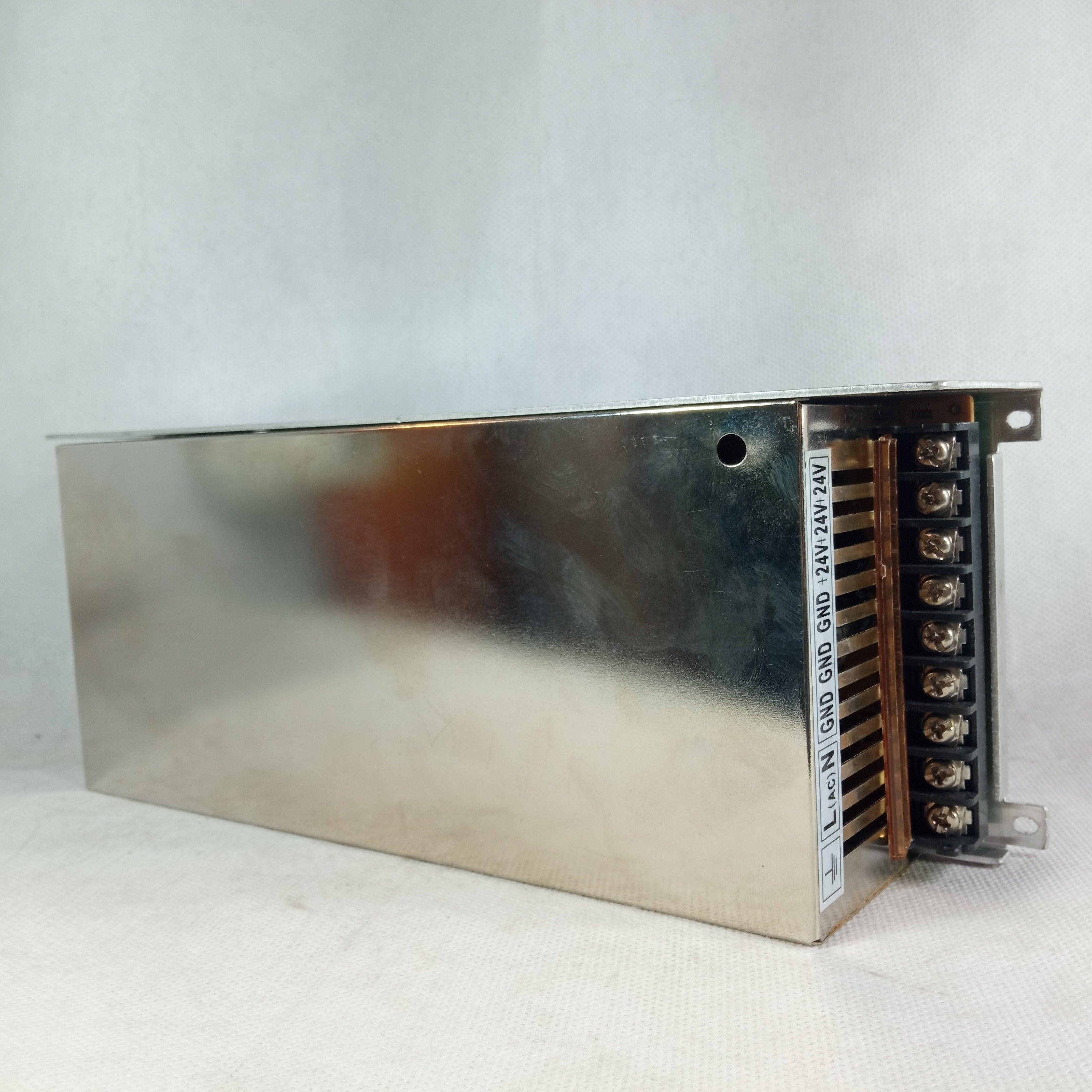

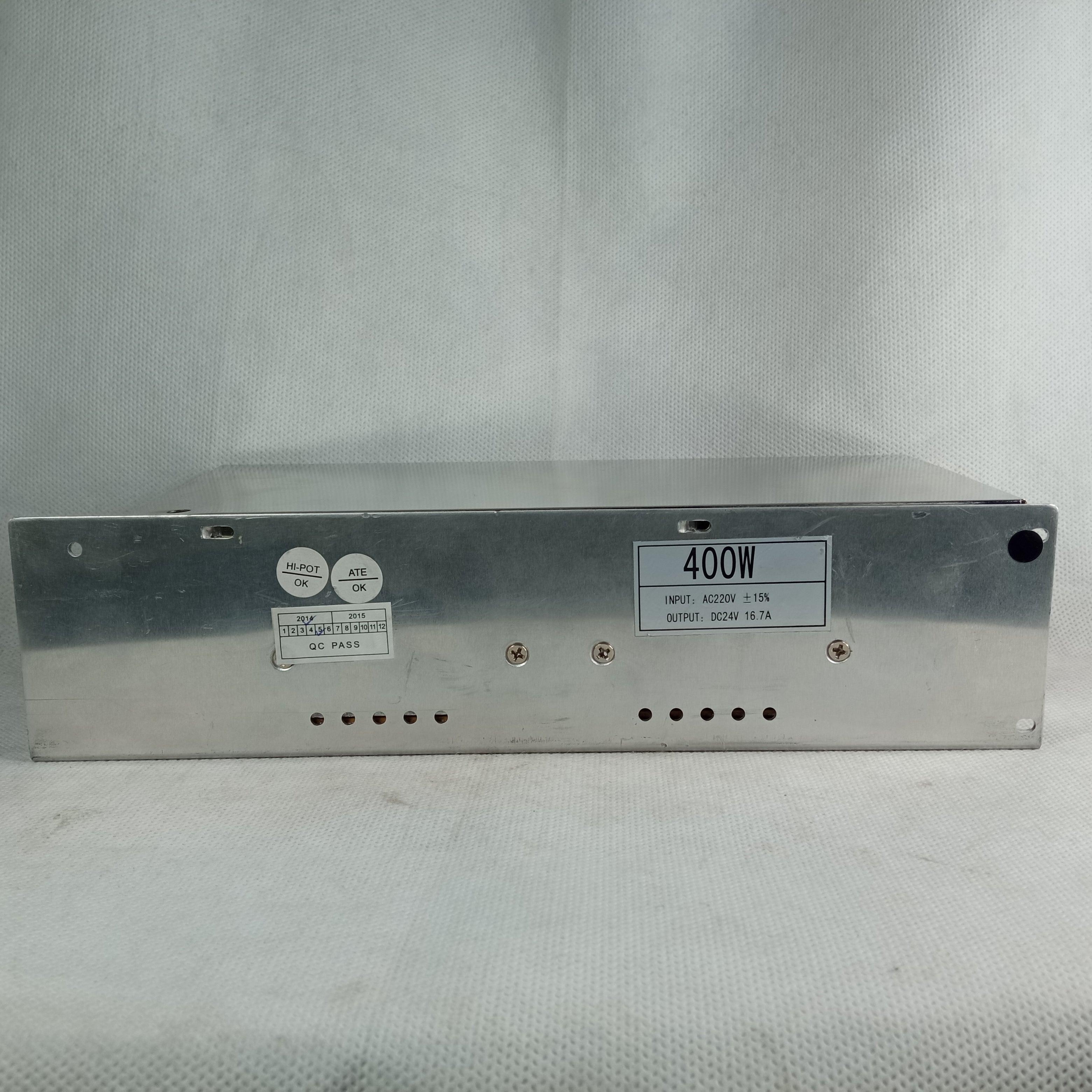

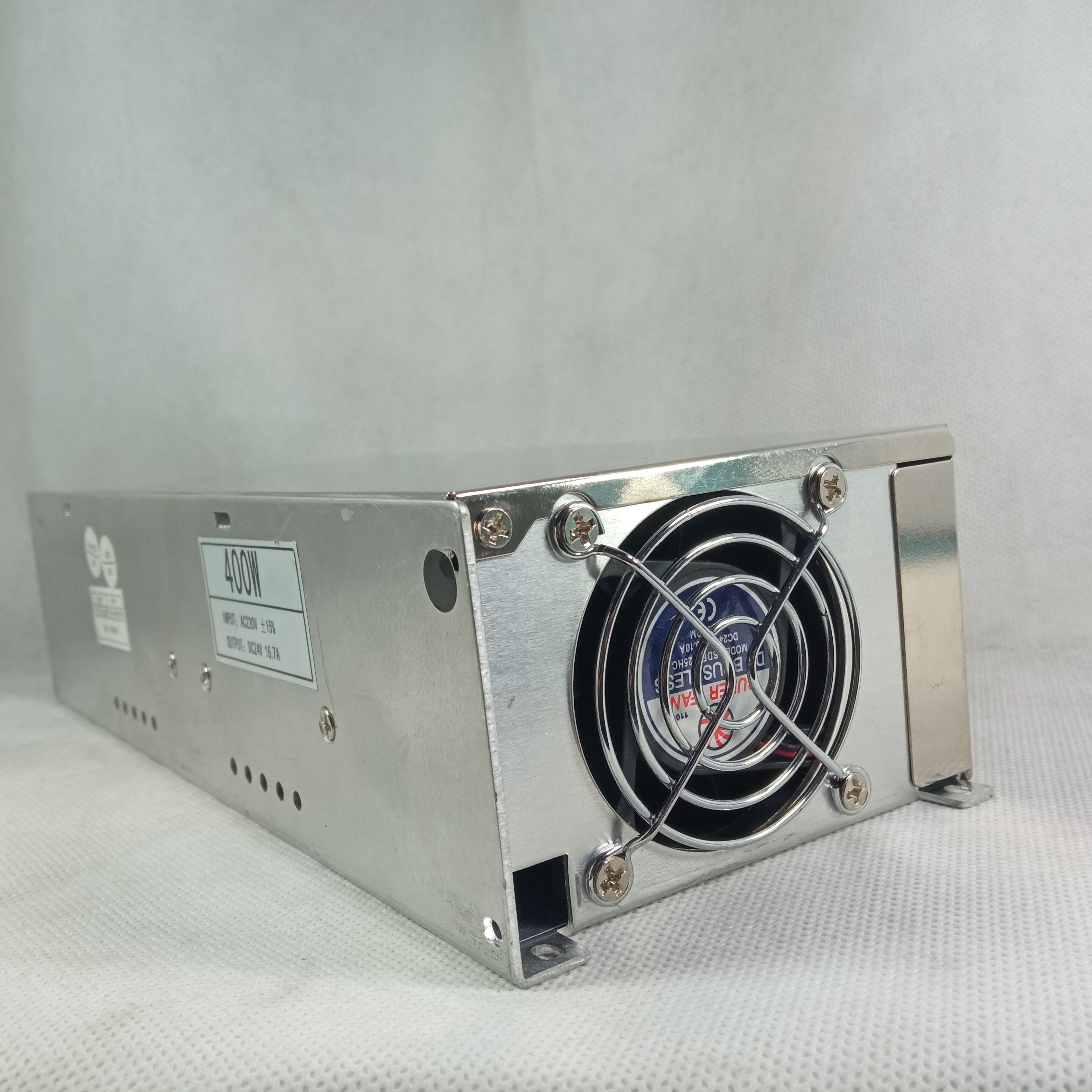

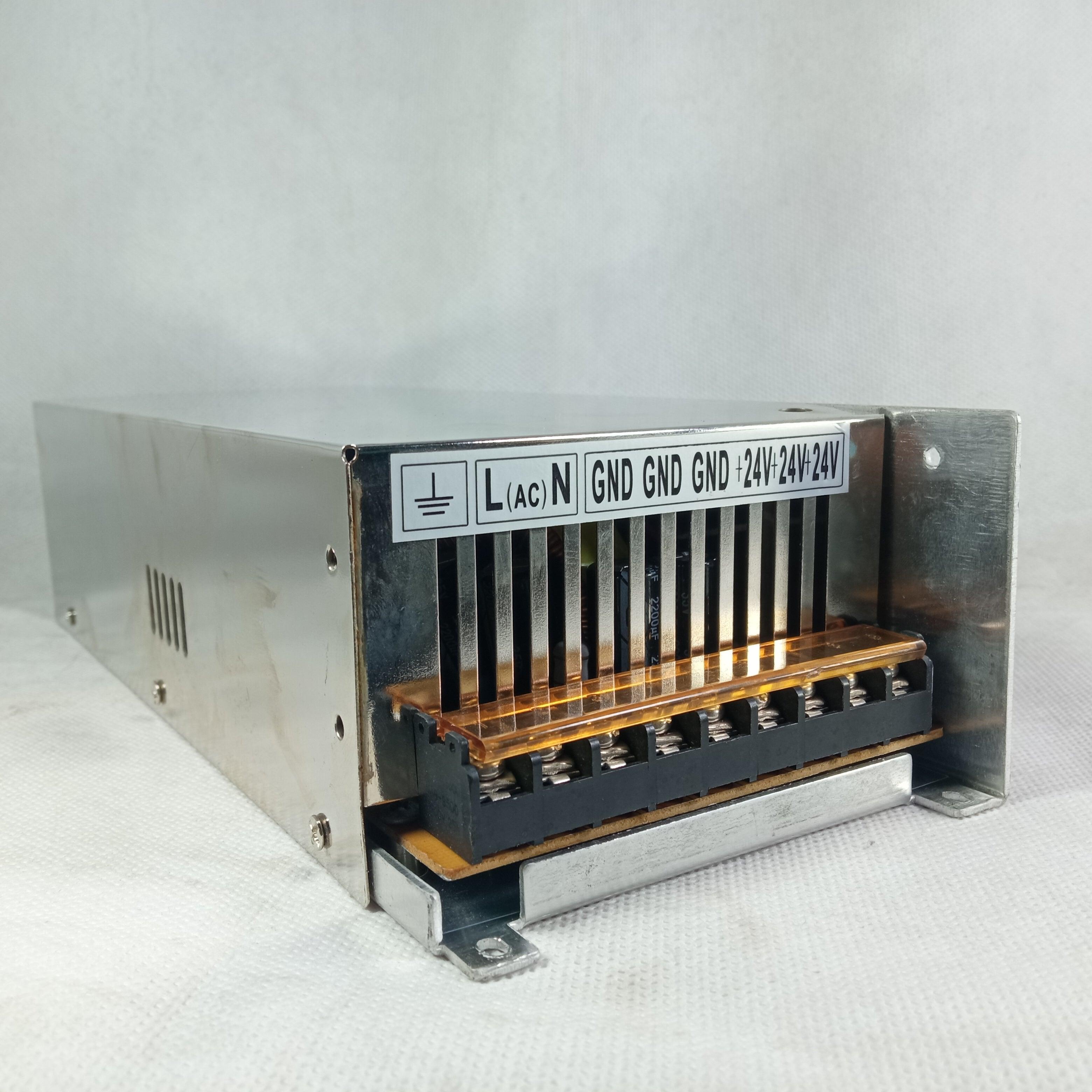

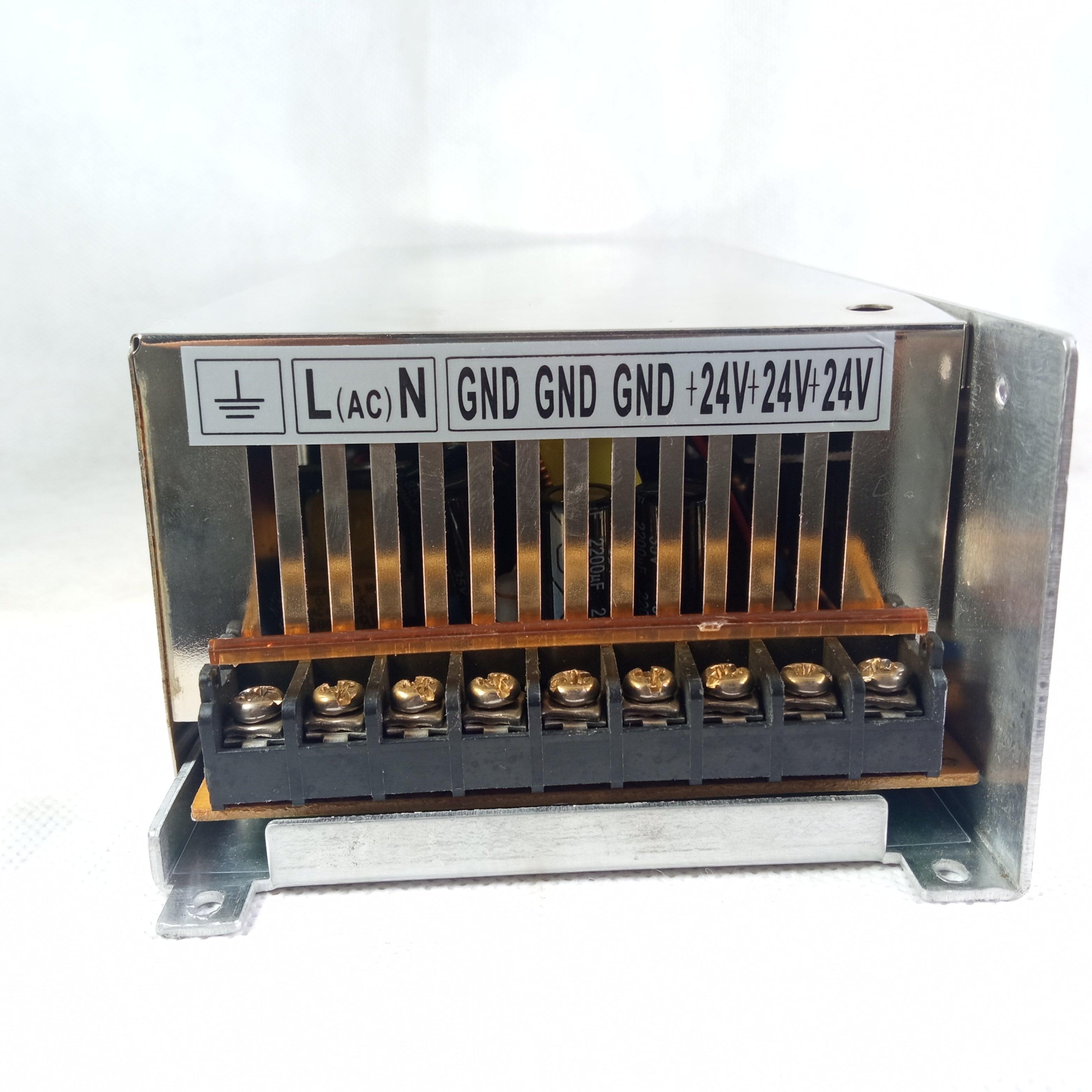

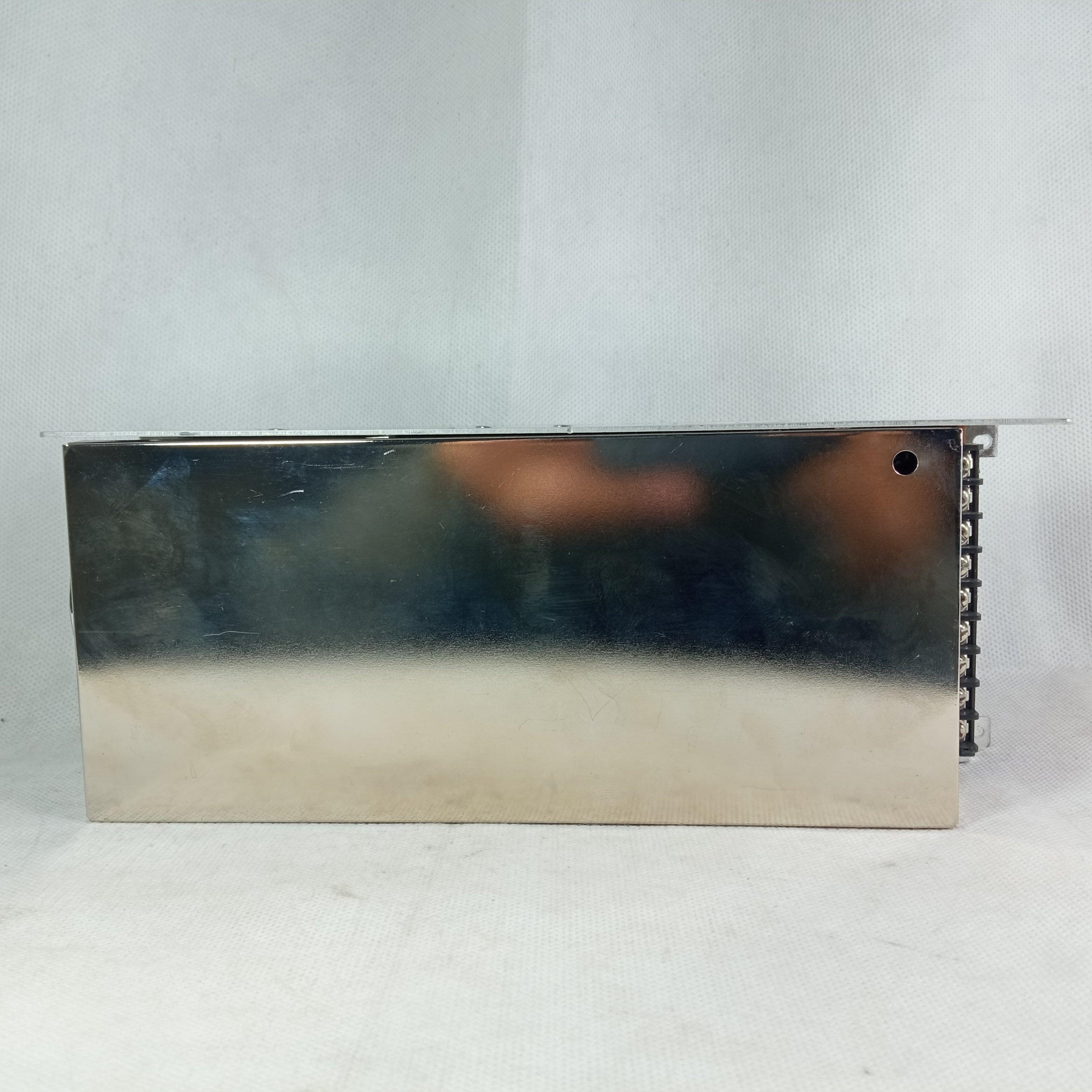

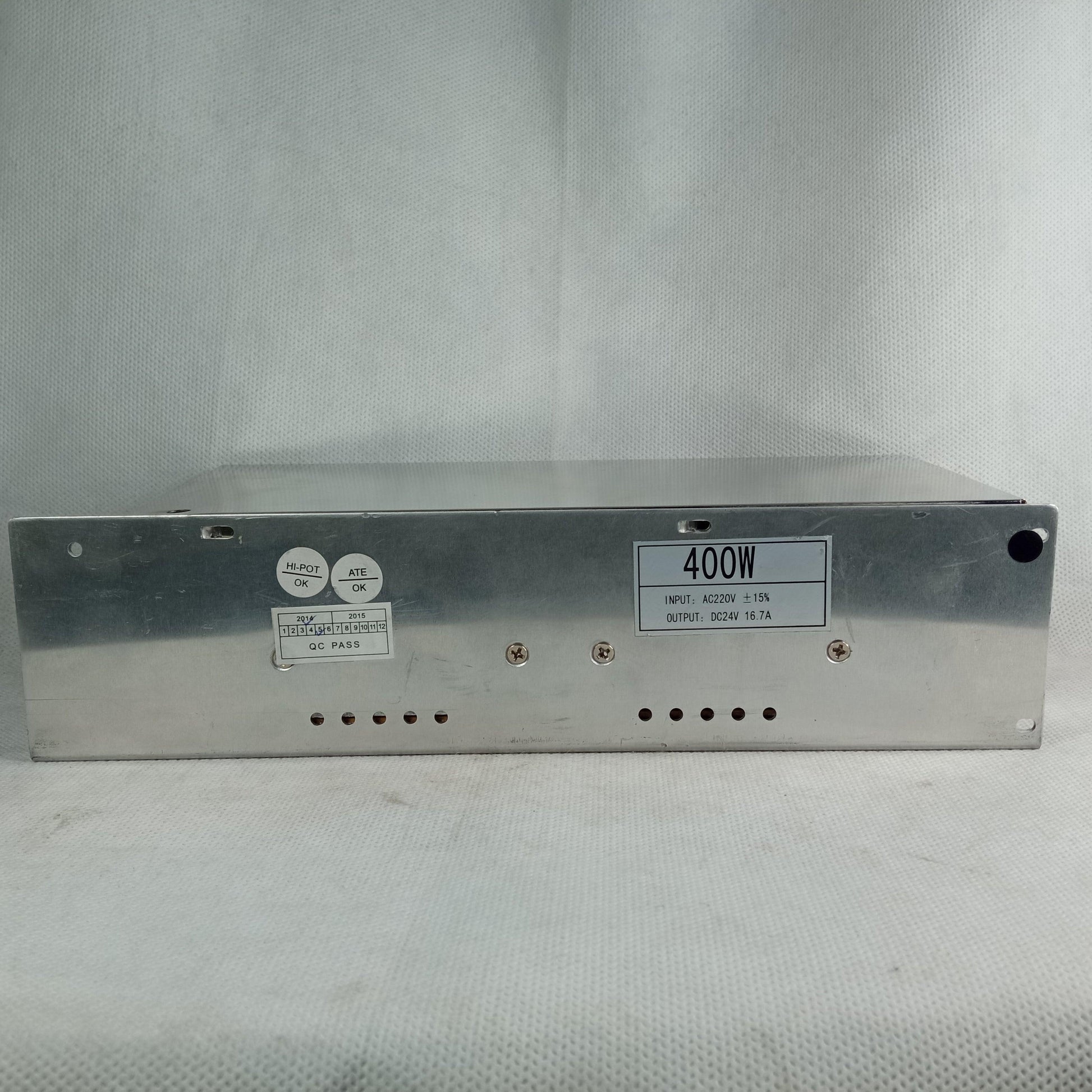

400W Power Supply 24v 16.7A AC 220V in Pakistan
SKU:BR1667
Couldn't load pickup availability
A device providing power to electronic equipment and sometimes designated A, B, or C according to its function of heating vacuum tube cathodes, causing a flow of electron current in plate circuits, or applying a direct voltage in grid circuits
Features:
- Low price and high reliability
- 105ºC Output capacitor
- AC input power suitable for the world
- High efficiency and low operation temperature *Soft-start current can reduce the AC input impact effectively
- With short-circuit and overload protection
- Compact size, lightweight
- 100%full-load bum-in test
- Installed with EMI filter, mumble wave
Specifications:
- Model No. S-400-5 S-400-12 S-400-24 S-400-48
- DC output voltage 5V 12V 24V 48V
- Rated output current 60A 33A 16.5A 8.3A
- output current range 0~60A 0~33A 0~16.5A 0~8A
- Wave and noise (Note:3) 75mVp-p 150mVp-p 75mVp-p 150mVp-p
- Efficiency 78% 83% 84% 86%
- Adjustable range for DC voltage 4.5~5.6V 10~13.2V 20~36.4V 41~56V
- AC input voltage range 85-132VAC/170-264VAC 47-63Hz
- output current 6.5A/115V 4A/230V
- AC rush current 25A/115V 50A/230V
- Leakage current <3.5mA/240VAC
- Overload protection 105%-150% hiccup mode,auto-recovery
- Over-Voltage protection 115%-150% rated output voltage
- High-temperature protection ERH3?65ºC 70ºC fan on, <=55ºC~60ºCfan off,>=80ºC Cutoff output(5~15V)~(24V~48V)
- Temperature re coefficient 0.03%/ºC(0~50ºC
- Setup,rise,hold up time 200ms,100ms,20ms
- Vibration 10~500Hz, 2G 10min,1 cycle Period for 60min, Each ax
- Withstand voltage I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1 minute
- Insulation resistance I/P-O/P IP/FG OP-FG:500VDC/100M?
- Working temperature and humidity -10ºC~+60ºC,20%~90%RH
- Safety Standards Design refer to UL 1950
- EMC Standards Design refer to FCC Part 15 J class A
- Weight 1.15 Kgs
Package Includes:
1 x 400W Power Supply 24v 16.7A AC 220V
Industryparts.pk is the Best Online Shopping website for 400W Power Supply 24v 16.7A AC 220V. Here you get 400W Power Supply 24v 16.7A AC 220V at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
