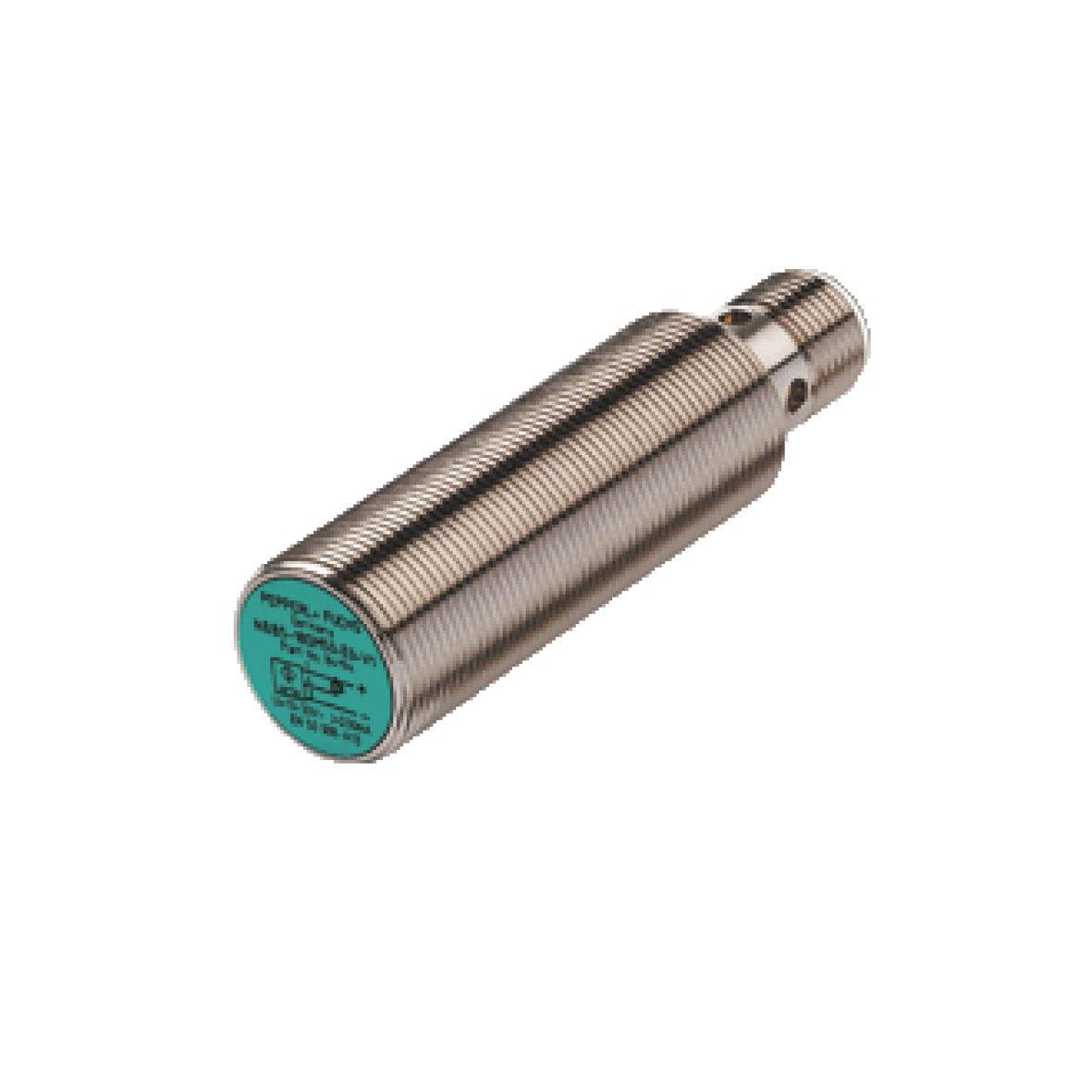

PNP NO NC 18mm Inductive proximity sensor NBB8-18GM50-A2-V1, Sn 8mm

PNP,NO,NC, 18mm Inductive proximity sensor NBB8-18GM50-A2-V1 BR2130



General specifications
Switching function		complementary
Output type		PNP
Rated operating distance		8 mm
Installation		flush
Output polarity		DC
Assured operating distance		0 ... 6.48 mm
Actuating element		mild steel, e. g. 1.0037, SR235JR (formerly St37-2)  24 mm x 24 mm x 1 mm
Reduction factor rAl		0.4
Reduction factor rCu		0.3
Reduction factor r304		0.7
Reduction factor rBrass		0.45
Output type		4-wire
Nominal ratings
Operating voltage		7 ... 30 V
Switching frequency		0 ... 1600 Hz
Hysteresis		typ. 5%
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		? 2 V
Operating current		0 ... 200 mA
Off-state current		0 ... 0.5 mA typ. 4 µA at 25 °C
No-load supply current		? 10 mA
Switching state indicator		LED, yellow
Functional safety related parameters
MTTFd		1484 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %



Packages Inlcude:

 1 x PNP NO NC 18mm Inductive proximity sensor NBB8-18GM50-A2-V1, Sn 8mm
