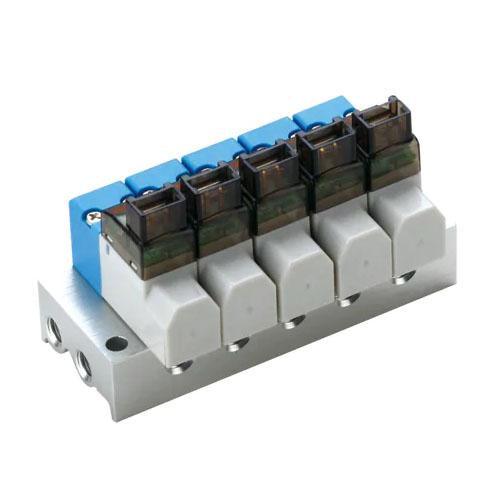

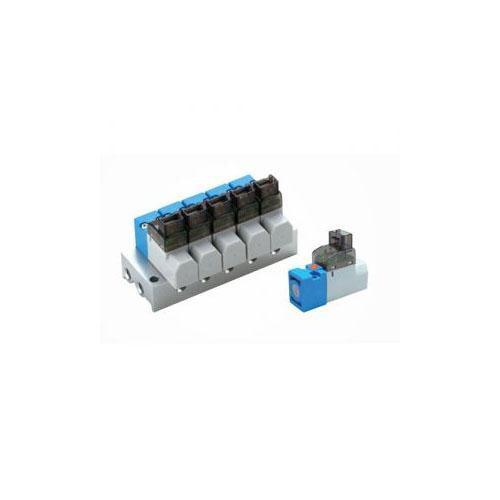

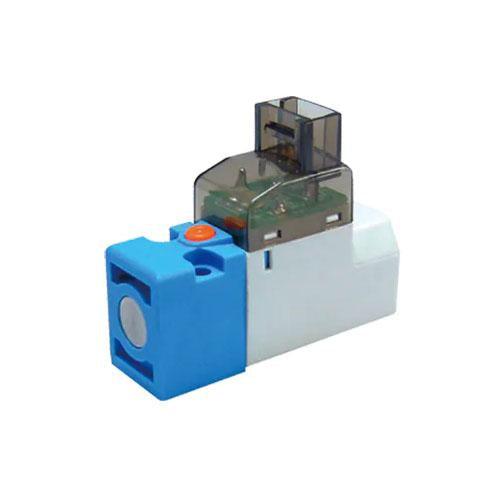

Pneumatic Solenoid Valve VM320 3/2 Way Direct In Pakistan BR8039

Description:

*Miniature and compact size; quick response; lubricant-free.

*Plug with standard JPC design (with LED). Built-in surge protection and non-polarity design efficiently reduce the possibility of short circuits.
*Low power consumption 0.8W.

Specification:

    Model: VM320

    Port size: M5

    Body width:10mm

    Body material: POM

    Fluid: Compressed air

    Acting: Direct acting

    Sectional area: 0.14 mm²

    Operating pressure range: 0 ~7 kgf/cm²

    Duty cycle:100% ED

    Electrical connection: JPC plug connector

    Protection class: Dust proof

    Max. Cycle rate: 20Hz

    Ambient temperature: -10℃ ~ 50℃

    Voltage tolerance: +/- 10%

    Standard voltage(power): 12VDC, 24VDC

    Net weight: 10g

Package includes:

      1 x Pneumatic Solenoid Valve VM320 3/2 Way Direct
