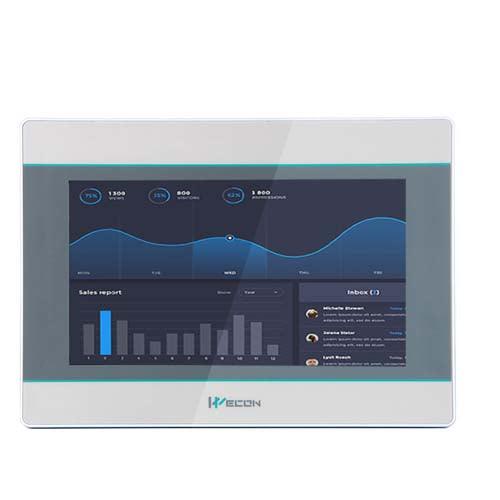

PI3070i HMI in Pakistan
SKU:BR8231-d3
Regular price
Rs 23,000
Regular price
Rs 23,700
Sale price
Rs 23,000
Unit price
per
Couldn't load pickup availability
PI3070i HMI in Pakistan BR8231
Features:
- Hardware: CPU Cortex A7 528MHz,128M FLASH, 128M DRMIII RAM
- Display size: 7 inch
- Resolution: 800×480 TFT LCD, 16,000k colors
- Interface: COM1:RS485/RS422; COM2:RS232
- Storage: Support Data Storage, U Disk
Specifications:
| Series | PI3000i | PI3000i | PI3000i | PI3000i | PI3000i | |
| Model | PI3070i | PI3070iS | PI3070i-N | PI3070i-SL | PI3070i-N-SL | |
| Main | OS | Linux 4.9.11 QT based | Linux 4.9.11 QT based | Linux 4.9.11 QT based | Linux 4.9.11 QT based | Linux 4.9.11 QT based |
| Processor | Cortex A7 528MHz | Cortex A7 528MHz | Cortex A7 528MHz | Cortex A7 528MHz | Cortex A7 528MHz | |
| Display | Size | 7" | 7" | 7" | 7" | 7" |
| Screen | TFT | TFT | TFT | TFT | TFT | |
| Resolution | 800*480 | 800*480 | 800*480 | 800*480 | 800*480 | |
| Color | 16,000k colors | 16,000k colors | 16,000k colors | 16,000k colors | 16,000k colors | |
| Brightness (cd/m2) | 250 | 250 | 250 | 250 | 250 | |
| Backlight | LED | LED | LED | LED | LED | |
| Backlight Lifetime | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | |
| Touch Panel | High precision four-wire resistive | High precision four-wire resistive | High precision four-wire resistive | High precision four-wire resistive | High precision four-wire resistive | |
| Storage | Memory | 128 MB | 128 MB | 128 MB | 128 MB | 128 MB |
| Flash | 128 MB | 128 MB | 128 MB | 128 MB | 128 MB | |
| SD Card Slot | -- | -- | -- | -- | -- | |
| USB Port | USB2.0 Host + USB2.0 Client | USB2.0 Host + USB2.0 Client | USB2.0 Host + USB2.0 Client | USB2.0 Host + USB2.0 Client | USB2.0 Host + USB2.0 Client | |
| RTC | Real-time clock | Yes | Yes | Yes | Yes | Yes |
| Calendar | Yes | Yes | Yes | Yes | Yes | |
| I/O Port | COM1 | CN1:RS422/RS485 CN2: RS232 |
CN1:RS422/RS485 CN2:RS232 CN3:RS485 |
CN1:RS422/RS485 CN2: RS232 |
CN1:RS422/RS485 CN2: RS232 |
CN1:RS422/RS485 CN2: RS232 |
| COM2 | -- | -- | -- | -- | -- | |
| COM3 | -- | -- | -- | -- | -- | |
| Ethernet | -- | -- | x1 | -- | x1 | |
| CANopen | -- | -- | -- | -- | -- | |
| Wi-Fi | -- | -- | -- | -- | -- | |
| 4G LTE | -- | -- | -- | -- | -- | |
| Power | Rated Power | < 8W | < 8W | < 8W | < 8W | < 8W |
| Power Voltage | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | |
| Input range | DC 12 ~ 28V | DC 12 ~ 28V | DC 12 ~ 28V | DC 12 ~ 28V | DC 12 ~ 28V | |
| Shell Color | Grey | Grey | Grey | Grey | Grey | |
| Enclosure | Shell Material | PC+ABS | PC+ABS | PC+ABS | PC+ABS | PC+ABS |
| Overall Size (mm) | 201.2W*147.2H*39.0D | 201.2W*147.2H*39.0D | 201.2W*147.2H*39.0D | 191.2W*137.2H*41.0D | 191.2W*137.2H*41.0D | |
| Mounting Size (mm) | 192.0W*138.0H | 192.0W*138.0H | 192.0W*138.0H | 172.0W*111.00H | 172.0W*111.00H | |
| Mounting Method | Panel Mount | Panel Mount | Panel Mount | Panel Mount (Open frame) | Panel Mount (Open frame) | |
| Weight (Kg) | 0.74 | 0.74 | 0.74 | 0.74 | 0.74 | |
| Environment | Working Temperature | -10 ~ 60°C | -10 ~ 60°C | -10 ~ 60°C | -10 ~ 60°C | -10 ~ 60°C |
| Storage Temperature | -20 ~ 70°C | -20 ~ 70°C | -20 ~ 70°C | -20 ~ 70°C | -20 ~ 70°C | |
| Humidity | 10 ~ 85％RH (Non-condensing) | 10 ~ 85％RH (Non-condensing) | 10 ~ 85％RH (Non-condensing) | 10 ~ 85％RH (Non-condensing) | 10 ~ 85％RH (Non-condensing) | |
| Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | |
| Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | |
| Software | Programming | PIStudio | PIStudio | PIStudio | PIStudio | PIStudio |
| Remote Access | -- | -- | -- | -- | -- | |
| Email Alarm | -- | -- | -- | -- | -- | |
| IP Camera | -- | -- | -- | -- | -- | |
| Audio Output | -- | -- | -- | -- | -- | |
| Video Player | -- | -- | -- | -- | -- | |
| Data Tool | Yes | Yes | Yes | Yes | Yes | |
| Certificates | IP Code | IP65 (Front panel) | IP65 (Front panel) | IP65 (Front panel) | IP65 (Front panel) | IP65 (Front panel) |
| CE | CE Marked | CE Marked | CE Marked | CE Marked | CE Marked | |
| FCC | FCC Class A | FCC Class A | FCC Class A | FCC Class A | FCC Class A | |
| UL | -- | -- | -- | -- | -- |
Brandrethroad.pk is the Best Online Shopping website for PI3070i HMI. Here you get PI3070i HMI at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi,
Peshawar, Quetta, Multan, and all over Pakistan.
- YouTube Link
- Pinterest Link
- Instagram Link
- Facebook Link
Package Includes:
1 x PI3070i HMI
Description
PI3070i HMI in Pakistan BR8231
