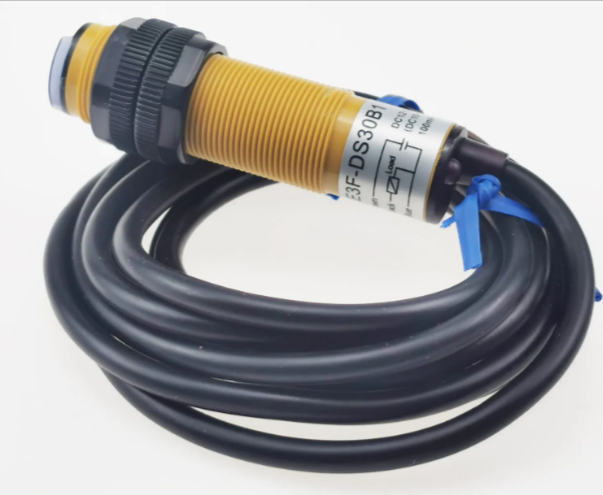

The Photoelectric Switch-E3F-DS30B2 is an industrial sensor that detects objects by emitting an infrared light beam and sensing the reflection from the object. This model operates on DC power and provides an NPN Normally Closed (NC) output, meaning its circuit is conducting current until an object is detected, upon which it opens (stops current flow). It's commonly used in automation for reliable, non-contact object presence detection over an adjustable range.
Features of the Photoelectric Switch-E3F-DS30B2:
- Diffuse Reflection Sensing: Emits infrared light and detects objects by sensing reflected light from the object itself.
- DC Power (NPN NC Output): Operates on DC voltage (6-36V) and provides an NPN Normally Closed output, meaning the circuit is usually closed and opens upon detection.
- Non-Contact Detection: Senses objects without physical touch, reducing wear on both the sensor and the detected items.
- Cylindrical M18 Design: Features a standard M18 cylindrical housing for straightforward industrial mounting.
- Adjustable Sensing Range: Includes a sensitivity adjuster to fine-tune its 7-30cm detection range for various applications.
- Built-in Protection: Incorporates reverse connection protection, surge absorption, and load short-circuit protection for enhanced durability.
- Status Indicator: Equipped with a red LED that provides visual feedback on the sensor's operating status and detection events.
- Robust Construction: Designed with IP65/IP67 protection against dust and water, suitable for harsh environments.
Specification of the Photoelectric Switch-E3F-DS30B2:
- Model: E3F-DS30B2
- Detection Method: Diffuse Reflection
- Detection Distance: 7-30cm (adjustable)
- Output Type: NPN Normally Closed (NC), 3-wire
- Working Voltage: DC 6-36V
- Output Current: Max 200-300mA
- Response Time: 1.5ms
- Light Source: 660nm Infrared LED
- Protection Level: IP65/IP67 (IEC specification)
- Operating Temperature: to (or to )
- Housing Material: ABS plastic, sometimes brass tin plated; PMMA for sensing surface.
- Dimensions: M18 x 1 threaded cylindrical (approx. 68-76mm length)
Uses:
- Object Presence/Absence: Commonly used on conveyor belts, assembly lines, and in packaging machinery to confirm if items are present or missing.
- Counting: Accurately counts products as they pass in automated sorting or production.
- Positioning: Helps with precise placement of components in automated systems.
- Automation & Control: Provides reliable input signals to PLCs and other control systems for various automated tasks.
- Material Handling: Detects materials in various industrial setups like bins, hoppers, and storage systems.
- Security & Safety: Can be used for basic perimeter detection or confirming component positioning for safety interlocks.
Benefits:
- Reliable Detection: Utilizes infrared light for consistent and accurate sensing of diverse opaque objects.
- Adjustable Sensitivity: The ability to fine-tune the detection range allows for optimal performance across different materials and distances.
- Long Lifespan: Non-contact operation minimizes mechanical wear, contributing to extended durability and reduced maintenance.
- Robust & Protected: High IP rating (IP65/IP67) and built-in protection circuits ensure reliable operation in challenging industrial environments with dust, water, and electrical interference.
- Easy Integration: Standard cylindrical design and clear NPN output simplify installation into existing or new automation systems.
- Versatile Application: Suitable for a broad range of industrial automation tasks due to its adjustable nature, robust build, and DC power compatibility.
- Clear Feedback: The visible LED indicator provides immediate visual confirmation of the sensor's operational status and detection events, aiding in setup and troubleshooting.
Package includes:
- 1x Photoelectric Switch-E3F-DS30B2
