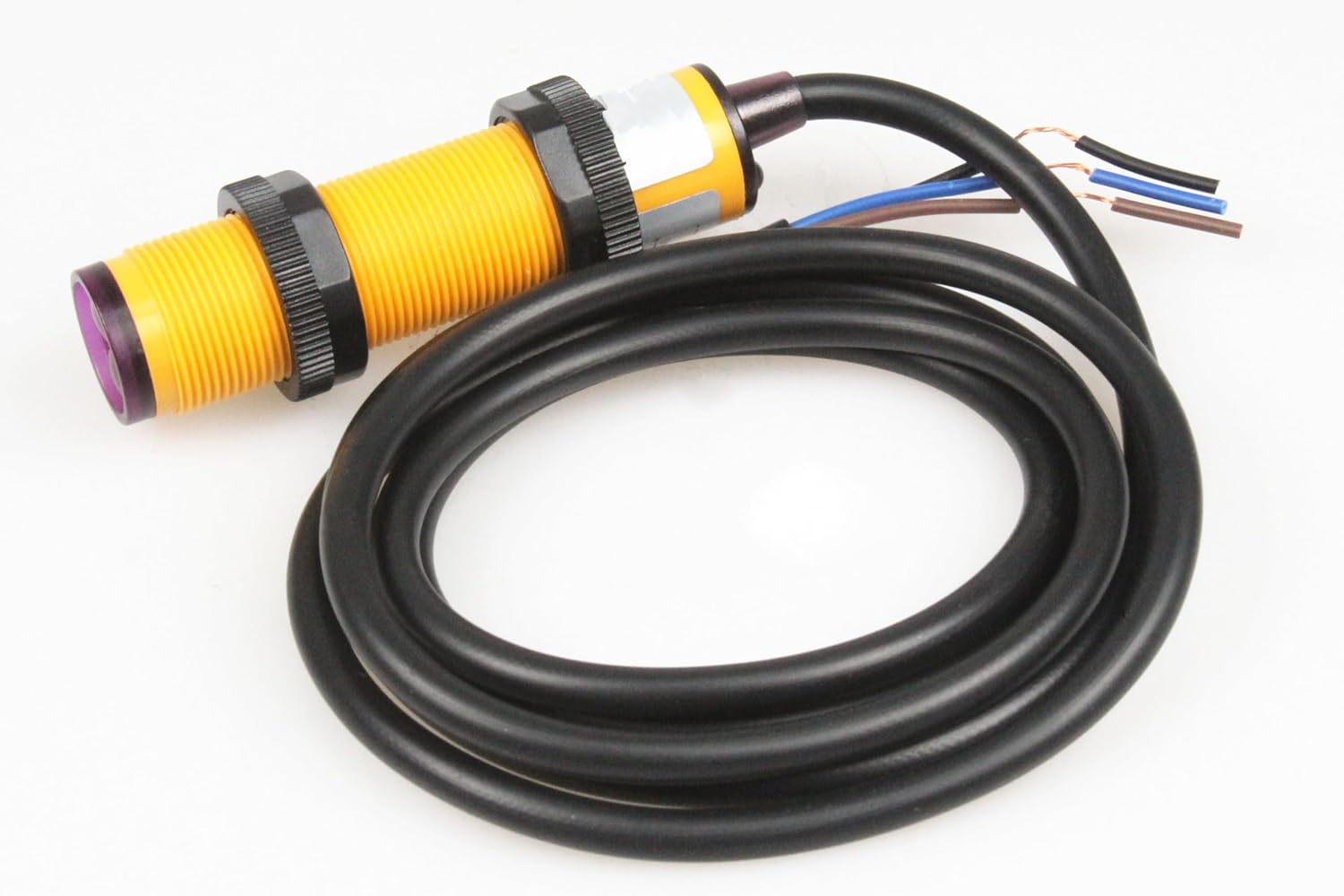

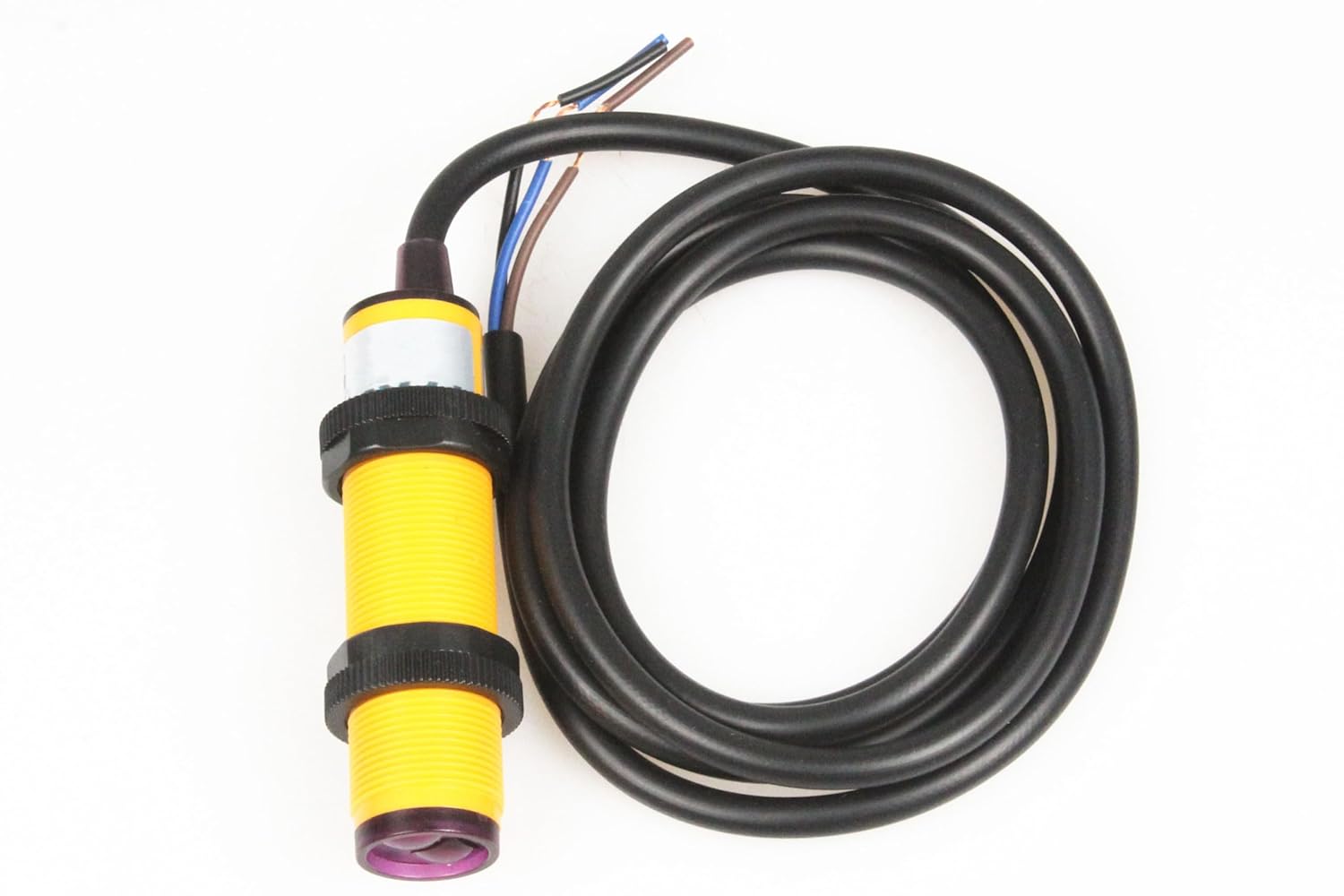

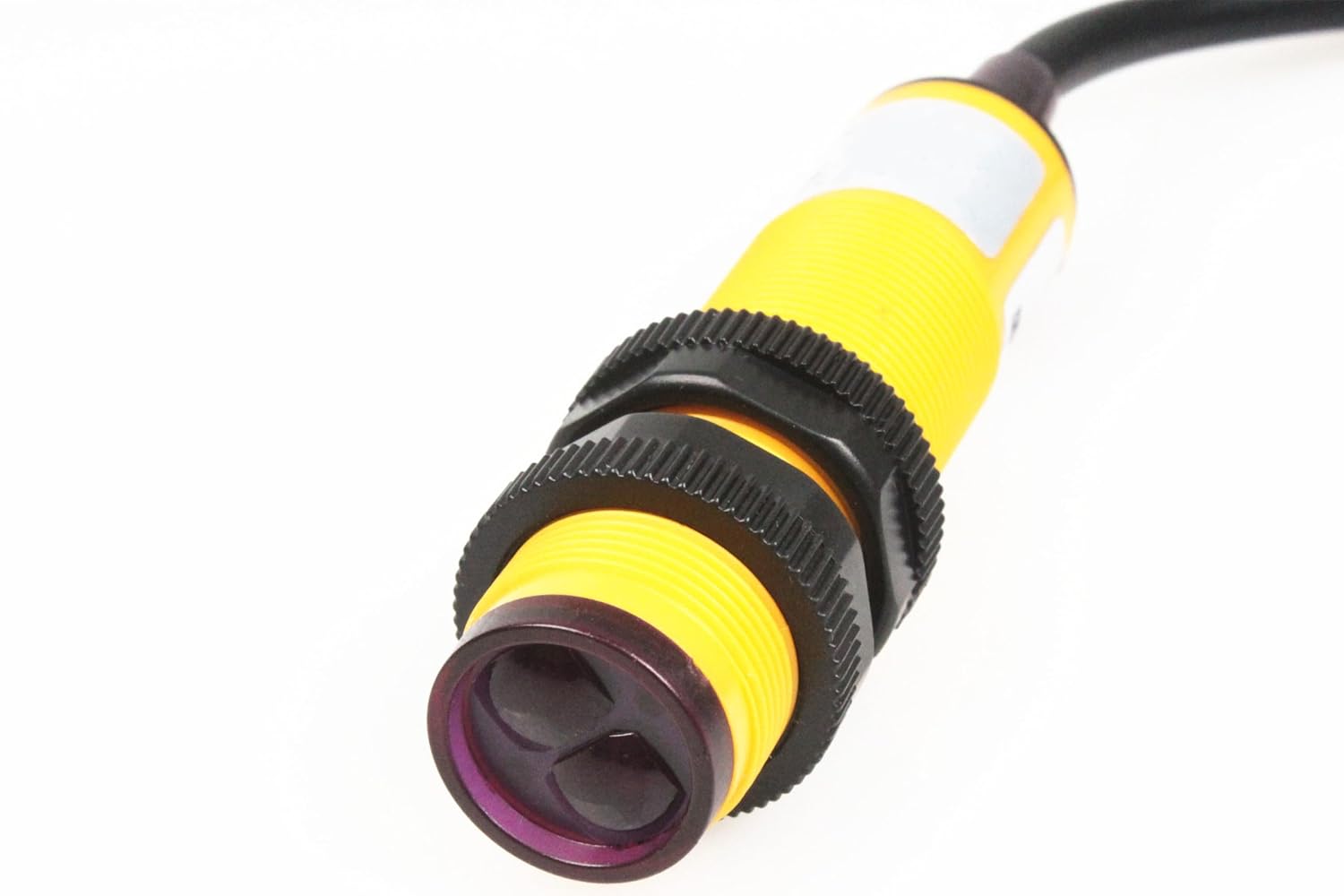

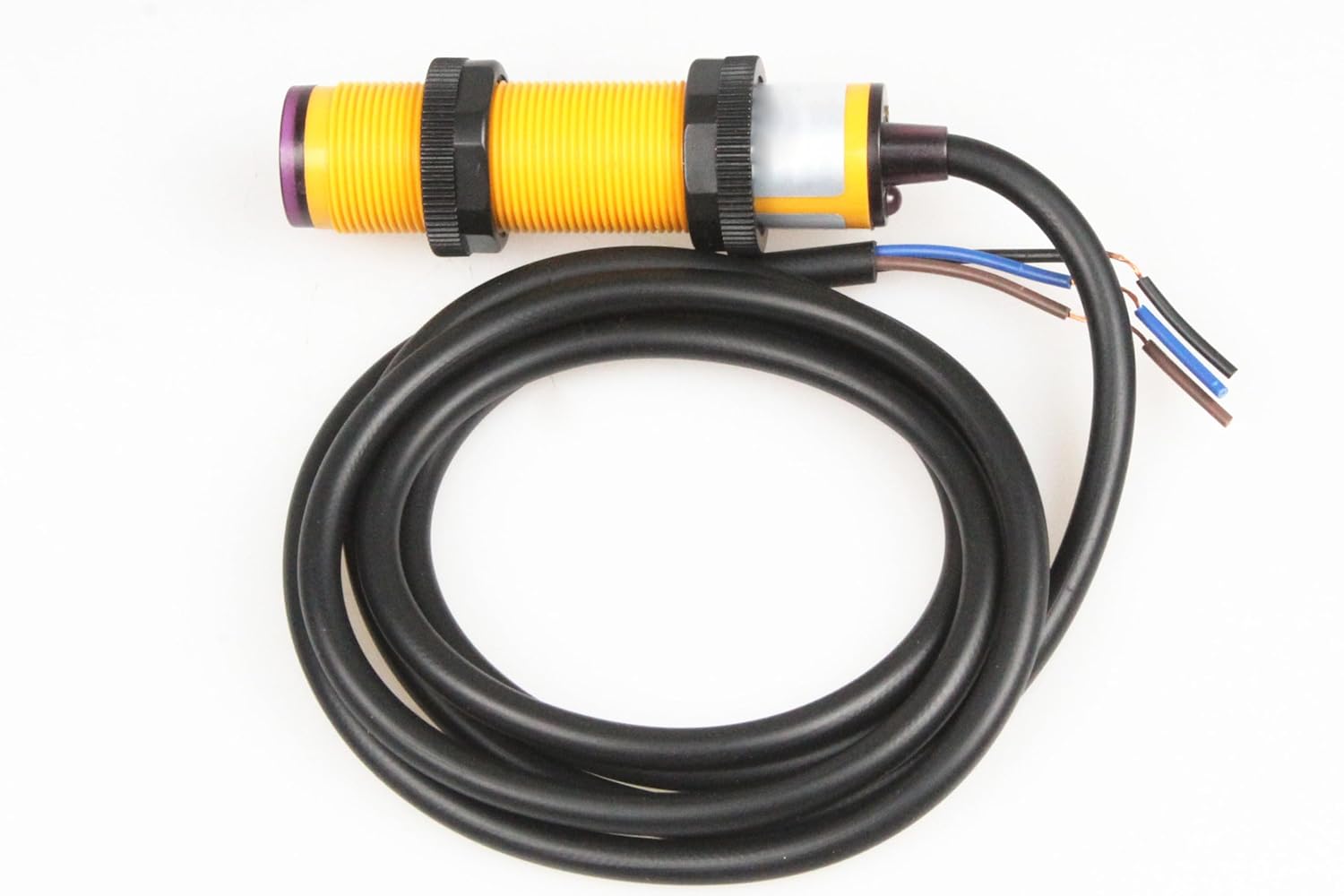

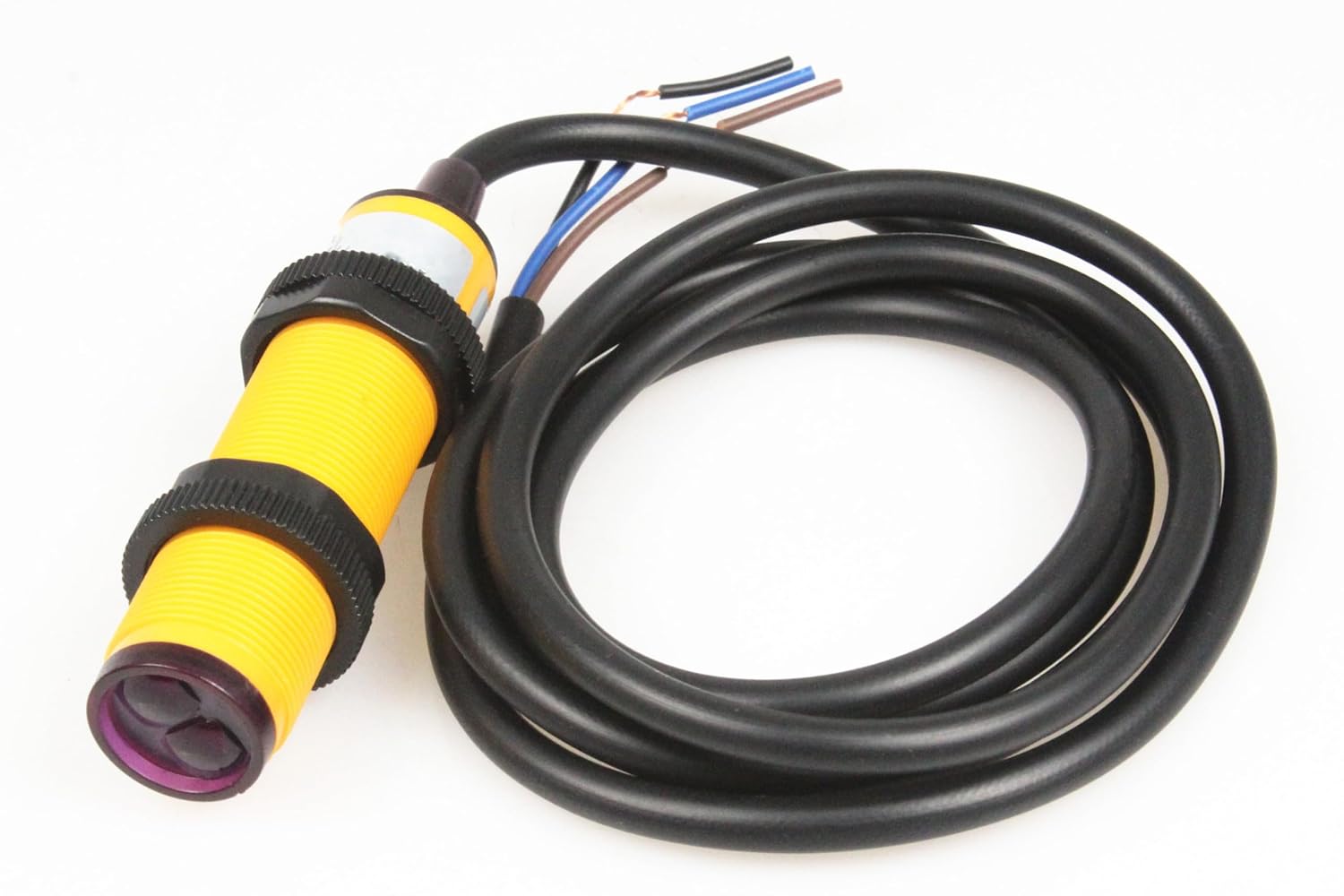

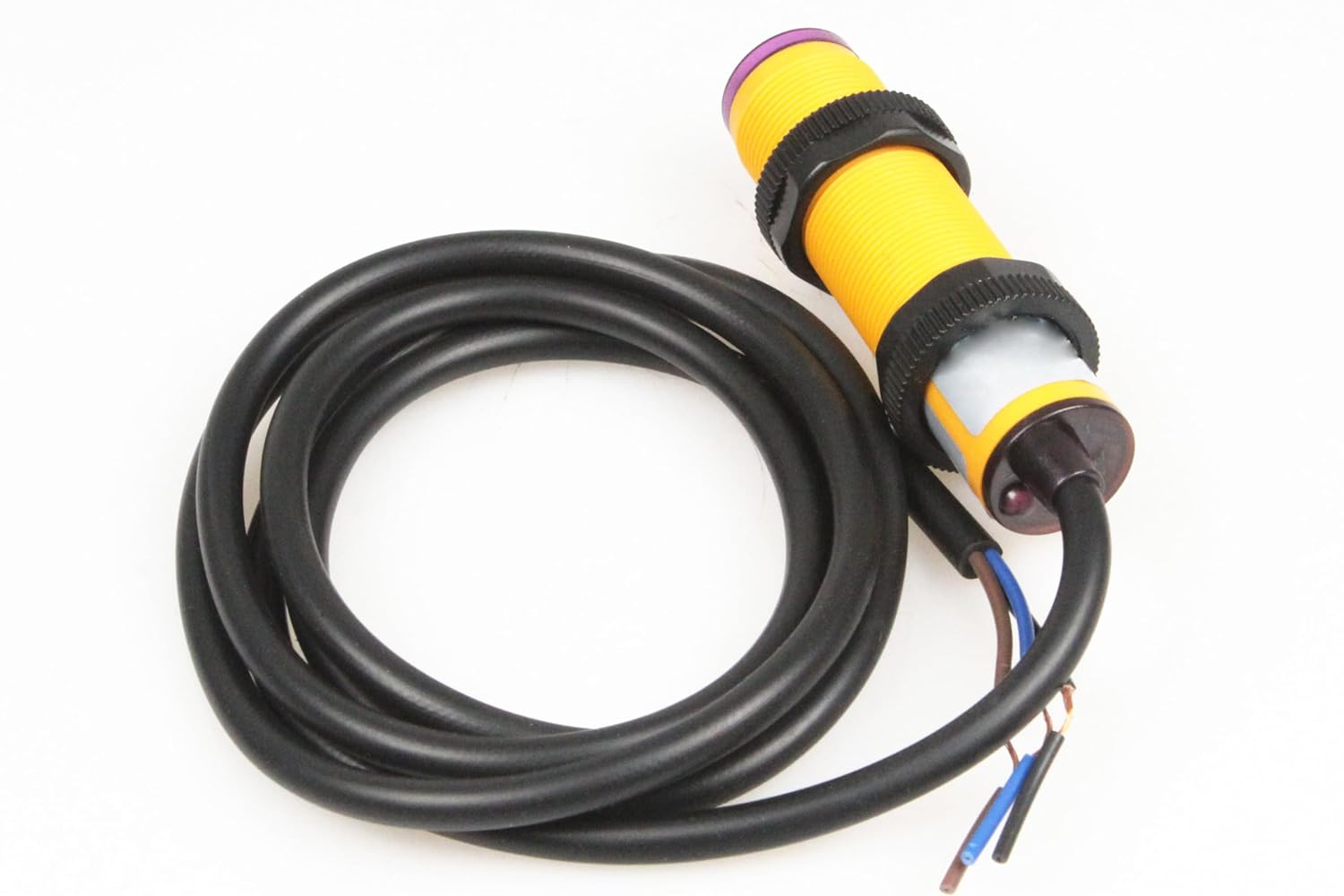

The E3F-DS10B2 is a photoelectric switch that detects objects using an infrared light beam. It's a diffuse reflection type, meaning the transmitter and receiver are in the same unit, and it detects an object when the light from the transmitter bounces off the object and returns to the receiver. This sensor is typically used in industrial automation for non-contact detection of various materials.
Features of the Photoelectric Switch-E3F-DS10B2:
- Diffuse Reflection (Integrated Tx/Rx): Detects via reflected infrared light (660nm LED).
- Non-Contact: Senses objects without physical touch, reducing wear.
- NPN NC Output: Normally closed, turns off upon detection.
- Cylindrical (M18) & Easy Mount: Standard shape for simple industrial installation.
- Protective & Indicative: Built-in circuit protection; often includes a red LED.
Specification of the Photoelectric Switch-E3F-DS10B2:
- Model: E3F-DS10B2; Type: Diffuse Reflection, NPN NC (3-wire)
- Detection: 10cm ± 10%; Object: Opaque
- Power: DC 10-30V; Output: Max 200mA (1.5ms response)
- Light Source: 660nm Infrared LED
- Physical: M18 Cylindrical; Nickel-plated brass/ABS housing; IP67
- Environment: -30°C to +65°C; Cable: 1.8m
Uses:
- Industrial Automation: Object detection, counting, positioning (e.g., on conveyors, in assembly).
- Security & Access: Basic perimeter sensing, gate/door activation.
- Packaging & Material Handling: Detecting products, boxes, and materials in various systems.
Benefits:
- Reliable & Fast: Accurate infrared detection with quick response.
- Durable & Safe: Non-contact, IP67-rated with built-in circuit protection.
- Easy & Versatile: Simple installation, adaptable for diverse industrial tasks.
Package includes:
- 1x Photoelectric Switch-E3F-DS10B2
