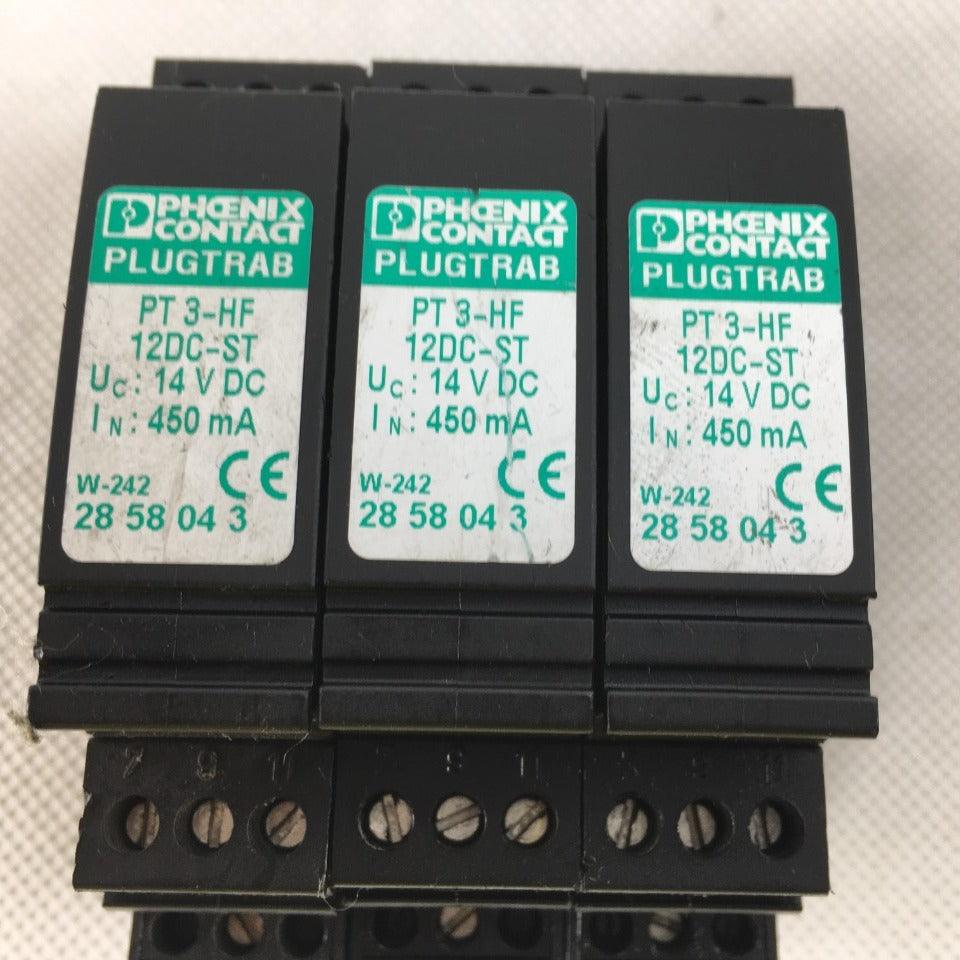

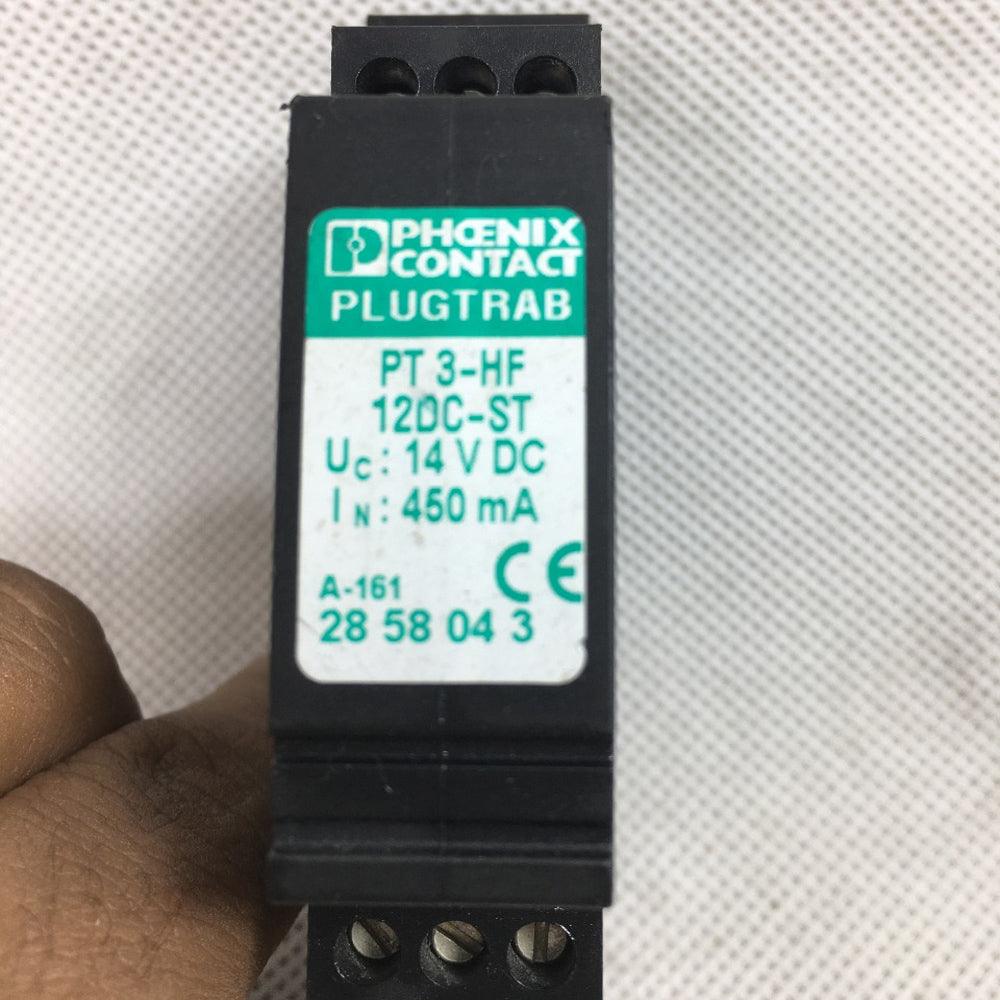

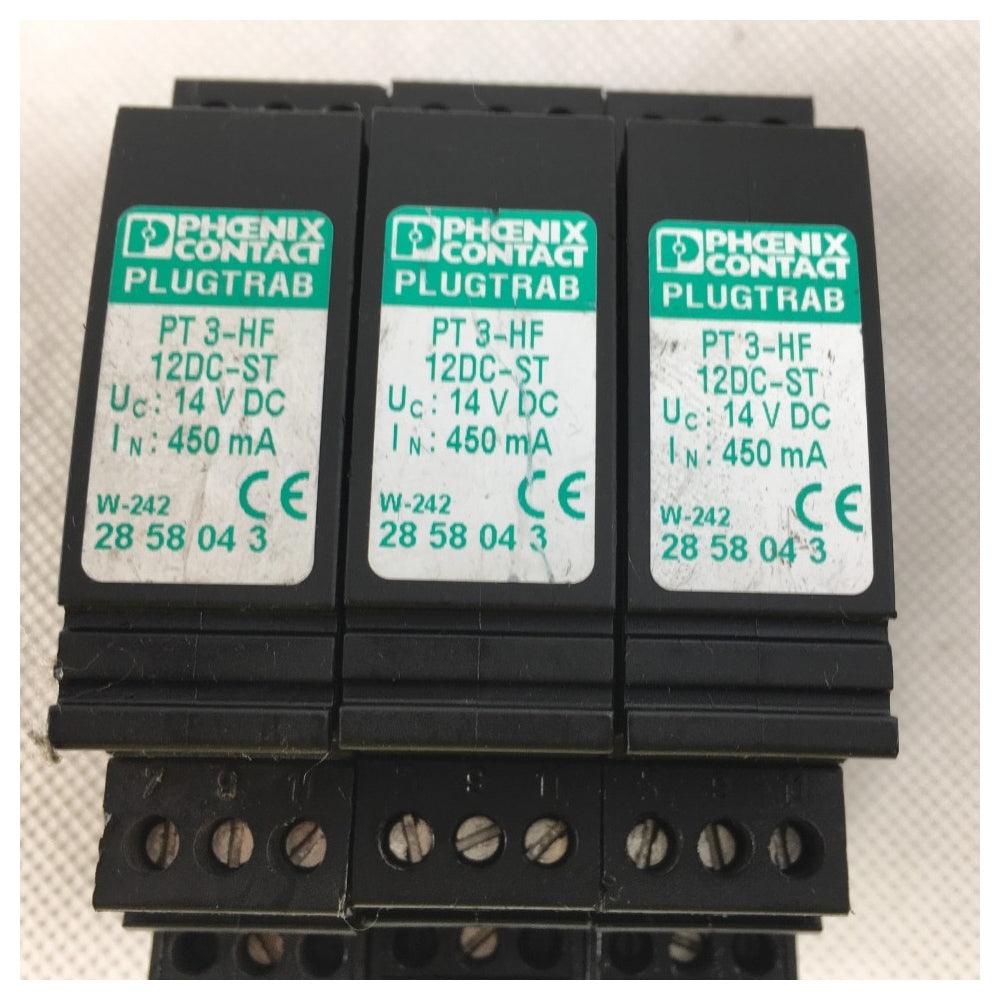

Surge protection plug for the base element, normal mode voltage coarse and fine protection for two floating signal wires and ground in IT, common mode voltage coarse protection to ground/earth. Design: 12 V DC.

Specification:

• Suppressor Type Protective Plug
• Maximum Voltage Rating: 9.8 V ac, 14 V dc
• Mounting Type: DIN Rail, Screw Mount
• Maximum Surge Current: 20kA
• Series: PT 3-HF-12DC-ST
• Length: 17.7mm
• Depth: 52mm
• Height: 45mm
• Dimensions: 17.7 x 52 x 45mm
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: +85°C

Package includes:

          1 x PHOENIX Surge protection plug PT 3-HF-12DC-ST

Industryparts.pk is the Online Shopping website for PHOENIX Surge protection plug PT 3-HF-12DC-ST. Here you get PHOENIX Surge protection plug PT 3-HF-12DC-ST at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
