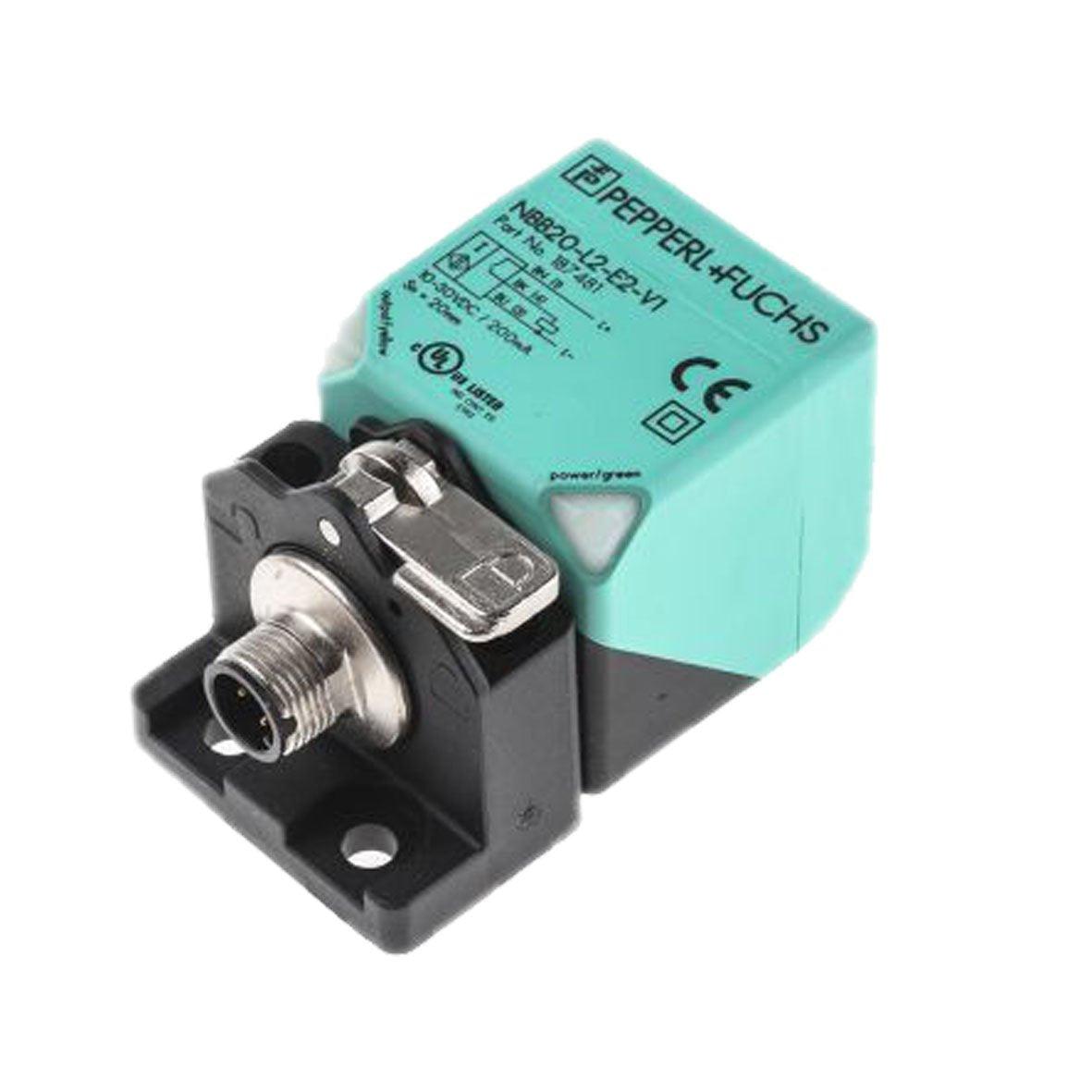

General specifications
|
| Switching function |
Normally open (NO) |
| Output type |
PNP |
| Rated operating distance |
20 mm |
| Installation |
flush |
| Output polarity |
DC |
| Assured operating distance |
0 ... 16.2 mm |
| Actual operating distance |
18 ... 22 mm |
| Reduction factor rAl
|
0.33 |
| Reduction factor rCu
|
0.31 |
| Reduction factor r304
|
0.74 |
| Reduction factor rBrass
|
0.41 |
| Output type |
3-wire |
| Nominal ratings |
| Operating voltage |
10 ... 30 V DC |
| Switching frequency |
0 ... 440 Hz |
| Hysteresis |
typ. 5 % |
| Reverse polarity protection |
reverse polarity protected |
| Short-circuit protection |
pulsing |
| Voltage drop |
? 2 V |
| Operating current |
0 ... 200 mA |
| Off-state current |
0 ... 0.5 mA |
| No-load supply current |
? 20 mA |
| Time delay before availability |
80 ms |
| Operating voltage indicator |
LED, green |
| Switching state indicator |
LED, yellow |
Functional safety-related parameters
|
| MTTFd
|
1289 a |
| Mission Time (TM) |
20 a |
| Diagnostic Coverage (DC) |
0 % |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Ambient conditions |
| Ambient temperature |
-25 ... 85 °C (-13 ... 185 °F) |
| Storage temperature |
-40 ... 85 °C (-40 ... 185 °F) |
| Mechanical specifications |
| Connection type |
Connector plug M12 x 1 , 4-pin |
| Housing material |
PA |
| Sensing face |
PA |
| Degree of protection |
IP69K |
| Cable |
|
|
Cable diameter |
3.3 mm ± 0.15 mm |
| Mass |
130 g |
