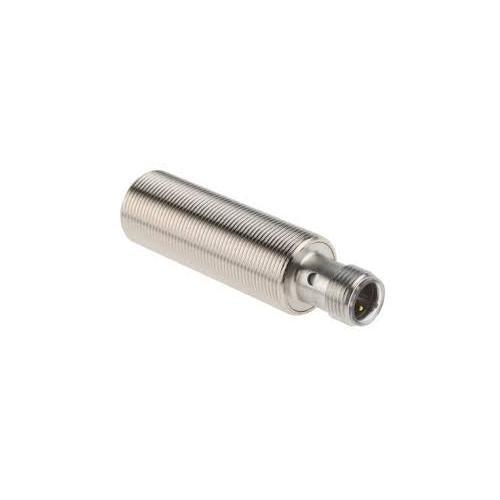

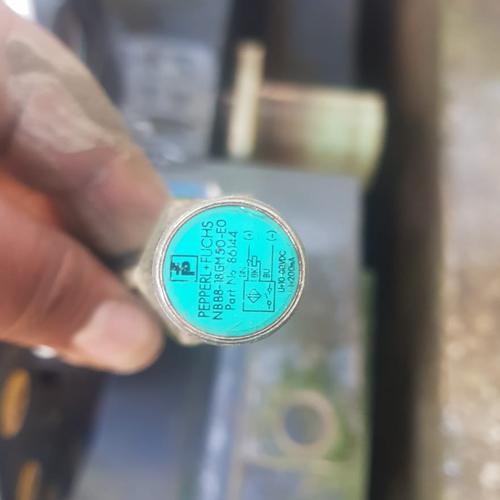

Pepperl & Fuchs NBB8-18GM50-E0

BR4335-b123-st1.

Rs 4,200
Rs 4,200
Sale Sold out

Pepperl & Fuchs NBB8-18GM50-E0 In Pakistan BR4335


Descriptions

 Pepperl & Fuchs NBB8-18GM50-E0

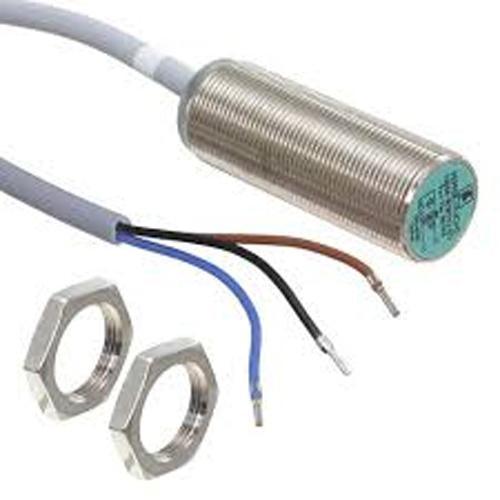

Sensor; Inductive Proximity; 3 Wire; 2m (6.5 ft.); Cable Connection
LCOMP
SENSOR, INDUCTIVE, PROXIMITY, CYLINDRICAL, SENSING DISTANCE 8MM
Allied Electronics & Automation
Proximity Sensor; Sensor Input:Inductive; Sensing Range Max:8mm; Sensor Output:NPN, NO; Switch Terminals:Cable; Mounting Type:PCB Surface Mount; Output Type:Transistor; Sensing Face Diameter:18mm; Sensor Housing:Barrel
Newark
PROXIMITY SWITCH, M18, NPN; Sensor Input:Inductive; Frequency Response Range:500Hz; Supply Voltage Range DC:10V to 30V; External Length / Height:50mm; Frequency Response Max:500Hz; IP / NEMA Rating:IP67; Load Current Max:200mA; Operating Temperature Max:70°C; Operating Temperature Min:-25°C; Output Type:NPN; Sensing Distance Max:8mm; Sensing Range:0mm to 8mm; Sensing Range Max:8mm; Sensor Output1:NPN; Supply Voltage DC Max:30V; Supply Voltage DC Min:10V; Supply Voltage Max:30VDC; Supply Voltage Min:10VDC; Thread Size:M18 x 1

Technical Specifications

Pepperl & Fuchs NBB8-18GM50-E0 technical specifications, attributes, and parameters.

Physical
Housing Material Brass
Mount Flush
Technical
Load Current 200 mA
Max Operating Temperature 70 °C
Max Supply Voltage (DC) 30 V
Min Operating Temperature -25 °C
Min Supply Voltage (DC) 10 V
Operating Supply Voltage 30 V
Sensing Method Inductive
Switching Current 200 mA
Termination Wire
Dimensions
Length 50 mm
Compliance
Ratings IP67
REACH SVHC No SVHC
RoHS Compliant



Online Shopping website for Pepperl & Fuchs NBB8-18GM50-E0. Here you get Pepperl & Fuchs NBB8-18GM50-E0 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes

1 x Pepperl & Fuchs NBB8-18GM50-E0
