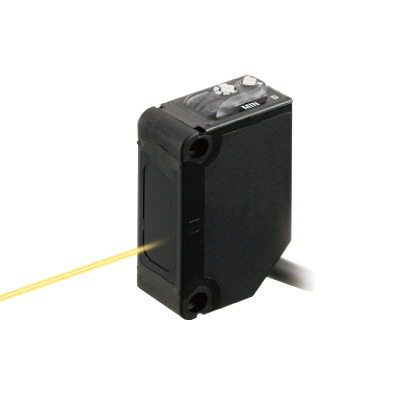

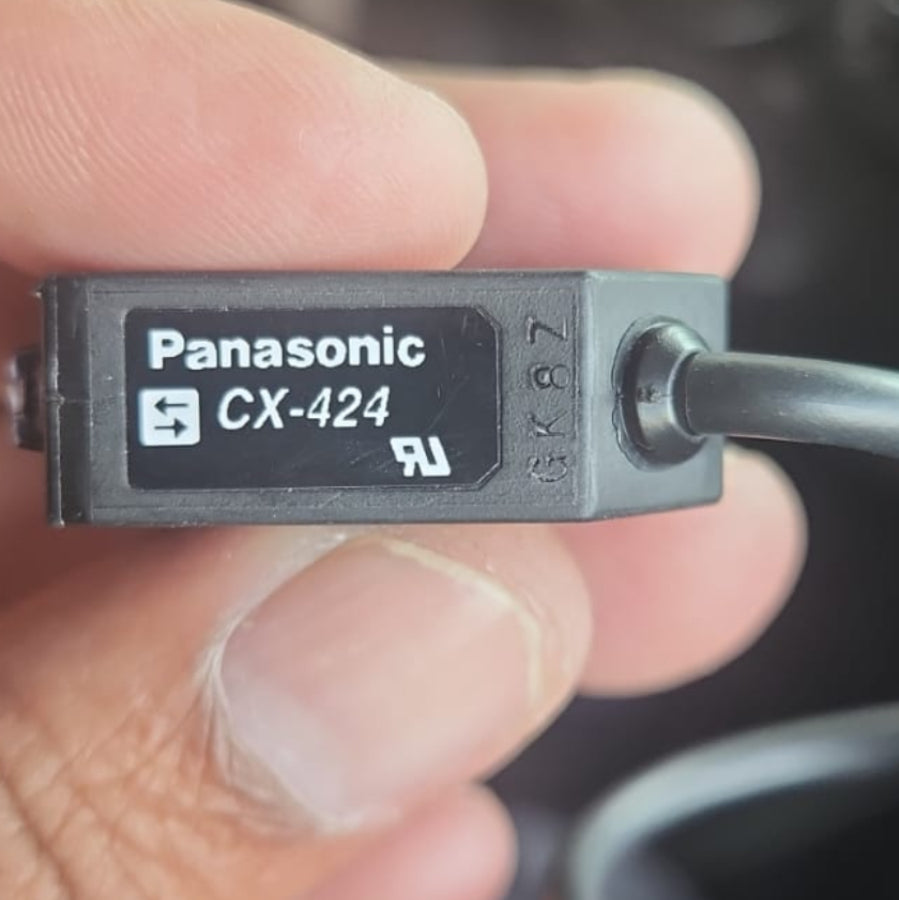

Panasonic CX-424 Compact Photoelectric Sensor (Loot) in Pakistan

The Panasonic CX-424 Compact Photoelectric Sensor is a high-performance compact photoelectric sensor designed for accurate object detection in industrial automation systems. This diffuse reflective sensor provides stable sensing performance with a sensing range of up to 100 mm and supports detection of opaque, translucent, and transparent objects. It features fast response time, low power consumption, and built-in short-circuit protection for reliable operation. The sensor is equipped with Light-ON/Dark-ON switching modes, LED operation indicators, and adjustable sensitivity for flexible applications. Its durable IP67-rated body ensures protection against dust and water, making it suitable for harsh industrial environments and automation processes.

Features:

• Compact and lightweight photoelectric sensor design.
• Diffuse reflective sensing technology for accurate detection.
• Detects opaque, translucent, and transparent objects.
• Fast response time of 1 ms or less.
• Adjustable sensitivity control for precise operation.
• Light-ON and Dark-ON operation selectable.
• Built-in short-circuit protection for safety.
• Stable detection performance with low hysteresis.
• IP67 protection for dustproof and waterproof operation.
• Infrared LED emitting element for reliable sensing.
• Low power consumption for energy efficiency.
• Green and orange LED indicators for easy monitoring.
• Supports close mounting with interference prevention function.
• Durable PBT enclosure for long service life.
• Suitable for industrial automation and machine control systems.

Specifications:

• Brand: Panasonic.
• Model Number: CX-424.
• Product Type: Compact Photoelectric Sensor.
• Sensing Method: Diffuse Reflective.
• Sensing Range: 100 mm.
• Sensing Object: Opaque, translucent, or transparent objects.
• Hysteresis: 15% or less of operation distance.
• Repeatability: 1 mm or less.
• Supply Voltage: 12 to 24 V DC ±10%.
• Ripple: 10% P-P or less.
• Current Consumption: 13 mA or less.
• Output Type: NPN open-collector transistor.
• Maximum Sink Current: 100 mA.
• Applied Voltage: 30 V DC or less.
• Residual Voltage: 2 V or less.
• Output Operation: Light-ON / Dark-ON selectable.
• Short Circuit Protection: Incorporated.
• Response Time: 1 ms or less.
• Operation Indicator: Orange LED.
• Stability Indicator: Green LED.
• Sensitivity Adjustment: Continuously variable adjuster.
• Interference Prevention Function: Incorporated.
• Protection Rating: IP67.
• Operating Temperature: -25°C to +55°C.
• Storage Temperature: -30°C to +70°C.
• Ambient Humidity: 35 to 85% RH.
• Voltage Withstandability: 1000 V AC for one minute.
• Insulation Resistance: 20 MΩ or more.
• Emitting Element: Infrared LED.
• Peak Emission Wavelength: 860 nm.
• Enclosure Material: PBT.
• Lens Material: Acrylic.
• Cable Length: 2 meters.
• Cable Extension: Up to 100 meters possible.
• Net Weight: Approx. 50 g.

Uses:

• Used for object detection in industrial automation systems.
• Suitable for conveyor and packaging machine applications.
• Used in production and assembly line monitoring.
• Ideal for detecting transparent and reflective objects.
• Applied in factory automation and machine safety systems.

Package includes:

1x  Panasonic CX-424 Compact Photoelectric Sensor
