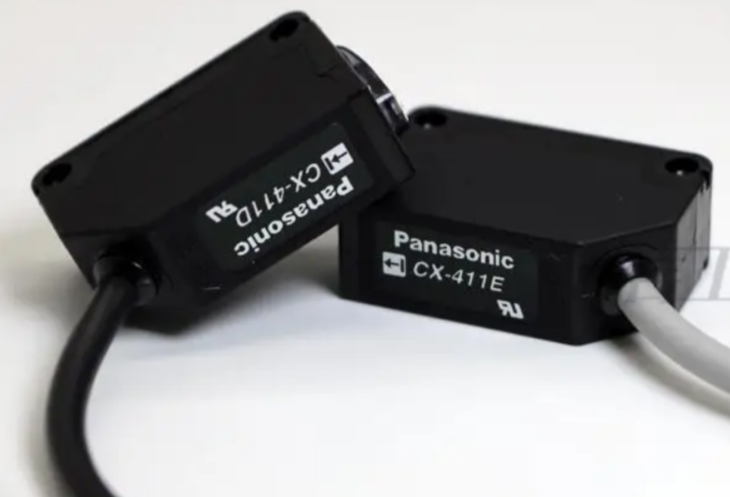

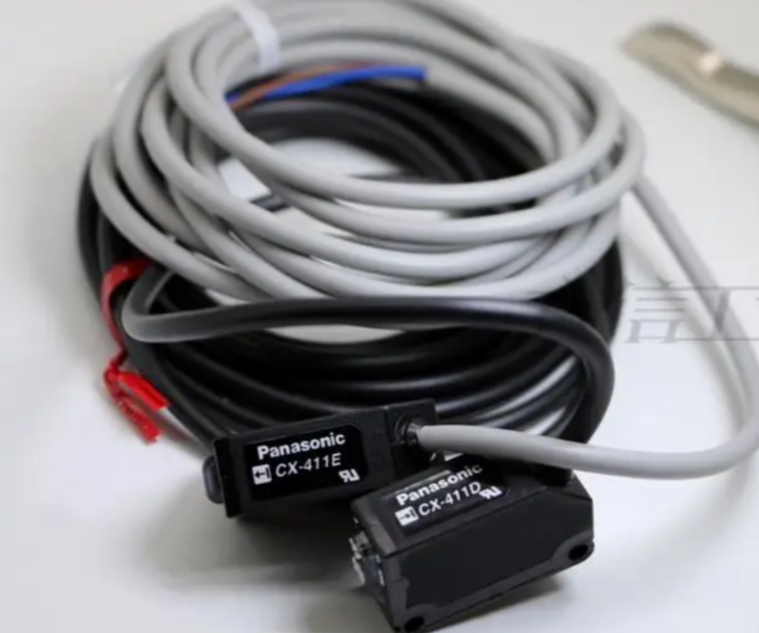

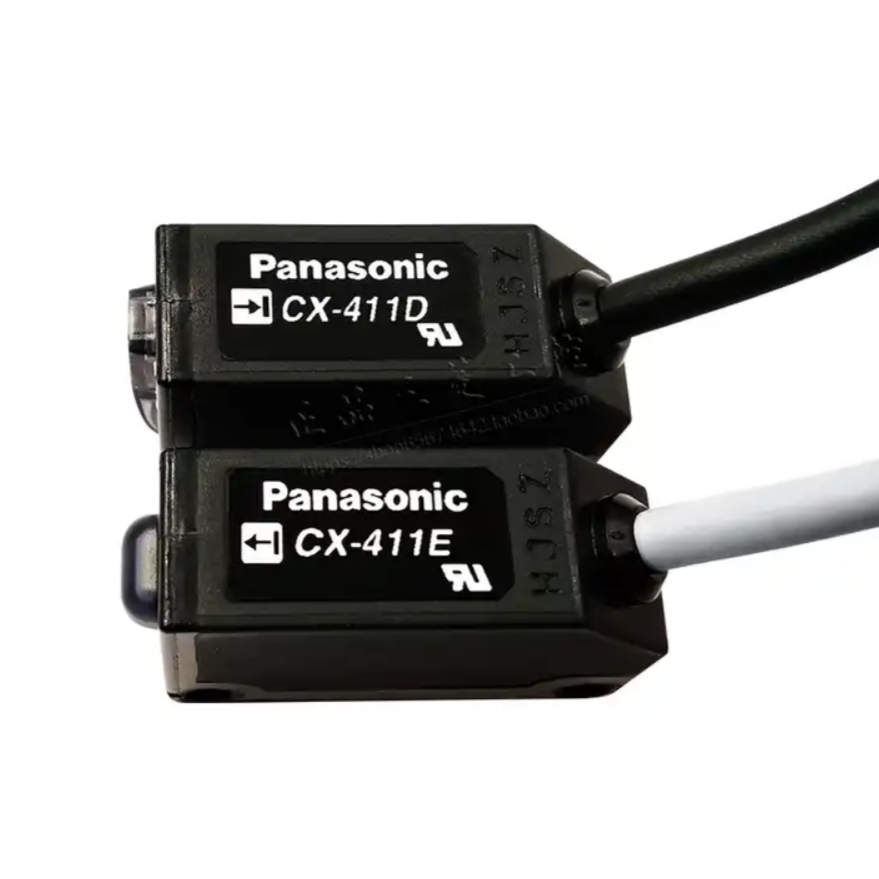

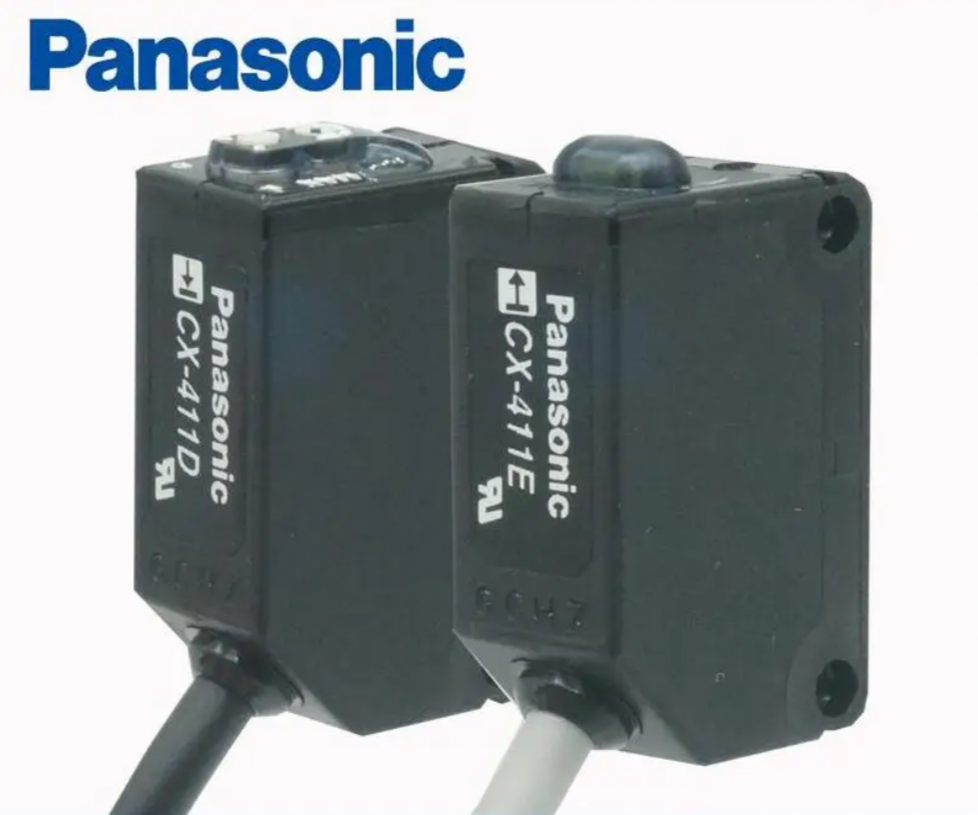

The PanasonicCX-411 (CX-411D+CX-411E) Beam Type Photoelectric Switch and Sensor is a compact and versatile sensor that can be used for a variety of applications. It is a thru-beam type sensor, which means it uses two separate units, the emitter, and the detector, to detect the presence or absence of an object. The emitter emits a beam of light, and the detector detects the presence or absence of this beam. If the beam is broken, the sensor outputs a signal.

Features of Panasonic (CX-411D & CX-411E) Beam Type Photoelectric Switch and Sensor:

• Compact and versatile design
• Thru-beam type sensor
• Detects the presence or absence of an object
• Easy to install and use
• High resistance to effects of coolants and oils
• 1-turn Potentiometer adjustment
• Ø12mm minimum sensing opaque target
• 0.5mm repeatability

Specification of Panasonic (CX-411D & CX-411E) Beam Type Photoelectric Switch and Sensor:

• Sensing distance: 10 meters
• Output type: NPN
• Light source: Red LED
• Operating temperature: -25°C to +55°C
• Dimensions: 31mm x 11mm x 20mm
• Weight: 0.3kg
• Power supply: 24V/12V DC
• Current consumption: 10mA
• Protection class: IP65

Uses:

• Presence or absence detection
• Conveyor belt control
• Liquid level detection
• Packaging machine control
• Robotic applications
• Material Handling
• Presence detection in industrial machinery
• Safety light curtains
• End of travel detection

Industryparts.pk is the Online Shopping website for Panasonic (CX-411D & CX-411E) Beam Type Photoelectric Switch and Senso. Here you get Panasonic (CX-411D & CX-411E) Beam Type Photoelectric Switch and Senso at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

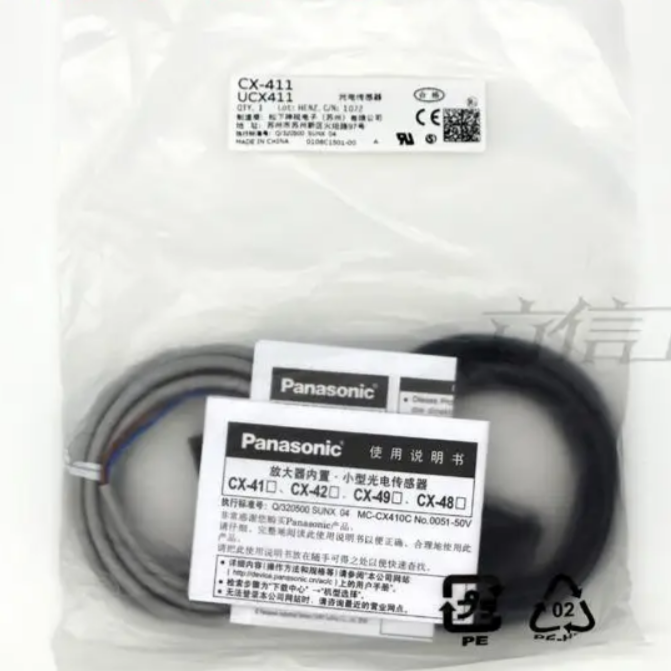

Package includes:

• One emitter unit (CX-411D)
• One detector unit (CX-411E)
• Mounting hardware
• User manual
