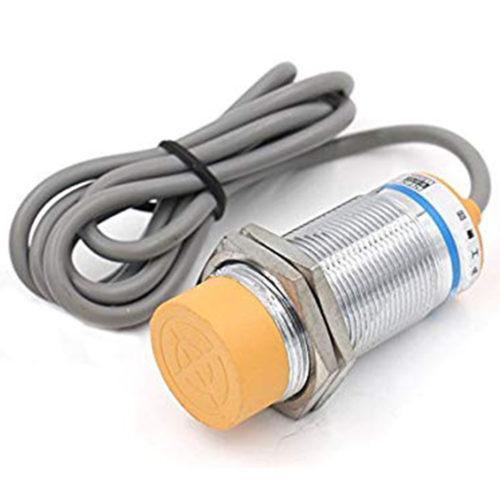

Omron Inductive Proximity Sensor E2E-X18MY2

SKU:BR2593

Regular price Rs 1,575
Regular price Rs 1,700 Sale price Rs 1,575
Sale Sold out

Omron Inductive Proximity Sensor E2E-X18MY2 in Pakistan BR2593

 Omron Inductive Proximity Sensor E2E-X18MY2 in Pakistan

Description:





  1. Supplier: Omron Electronics
  2.




Part No: E2E-X18MY2


Type: N/A




Sensing Distance: 18 mm




Mounting: Panel




Output Type: N/A




Dimension: 70 x 36 x 42 mm


Switching Mode: NC




Unit of Measure: Per Each


Current:    400mA




Technical specification:





Sensing head size M30
Type Cylinder type (with screw) Unshielded
Power source AC 2-wire models
Sensing distance 18 mm ±10%
Setting distance 0 to 14 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 54 x 54 x 1 mm
Response frequency 25 Hz
Power supply voltage 24 to 240 VAC
Operating voltage range 20 to 260 VAC
Leakage current 1.7 mA max.
Control output (Switching capacity) 5 to 300 mA
Indicator Operation indicator (red)
Operation mode NC
Protective circuit Surge suppressor
Ambient temperature (Operating) -40 to 85?
Ambient temperature (Storage) -40 to 85?
Ambient humidity (Operating) 35 to 95%
Ambient humidity (Storage) 35 to 95%
Temperature influence ±10% max. of sensing distance at 23 ? in the temperature range of -25 to 70 ?  ±15% max. of sensing distance at 23 ? in the temperature range of -40 to 85 ?
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 M? min. at 500 VDC
Dielectric strength Between charged parts and the case: 4,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 1000 m/s**2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67  Company standard: Oil-proof
Connection method Pre-wired models (2 m)
Weight Package: Approx. 175 g
Material Case: Brass nickel plating  Sensing surface: Polybutylene terephthalate (PBT)  Clamping nuts: Brass nickel plating  Toothed washers: Iron zinc plating
Accessories Instruction manual
