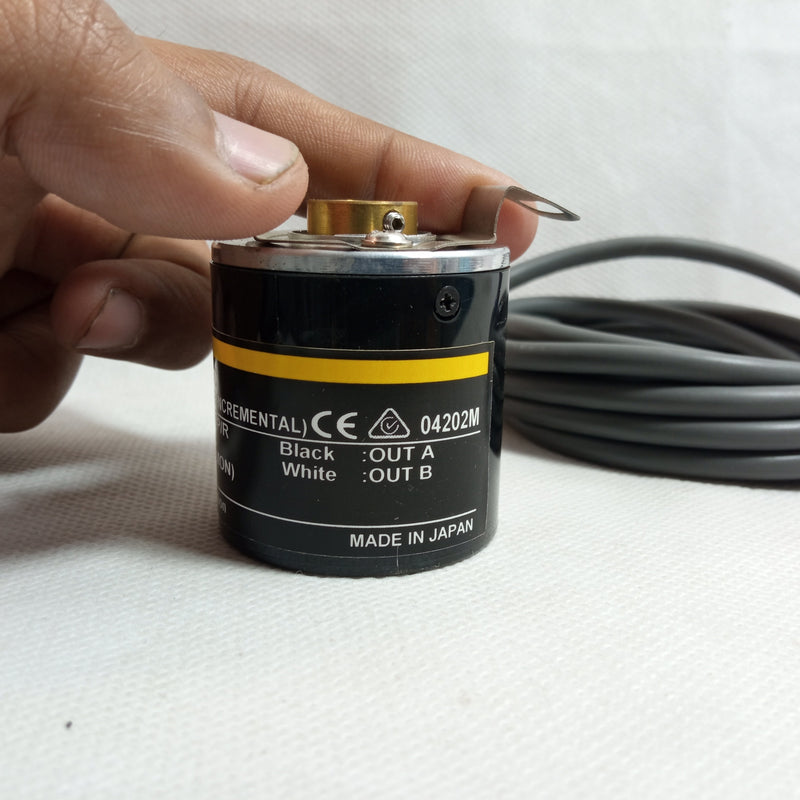

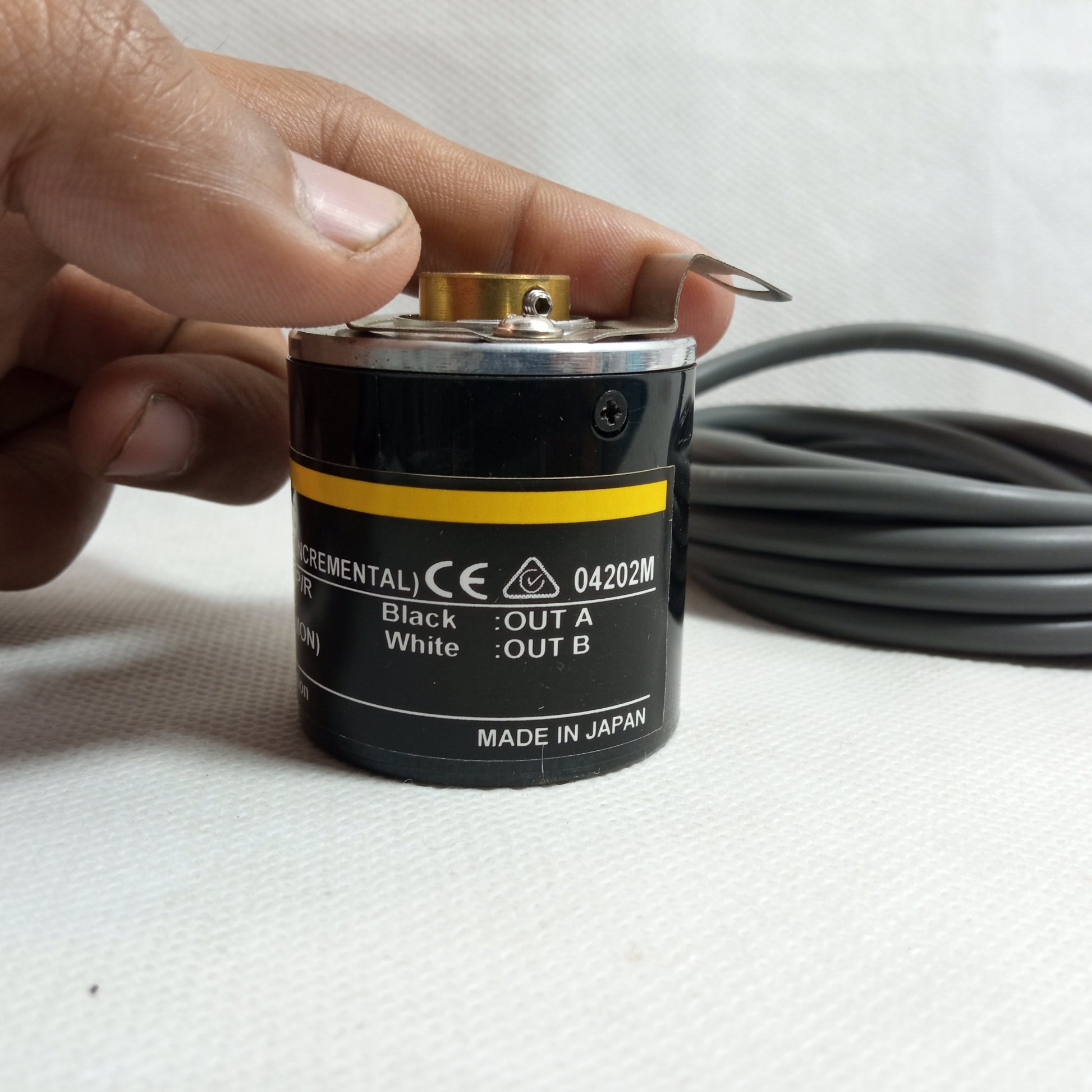

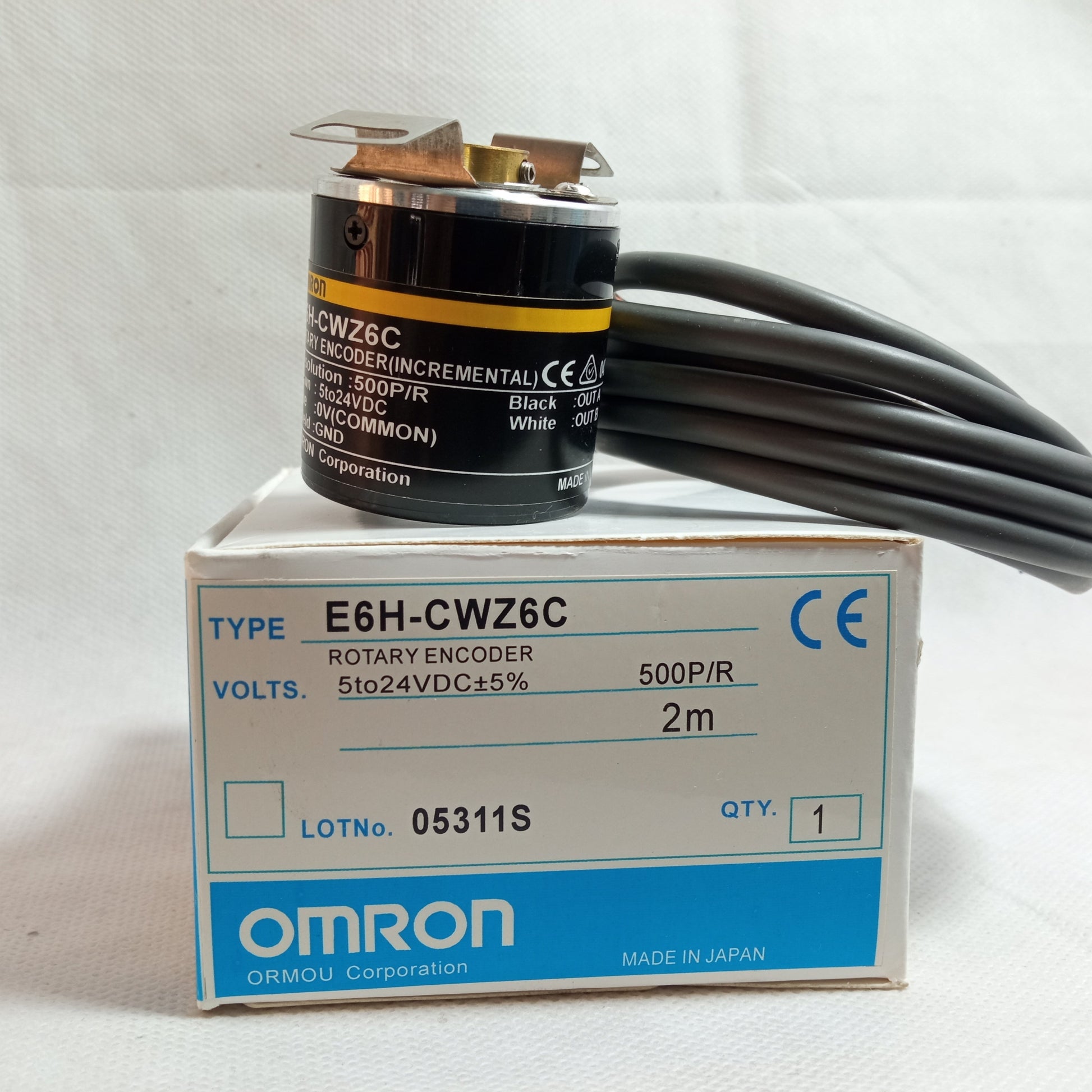

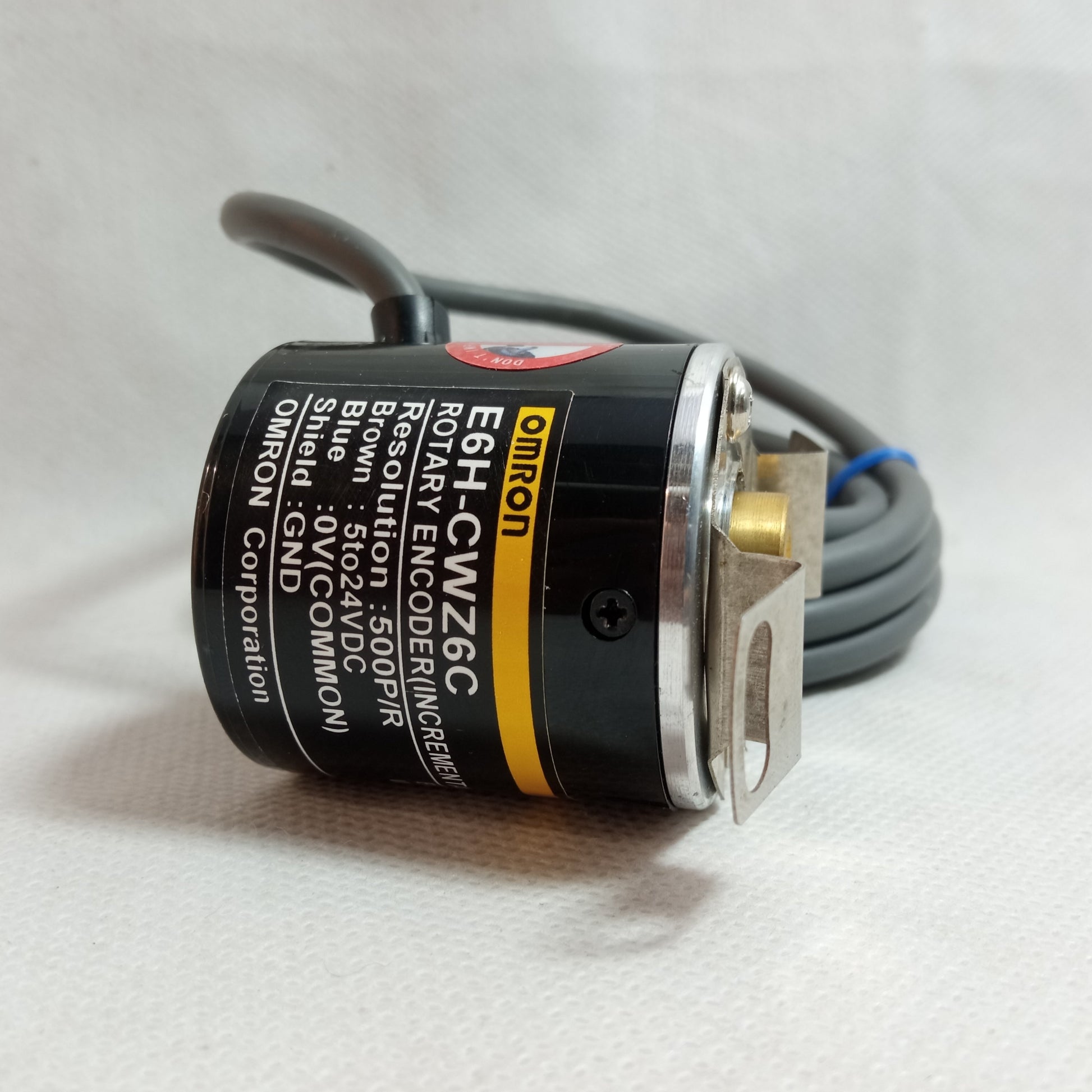

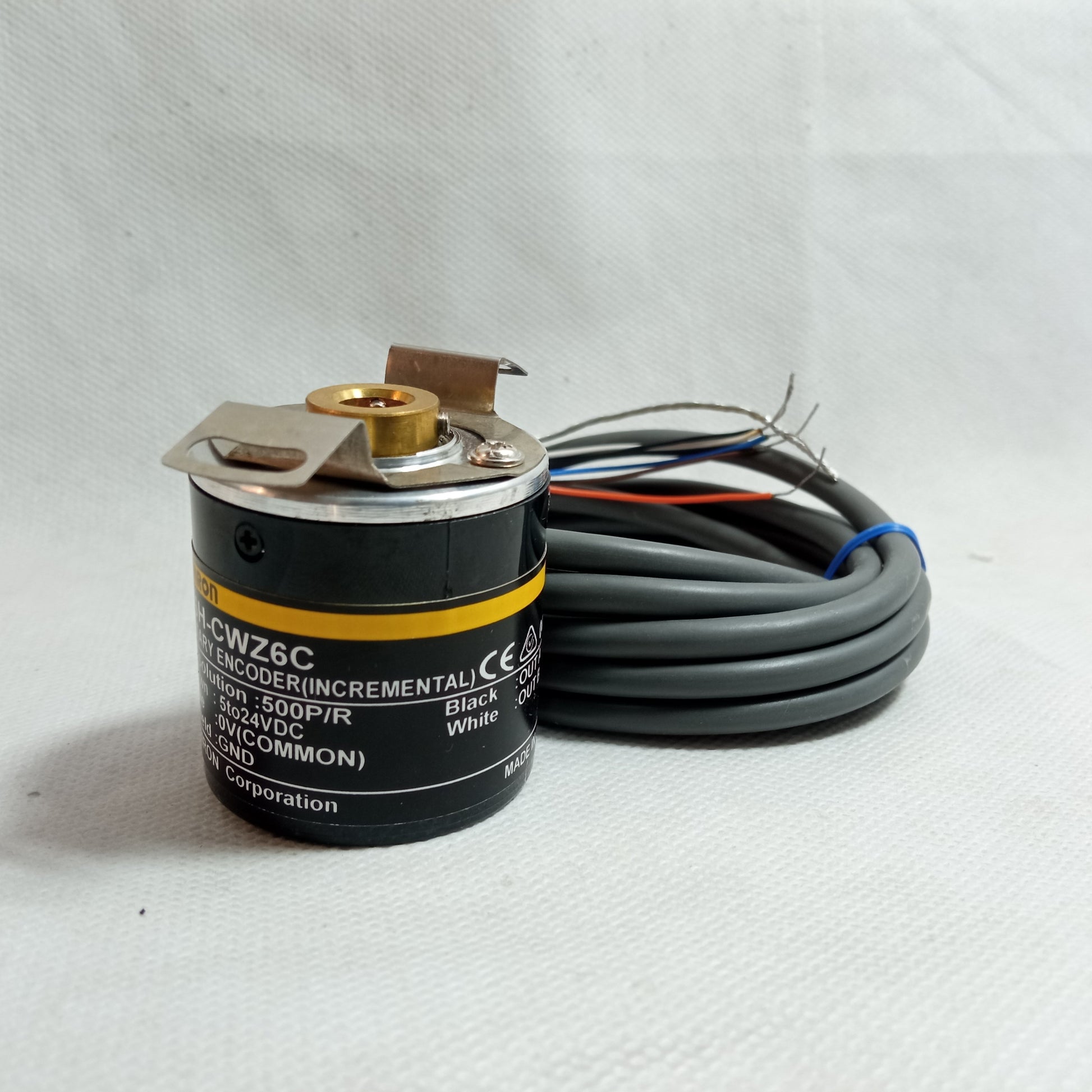

500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan

SKU:BR2019

Regular price Rs 9,000
Regular price Rs 12,000 Sale price Rs 9,000
Sale Sold out

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital output signals. There are two main types of rotary encoder: absolute and incremental.

Specification:

  • Series : E6B
  • Encoding Method: Incremental
  • Resolution P/R: 500
  • Control Output (Output type): NPN open-collector output
  • Max Force Radial: 30 N
  • Max Force Thrust: 20 N
  • Power Supply Voltage: 5 VDC -5% to 24 VDC +15% (ripple (p-p): 5% Max.)

Features:

  • Exterior 40 mm Dia.
  • Incremental Type
  • Output Phase A/B/Z
  • 5 to 24 VDC
  • Open Collector Output

Industryparts.pk is the Best Online Shopping website for 500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:

 1 x 500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC

500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan

500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan
500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan
500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan
500PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan
