Manufacturer:

OMRON

Model

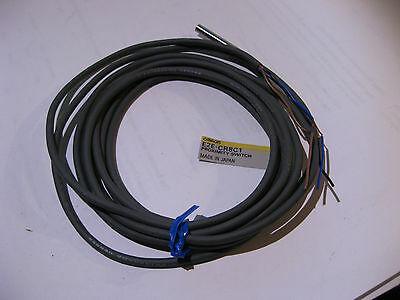

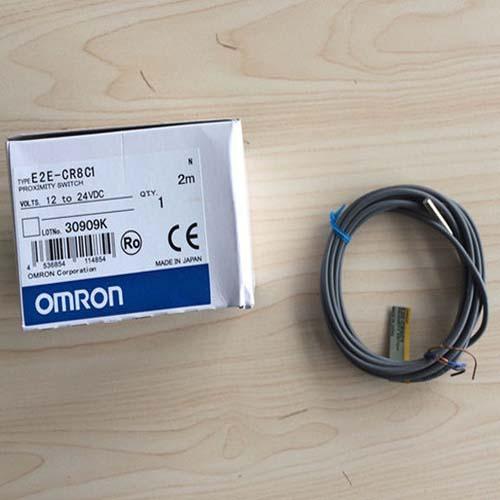

E2E-CR8C1

Body Style

Cylindrical

Current, Consumption

17 mA (Max.)

Current, Switching

100
mA

Dimensions

0.98 in. L

Frequency, Switching

3
kHz

Function

Proximity

IP Rating

IP67

Material, Housing

Stainless Steel (Housing), Plastic PBT (Sensing Face), Polyvinyl Chloride (Cable Sheath)

Mounting Type

Bracket/DIN Rail

Output

NPN

Primary Type

Proximity

Range, Measurement

0.8
mm

Technology

Inductive

Temperature, Ambient, Maximum

70
°C

Temperature, Ambient, Minimum

-25
°C

Termination

Pre-Wired

Type

Inductive

Voltage, Supply

24
VDC

Voltage, Switching

2V

Cylinder type sensing head size

dia. 4

Type

Shielded

Sensing method

Inductive type

Sensing distance

0.8 mm -15% to +15%

Setting distance

0 to 0.5 mm

Differential distance

15% Max. of sensing distance

Sensing object

Ferrous metal (Sensitivity lowers with non-ferrous metals.)

Standard sensing object

Iron 5*5*1mm

Response frequency

3 kHz (average)

Power supply voltage

12 to 24 VDC (ripple(p-p) :10% Max.)

Operating voltage range

10 to 30 VDC

Current consumption

17 mA Max.

Control output (Output type)

NPN open collector output

Control output (Switching capacity)

0 to 100 mA (30VDC Max.)

Control output (Residual voltage)

2 V Max. (under load current with cable length of 2m)

Indicator

Operation indicator(red)

Operation mode

NO

Protective circuit

Surge suppressor
Power supply reverse polarity protection

Standard or Different frequency

Standard

Ambient temperature

Operating: -25 to 70 CEL
Storage: -25 to 70 CEL
(with no icing or condensation)

Ambient humidity

Operating: 35 to 95 %RH
Storage: 35 to 95 %RH
(with no condensation)

Temperature influence

+-15% Max. of sensing distance in temperature range of -25 to +70CEL
(As the basis for sensing distance of 23CEL)

Voltage influence

+-2.5% Max. of sensing distance in rated voltage range +-15%. (As the basis for sensing distance at standard power voltage)

Insulation resistance

50 M OHM Min. at 500VDC between charged parts and the case

Dielectric strength

500 VAC 50/60 Hz for 1 minute between charged parts and the case

Vibration resistance

10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

500m/s2 for 10 times each in X, Y, and Z directions

Degree of protection

IEC60529: IP67
Company standard: Oil-proof

Applicable standard (EC Directive (Low Voltage Directive))

EN60947-1
EN60947-5-2

Applicable standard (EC Directive (EMC Directive))

EMI: EN60947-5-2
Emission Enclosure: CISPR11 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Burst: IEC61000-4-4
CE marking: Equipped

Applicable standard (CCC mark)

Not equipped

Connection method

Pre-wired models (Cable length: 5 m)

Material (case)

Stainless steel (SUS303)

Material (sensing surface)

Heat-resistant ABS resin

Accessories

Instruction manual
