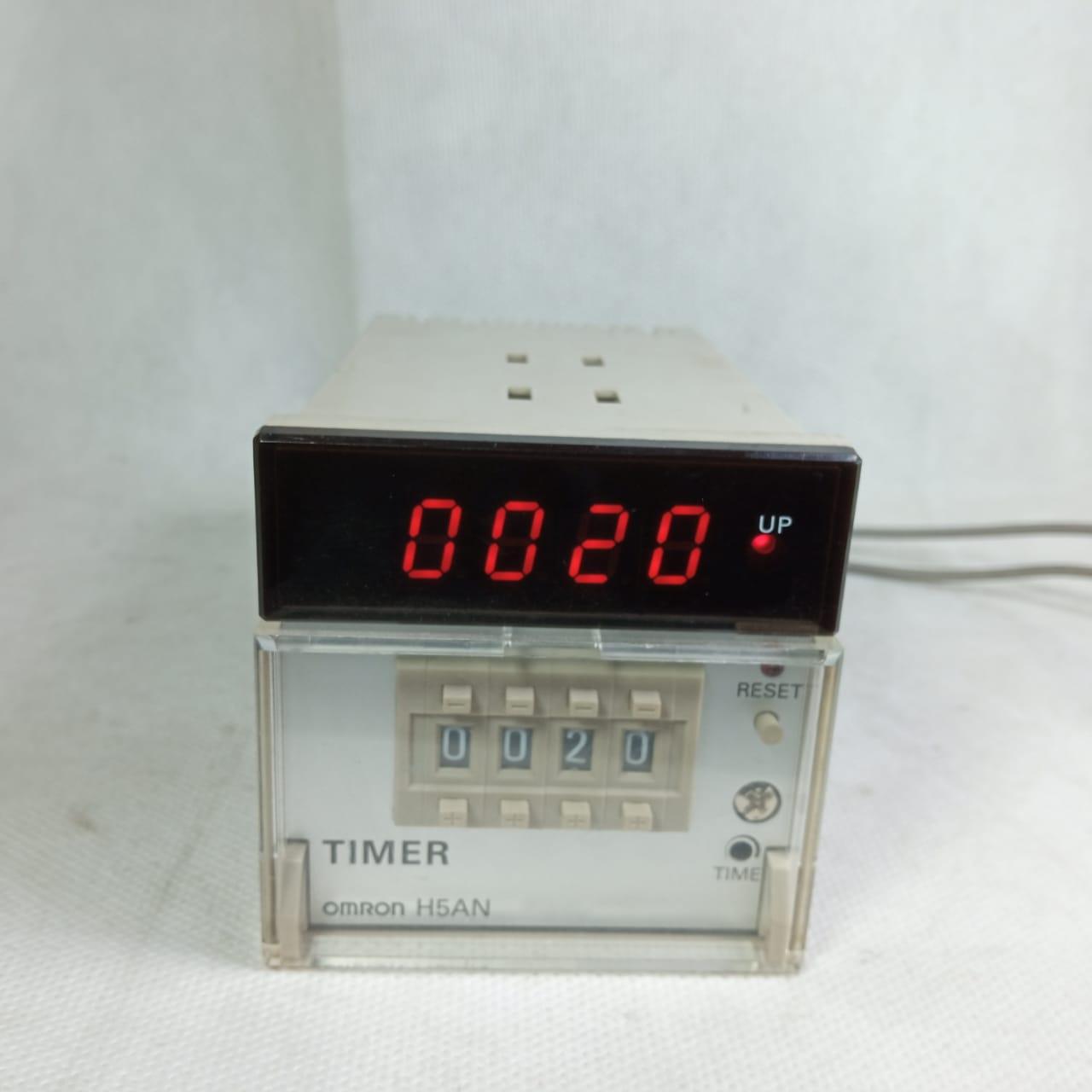

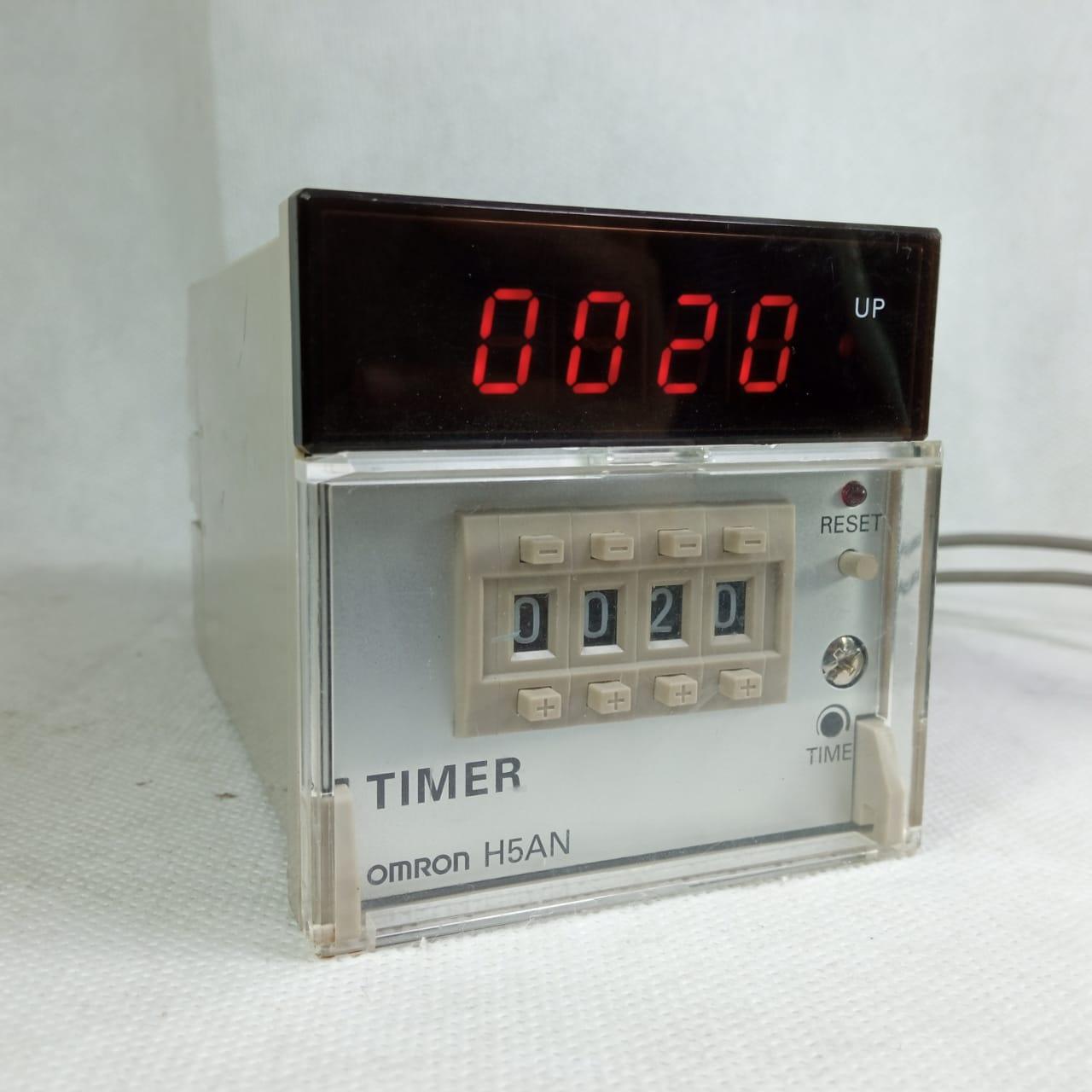

Omron Digital Timer H5AN in Pakistan

SKU:BR9961

Regular price Rs 6,000
Regular price Rs 7,000 Sale price Rs 6,000
Sale Sold out

A digital timer is a battery-operated small electronic device. The main function of this device is to count down minutes for precise timing. As compared to a traditional clock, these timers are much portable.

https://youtu.be/VYeOU_StXTo


Features:

  1. Wide time range from 1/100 seconds to 9999 hrs.
  2. Built-in power supply incorporated in timer enables direct connection of sensors and other components.
  3. Draw-out construction allows maintenance without disconnecting the wiring.
  4. Power supply freely selectable within a range of 100 to 240 VAC; a DC-operated version is also available.
  5. Control outputs of both contact type and transistor type simultaneously available.
  6. Seven operating modes (N, F, C, R, K, P, and Q) are available.

Specification:

  • Rated supply voltage: H5AN-4D: 100 to 240 VAC (50/60 Hz), 12 to 24, 48, or 100 VDC (permissible ripple: 20% max.)
  • H5AN-4DM: 100 to 240 VAC (50/60 Hz), 12 to 24 VDC (permissible ripple: 20% max.)
  • Power consumption: Approx. 10 VA (at 240 VAC), approx. 5 W (at 24 VDC)
  • Operating voltage range: 85% to 110% of rated supply voltage
  • Resetting system and gate input: Reset by power-OFF: min. power OFF time: 0.5 s * External reset or gate (common to contact and transistor inputs): min. reset input signal width: 0.02 s
  • One-shot output time: 0.1 to 1 s (adjustable)
  • Contact output: SPDT, 3 A at 250 VAC, resistive load (cosφ = 1)
  • Transistor output: Open collector, 100 mA max. at 30 VDC max.
  • Case color: Light gray (Munsell 5Y7/1)

Industryparts.pk is the Best Online Shopping website for Omron Digital Timer H5AN. Here you get Omron Digital Timer H5AN at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan

Package includes:

    1 x Omron Digital Timer H5AN

Omron Digital Timer H5AN in Pakistan
Omron Digital Timer H5AN in Pakistan
View full details

Description

A digital timer is a battery-operated small electronic device. The main function of this device is to count down minutes for precise timing. As compared to a traditional clock, these timers are much portable.

https://youtu.be/VYeOU_StXTo


Features:

  1. Wide time range from 1/100 seconds to 9999 hrs.
  2. Built-in power supply incorporated in timer enables direct connection of sensors and other components.
  3. Draw-out construction allows maintenance without disconnecting the wiring.
  4. Power supply freely selectable within a range of 100 to 240 VAC; a DC-operated version is also available.
  5. Control outputs of both contact type and transistor type simultaneously available.
  6. Seven operating modes (N, F, C, R, K, P, and Q) are available.

Specification:

  • Rated supply voltage: H5AN-4D: 100 to 240 VAC (50/60 Hz), 12 to 24, 48, or 100 VDC (permissible ripple: 20% max.)
  • H5AN-4DM: 100 to 240 VAC (50/60 Hz), 12 to 24 VDC (permissible ripple: 20% max.)
  • Power consumption: Approx. 10 VA (at 240 VAC), approx. 5 W (at 24 VDC)
  • Operating voltage range: 85% to 110% of rated supply voltage
  • Resetting system and gate input: Reset by power-OFF: min. power OFF time: 0.5 s * External reset or gate (common to contact and transistor inputs): min. reset input signal width: 0.02 s
  • One-shot output time: 0.1 to 1 s (adjustable)
  • Contact output: SPDT, 3 A at 250 VAC, resistive load (cosφ = 1)
  • Transistor output: Open collector, 100 mA max. at 30 VDC max.
  • Case color: Light gray (Munsell 5Y7/1)

Industryparts.pk is the Best Online Shopping website for Omron Digital Timer H5AN. Here you get Omron Digital Timer H5AN at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan

Package includes:

    1 x Omron Digital Timer H5AN

Omron Digital Timer H5AN in Pakistan
Omron Digital Timer H5AN in Pakistan
