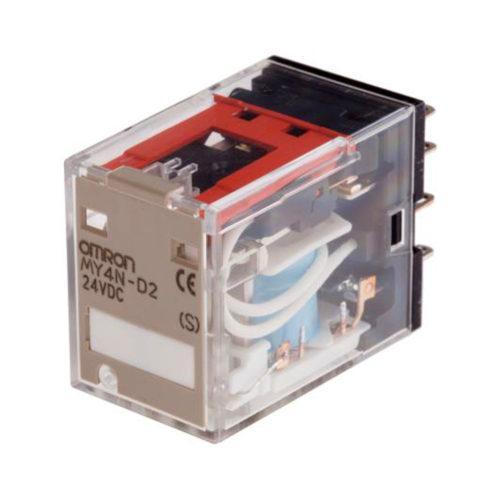

Omron 4PDT Non-Latching Relay Plug In, 24V dc Coil, 5 A
SKU:BR1767
Regular price
Rs 126
Regular price
Rs 130
Sale price
Rs 126
Unit price
per
Couldn't load pickup availability
Omron 4PDT Non-Latching Relay Plug In, 24V dc Coil, 5 A in Pakistan BR1767
Discription:
- Use PCB mounting socket 196-6153
- Use DIN rail mounting socket 196-6147
- Contact material: Au clad; Ag alloy
- Operating temperature range: -55 to +70°C
- Switching current 5A
- Switching voltage 250Vac; 30Vdc
- Dimensions: H36mm x W21.5mm x D28mm
Specifications:
| Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 900mW |
| Coil Resistance | 636 ? |
| Isolation Coil To Contact | 2kV ac |
| Contact Configuration | 4PDT |
| Mounting Type | Plug In |
| Switching Current | 5A |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 125V |
| Depth | 36mm |
| Maximum Switching Power DC | 150 W |
| Maximum Switching Power AC | 1.25 kVA |
| Length | 21.5mm |
| Height | 28mm |
Package Includes:
1 x Omron 4PDT Non-Latching Relay Plug In, 24V dc Coil, 5 A
