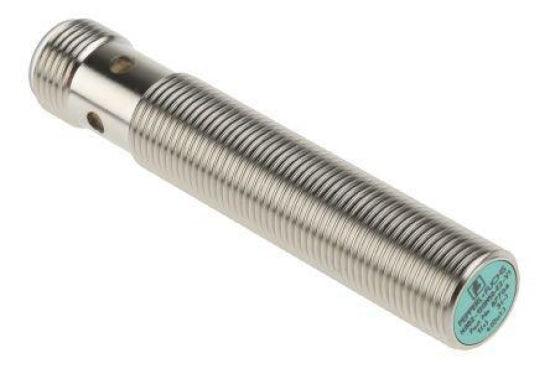

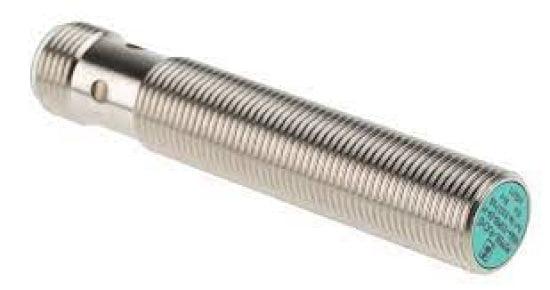

NBB4-12GM50-E0-V1 Pepperl+Fuchs, M12,NPN-NO Inductive Sensor 65mm Length,10 ? 30 V dc

SKU:BR1933

Regular price Rs 4,500
Regular price Sale price Rs 4,500
Sale Sold out

NBB4-12GM50-E0-V1 Pepperl + Fuchs, M12 , NPN-NO Inductive Sensor 65mm Length, 10 ? 30 V dc in pakistan BR1933

 NBB4-12GM50-E0-V1 Pepperl+Fuchs, M12,NPN-NO Inductive Sensor 65mm Length,10 ? 30 V dc in Pakistan.

Specification:



  • Switching function Normally open (NO)
  •
  • Output type NPN
  •
  • Rated operating distance 4 mm
  •
  • Installation flush
  •
  • Output polarity DC
  •
  • Assured operating distance 0 ... 3.24 mm
  •
  • Nominal ratings
  •
  • Operating voltage 10 ... 30 V
  •
  • Switching frequency 0 ... 800 Hz
  •
  • Hysteresis typ. 5%
  •
  • Reverse polarity protection reverse polarity protected
  •
  • Short-circuit protection pulsing
  •
  • Voltage drop ? 3 V
  •
  • Operating current 0 ... 200 mA
  •
  • Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C
  •
  • No-load supply current ? 15 mA
  •
  • Switching state indicator Multihole-LED, yellow
  •
  • Functional safety related parameters
  •


Features:



  • MTTFd 1679 a
  •
  • Mission Time (TM) 20 a
  •
  • Diagnostic Coverage (DC) 0 %
  •
  • Approvals and certificates
  •
  • UL approval cULus Listed, General Purpose
  •
  • CSA approval cCSAus Listed, General Purpose
  •
  • CCC approval CCC approval / marking not required for products rated ?36 V
  •
  • Ambient conditions
  •
  • Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
  •
  • Mechanical specifications
  •
  • Connection type Connector M12 x 1 , 4-pin
  •
  • Housing material brass, nickel-plated
  •
  • Sensing face PBT
  •
  • Housing diameter 12 mm
  •
  • Degree of protection IP67
  •




Packages Include:

 1 x NBB4-12GM50-E0-V1 Pepperl+Fuchs, M12,NPN-NO Inductive Sensor 65mm Length,10 ? 30 V dc
