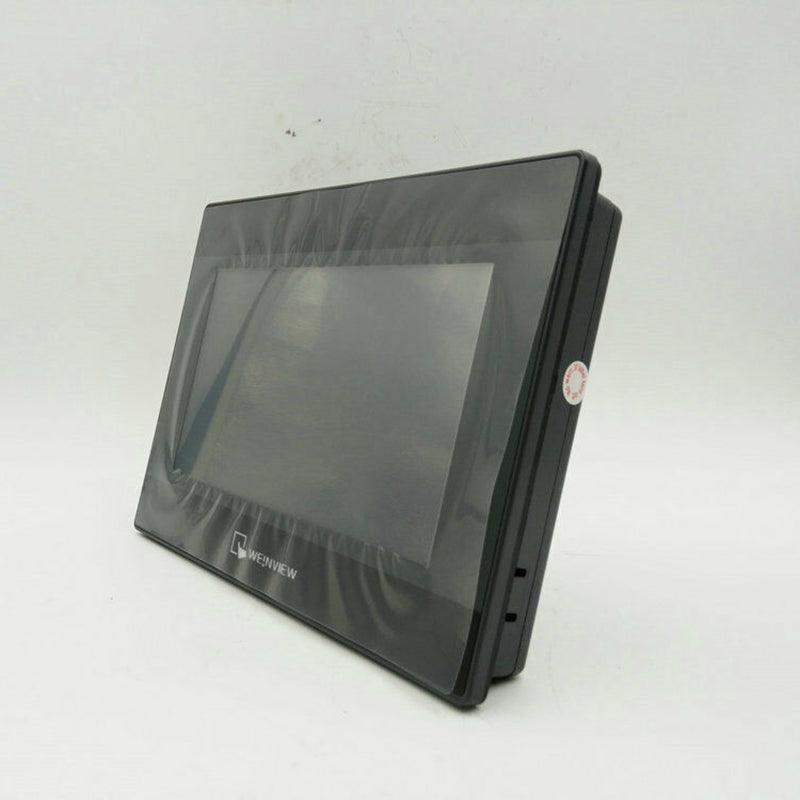

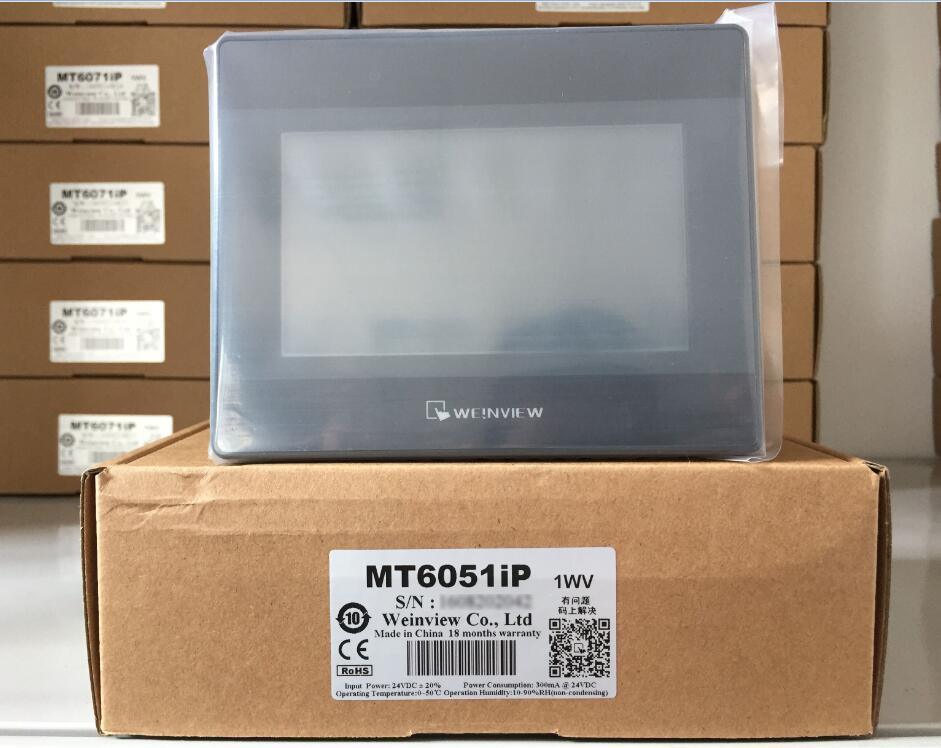

MT6051iP HMI With 4.3" TFT LCD Display in Pakistan

1 total reviews

Regular price Rs 13,700
Regular price Rs 14,900 Sale price Rs 13,700
Sale Sold out
BR1131

MT6051iP HMI With 4.3" TFT LCD Display in Pakistan BR1131

 MT6051iP HMI with 4.3" TFT LCD display

Specification:

 Display            4.3” TFT LCD  Resolution      480 x 272  Brightness     (cd/m2) 400  Contrast Ratio     500:1  Backlight Type    LED  Backlight Life Time  >30,000 hrs.  Colors            16.7M  LCD Viewing Angle (T/B/L/R) 50/70/70/70  Touch Panel Type            4-wire Resistive Type  Accuracy Active Area Length             (X)±2%, Width(Y)±2%  Memory Flash             128 MB  RAM                             128 MB  Processor                         32 Bits RISC Cortex-A8 600MHz    I/O Port:    USB Host N/A  USB Client USB 2.0 x 1 (Micro USB)  Ethernet N/A  COM Port COM1 RS-232/RS-485 2W/4W  COM3 RS-485 2W  RS-485 Dual Isolation N/A  RTC Built-in (CR2032 3V lithium battery.)    Power:    Input Power 24±20% VDC  Power Consumption 300mA@24VDC  Power Isolation Built-in  Voltage Resistance 500VAC (1 min.)  Isolation Resistance Exceed 50M? at 500VDC  Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Specification:

 PCB Coating N/A  Enclosure Plastic  Dimensions WxHxD 128 x 102 x 32 mm  Panel Cutout 119 x 93 mm  Weight Approx. 0.25 kg  Mount Panel mount    Environment:    Protection Structure NEMA4 / IP65 Compliant Front Panel  Storage Temperature -20° ~ 60°C (-4° ~ 140°F)  Operating Temperature 0° ~ 50°C (32° ~ 122°F)  Relative Humidity 10~90% (non-condensing)  Certification CE CE marked  Software EasyBuilder Pro    1131

Description

MT6051iP HMI With 4.3" TFT LCD Display in Pakistan BR1131

 MT6051iP HMI with 4.3" TFT LCD display

Specification:

 Display            4.3” TFT LCD  Resolution      480 x 272  Brightness     (cd/m2) 400  Contrast Ratio     500:1  Backlight Type    LED  Backlight Life Time  >30,000 hrs.  Colors            16.7M  LCD Viewing Angle (T/B/L/R) 50/70/70/70  Touch Panel Type            4-wire Resistive Type  Accuracy Active Area Length             (X)±2%, Width(Y)±2%  Memory Flash             128 MB  RAM                             128 MB  Processor                         32 Bits RISC Cortex-A8 600MHz    I/O Port:    USB Host N/A  USB Client USB 2.0 x 1 (Micro USB)  Ethernet N/A  COM Port COM1 RS-232/RS-485 2W/4W  COM3 RS-485 2W  RS-485 Dual Isolation N/A  RTC Built-in (CR2032 3V lithium battery.)    Power:    Input Power 24±20% VDC  Power Consumption 300mA@24VDC  Power Isolation Built-in  Voltage Resistance 500VAC (1 min.)  Isolation Resistance Exceed 50M? at 500VDC  Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Specification:

 PCB Coating N/A  Enclosure Plastic  Dimensions WxHxD 128 x 102 x 32 mm  Panel Cutout 119 x 93 mm  Weight Approx. 0.25 kg  Mount Panel mount    Environment:    Protection Structure NEMA4 / IP65 Compliant Front Panel  Storage Temperature -20° ~ 60°C (-4° ~ 140°F)  Operating Temperature 0° ~ 50°C (32° ~ 122°F)  Relative Humidity 10~90% (non-condensing)  Certification CE CE marked  Software EasyBuilder Pro    1131
